Phanteks Evolv X2 Matrix Case Bundle, Midi Tower, E-ATX, Tempered Glass + Nxlinq V2 HUB - black
This bundle combines the Phanteks Evolv X2 Matrix with the Nexlinq Hub V2, providing you with the perfect foundation for a tidy high-end showcase system. Generous interior space, vertical airflow, and an impressive 900-LED matrix make your setup a real eye-catcher – centrally controlled via the Nexlinq ecosystem.
- Showcase design – Three large glass panels display your hardware almost floating
- 900-LED matrix – Fully customisable displays for temperatures, time, text, or animations
- Back-Connect-ready – Supports ASUS BTF, MSI Project Zero & GIGABYTE Project STEALTH
- Strong vertical airflow – Up to seven 120 mm fans and 360 mm radiator support
- Central control – Nexlinq Hub V2 consolidates fan and RGB control via software

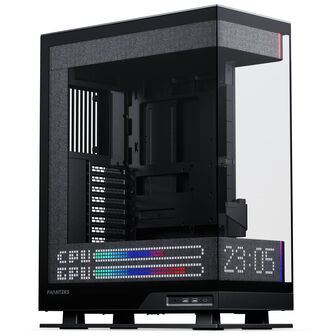

Evolv X2 Matrix: A stage for your high-end system
The spacious interior supports motherboards from Mini-ITX to E-ATX as well as graphics cards up to 380 mm in length. Eight PCIe slots allow flexible configurations. Thanks to Back-Connect compatibility, the interior remains particularly tidy as cables disappear at the back. Three large tempered glass panels provide maximum visibility of your system.
Vertical cooling design for optimal performance
The Evolv X2 Matrix relies on a vertical airflow concept: fresh air flows in from the bottom and warm air escapes upwards. Up to three 120 mm fans on the base, three on the top panel (or a 360 mm radiator), plus one 120 mm fan at the rear ensure efficient cooling. With up to 170 mm CPU cooler height, the case is also suitable for powerful tower coolers.

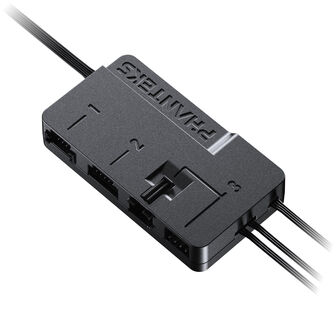

Nexlinq Hub V2: Full control over your system
The Nexlinq Hub V2 centrally connects fans and lighting. With two Linq6 ports, one 4-pin PWM header, and one 3-pin JST connector, it is flexibly usable. Mounting is easy via magnet or Velcro strip. Power supply runs through two SATA connectors, while the connection to the motherboard is made via USB or Linq6. Through Windows Dynamic Lighting or the Phanteks Nexlinq App, you can individually control fan curves and RGB effects.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
454 mm
|
|
Width
|
228 mm
|
|
Height
|
588 mm
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ATX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
380 mm
|
|
Max. GPU Width
|
250 mm
|
|
Max. PSU Length / Depth
|
250 mm
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
Fan Support
|
|
|
Max. Number of Fans
|
7
|
|
Case Features
|
|
|
I/O position
|
Side
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
Yes
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Set
|
|
|
Set
|
Yes
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
