The PHANTEKS M25 Gen2 fans are perfect for you if you want to combine maximum cooling performance with a sleek design. With their optimized blade design and high static pressure, they deliver effective cooling with a minimalist aesthetic.

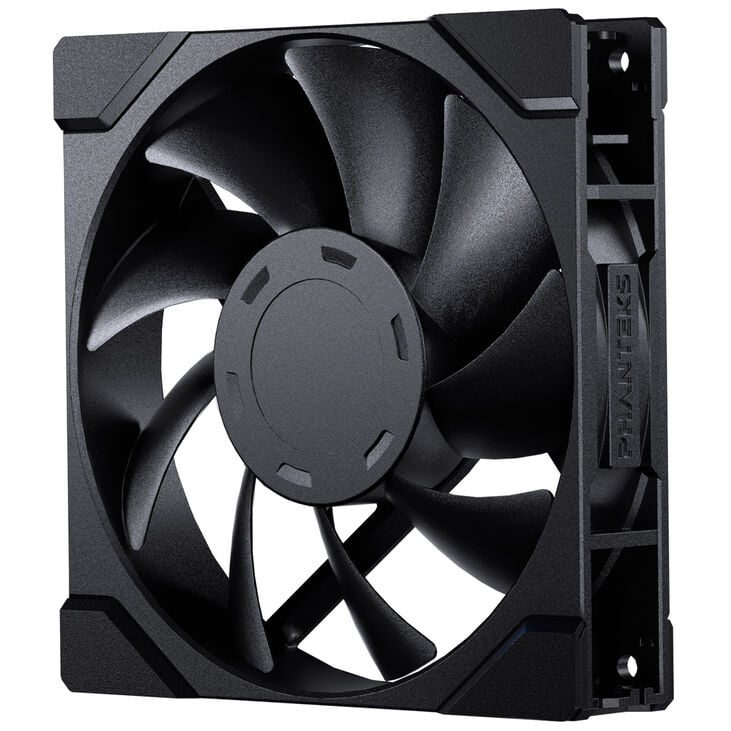

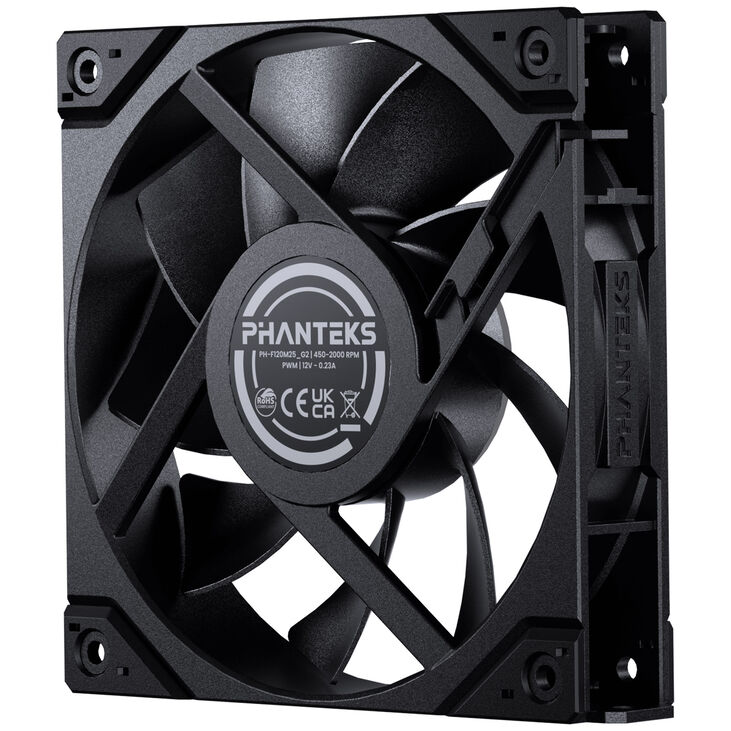

- 120 mm PWM fan in black

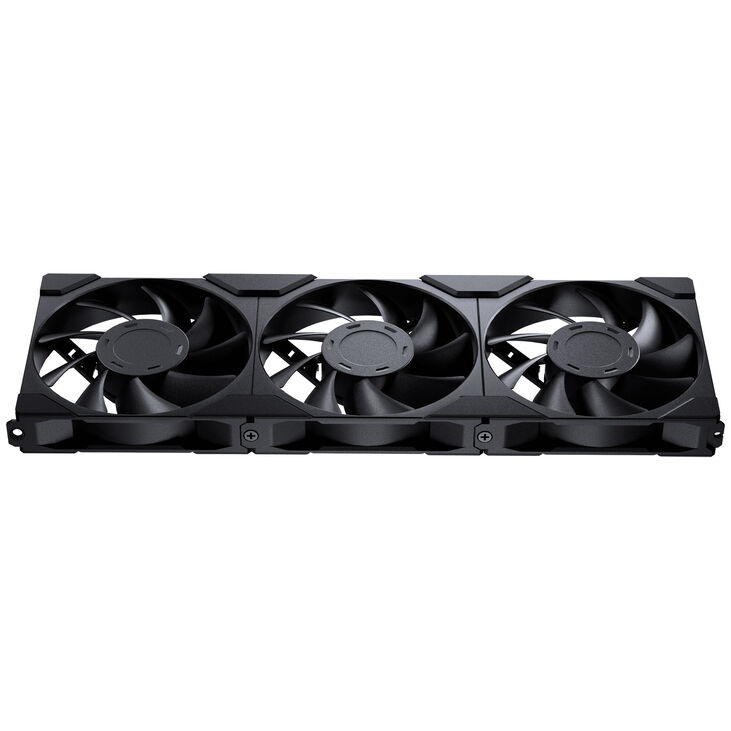

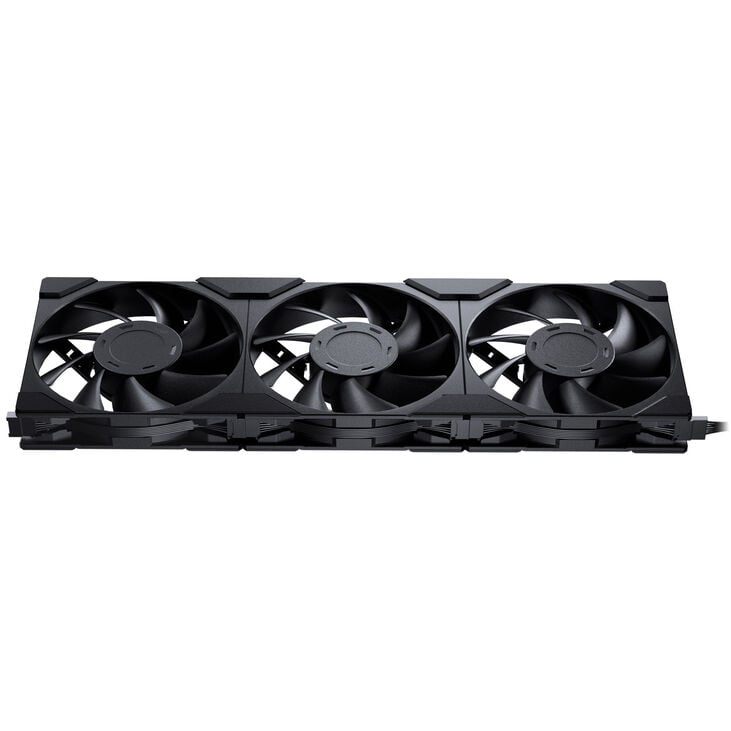

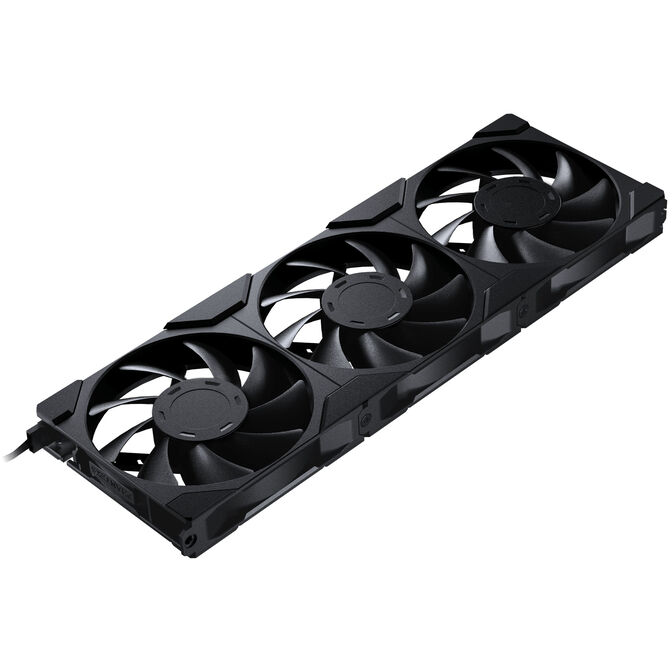

- Daisy chaining for reduced visible cables
- Optimized for use with radiators or behind mesh
- Max. 2,000 RPM speed at 35.13 dB(A)
- 123.55 m³/h max. airflow and max. 2.51 mmH2O static pressure

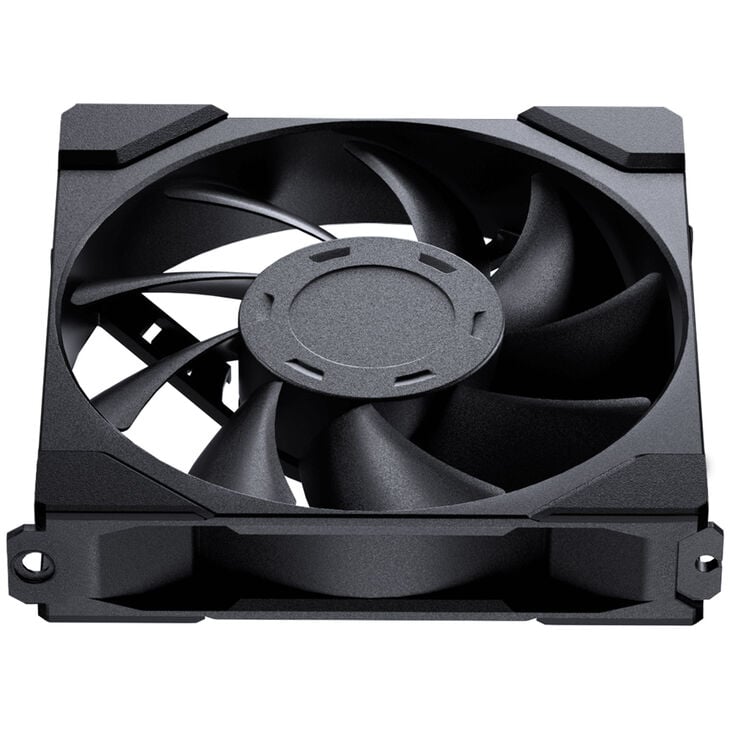

- Rubber pads at corners to dampen vibration
PHANTEKS M25 Gen2: Cooling Performance with a Minimalist Design
With the M25 Gen2 fans, your PC will not only stay cool but also look stylish. The blade design ensures excellent airflow even at low RPMs, whether mounted on a radiator or behind fine mesh.
Highly Efficient and Quiet
Loud fan noise can disrupt your gaming experience and affect your concentration. Thanks to their hydrodynamic bearings, the PHANTEKS M25 Gen2 fans operate quietly, with a maximum noise level of 35.13 dB(A). Reduced friction resistance allows higher RPMs at the same power consumption, resulting in significantly increased airflow and superior performance—perfect for intense gaming sessions.
Optimal Cooling for Your High-End Hardware
The optimized fan blades of the M25 Gen2 make them ideal for use with radiators. With a high static pressure of 2.51 mmH2O, you’ll achieve excellent airflow even at low speeds, ensuring superior cooling for your high-performance hardware. The airflow of 123.55 m³/h guarantees sufficient fresh air for your system.

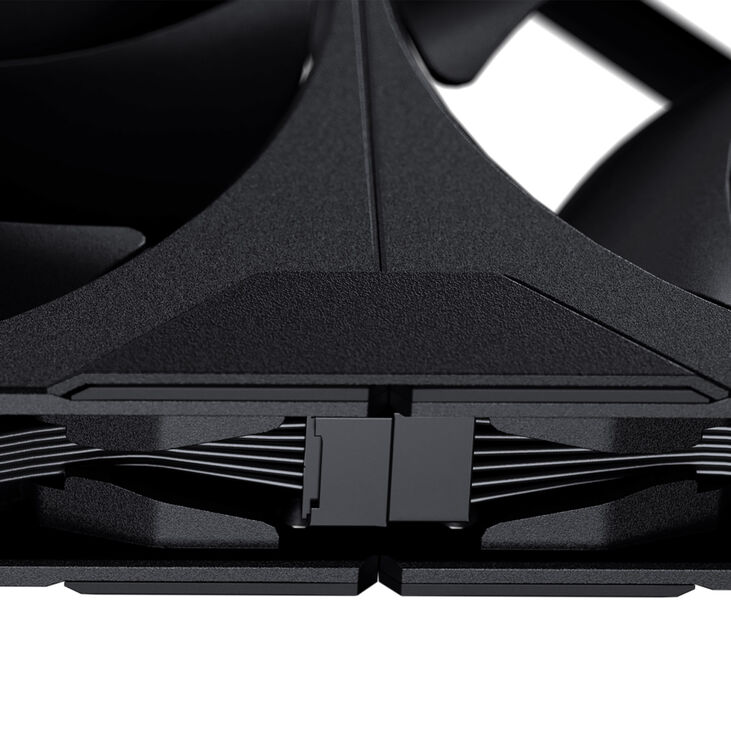

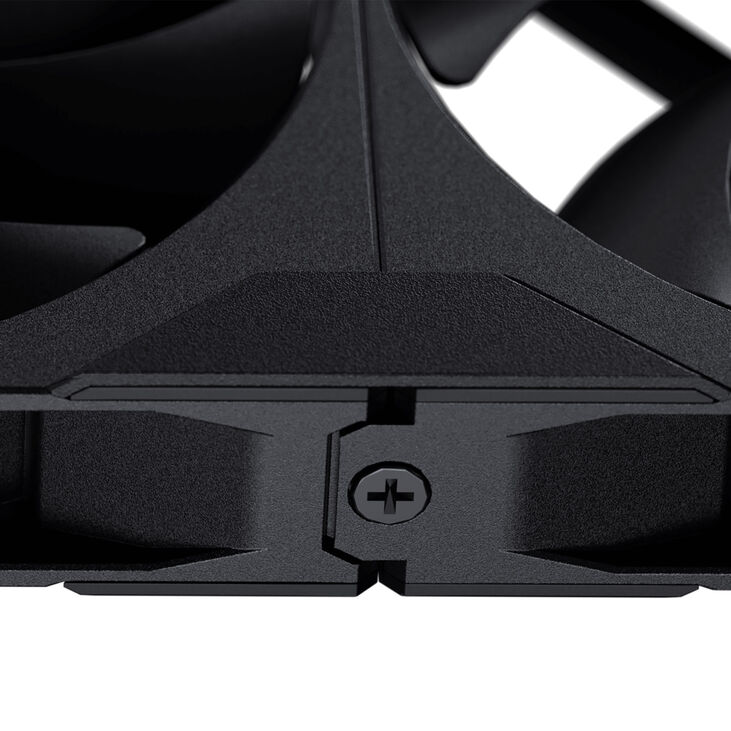

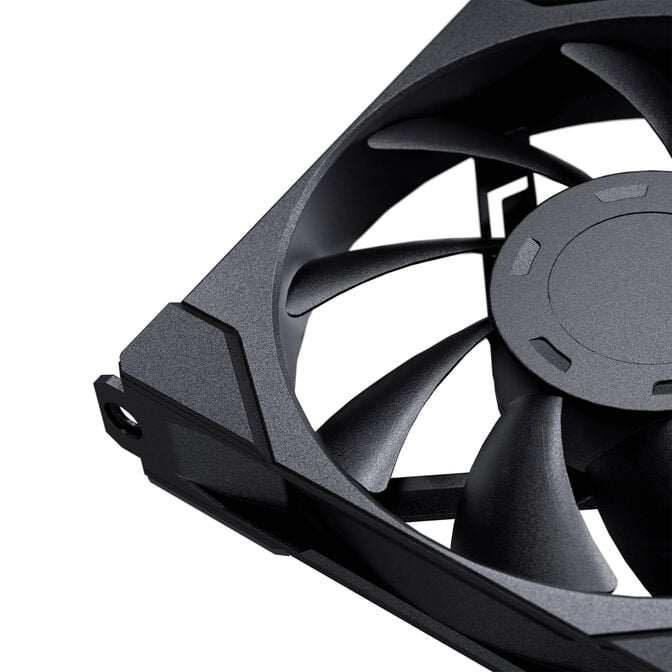

Optimized Cable Management and Rubber Pads for Quiet Operation
With optimized cable management, you can run multiple fans in a daisy chain. The rubber pads at the corners prevent vibrations from transferring to your chassis, ensuring a consistently quiet operation.
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Fan Main Colour (Rotor)
|
Black
|
Dimensions
|
|
Length / Depth
|
120 mm
|
Width
|
120 mm
|
Fan height
|
25 mm
|
Fan Specifications
|
|
Fan Size
|
120 mm
|
Fan Blade Direction
|
Standard
|
Min. Fan RPM
|
350 rpm
|
Max. Fan RPM
|
2000 rpm
|
Max. Single Fan Airflow
|
123.55 m³/h
|
Max. Static Pressure
|
2.51 mmH2O
|
Power Specifications
|
|
Rated voltage
|
12 V
|
Starting voltage
|
7 V
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
35.13 dB(A)
|
Internal Ports
|
|
Fan connectors
|
LINQ6
|
Materials
|
|
Materials
|
PBT
|
Lighting
|
|
Lighting / RGB
|
No
|
