PHANTEKS NV Series NV7 E-ATX Case, Tempered Glass, D-RGB - black

Name: PHANTEKS NV Series NV7 E-ATX Case, Tempered Glass, D-RGB - black
Brand: PHANTEKS
SKU: GEPH-156
Price: 199.90 EUR
Availability: InStock

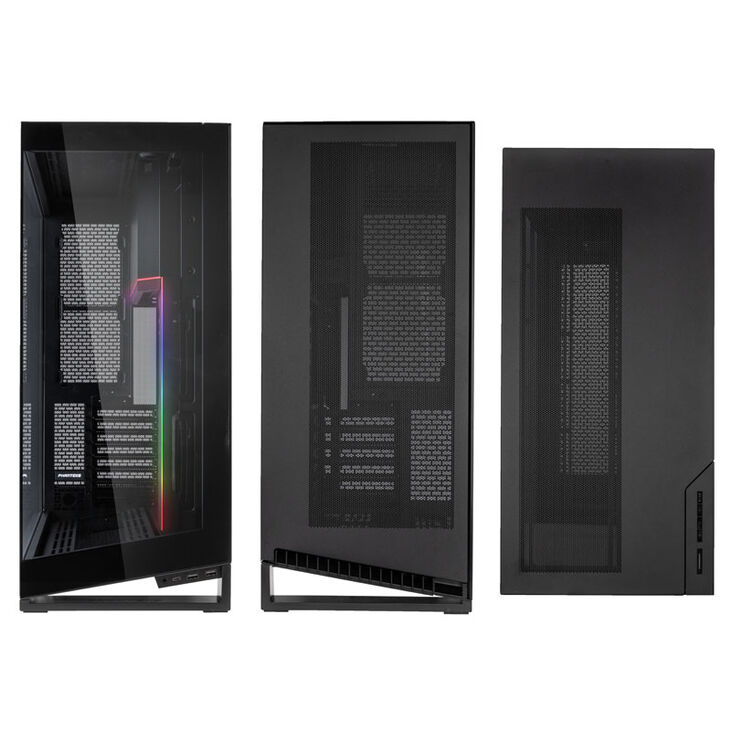

Noble Big-Tower from PHANTEKS in black, for mainboards up to E-ATX, front and side panel made of tempered glass, rear with mesh on hinges, 3x 360 and 1x 240 radiator possible

199,90 €

incl. VAT, add. delivery costs starting from 4.99€

| sku GEPH-156

| EAN 0886523302780

| MPN PH-NV723TG_DBK01

| Manufacturer PHANTEKS

In Stock

Description

Full tower PC case with unique features and design
Tempered glass front and side panels to showcase your hardware
Supports E-ATX motherboards up to 277 mm wide
Extensive cooling with up to twelve fans or four radiators
450 mm GPU clearance, support bracket included
Hinged rear mesh panel with extnsive cable management
Two ARGB strips frame the motherboard, controller included

PHANTEKS NV7: Full Tower for High-end Hardware

Taking design to the next level, PHANTEKS presents the NV7 showcase full tower to introduce a brand-new series of cases that combine form and function in a unique way. The NV7's breathtaking aesthetics, well-thought-out functionality, and distinct features result in an unparalleled gaming case, perfect for modern hardware. Whether you want air or water cooling, the NV7 offers plenty of room for both, making it the ideal solution for overclockers with a desire for striking design.

Setting the Picture for Your Gaming Build

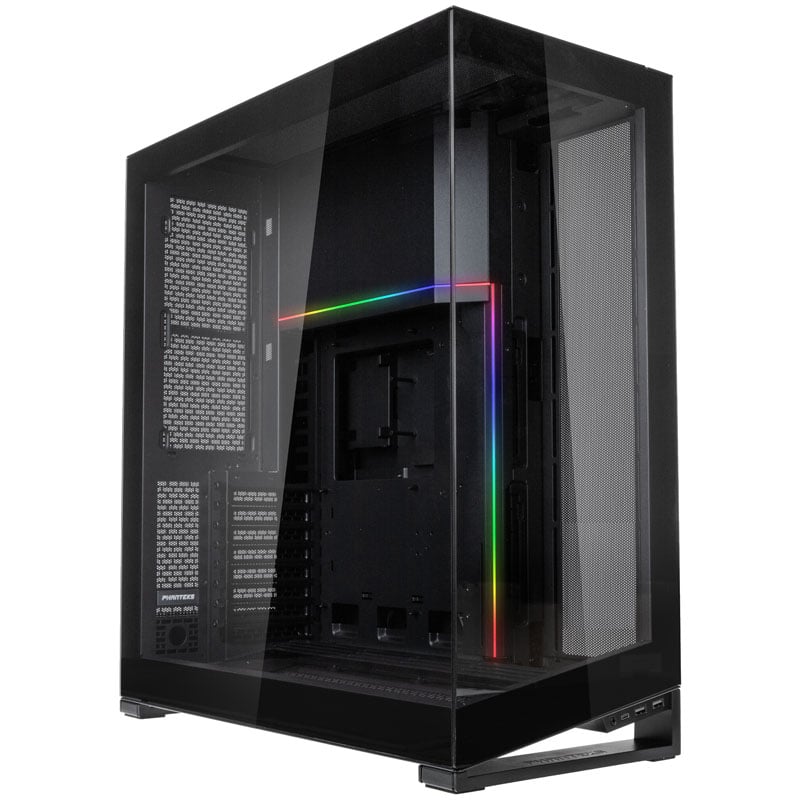

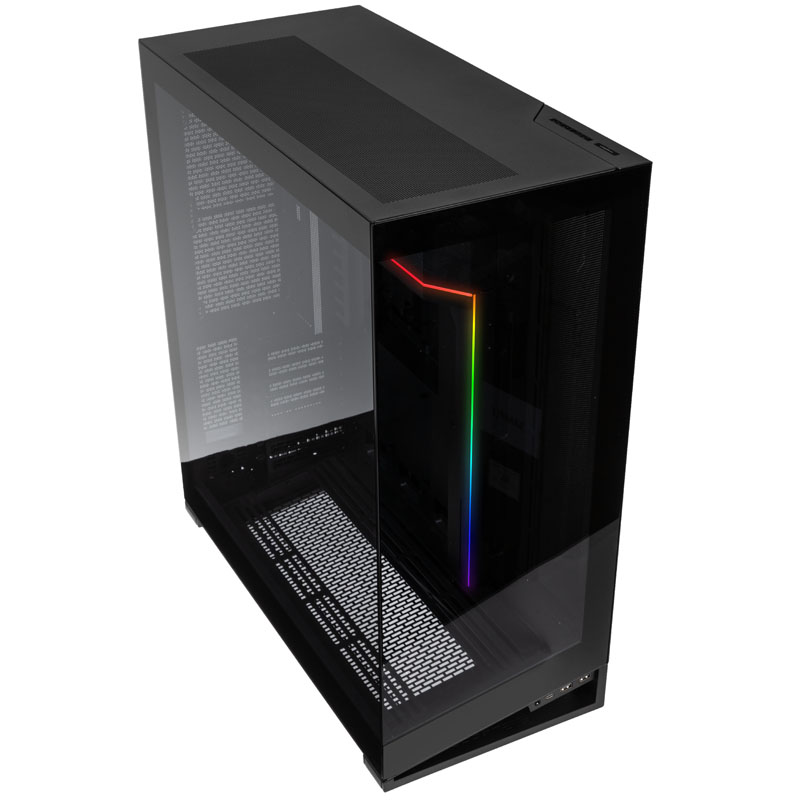

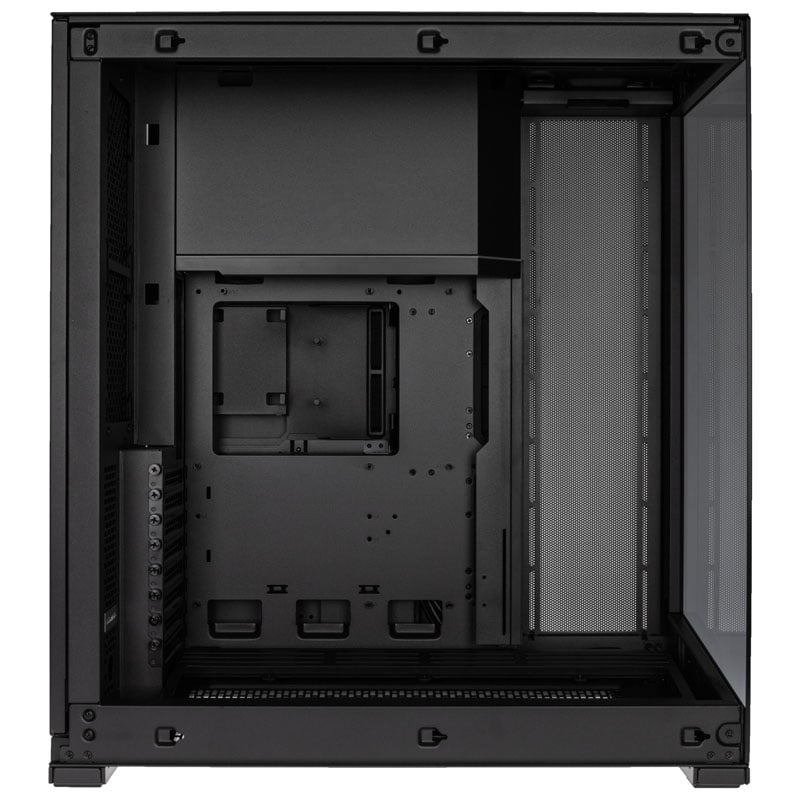

The Phanteks NV7 is designed as a spacious showcase, serving as a picture-perfect frame for a motherboard up to E-ATX in size. The tempered glass panels at the side and front, with their broad silk printing frame, offer a breathtaking view of the interior, at the same time hiding the sturdy chassis frame. The panels fit together almost seamlessly for an unobstructed view.

Perfect Look from all Sides

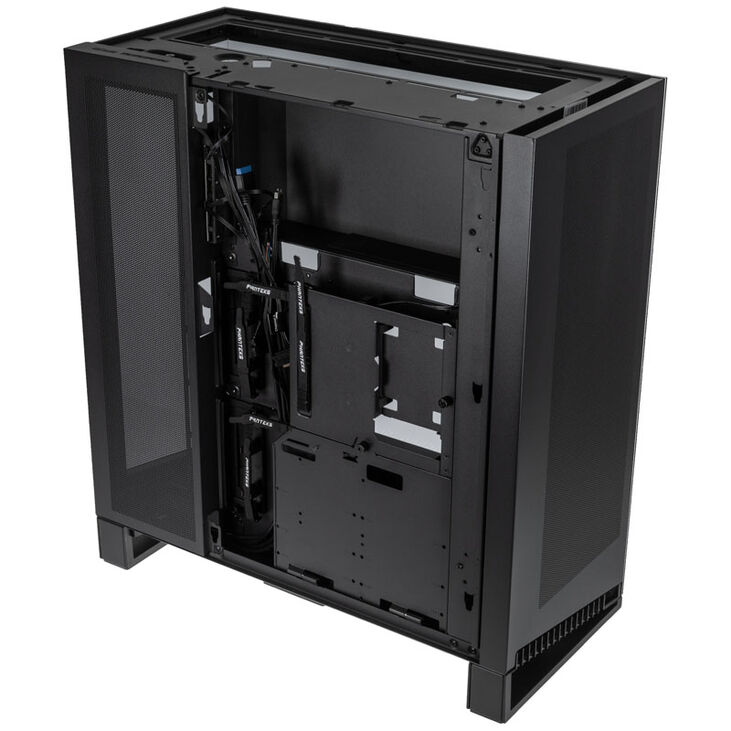

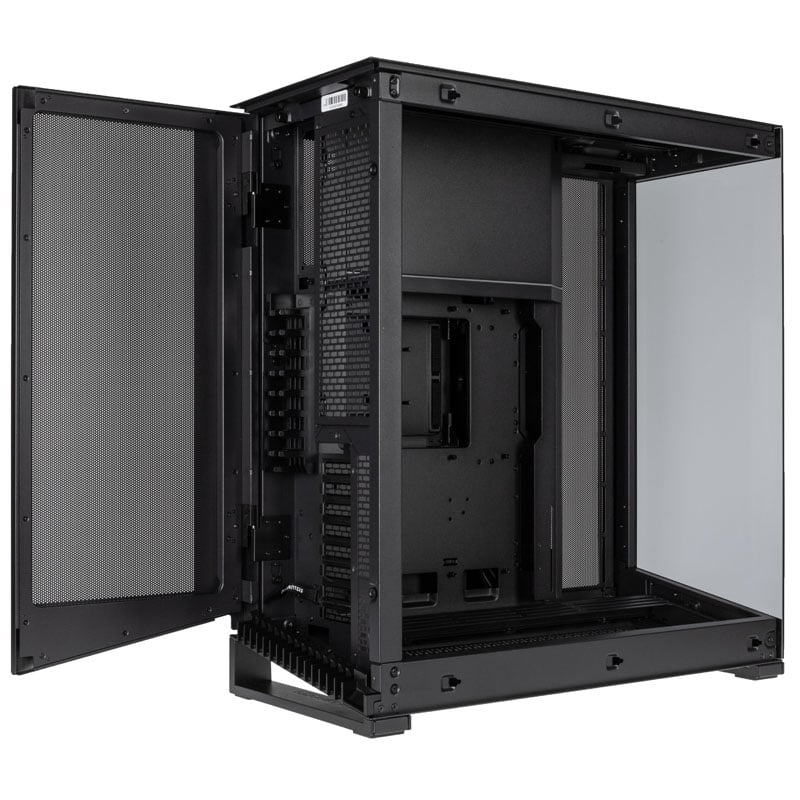

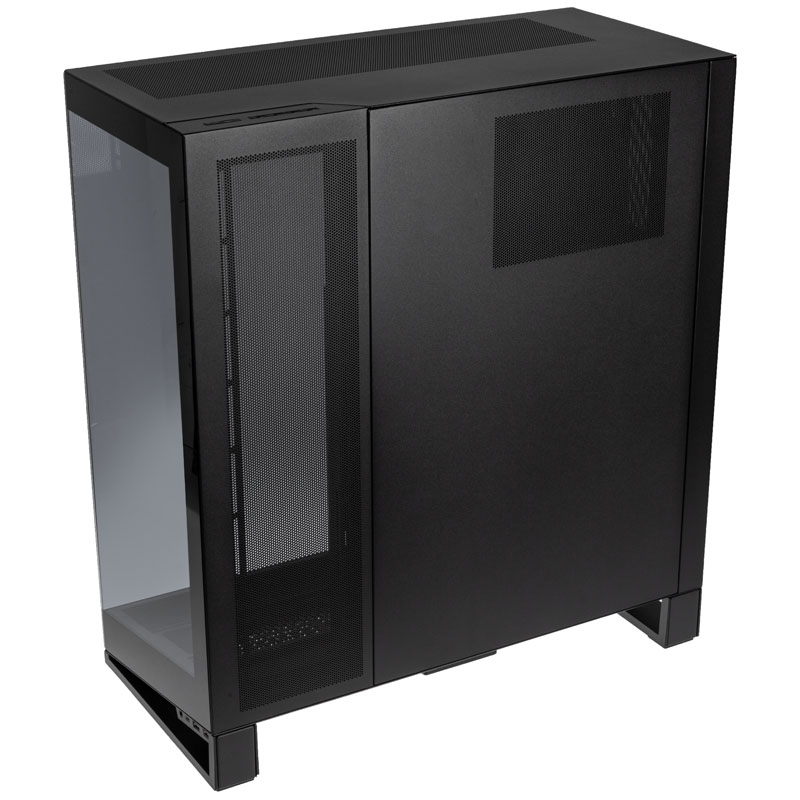

Having a hinged mesh panel at the rear of the case is one of the distinct features of the NV7. It hides the traditionally messy back, letting you place the full tower anywhere you want, without tainting your perfect setup. With this feature comes an extensive cable management. It lets you route your cables in a shaft and individually through a grill at the bottom of the rear door. There is also a hidden grommet underneath the case for further cable routing to the outside.

Plenty of Options for Air and Water-cooling

Up to four 120 mm fans at the side, three at the top, three at the bottom, and uniquely, two at the rear, further help highlight the motherboard and your high-end hardware at the centre of your build. Alternatively, you can place 360 mm radiators at the top, side, and floor, and even a 240 mm radiator at the rear, if you prefer water-cooling. If you need more cooling for your next-gen graphics card, you can install three 140 mm fans or a 280 mm radiator on the floor instead.

For Perfectly Cooled Next-Gen GPUs

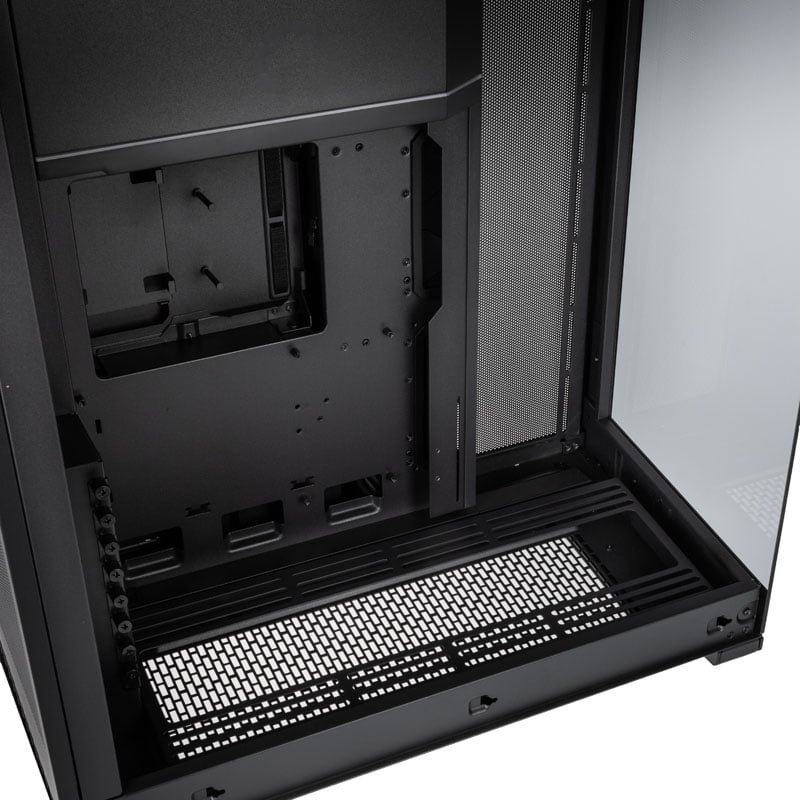

The sloped floor provides plenty of clearance of up to 65 mm, creating an immense intake area. Combined with the high-quality dust filter, this provides the best cooling performance for your graphics card, which can be up to 450 mm in length. An included bracket supports lengthy GPUs when installed horizontally. With an optional bracket, the GPU can be installed vertically, if you wish.

Sophisticated Cable Management

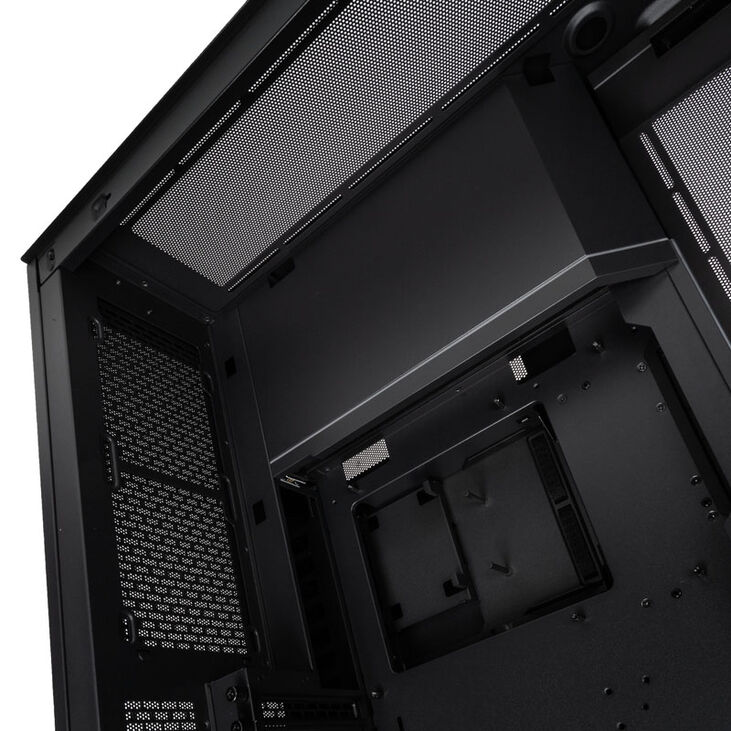

The PSU, with a maximum length of 255 mm, is placed at the top rear of the case, making it easier to route your cables to the motherboard, graphics card, and other hardware components, whilst keeping them hidden from sight at the same time. You can install up to two HDDs or six SSDs behind the motherboard backplate, all nicely kept from view as well.

D-RGB Controller Included

Included is a dual-channel D-RGB controller with four ports in total, to which two LED strips are connected, that decorate the PSU cover and right side of the motherboard backplate. You can choose a channel of the controller, and then adjust speed, colour or mode of the connected lighting with the help of four buttons at the I/O panel, or sync via your motherboard software.

Modular I/O Panel

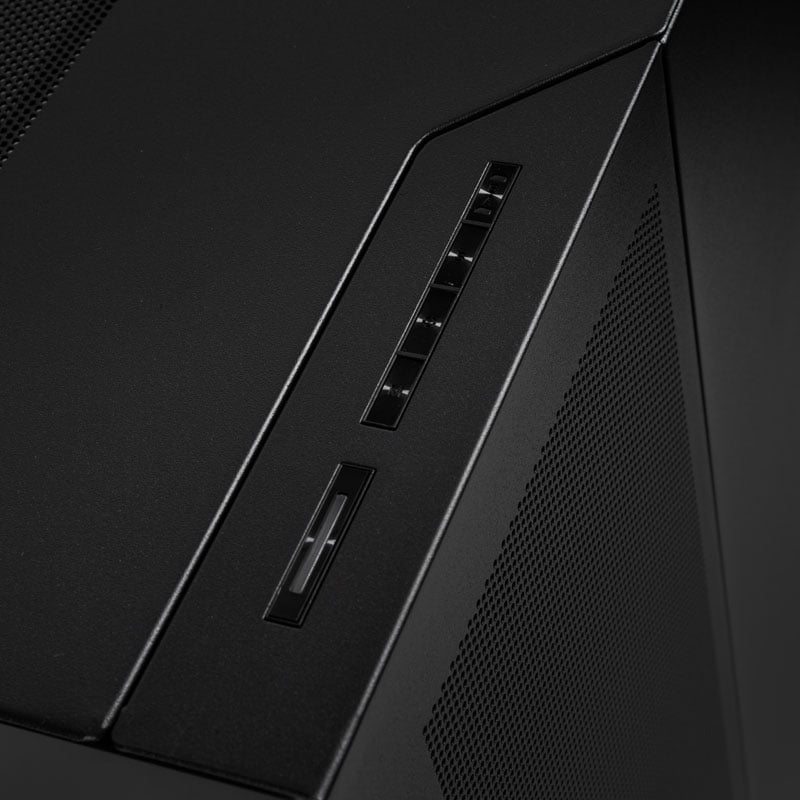

The I/O panel also provides a USB-C 3.1 and two USB-A 3.0 ports besides the usual power button, and combined headphone and microphone jack. By default, it is placed at the bottom front of the NV7. You can also remove it and place it at the rear of the case for an immaculate front look.

Technical Details:

Dimensions: 253 x 586 x 532 mm (W x H x D)
Material: Steel, Tempered Glass
Weight: 16.9 kg
Colour: Black
Form factor: E-ATX up to 277 mm, ATX, Micro-ATX, Mini-ITX
Fan Support:
Side: 4x 120 mm
Top: 3x 120 mm
Floor: 3x 120 / 140 mm
Rear: 2x 120 mm
Pre-installed: none
Radiator Mountings:
Side: 1x max. 360 mm (max. 132 x 440 mm, 65 mm depth)
Top: 1x max. 360 mm (max. 132 x 440 mm)
Floor: 1x max. 280 / 360 mm (max. 140 x 440 mm)
Rear: 1x max. 240 mm (max. 132 x 320 mm)
Dust filters: Rear, side, floor
Drive Bays:
2x 3.5" (Motherboard backplate, 1x if all 2.5" slots are used)
6x 2.5" (Motherboard backplate, 4x if both 3.5" slots are used)
PCI slots: 8
I/O Panel:
1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
2x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x 3.5 mm HD-Audio
1x Power button
1x D-RGB Mode button
1x D-RGB Colour button
1x D-RGB Speed button
1x D-RGB Channel button
GPU Clearance:
450 mm length
185 mm width
CPU Cooler Clearance: max. 185 mm
PSU Clearance: max. 255 mm
Scope of delivery:
1x SSD/Cable bracket
1x SSD/HDD bracket
1x Two-channel D-RGB controller
1x Front-I/O module
1x Top LED strip
1x Side LED strip
1x GPU support bracket
2x Airflow covers
D-RGB motherboard adapter cable
6x Cable ties
1x Microfiber cloth
1x Screw assortment box

Specification

Colour
Primary Colour	Black
Secondary Colour	Transparent
Dimensions
Width	253 mm
Depth	532 mm
Height	586 mm
Weight	16.9 kg
Display
Display Included	No
Case
Case Type	Full Tower
Motherboard Support
Compatible motherboard formats	ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-CEB
Max. Motherboard Format	E-ATX
Internal Dimensions
Max. CPU Cooler Height	185 mm
Max. GPU Lenght	450 mm
Max. PSU Length / Depth	255 mm
Power Supply
PSU included	No
Power Supply Position	rear top
Fan Support
120 mm fans	12
140 mm fans	3
Radiator Support
Max. Radiator Compatibility	3x Triple (360 mm)
Drive Bays
2.5 inch internal drive bay	10
3.5 inch internal drive bay	3
Hot swap drive bays	No
External Ports
USB 3.2 (external) Type C	1
USB 3.1 (external) Type C	1
USB 3.0 (external) Type A	2
Audio outputs & inputs	1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
Card reader	No
Case Features
I/O position	Front
Side panel	closed, with mesh
Front door	No
Cable Management	Yes
Filters included	Yes
Mainboard slide / tray	Yes
Remote included	No
Transport system	No
Expansion Slots
Expansion slots / PCI slots	8
Features
Housing feedthrough	No
Materials
Materials	Steel, Tempered Glass
Lighting
Lighting	Yes
Fan / RGB control	Yes
Lighting Colour	RGB
Product series
Product Series/Family	NV7
Additional Contents
Included fans	None

Awards

Phanteks NV7 - Showcase-Gehäuse mit geräumigem Innenraum

+ viele Kabelmanagment-Optionen
+ großzügiger Innenraum
+ schickes Design mit hochwertiger Verarbeitung
+ clevere Features für einen möglichst cleanen Look
+ massig Platz für Lüfter und Radiatoren
+ perfekter Blick auf die verbaute Hardware

Award

TechPowerUp - Editor's Choice

+ Einzigartiges Kabelmanagementsystem auf der Rückseite des Gehäuses
+ Viele gut platzierte Klettstreifen im Inneren für einfaches Kabelmanagement
+ IO-Halterung, die an der Rückseite des Gehäuses angebracht werden kann
+ Kann problemlos 12 Lüfter aufnehmen
+ Platz für drei einzelne Radiatoren zur gleichen Zeit
+ Einfüll- und Ablassöffnungen - perfekt für custom Wasserkühlung

Aus dem englischem Übersetzt:
"Insgesamt ist das Phanteks NV7 ein ausgezeichnetes Gehäuse für diejenigen, die den Platz wirklich nutzen wollen. Wenn Ihnen das Gehäuse nicht ganz gefällt, lohnt es sich vielleicht, noch ein wenig zu warten, um zu sehen, was Phanteks für diese Produktlinie noch auf Lager hat."
