- Mini case with tempered glass on the side
- Optimal cooling thanks to space for up to nine fans
- Space for a 360mm radiator
- Graphics cards up to a length of 430mm
- Maximum CPU cooler height of 175mm
- Includes three Phanteks D30 120mm ARGB fans
Case bundle: Phanteks XT M3 PC case including three 120 mm ARGB fans
With this case bundle, you get everything you need for optimal airflow for your new gaming system. Despite its compact size, the case offers enough space for the latest hardware and efficient cooling solutions. This bundle already includes three 120mm PWM fans that ensure your gaming components are optimally cooled.
Compact mini case with generous interior space
With the Phanteks XT M3, you get a space-saving mini case that is suitable both for an entry-level gaming system and a high-end gaming PC. It impresses with excellent cooling options, support for motherboards with back-connect design, and tidy cable management.
High-end fans for optimal cooling
The three included D30 120mm fans provide sufficient cooling for your high-end hardware with up to 2,000 RPM, high airflow, and strong static pressure. Thanks to the adjustable RGB lighting, you can customise the lighting of your gaming PC as you wish.
|

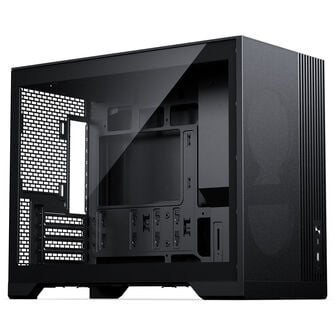

Phanteks XT M3 PC Case, Mini Case, mATX, Tempered Glass - black
|
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
460 mm
|
|
Width
|
235 mm
|
|
Height
|
370 mm
|
|
Weight
|
5.57 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
175 mm
|
|
Max. GPU Length
|
430 mm
|
|
Max. GPU Width
|
175 mm
|
|
Max. PSU Length / Depth
|
150 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Front)
|
120mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x)
|
|
Max. Number of Fans
|
9
|
|
120 mm fans
|
9
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Triple (360 mm)
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
1
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
1
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Product Series
|
|
|
Product Series/Family
|
XT
|
|
Additional Contents
|
|
|
Fans Included
|
No
|
|
Included fans
|
None
|
|

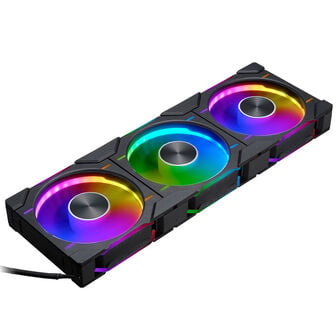

PHANTEKS D30 PWM Regular Airflow D-RGB fan, Triple Pack - 120mm, black
|
|
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
White
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
120 mm
|
|
Width
|
120 mm
|
|
Fan height
|
30 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Fan mounting size
|
120 mm
|
|
Fan Blade Direction
|
Standard
|
|
Fan Bearing
|
Fluid Dynamic Bearing
|
|
Min. Fan RPM
|
250 rpm
|
|
Max. Fan RPM
|
2000 rpm
|
|
Max. Single Fan Airflow
|
64.3 cfm
|
|
Max. Static Pressure
|
3.01 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
12 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
30.2 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
3
|
