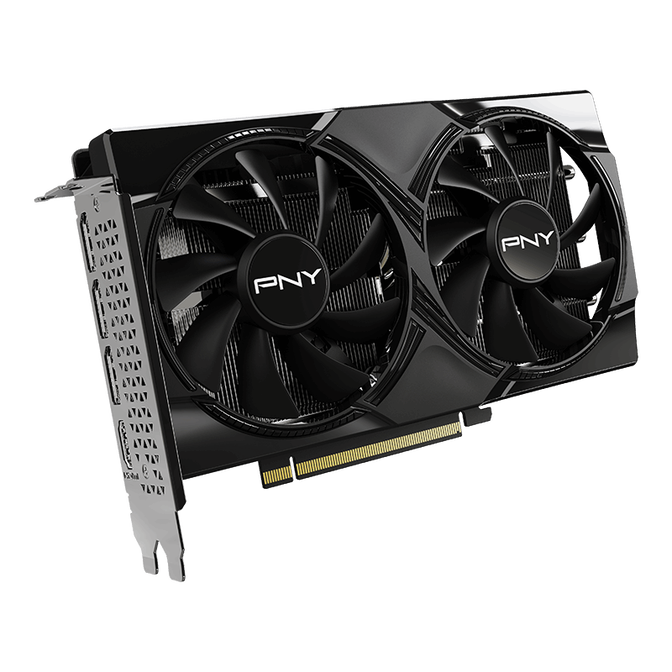

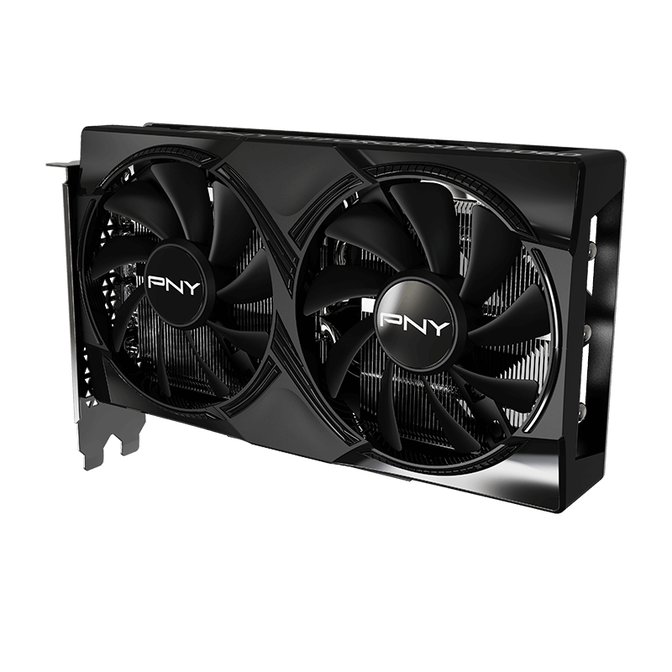

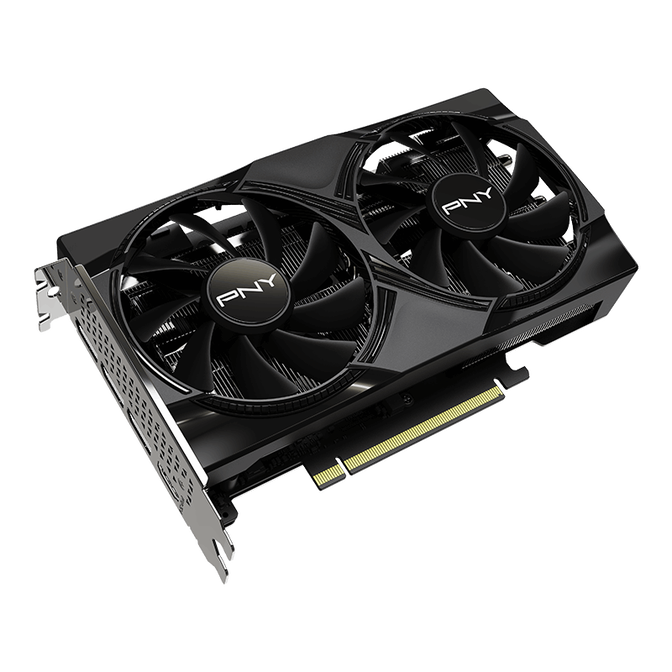

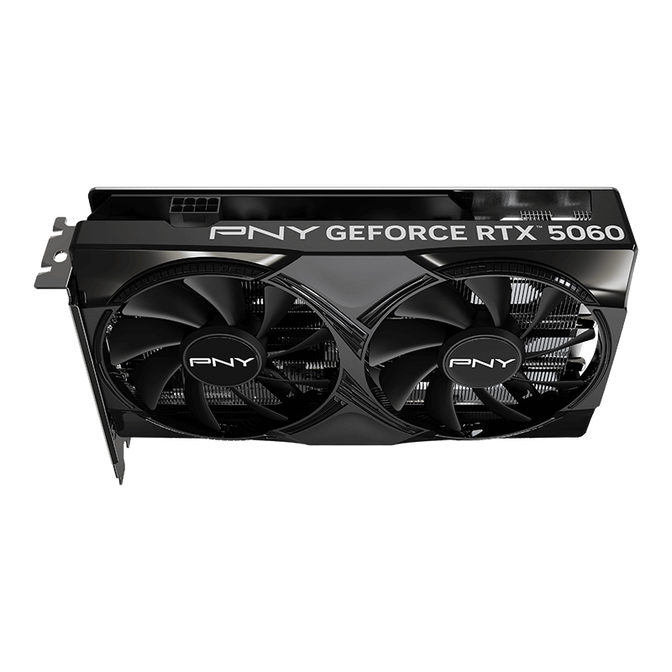

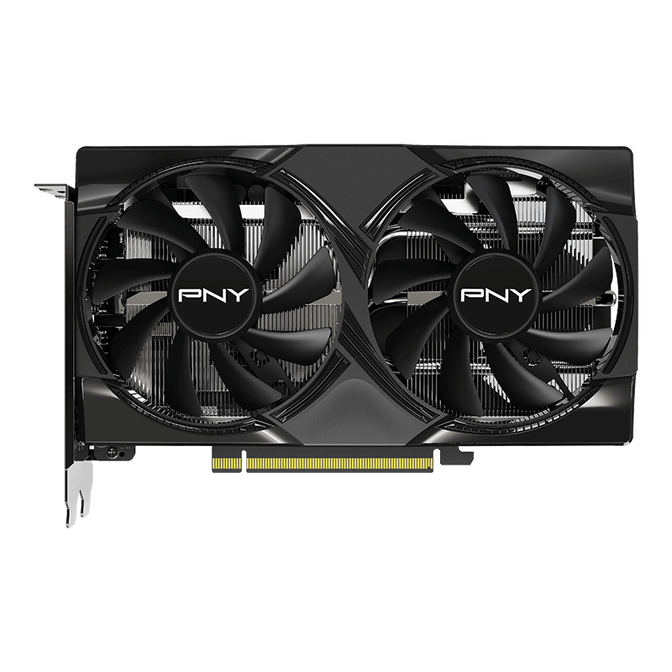

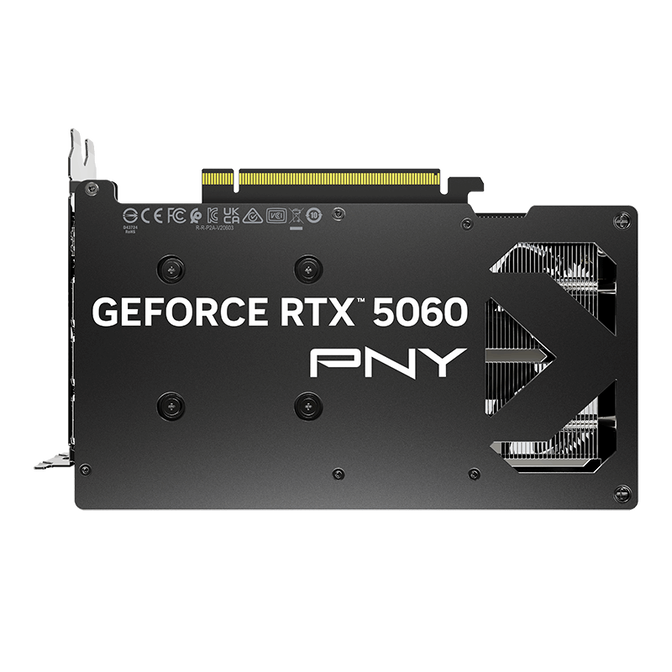

PNY GeForce RTX 5060 OC Edition, 8192 MB GDDR7
NVIDIA GeForce RTX 5060 graphics card, with 2,280/2,535 MHz base/boost clock, 8 GB GDDR7 VRAM with 28 GHz effective memory clock, dual-fan cooling design
352,95 €
Incl. VAT, add. delivery costs starting from 4.99€
- Efficient dual-fan cooler design with semi-passive cooling
- High base GPU clock: 2,280 MHz
- Strong GPU boost clock: 2,535 MHz
- Next-generation graphics memory: 8 GB GDDR7
- Memory clock: 1,750 MHz (effective 28 GHz)
- Solid 128-bit memory interface
- Memory bandwidth of 448 GB/s
- For Full HD gaming: 3,840 CUDA cores (shaders)

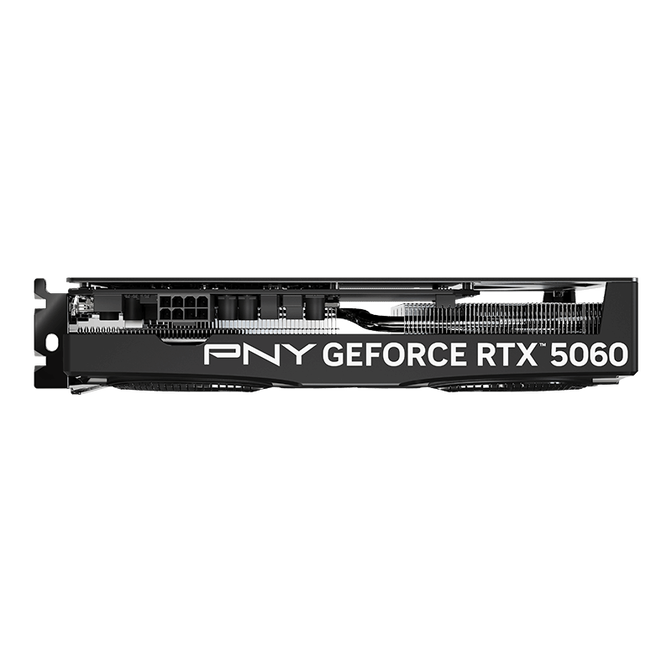

- Additional PCIe power connectors: 1x 8-pin

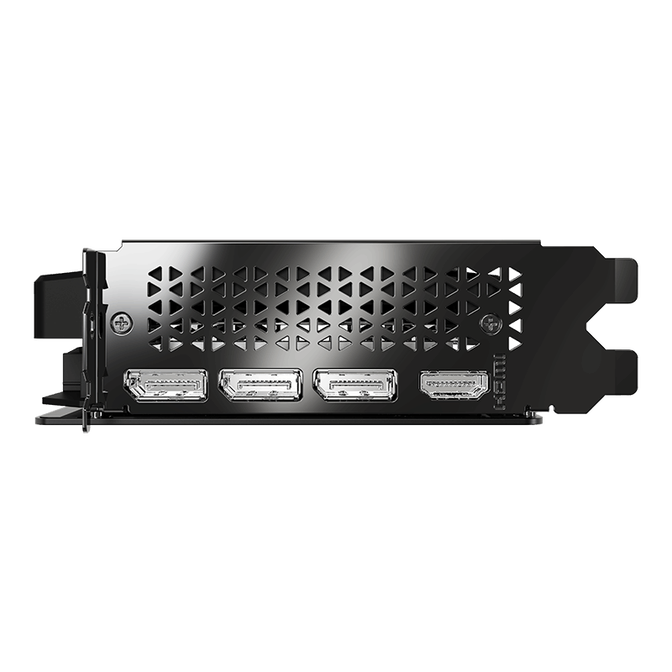

- Video outputs: 3x DP 2.1b, 1x HDMI 2.1b
- Supports DLSS 4 and NVIDIA Reflex 2
The GeForce RTX 5060 Graphics Card in Detail
With the GeForce RTX 5060, you can play current games in Full HD with stable frame rates. Thanks to the GDDR7 graphics memory and the powerful graphics processor based on NVIDIA’s new Blackwell architecture, you will experience smooth gaming at medium graphics settings.
Graphics-intensive games are no problem for the RTX 5060 either: with the AI-powered technologies DLSS 4 and Multiframe, you achieve increased frame rates and smoother visuals. Ray tracing enables extremely realistic lighting and shadow effects.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
200 mm
|
|
Width
|
120 mm
|
|
Height
|
40 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5060
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5060
|
|
Graphics Chip
|
GB206-250
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
3840
|
|
Tensor Cores
|
120
|
|
Raytracing Cores / Ray Acceleratorss
|
30
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
8
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
448
|
|
GPU Memory Clock (MHz)
|
1750
|
|
GPU Memory Clock Effective (Gbps)
|
28
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2280 MHz
|
|
Max. GPU Clock (Boost)
|
2535 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
2
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
