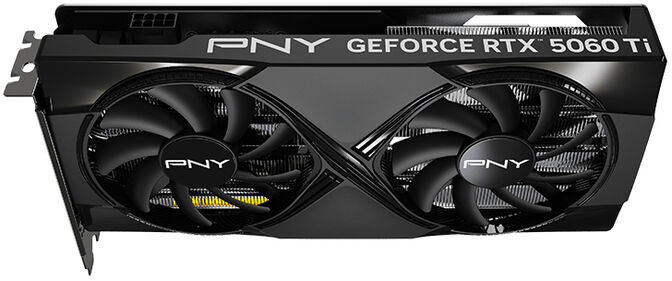

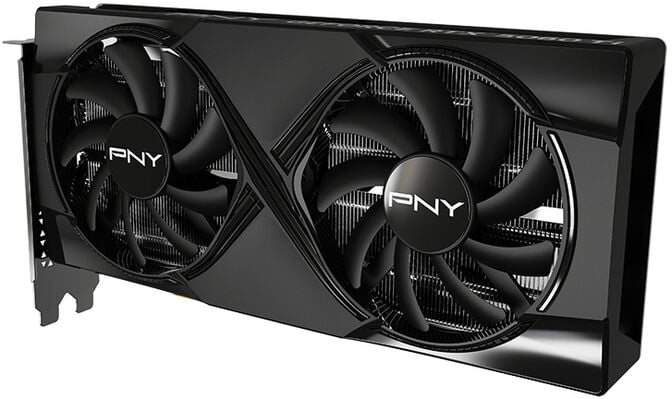

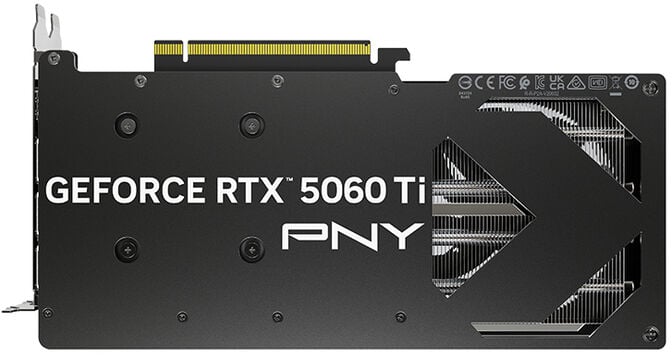

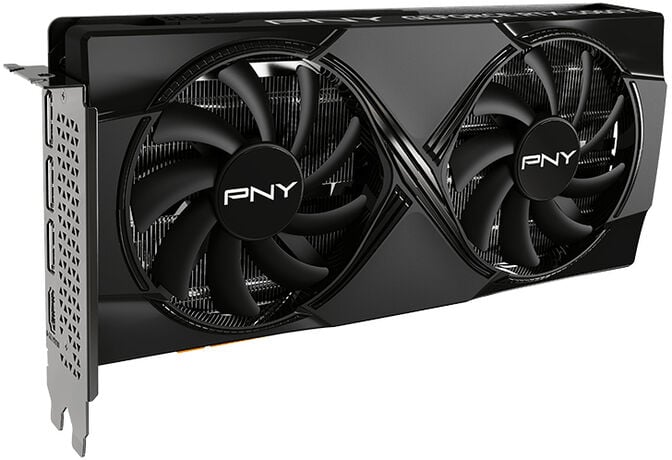

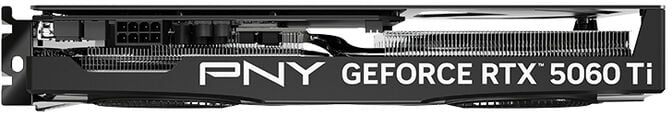

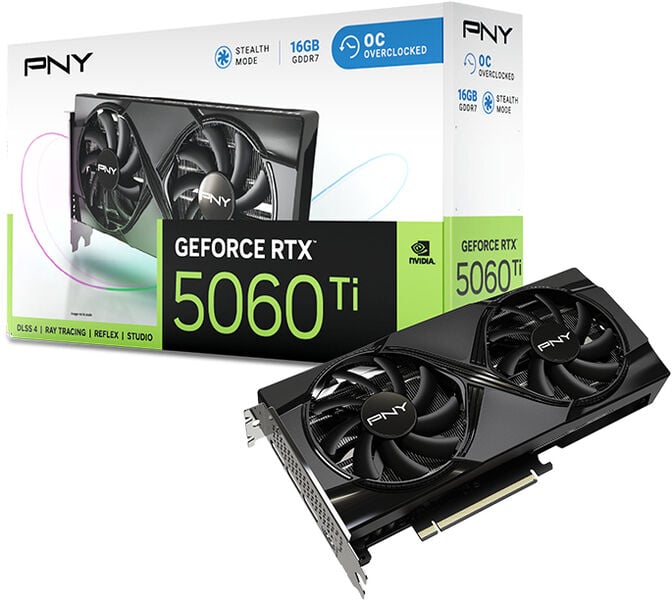

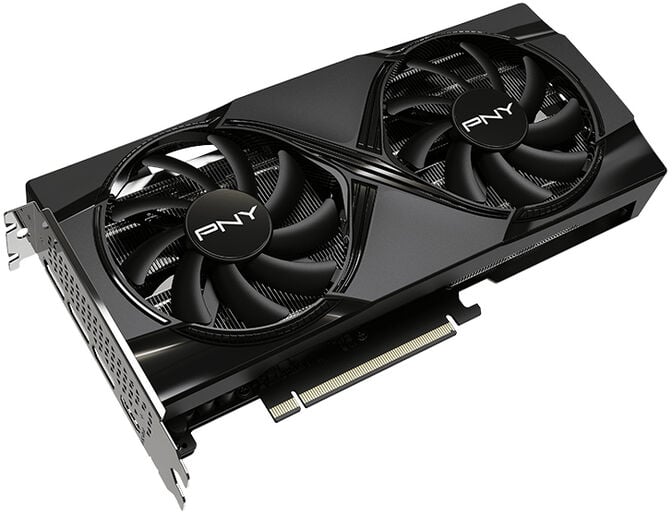

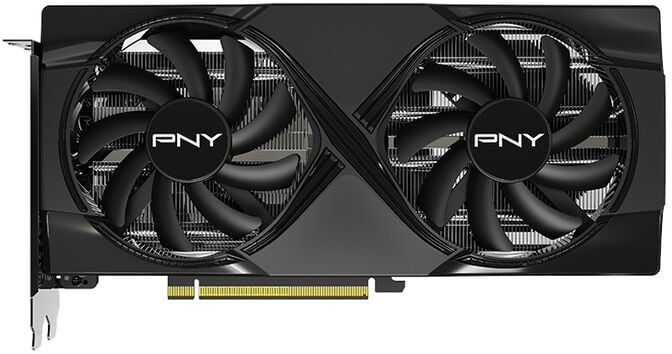

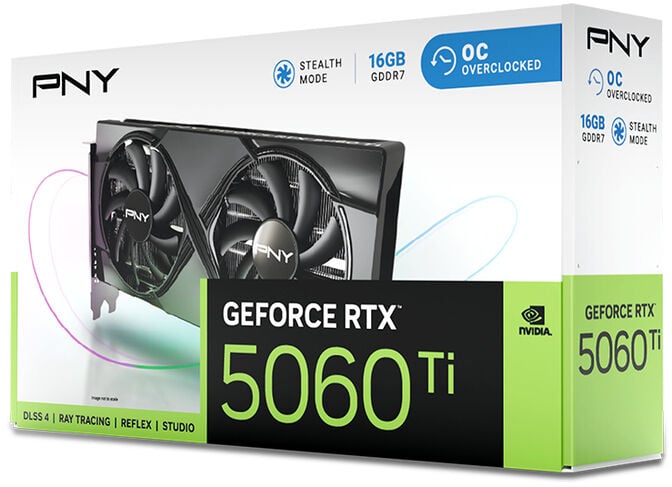

PNY GeForce RTX 5060 Ti OC Edition, 16384 MB GDDR7
- Efficient dual-fan cooler design with semi-passive cooling
- Compact design for smaller cases (SFF-ready)
- High base GPU clock: 2,407 MHz
- Strong GPU boost clock: 2,692 MHz
- Next-generation graphics memory: 16 GB GDDR7
- Memory clock: 1,750 MHz (effective 28 GHz)
- Solid 128-bit memory interface
- Memory bandwidth of 448 GB/s
- For Full HD gaming: 4,608 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 8-pin

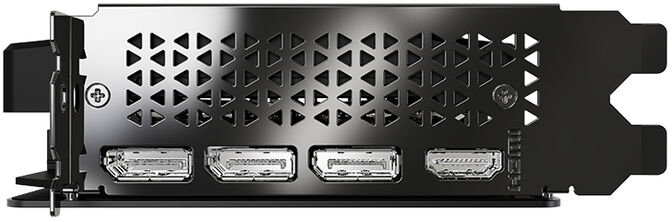

- Video outputs: 3x DP 2.1b, 1x HDMI 2.1b
- Supports DLSS 4 and NVIDIA Reflex 2
The GeForce RTX 5060 Ti in Detail
The GeForce RTX 5060 Ti is the perfect choice for anyone wanting smooth gaming in Full HD and WQHD. With GDDR7 graphics memory and a powerful GPU based on NVIDIA’s Blackwell architecture, it delivers high frame rates and detailed visuals – ideal for medium to high graphics settings.
Compared to the previous generation, the RTX 5060 Ti offers improved performance in traditional rendering and ray tracing. Thanks to the new Blackwell architecture and support for PCI Express 5.0, you’re also prepared for upcoming games.
Whether it’s a fast-paced multiplayer match or an immersive open world, the RTX 5060 Ti delivers stable frame rates and consistently smooth gameplay at 1080p. With DLSS 4 and Multi Frame Generation, you also benefit from AI-powered technologies that increase frame rates and make visuals even smoother – even during graphics-intensive scenes.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
245.1 mm
|
|
Width
|
119.9 mm
|
|
Height
|
39.9 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5060 Ti 16GB
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5060 Ti 16GB
|
|
Graphics Chip
|
GB206-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
4608
|
|
Tensor Cores
|
144
|
|
Raytracing Cores / Ray Acceleratorss
|
36
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
448
|
|
GPU Memory Clock (MHz)
|
1750
|
|
GPU Memory Clock Effective (Gbps)
|
28
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2407 MHz
|
|
Max. GPU Clock (Boost)
|
2692 MHz
|
|
Max. Memory Clock
|
28 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
2
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Features
|
|
|
Virtual Reality Ready
|
Yes
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
