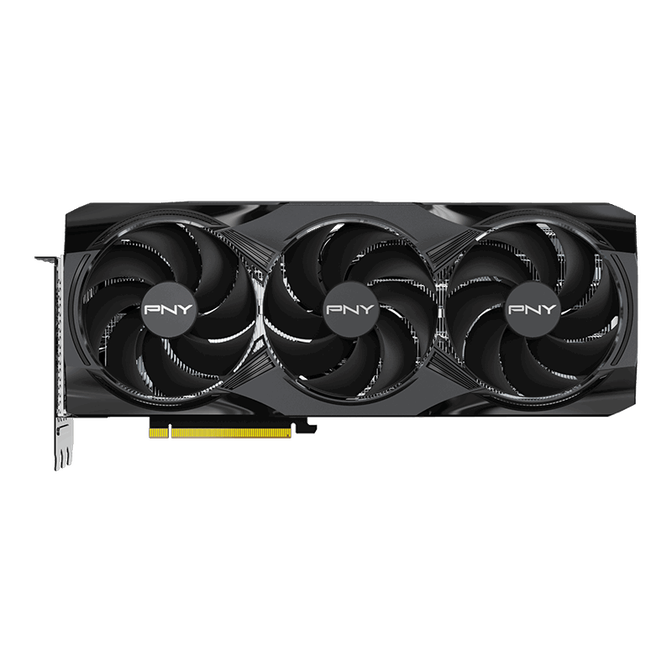

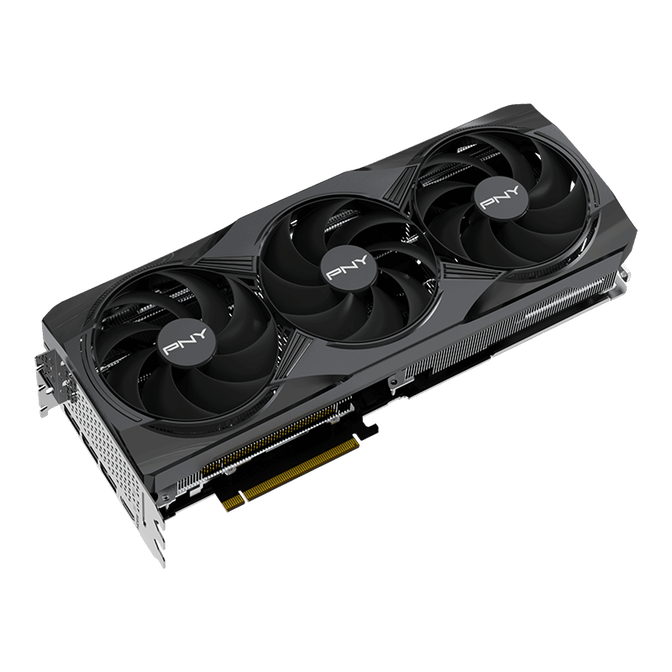

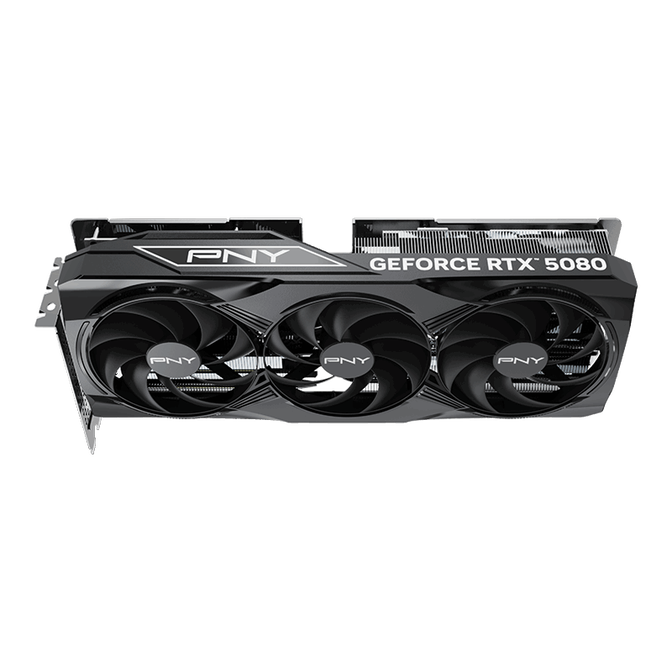

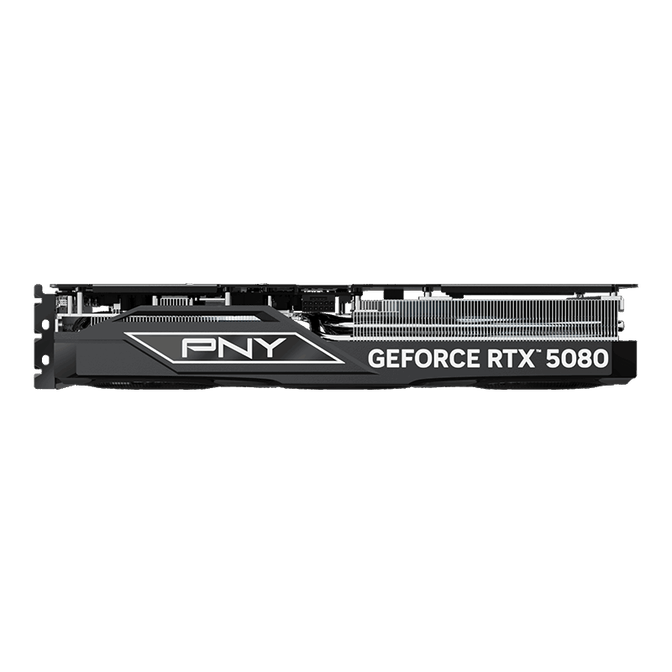

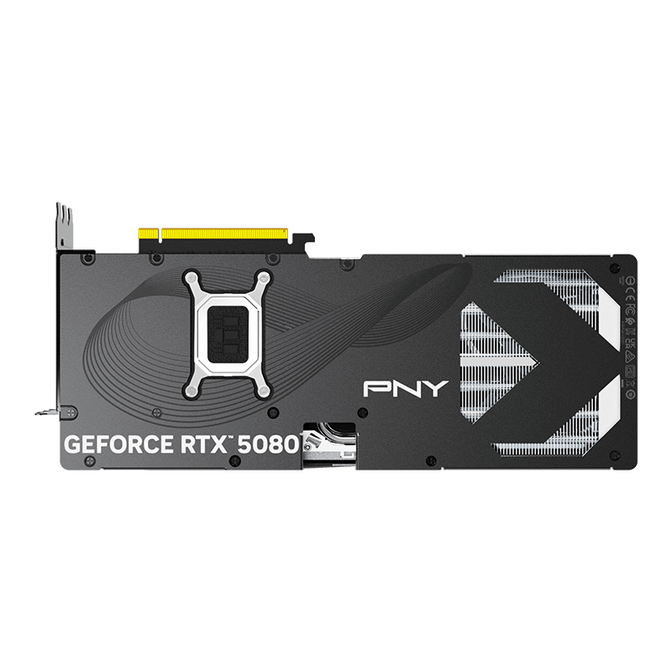

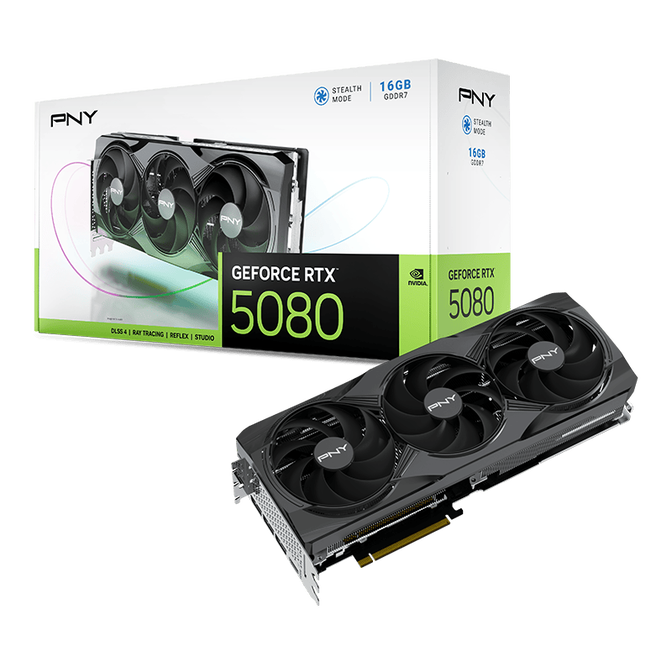

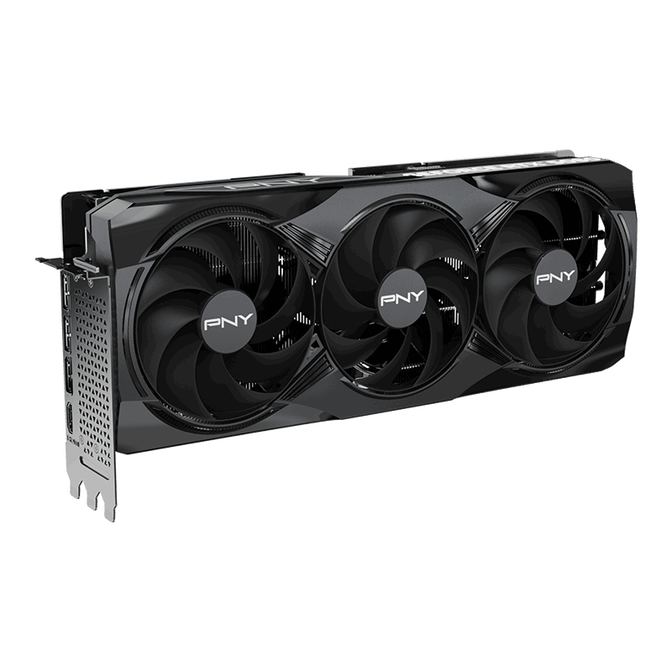

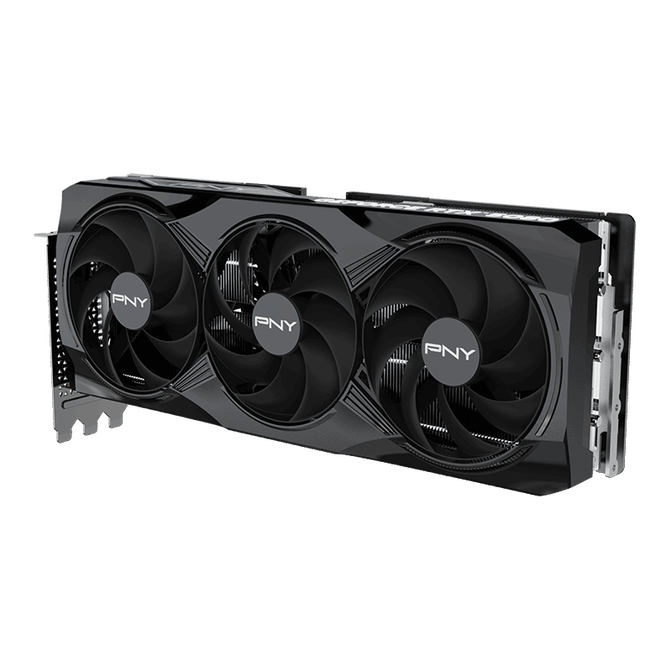

PNY GeForce RTX 5080 Triple Fan Graphics Card, 16384 MB GDDR7
- Efficient triple-fan cooler design with semi-passive cooling
- Extremely high base clock of the GPU: 2,300 MHz
- Enormous GPU boost clock: 2,620 MHz
- Next-generation graphics memory: 16 GB GDDR7
- Extremely high memory clock: 1,875 MHz (effective 30,000 MHz)
- Wide 256-bit memory interface
- Very large memory bandwidth of 960 GB/s
- Pure computing power: 10,752 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 16-pin 12VHPWR
- Video outputs: 3x DP 2.1b, 1x HDMI 2.1
- Supports DLSS 4 and NVIDIA Reflex 2
The PNY GeForce RTX 5080 Triple Fan in detail
The GeForce RTX 5080 is just right for you if you’re looking for a powerful high-end graphics card that is perfect for demanding games and applications. With its efficient graphics processor and modern GDDR7 graphics memory, it delivers impressive gaming performance – without stepping directly into the absolute enthusiast class.
Compared to the RTX 4080 series, both rasterisation and ray tracing performance have been significantly improved. This means for you: realistic lighting, shadow, and reflection effects in even better quality. Thanks to the new Blackwell architecture and support for PCI Express 5.0, the RTX 5080 is also well prepared for the next generation of hardware and systems.
With the RTX 5080, you’ll enjoy high frame rates in 4K and smooth gameplay with impressive graphics quality. This card is perfect for you if you want to play on high to maximum graphics presets – without having to worry about performance or stability. Get the RTX 5080 and enjoy smooth gameplay and breathtaking graphics!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
329 mm
|
|
Width
|
138 mm
|
|
Height
|
59 mm
|
|
Weight
|
1.461 kg
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5080
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5080
|
|
Graphics Chip
|
GB203-400
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
10752
|
|
Tensor Cores
|
336
|
|
Raytracing Cores / Ray Acceleratorss
|
84
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
256
|
|
GPU Memory Bandwidth (GB/s)
|
960
|
|
GPU Memory Clock (MHz)
|
1875
|
|
GPU Memory Clock Effective (Gbps)
|
30
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2295 MHz
|
|
Max. GPU Clock (Boost)
|
2617 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-Pin PCIe 5.0 - 12v-2x6 (1x)
|
|
External Ports
|
|
|

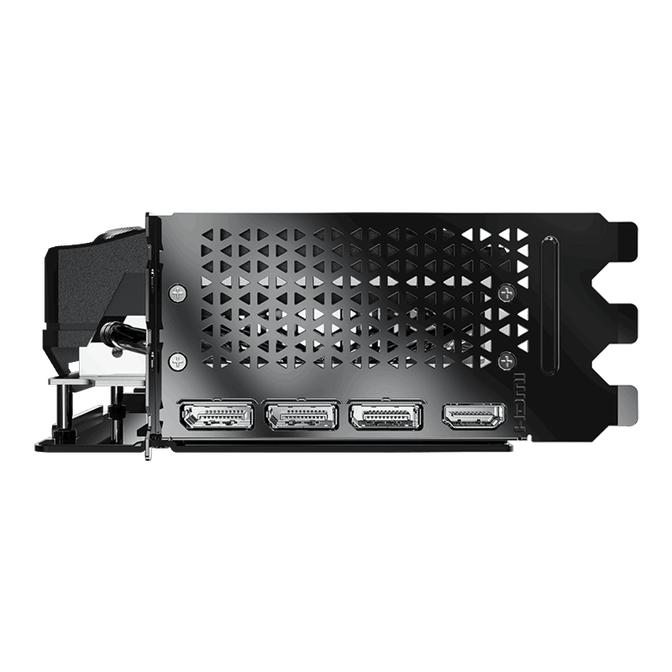

Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
