Sapphire Pulse B850M WiFi motherboard, Socket AM5, AMD B850, mATX, DDR5
mATX motherboard with AMD B850 chipset, supports PCI Express 4.0, suitable for DDR5 RAM, with Wi-Fi and Bluetooth
126,04 €
Incl. VAT, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 4.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
- RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 7,600 MHz
- Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
- USB: 2x USB 3.1 and 6x USB 2.0
- Cooling: 5x 4-pin PWM connectors for fans and radiators
- Connectivity: Wi-Fi 6 and Bluetooth 5

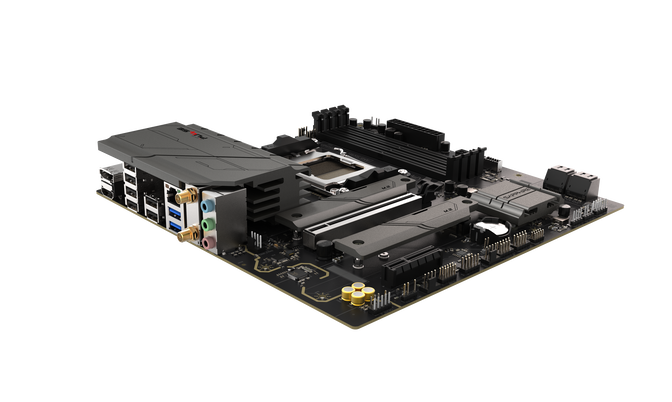

Sapphire Pulse B850M WiFi: mATX motherboard with AMD AM5 socket and B850 chipset
The Sapphire Pulse B850M WiFi is an mATX motherboard featuring the mid-range AMD B850 chipset and AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 series CPUs.
Connection to graphics cards and NVMe SSDs is via PCIe 4.0.
Overclocking for gamers
To get the best out of your gaming PC, the CPU can be overclocked via the motherboard to higher clock speeds. This ensures a stable power supply to the processor, allowing high-end CPUs to operate at full performance for extended periods. You can also fully exploit the DDR5 memory through overclocking. For added security, the Sapphire Pulse B850M WiFi offers BIOS Flashback and Clear CMOS.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B850
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
7600 MT/s
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO, Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 6
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
No
|
|
External Ports
|
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
6
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
5
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
