Silverstone FLP01 PC case, HTPC, SSI-CEB/ATX - white
- PC case in retro style from the 2000s brings nostalgia to your setup
- Flexible mounting options for optical drives, HDDs, and SSDs
- Practical I/O hidden behind a flap at the front
- CPU cooler up to 138 mm in height possible if needed
- High cooling performance with a maximum of five installable fans

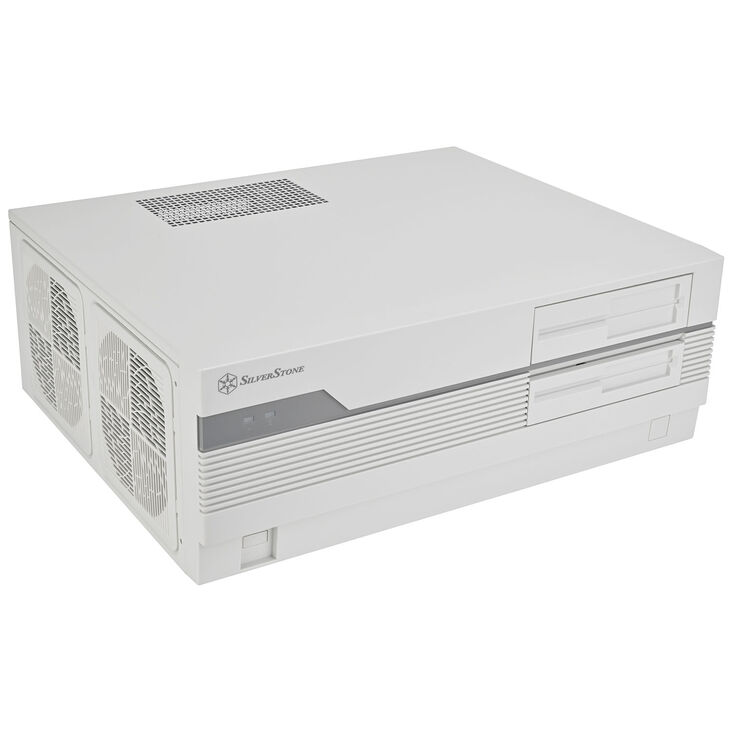

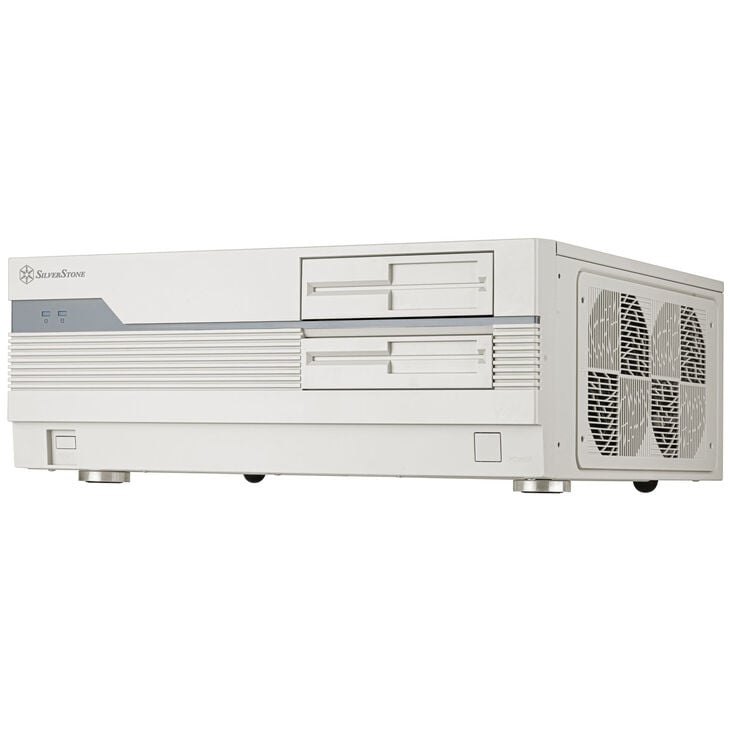

Silverstone FLP01: HTPC case in retro style
Whether HTPC or mini battlestation: this retro case from Silverstone brings your setup back to the 2000s, with the modern performance of today’s hardware. With space for motherboards up to ATX, a graphics card up to 309 mm in length, and a power supply of 170 mm, the case is flexible enough to house even a sleeper build.
Storage options and I/O

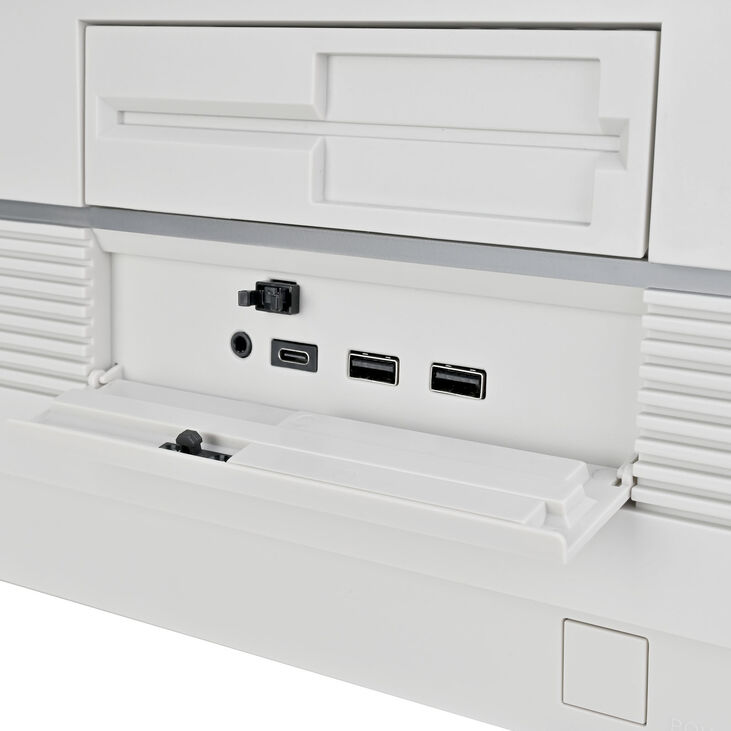

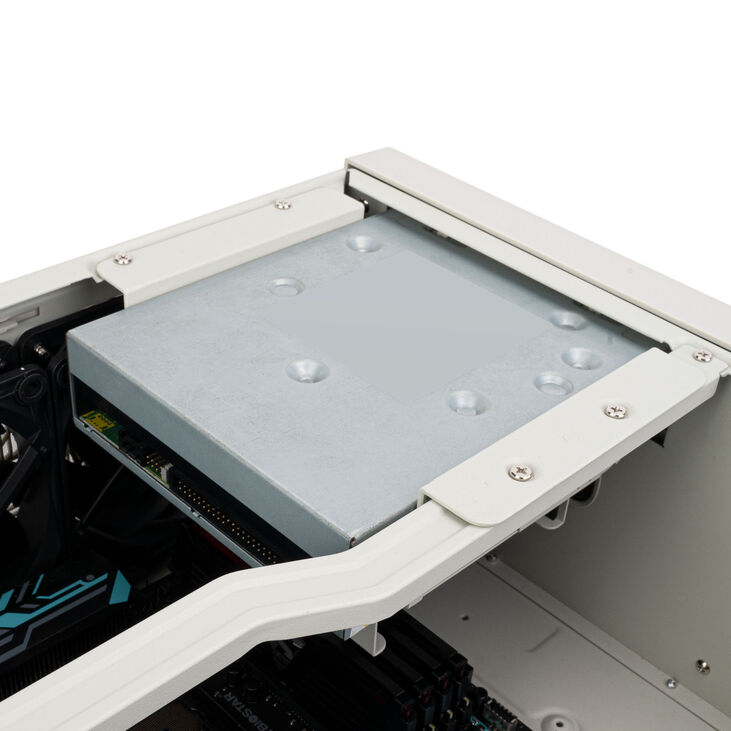

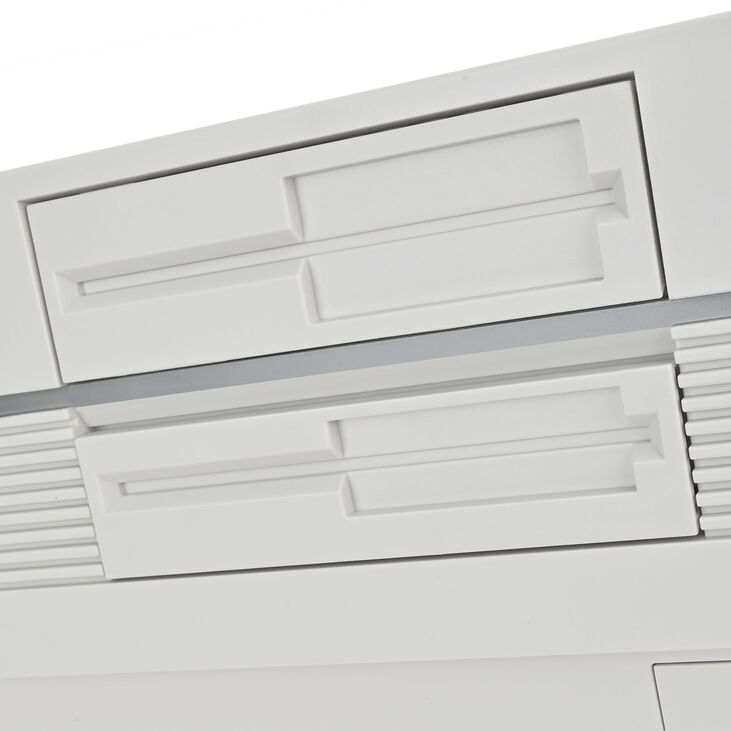

The removable hard drive cage is suitable for small 2.5-inch SSDs, larger 3.5-inch HDDs, as well as large 5.25-inch drives. This gives you the flexibility to install any type of hard drives or drives you need in the case. The installable drive and the I/O at the front are hidden behind a small cover styled like a floppy drive. The practical I/O consists of one USB-C, two USB-A, and a 3.5 mm audio jack.

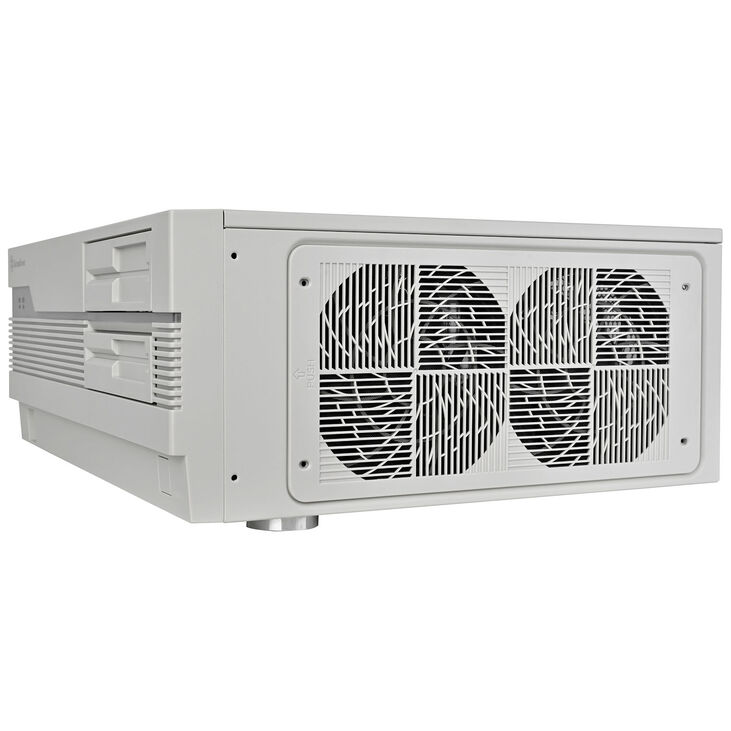

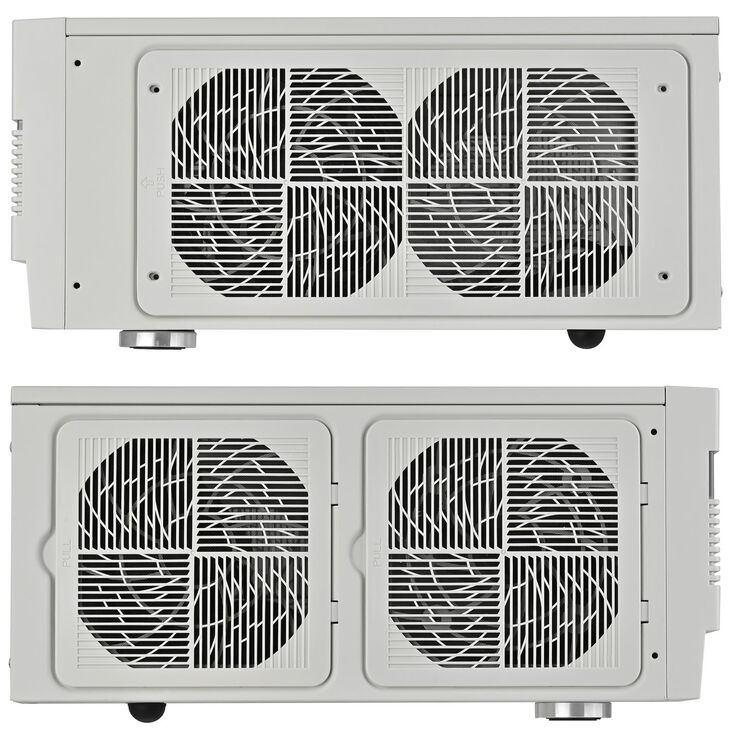

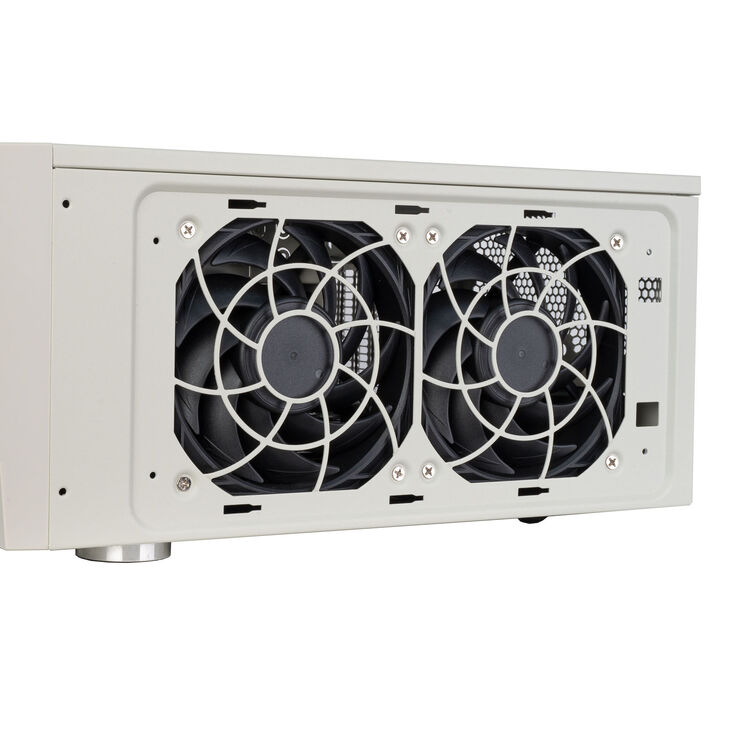

Cooling and filters
Although the case design with positive air pressure effectively prevents dust accumulation, easily accessible dust filters are still integrated into the case.

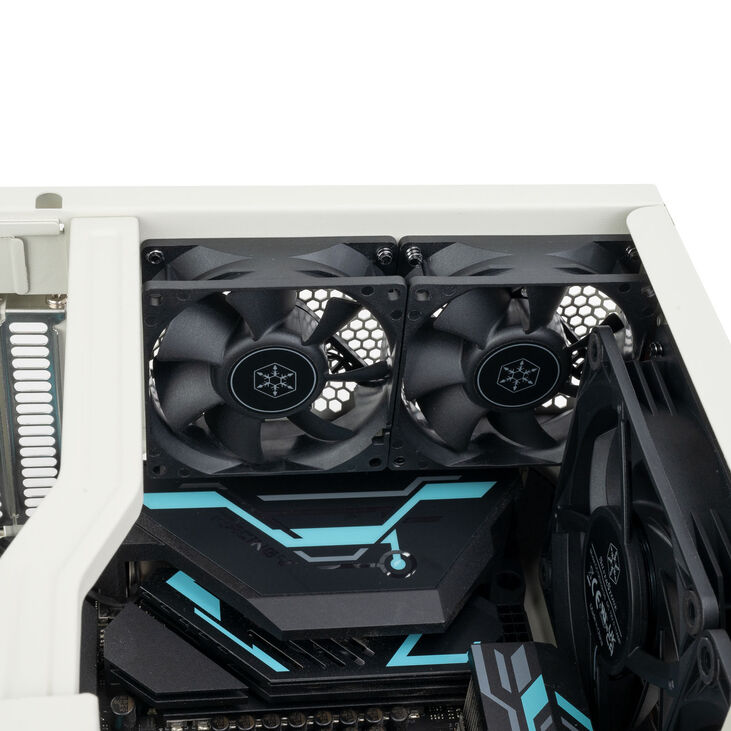

Flexible CPU cooling

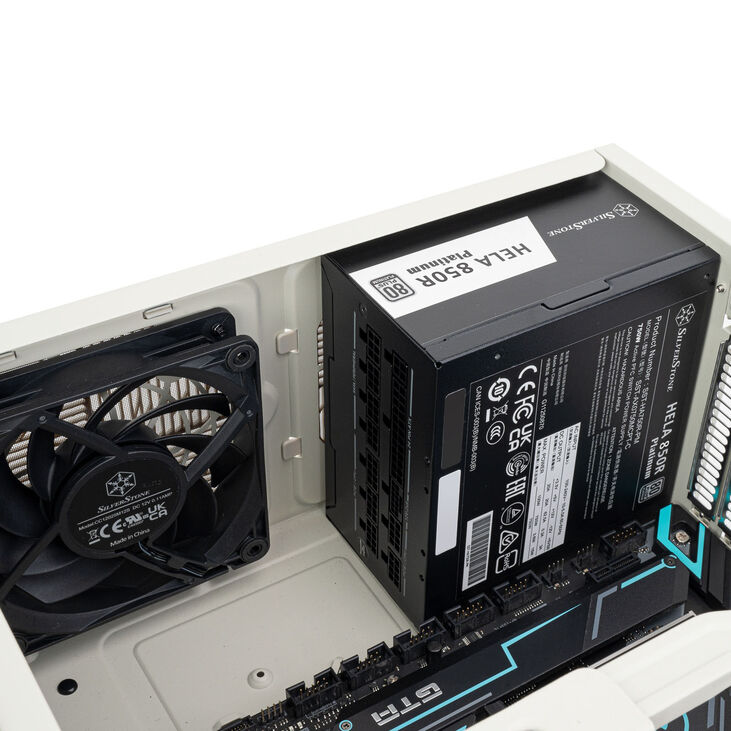

If a more powerful CPU cooler is required, there is enough space for a 138 mm tall CPU cooler with high cooling performance after removing the hard drive cage. Otherwise, all CPU coolers up to 88 mm in height fit comfortably under the hard drive cage.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
362 mm
|
|
Width
|
440 mm
|
|
Height
|
170 mm
|
|
Weight
|
4.46 kg
|
|
Case
|
|
|
Case Type
|
HTPC Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX, SSI-CEB
|
|
Max. Motherboard Format
|
ATX, SSI-CEB
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
138 mm
|
|
Max. GPU Length
|
309 mm
|
|
Max. GPU Width
|
133 mm
|
|
Max. PSU Length / Depth
|
170 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side
|
|
Fan Support
|
|
|
Max. Number of Fans
|
5
|
|
80 mm fans
|
3
|
|
120 mm fans
|
3
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
no
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
3
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 2.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with mesh
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Riser Cable Included
|
No
|
|
Front door
|
Yes
|
|
Cable Management
|
No
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Back, Side
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
1x 120 mm
|
