SilverStone RM22-308 Rackmount Server Case, 2U, E-ATX - black
19-inch server chassis in 2U format, for motherboards up to E-ATX, front with 8x hot-swap slots
369,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- ￭ Backplane support for 8 port SAS / SATA drives and 12 Gb/s Mini-SAS HD SFF-8643 + SGPIO

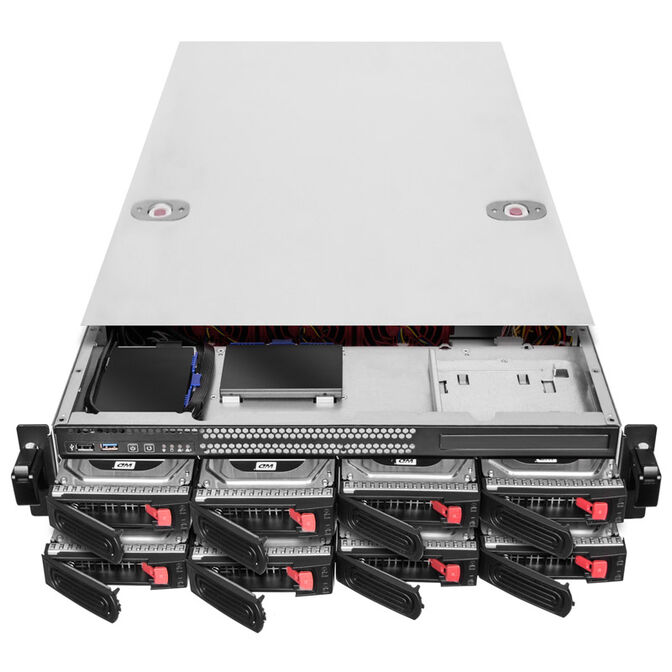

- ￭ Supports eight 2.5"/3.5" SAS/SATA HDD/SSD hot-swap trays
- ￭ Includes three 80mm x 38mm hot-swappable PWM fans
- ￭ Independent drive status LED
- ￭ Supports E-ATX or SSI-EEB motherboards
- ￭ Supports seven low profile PCI / PCIe slots

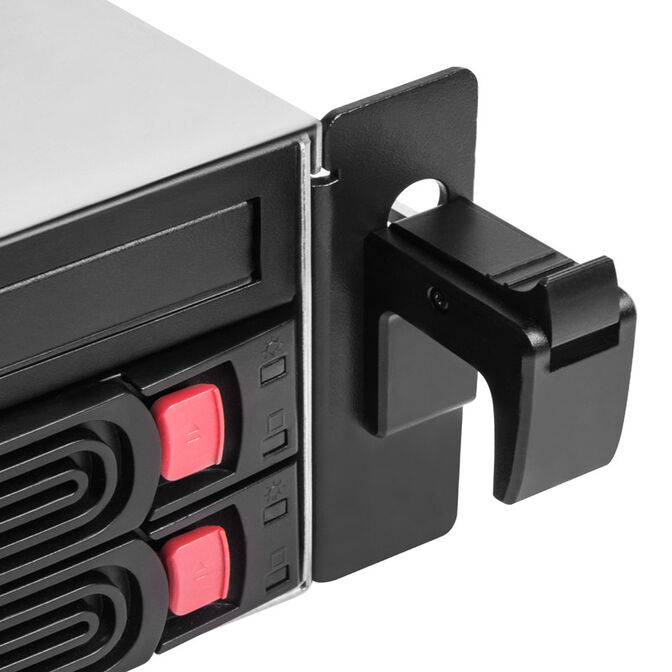

- ￭ Auto lock handle designed to easily fit and secure into server racks

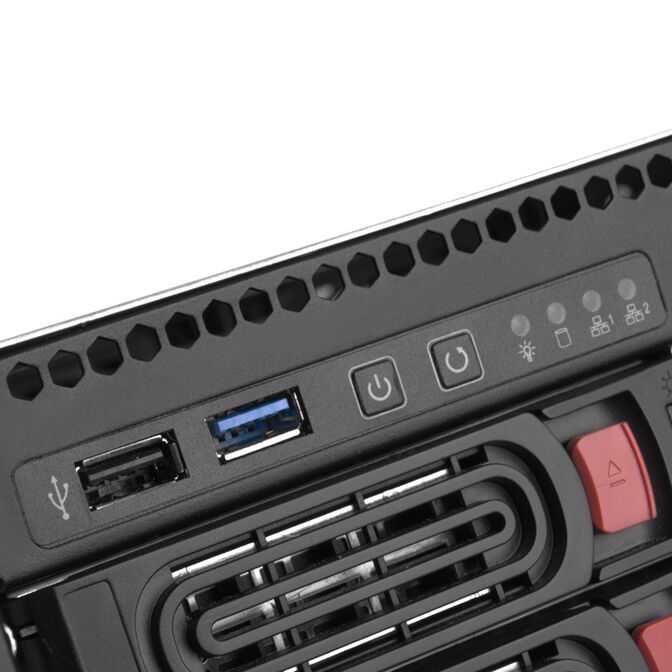

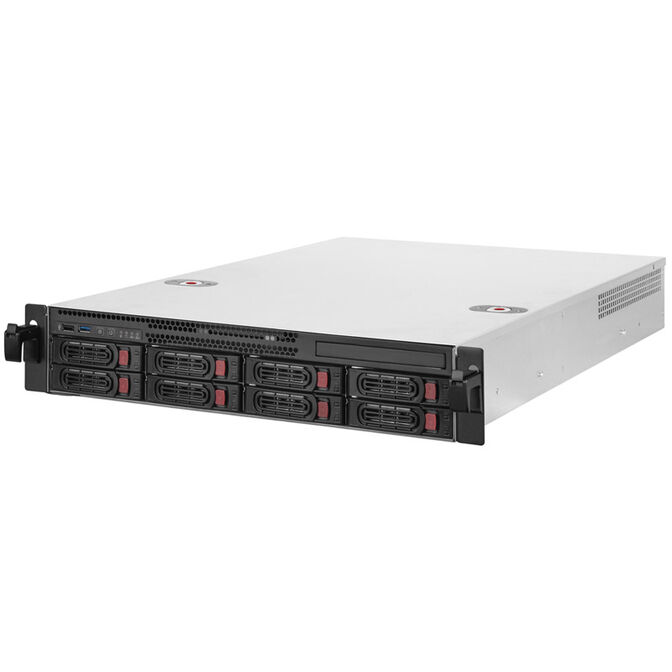

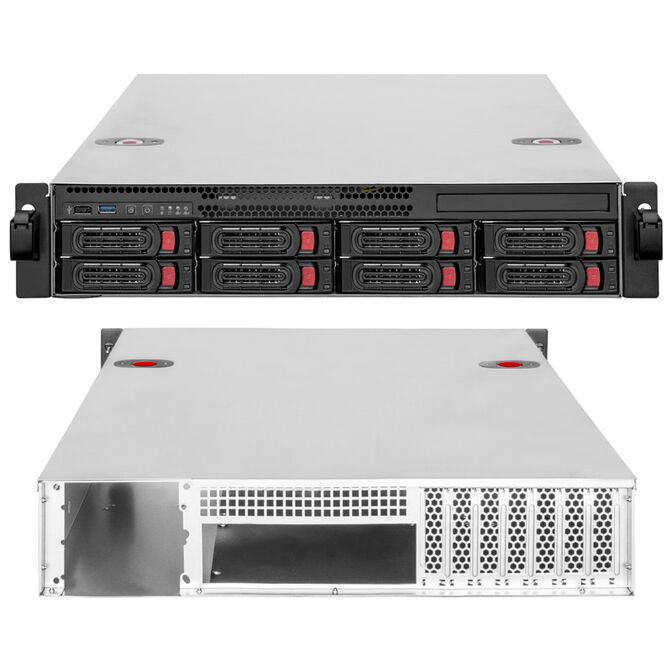

Distinctive front panel features 8 x hot-swappable 3.5” bays, 1 x slim ODD bay along with handle bars allowing for easy accessibility to the internal components
Storage device performance

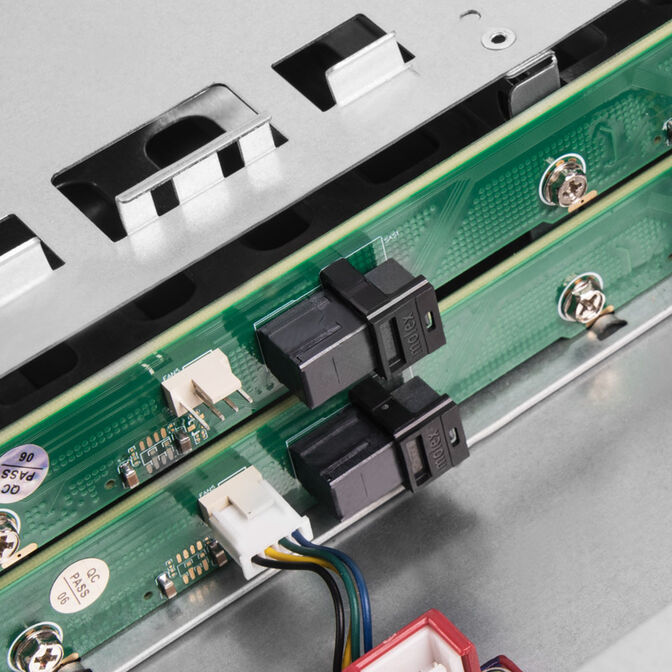

HDD backplane supports 8 ports SAS / SATA drives and 12Gb/s Mini-SAS HD SFF-8643 x 2 with SGPIO
Cooling capabilities

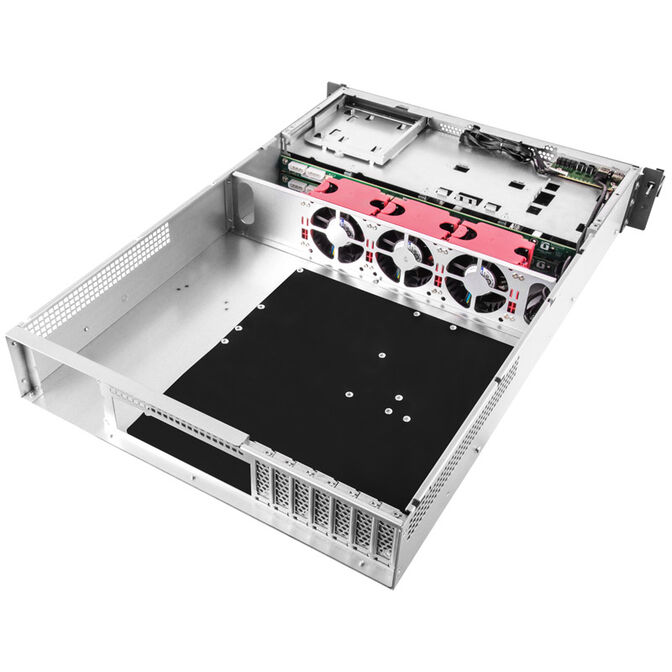

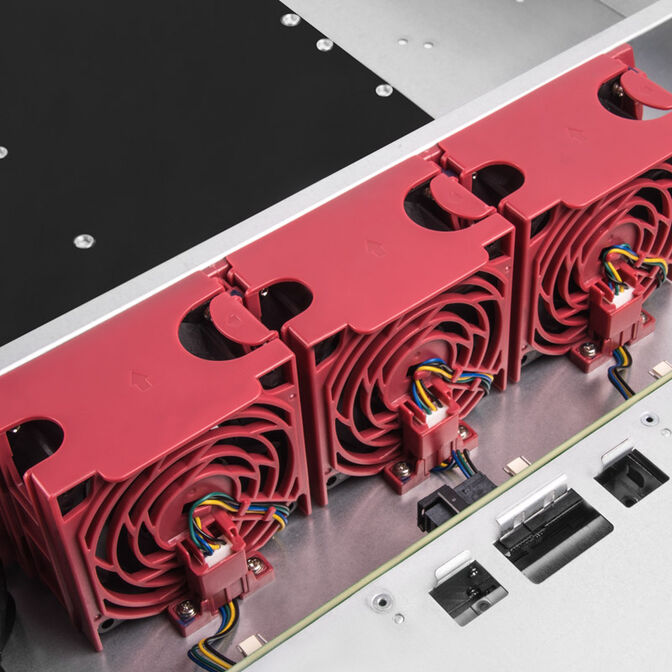

Utilizing the typical front-to-back directional airflow, RM22-308 comes pre-installed with three 80mm x 38mm hot-swappable PWM fans, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Sliding rail compatibility

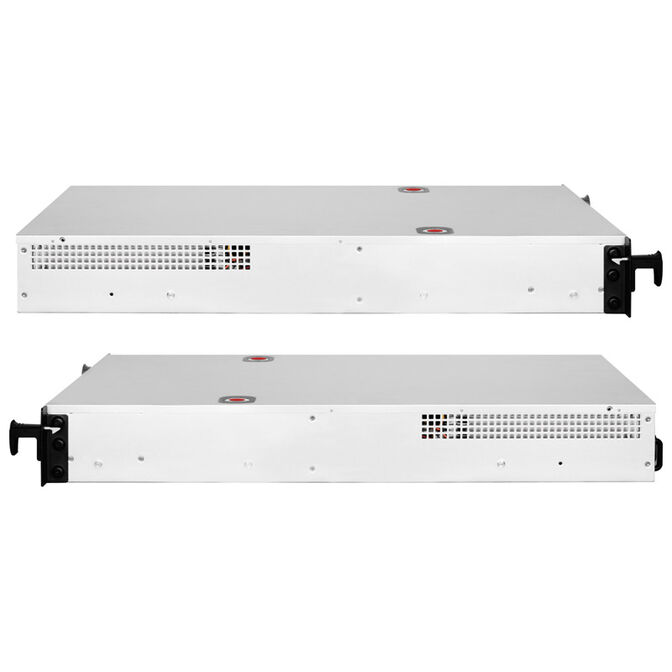

Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Fan Main Colour (Frame)
|
Red
|
|
Dimensions
|
|
|
Length / Depth
|
660 mm
|
|
Width
|
430 mm
|
|
Height
|
88.5 mm
|
|
Weight
|
10.1 kg
|
|
Case
|
|
|
Case Type
|
Server Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
E-ATX, Micro-ATX, Mini-ITX, SSI-CEB, SSI-EEB
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
68 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU Format
|
redundant PSU
|
|
Power Supply Position
|
rear bottom
|
|
Fan Support
|
|
|
80 mm fans
|
3
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
no
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
1
|
|
3.5 inch internal drive bay
|
1
|
|
5.25 inch external drive bay
|
1
|
|
Hot swap drive bays
|
Yes
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
1
|
|
USB 2.0 (external) Type A
|
1
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
closed
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Materials
|
|
|
Materials
|
Steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
3x 80 mm
|
