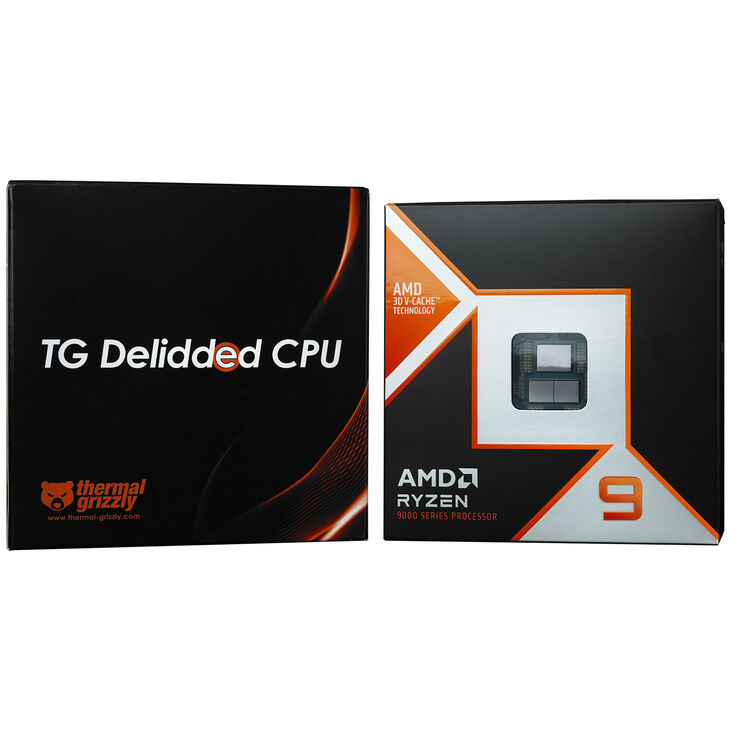

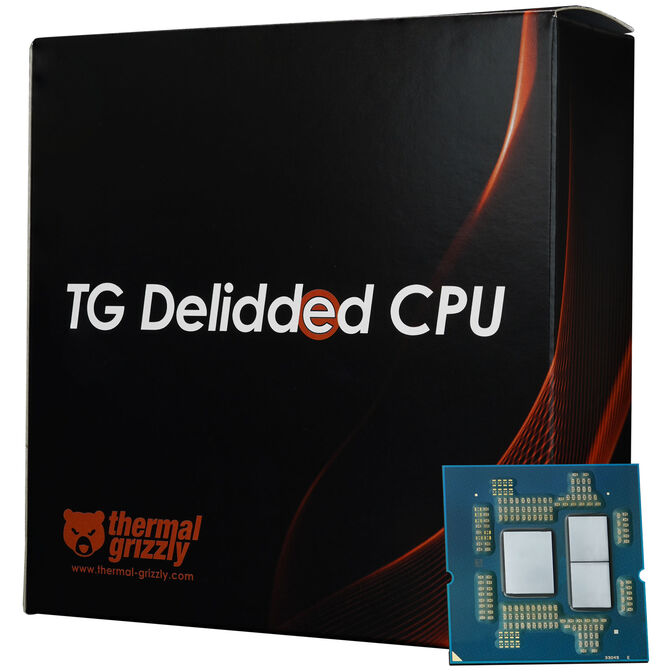

Thermal Grizzly Delidded CPU AMD 9950X3D, 16 cores, 5.7 GHz, Socket AM5 (Granite Ridge) - boxed, without cooler
As a manufacturer of delidding tools and products for delidded processors, Thermal Grizzly is a well-known name among hardware enthusiasts and overclockers. With the TG Delidded CPU, beginners are now also given a stepping stone into the world of maximum cooling performance.
- Delidded AMD Ryzen 9950X3D processor for optimal cooling performance
- Processor warranty guaranteed by Thermal Grizzly
- Suitable for Thermal Grizzly direct-die cooling solutions
- Includes test report and microscope photo on an included USB stick
Thermal Grizzly Delidded CPU: Maximum Cooling Performance, Maximum Gaming Power

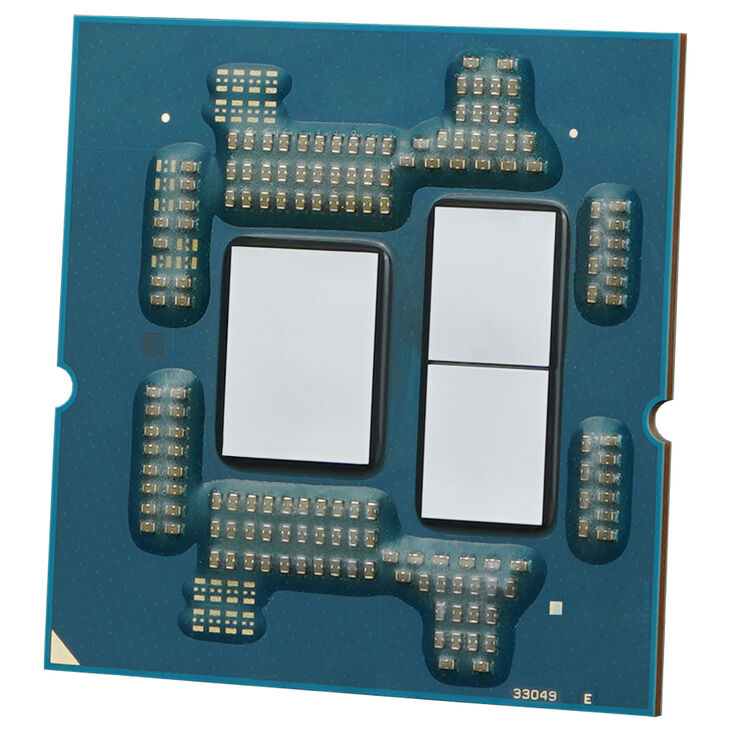

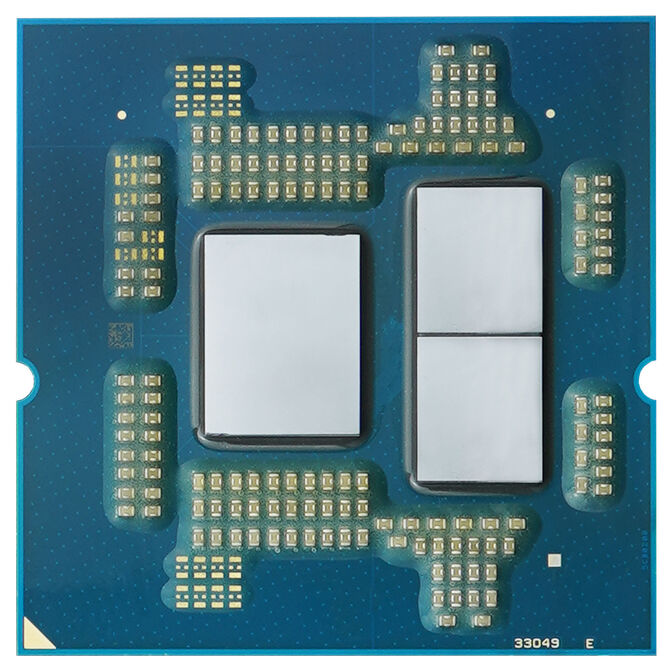

The TG Delidded CPU is a processor delidded and subsequently tested by Thermal Grizzly’s specialists. When delidding or “removing the lid” of CPUs, the processor’s heatspreader is removed. This processor is aimed at extreme overclockers who want to squeeze every bit of performance from the CPU while generating as little heat as possible.
What is Delidding?
Delidding (English for “removing the lid”; to delid: “to remove the lid”) involves removing the processor’s heatspreader. By removing the lid, it becomes possible to cool the CPU chip or chiplets directly, thereby eliminating the detour of heat dissipation through the heatspreader. Depending on the use case, this can mean up to 20 °C better temperatures. However, delidding carries risks and voids the manufacturer’s warranty.
Delidded and Tested by Specialists – More Security Is Not Possible
This is where the new TG Delidded CPU comes in: Thermal Grizzly delids the CPU and assumes the manufacturer’s warranty! After delidding, Thermal Grizzly’s specialists perform a functional test on the delidded CPUs.

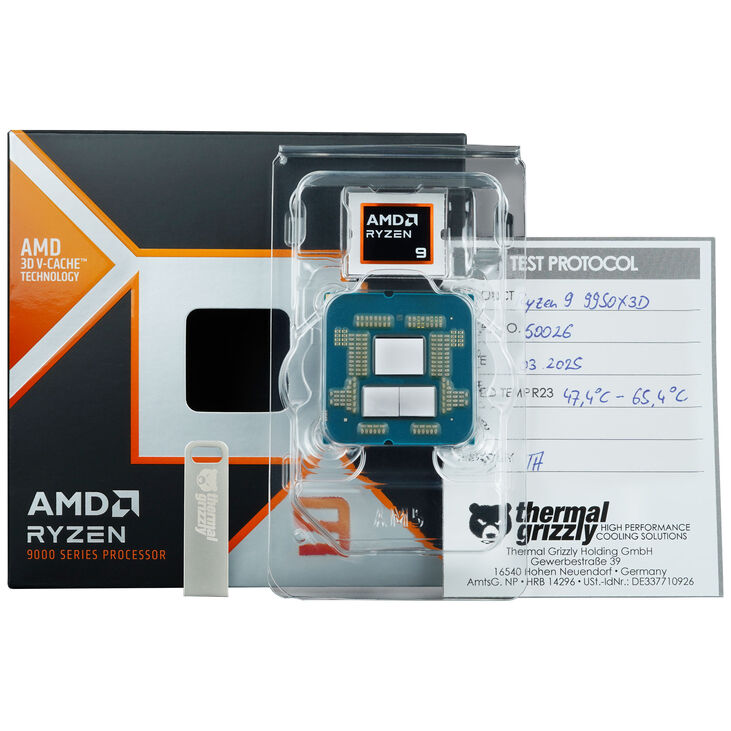

The temperature measured during testing is documented with a screenshot and saved on a USB stick included with the processor. Also on the USB stick is a microscope photo of the delidded processor.
Versatile Cooling Options: Direct Die, Liquid Metal or Custom Water Cooling
The delidded CPU can be used with direct-die cooling solutions such as the Mycro Direct-Die, the Mycro Direct Die Pro, or Thermal Grizzly’s High Performance Heatspreader. The CPU is also compatible with heatspreaders from other manufacturers. For optimal heat transfer, the manufacturer recommends using Thermal Grizzly Conductonaut Extreme on the CPU die or the CPU’s chiplets.
Extended Manufacturer Warranty
Do you have questions about the warranty of Thermal Grizzly’s Delidded CPU? On the manufacturer’s website, Thermal Grizzly, you will find all information about the warranty – from the duration to the coverage scope.
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Series
|
AMD Ryzen
|
|
CPU Socket
|
AM5
|
|
CPU Architecture
|
Zen 5
|
|
CPU Code Name
|
AMD Granite Ridge
|
|
CPU Cores
|
16
|
|
CPU Threads
|
32
|
|
Hyperthreading / Multithreading
|
Yes
|
|
Memory Controller
|
dual channel
|
|
L1-Cache
|
1.28 MB
|
|
L2-Cache
|
16 MB
|
|
L3-Cache
|
128 MB
|
|
TDP
|
170 W
|
|
CPU Cooler Included
|
No
|
|
CPU Packaging
|
boxed / retail
|
|
Integrated GPU
|
Yes
|
|
Clock Speeds
|
|
|
Max. CPU Clock (Base)
|
4.3 GHz
|
|
Max. CPU Clock (Turbo / Boost)
|
5.7 GHz
|
|
Memory
|
|
|
Memory Compatibility
|
DDR5
|
|
Max. Memory Speed (Standard)
|
5600 MT/s
|
|
EEC Support
|
Yes
|
