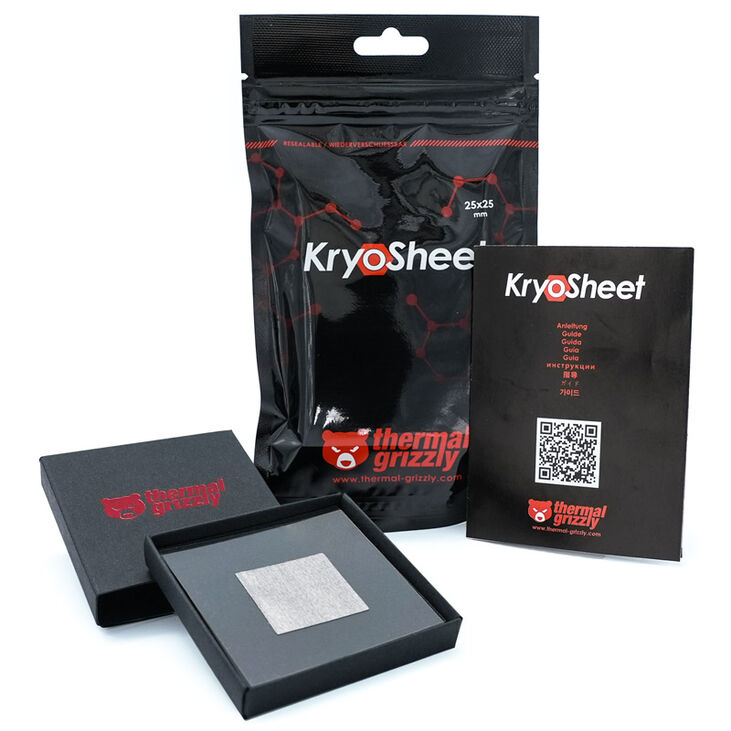

Thermal Grizzly KryoSheet thermal pad - 25 x 25 mm

• Outstanding thermal conductivity
• Easy application
• Consistently high performance
• Extreme durability
• Warning: Electrically conductive!
• Compatible with many NVIDIA and AMD GPUs

High-Performance Cooling Solutions - Made in Germany

Thermal Grizzly presents a new product with KryoSheet, which is part of the company's advertised "High Performance Cooling Solutions". The graphene thermal pads of the Thermal Grizzly KryoSheet series can serve excellently as an alternative to high-performance thermal pastes. Similar to the Carbonaut pads, they feature an adaptable surface with very high thermal conductivity.

Compared to Carbonaut pads, KryoSheet offers significantly higher thermal conductivity as a high-end product. This enhanced thermal conductivity is not only based on the choice of materials but also on the innovative manufacturing process. KryoSheet contains no liquid components and is therefore not subject to the usual aging that traditional thermal paste undergoes. Drying out is not possible.

What makes KryoSheet so special?

The KryoSheet graphene pads have a Z-direction stacked molecular structure. This optimised structure allows for outstanding and consistent thermal conductivity. This is due to a specially developed manufacturing process that breaks the hexagonal crystal structure of graphite along the basal plane to exploit the anisotropy of the thermal conductivity of graphite. However, as a side effect of this elaborate manufacturing process, the electrical conductivity is also increased, which affects the stability of the KryoSheet pads, so the pads must only be used according to instructions!

Due to the optimised thermal conductivity of KryoSheet compared to Carbonaut, the focus of the graphene pads is on enthusiast products in the end-user segment as well as on industrial applications. Examples of the use of KryoSheet include refurbishing used graphics cards and notebooks/laptops.

Who benefits from KryoSheet?

The simple application and durability of the KryoSheet pads are significant advantages. The long lifespan of the pads means that they are maintenance-free. In addition to applications in industry, such as server construction, this is also an advantage in home PC building or in the OEM sector. Since the pads do not need to be replaced at regular intervals like thermal paste, elaborate maintenance is eliminated.

The pads should be purchased in a size that is minimally larger than the area to be covered. In the case of an Intel desktop CPU (socket 115x, 1200) with a heat spreader (IHS) size of 32 x 32 mm, the KryoSheet should therefore be chosen in a size of 33 x 33 mm. After cleaning the contact surface (CPU, CPU cooler, GPU, GPU cooler), the KryoSheet is simply positioned on the processor or graphics chip to be cooled before the cooler is mounted.
