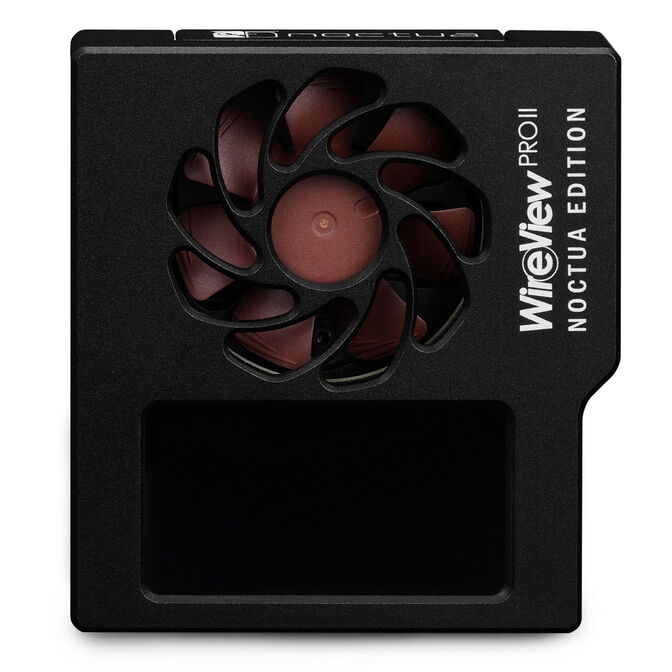

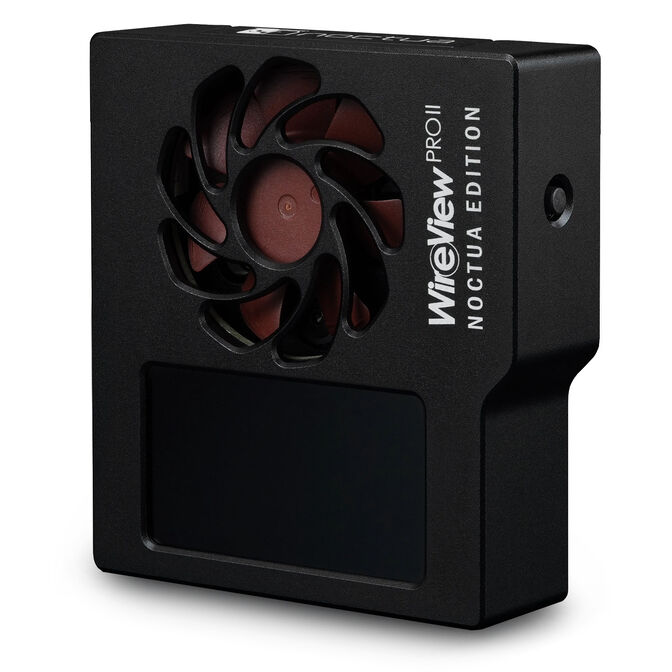

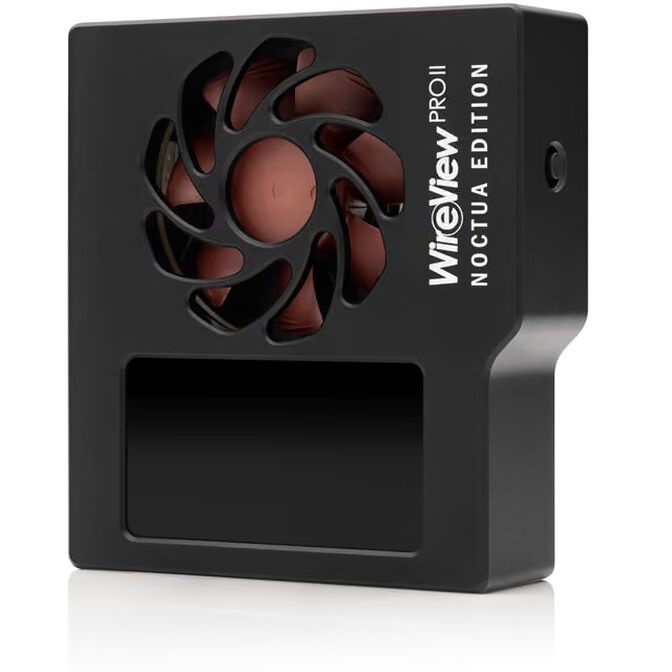

Thermal Grizzly WireView Pro II GPU Noctua Edition, 12V-2x6, TFT-IPS – black, reversed

The Thermal Grizzly WireView Pro II GPU monitors the power supply of high-performance graphics cards with a 12V-2x6 connector. The second Pro generation measures current, voltage and power for individual pins, helping you to detect problematic load distributions early. An integrated display shows the most important operating data directly inside the PC.

• Per-pin measurement: Detects unevenly distributed loads early
• TFT IPS: Displays current, voltage, power and temperatures
• Alarms: Provides visual and acoustic warnings at limit values
• 90-degree: Routes the 12V-2x6 cable in a space-saving way
• Data logging: Stores measurement values for fault analysis

Per-pin monitoring for GPU power supply

The WireView Pro II records current not only as a total value but separately for each conductor of the 12V-2x6 connector. This makes it easier to identify unusual loads on individual contacts. In addition, the device monitors voltage, power consumption and several temperature values. Thermal Grizzly specifies the measurement tolerance as ±4 percent.

Display and warning functions directly in the PC

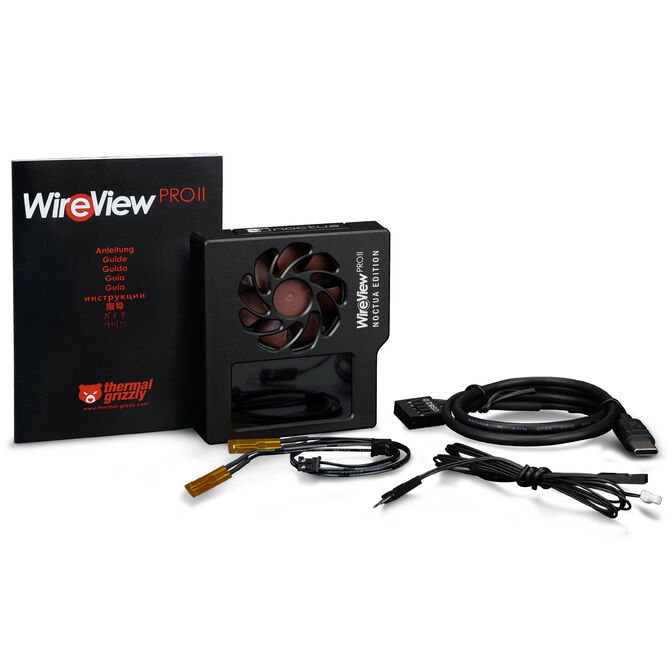

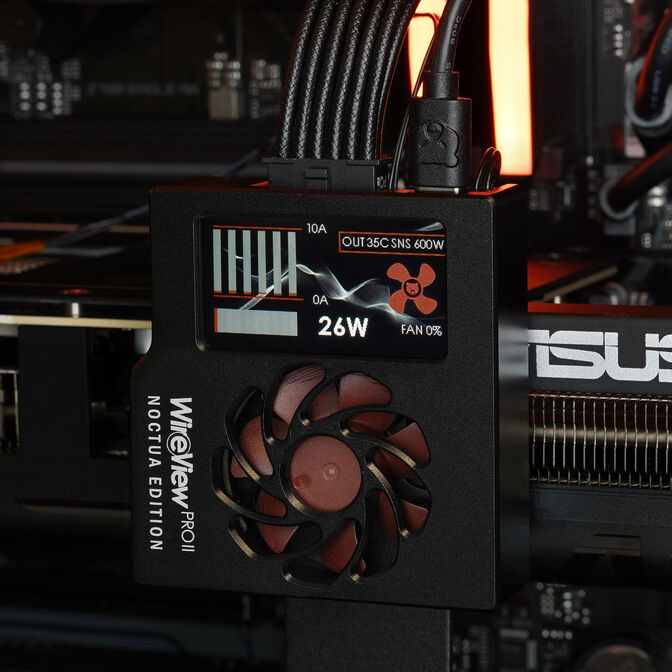

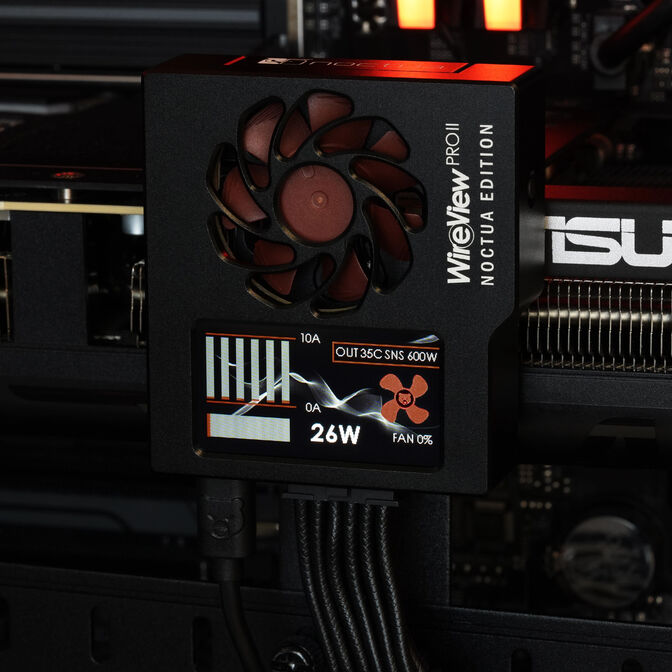

The 320 x 170 pixel TFT IPS colour display offers various views for the monitored values. In addition to total power and voltage, you can display, among other things, the most heavily loaded pin and the highest measured temperature. When limit values are exceeded, the device warns both visually and acoustically. Optionally, an automatic system shutdown can be set up via the supplied splitter cable.

90-degree connector and automatic data recording

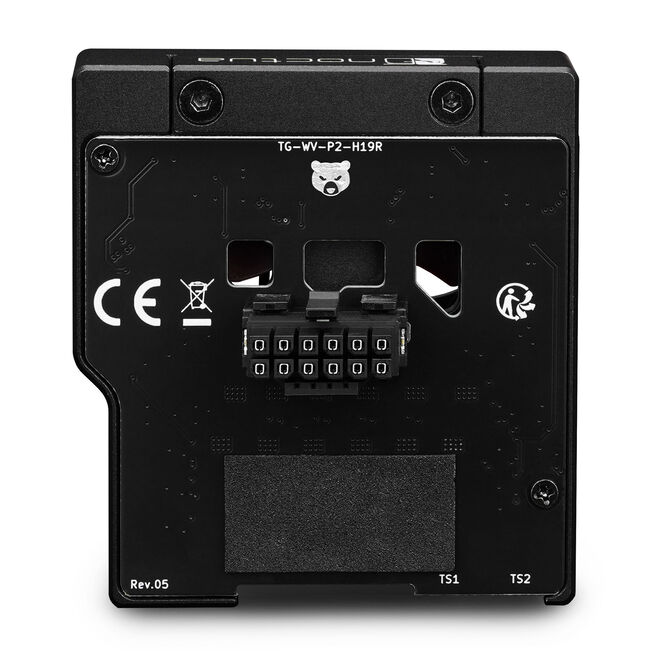

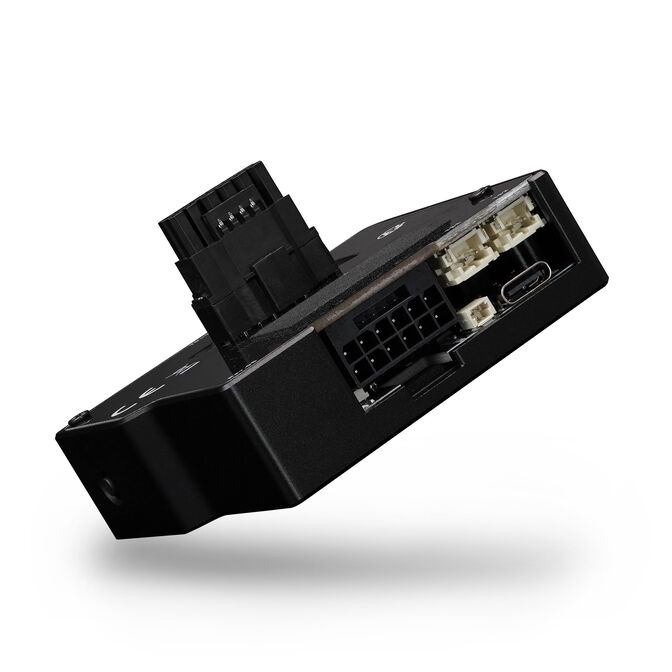

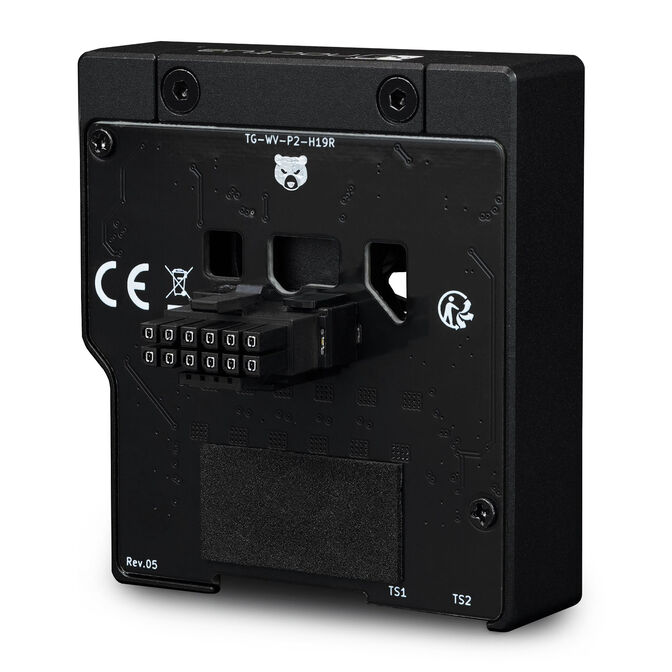

The reversed version routes the 12V-2x6 power cable at a 90-degree angle, which can help with cable management inside the case. An internal memory automatically records relevant operating data, supporting later fault analysis. Firmware updates can be performed via USB-C, and the internal USB 2.0 connection allows integration into the PC. Compatibility with graphics card, case and CPU cooler should be checked against the manufacturer list before installation.
