- High-quality acrylic pump-reservoir combo ensures smooth operation
- Reliable D5 pump with high flow rate for optimal cooling performance
- ARGB lighting offers excellent compatibility, matching your setup perfectly
- Integrated pump design saves valuable space, especially in compact builds
- Included bracket simplifies installation on 120 mm and 140 mm radiators

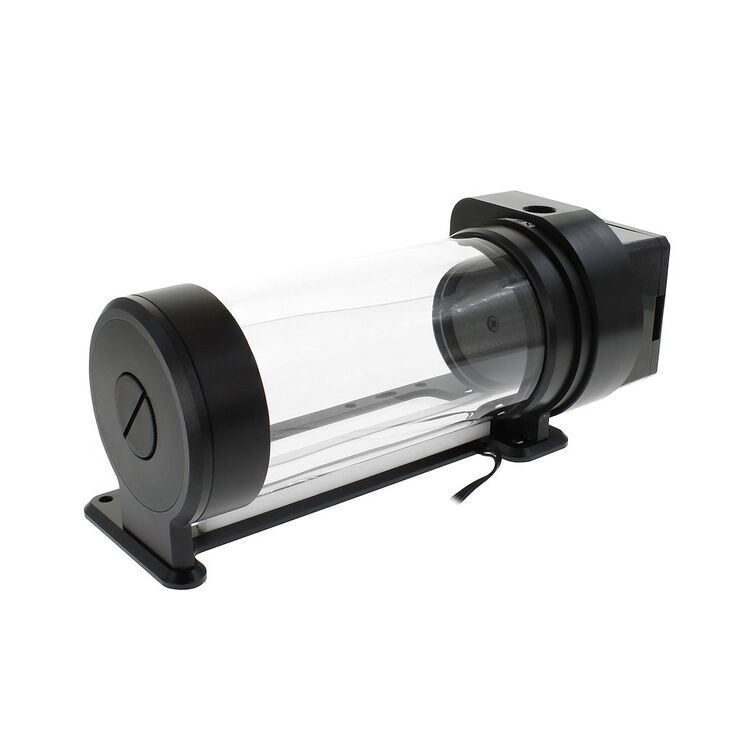

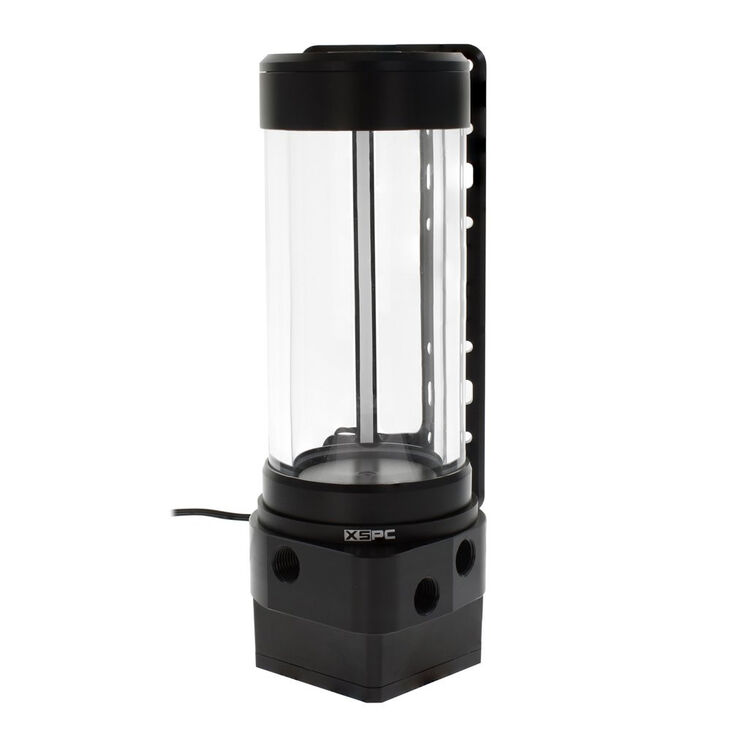

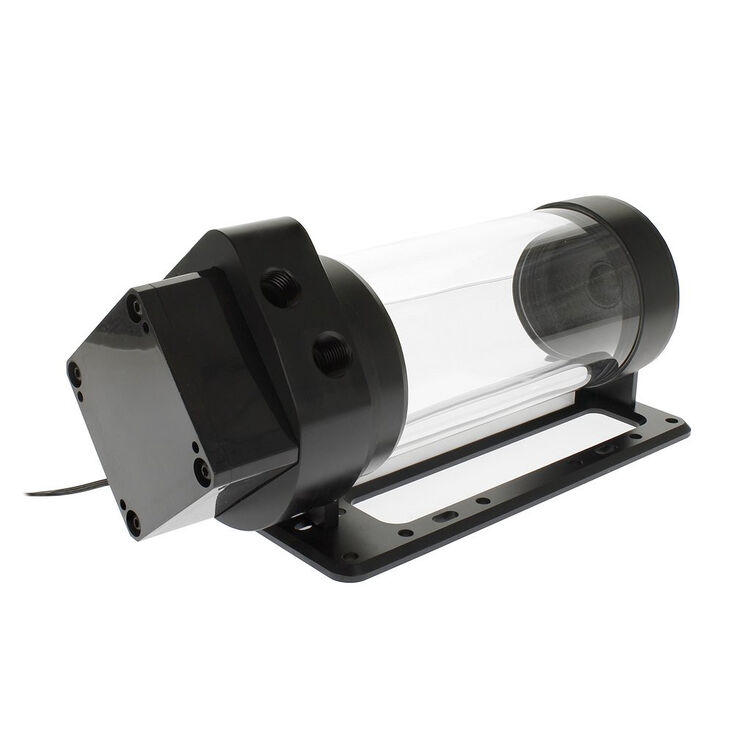

XSPC QX5 Photon 170 Pump-Reservoir Combo: Premium reservoir with integrated D5 pump
The XSPC QX5 Photon 170 Pump-Reservoir Combo combines the elegant Photon 170 reservoir with a reliable D5 pump in one compact unit. An included bracket allows the reservoir to be mounted directly onto a 120 mm or 140 mm radiator. Together with an improved fill port, this pump-reservoir combo greatly simplifies integration into your custom loop.
Reliable pump with high flow rate
The integrated, proven D5 pump within the reservoir provides smooth and efficient operation of your custom loop, offering a high flow rate of up to 960 L/h and a maximum speed of 4000 RPM. Together with the reservoir, the pump ensures exceptionally strong cooling performance in your custom loop.

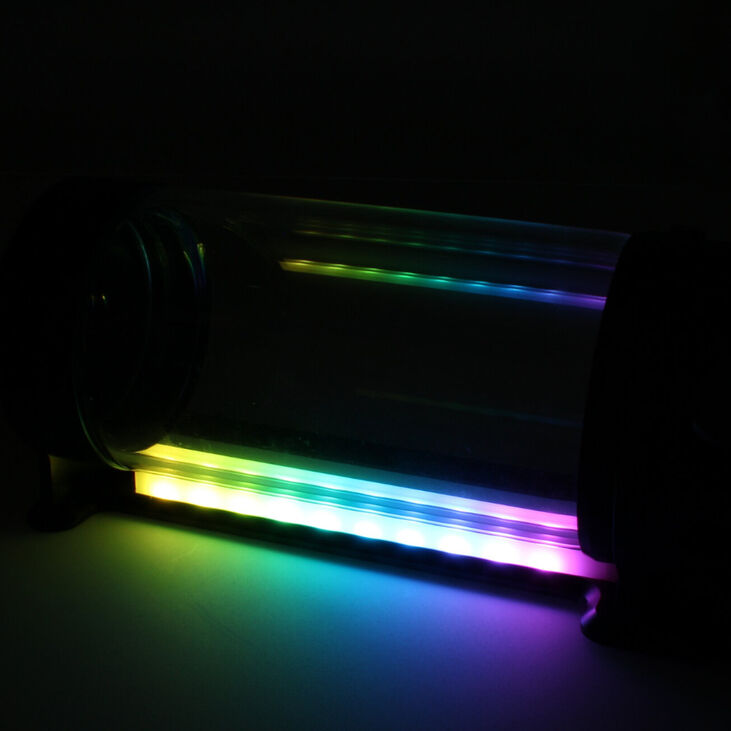

Large-capacity reservoir with RGB lighting
The subtle, highly compatible RGB lighting with ten individually addressable RGB LEDs effectively highlights the large reservoir capacity of 425 ml. In addition to improved cooling performance, the RGB lighting is compatible with standard 3-pin RGB connectors (5VDG) from various motherboard manufacturers (including ASUS, GIGABYTE, and MSI).
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
92 mm
|
Width
|
85 mm
|
Height
|
220 mm
|
Volume
|
425 ml
|
Pump Specifications
|
|
Max. Pressure Head
|
6 m
|
Max. Water Flow
|
960 l/h
|
Type
|
|
Pump type
|
D5
|
Power Specifications
|
|
Power Consumption
|
17 W
|
Rated voltage
|
12 V
|
Water Cooling
|
|
Water cooling component
|
Pump + Reservoir
|
Water cooling connectors
|
3x G1/4"
|
Internal Ports
|
|
Pump connectors
|
4 Pin (PWM control)
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
Materials
|
|
Materials
|
Acetal / POM, Acrylic, Aluminium
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
Lighting Compatibility
|
ASRock Polychrome Sync, ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
|
Number of RGB LEDs
|
10
|
