- High-quality acrylic pump-reservoir combo ensures smooth operation
- Reliable D5 pump with high flow rate for optimal cooling performance
- ARGB lighting adapts seamlessly to your setup with broad compatibility
- Integrated pump design saves valuable space, particularly in compact builds
- Included bracket simplifies installation on 120 mm and 140 mm radiators

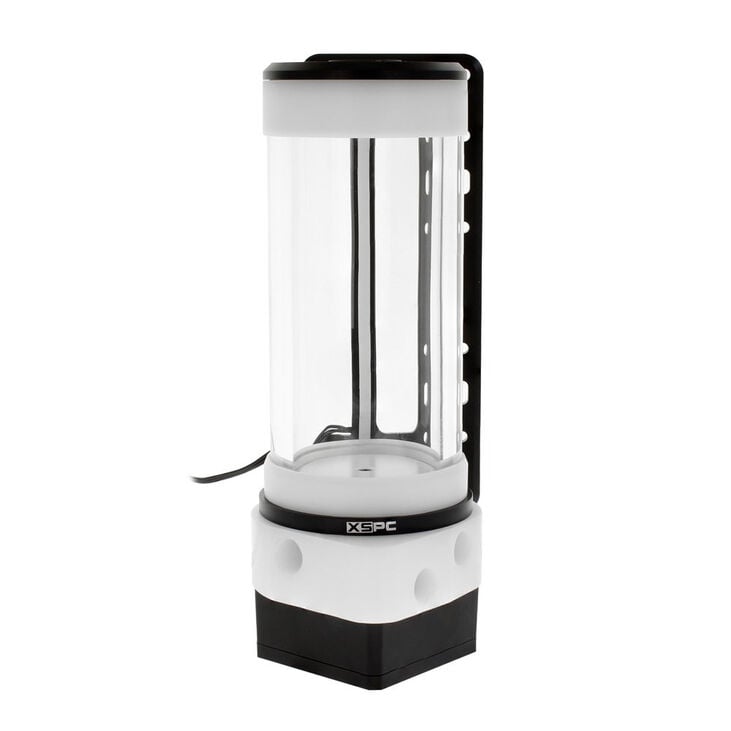

XSPC QX5 Photon 170 Pump-Reservoir Combo: Premium reservoir with integrated D5 pump

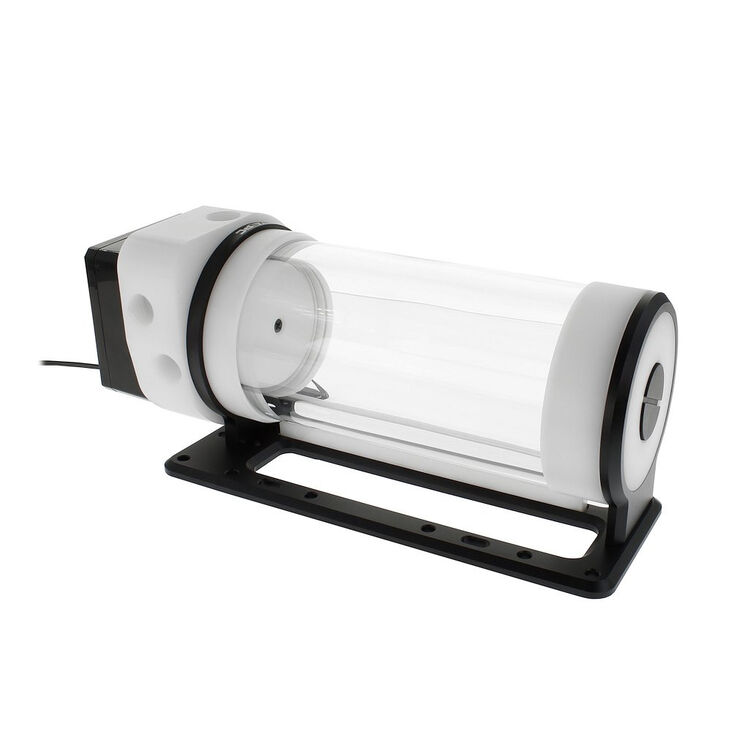

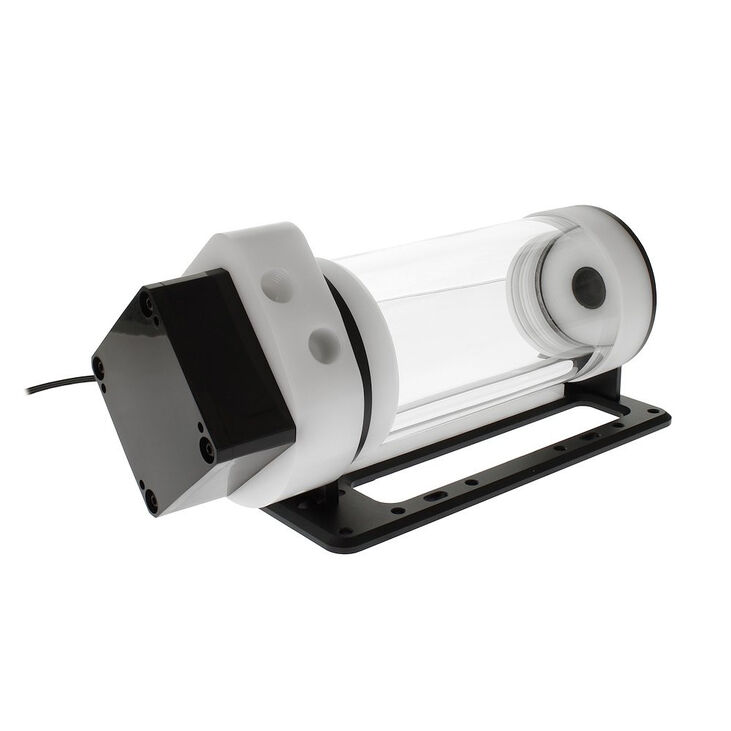

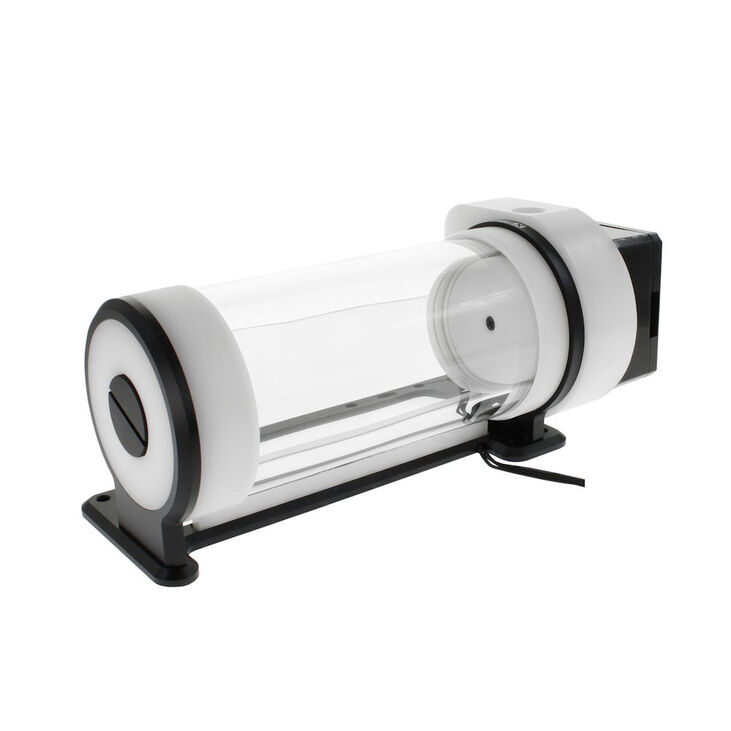

The XSPC QX5 Photon 170 Pump-Reservoir Combo combines the elegant Photon 170 reservoir with a reliable D5 pump in a compact overall package. An included bracket enables direct mounting of the reservoir to 120 mm or 140 mm radiators. Together with an improved fill port, this pump-reservoir combo significantly simplifies integration into your custom loop.
Reliable pump with high flow performance
The proven D5 pump integrated into the reservoir ensures smooth and efficient operation of your custom loop thanks to its high flow rate. With a maximum flow rate of up to 960 L/h and a maximum speed of 4000 RPM, the pump in combination with the reservoir provides exceptional cooling performance within your custom loop.

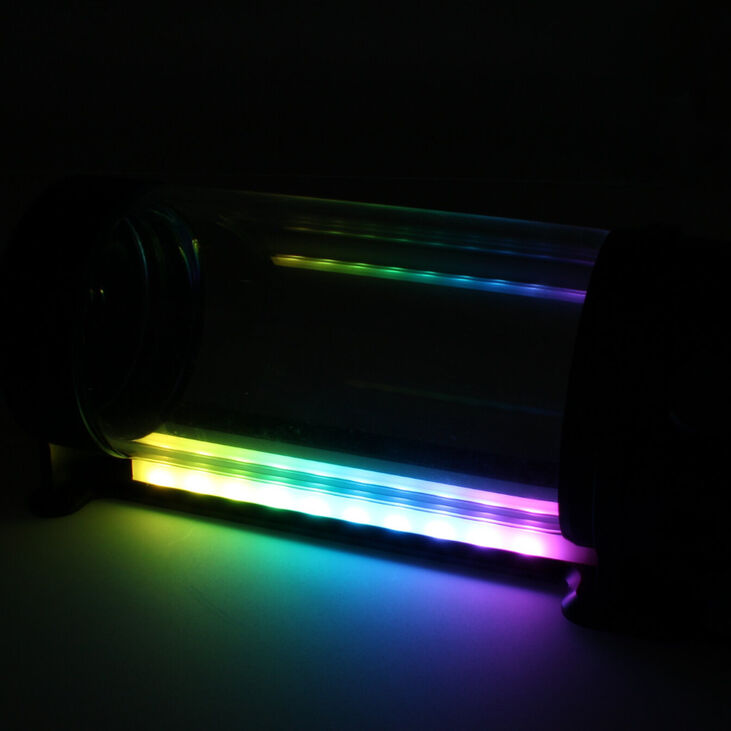

High-capacity reservoir with RGB lighting
The subtle, highly compatible RGB lighting featuring ten individually addressable RGB LEDs effectively highlights the large reservoir capacity of 425 ml. In addition to enhancing cooling performance, the RGB lighting is compatible with any standard 3-pin RGB connectors (5VDG) provided by numerous motherboard manufacturers (including ASUS, GIGABYTE, and MSI).
Colour
|
|
Primary Colour
|
White
|
Dimensions
|
|
Length / Depth
|
92 mm
|
Width
|
85 mm
|
Height
|
220 mm
|
Volume
|
425 ml
|
Pump Specifications
|
|
Max. Pressure Head
|
6 m
|
Max. Water Flow
|
960 l/h
|
Type
|
|
Pump type
|
D5
|
Power Specifications
|
|
Power Consumption
|
17 W
|
Rated voltage
|
12 V
|
Water Cooling
|
|
Water cooling component
|
Pump + Reservoir
|
Water cooling connectors
|
3x G1/4"
|
Internal Ports
|
|
Pump connectors
|
4 Pin (PWM control)
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
Materials
|
|
Materials
|
Acetal / POM, Acrylic, Aluminium
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
Lighting Compatibility
|
ASRock Polychrome Sync, ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
|
Number of RGB LEDs
|
10
|
