The Zalman M4 PC case is specifically designed for superior airflow, ensuring efficient cooling for your components. Thanks to its thoughtfully engineered mesh panels and optimized airflow design, your PC system remains cool and powerful even under heavy load.
- Black mini-tower with mesh panels
- Efficient cooling options with support for up to eight fans and radiators up to 240mm
- Supports motherboards up to Micro-ATX
- Room for graphics cards up to 320mm and CPU coolers up to 157mm high
- Four pre-installed 120mm RGB fans
Zalman M4: Mini-Tower with Optimal Airflow
The Zalman M4 mini case delivers maximum performance in minimal space. Its compact design fits easily on any desk or in your living room, without sacrificing hardware compatibility. It’s perfect for anyone looking for a powerful PC in a space-saving format.
Excellent Cooling with Fans and Radiators

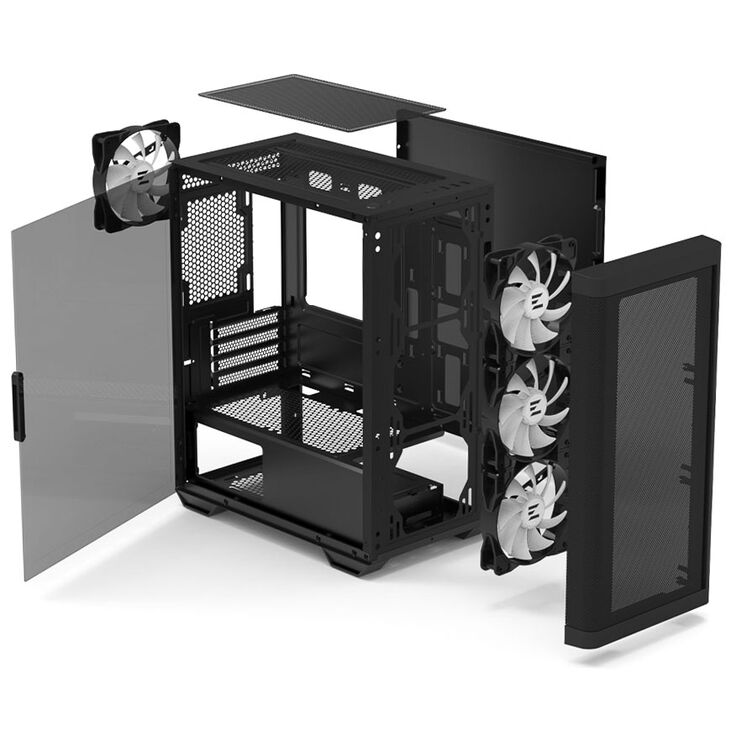

To ensure optimal cooling under any workload, the Zalman M4 supports up to eight fans. The front panel can hold three 120mm or two 140mm fans, while the top and bottom each support two 120mm fans. An additional 120mm fan can be mounted at the rear.
To get you started, four 120mm fans are already pre-installed – three at the front and one at the rear.
If you prefer water cooling, whether AiO or custom loops, the case also supports radiators. The front and top panels support radiators up to 240mm, and a 120mm radiator can be mounted at the rear.

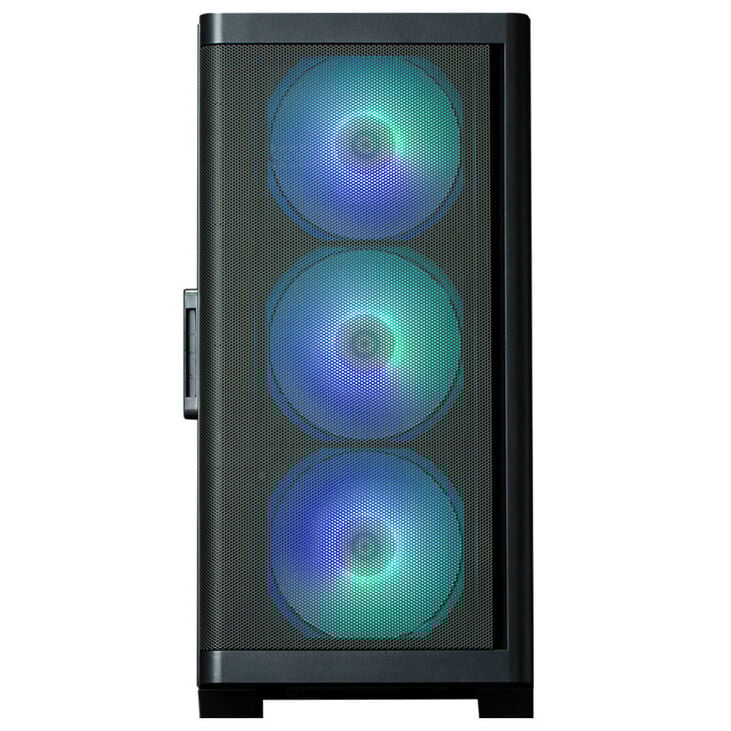

Adjustable RGB Lighting
Thanks to the built-in ARGB controller, you have full control over your lighting. Sync it with your motherboard or customize it directly via the button controls to illuminate your system exactly how you like it.

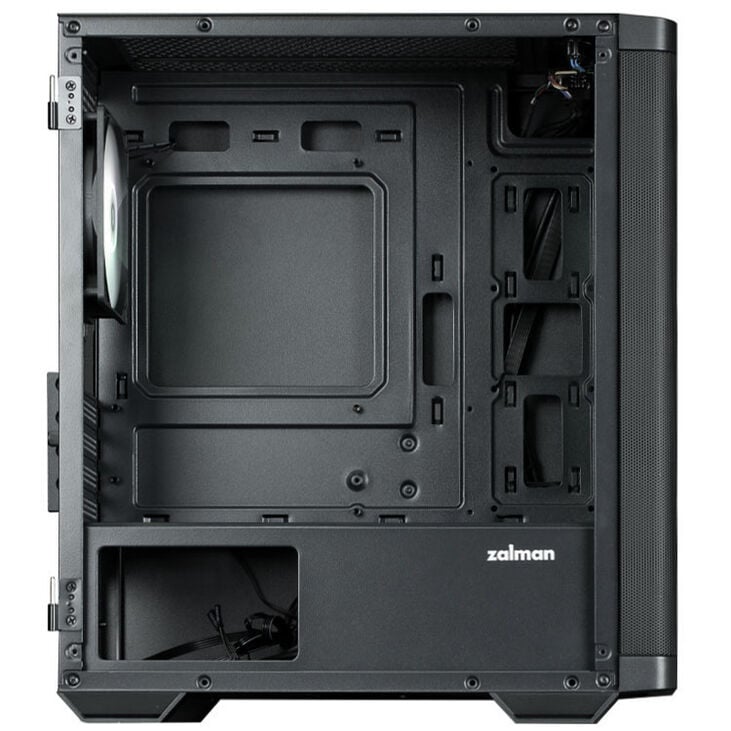

Hardware Installation
This case supports graphics cards up to 320mm in length. It’s compatible with motherboards up to Micro-ATX format, and the CPU cooler can be up to 157mm high. For storing your programs and games, the case offers space for up to four drives.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
385 mm
|
|
Width
|
208 mm
|
|
Height
|
425 mm
|
|
Weight
|
4.1 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
157 mm
|
|
Max. GPU Length
|
320 mm
|
|
Max. PSU Length / Depth
|
140 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Max. Number of Fans
|
8
|
|
120 mm fans
|
8
|
|
140 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 2x Dual (240 mm)
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
3
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
3.5 inch internal drive bay
|
1
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Case Features
|
|
|
I/O position
|
Cover
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
RGB Type
|
ARGB / DRGB
|
|
Additional Contents
|
|
|
Included fans
|
4x 120 mm
|
