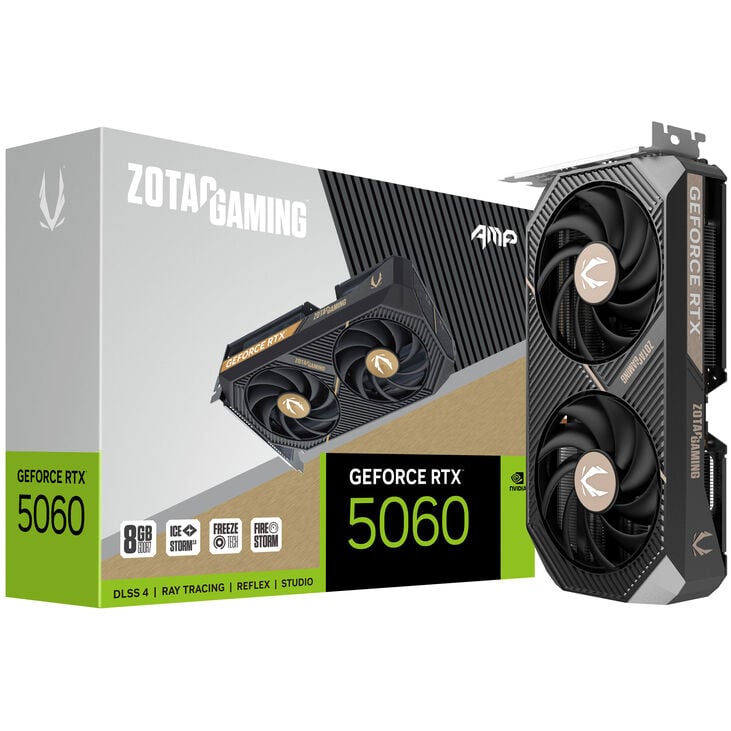

ZOTAC GAMING GeForce RTX 5060 AMP, 8192 MB GDDR7
NVIDIA GeForce RTX 5060 graphics card, with 2,280/2,550 MHz base/boost clock, 8 GB GDDR7 VRAM with 28 GHz memory clock (effective), dual-fan cooler design
329,00 €
incl. VAT
, add. delivery costs starting from 4.99€

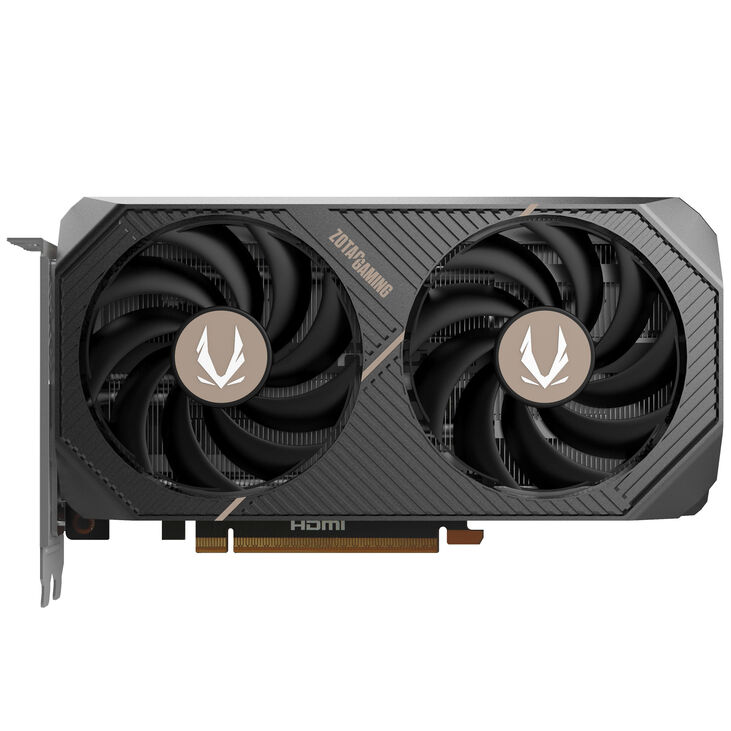

- Efficient dual-fan cooler design with semi-passive cooling
- High base clock of the GPU: 2,280 MHz
- Strong boost clock of the GPU: 2,550 MHz
- Next-generation graphics memory: 8 GB GDDR7
- Memory clock: 1,750 MHz (effective 28 GHz)
- Solid 128-bit memory interface
- Memory bandwidth of 448 GB/s
- For Full HD gaming: 3,840 CUDA cores (shaders)
- Additional PCIe power connector: 1x 8-pin

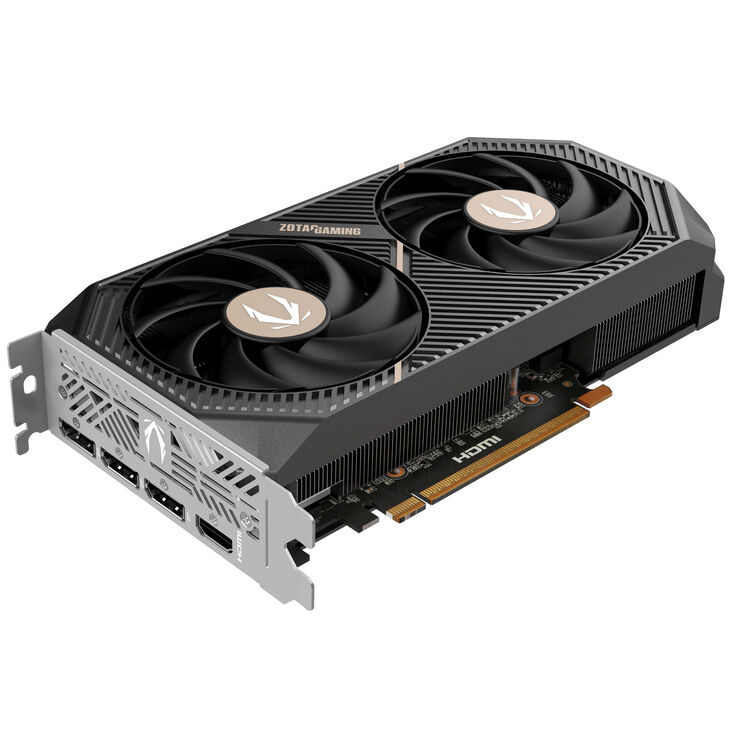

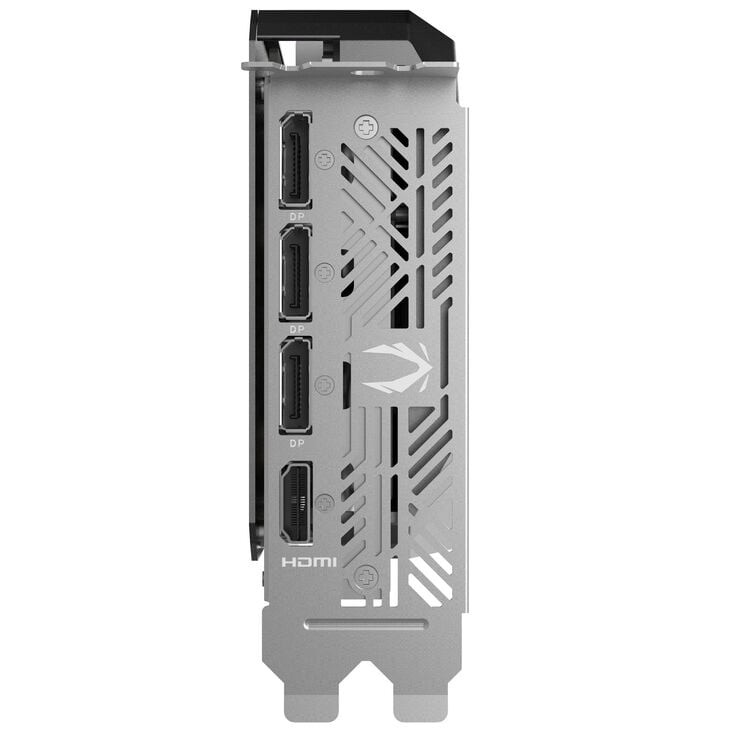

- Video outputs: 3x DP 2.1b, 1x HDMI 2.1b
- Supports DLSS 4 and Nvidia Reflex 2
The GeForce RTX 5060 graphics card in detail
With the GeForce RTX 5060, you can play the latest games in Full HD with stable frame rates. Thanks to GDDR7 graphics memory and the powerful GPU based on Nvidia’s new Blackwell architecture, you’ll enjoy smooth gaming at medium graphics settings.
Even graphics-intensive games are no problem for the RTX 5060: with AI-powered technologies like DLSS 4 and Multiframe, you get higher frame rates and smoother visuals. Ray tracing delivers extremely realistic lighting and shadow effects.
|
Colour
|
|
|
Primary Colour
|
Dark grey
|
|
Dimensions
|
|
|
Length / Depth
|
220.5 mm
|
|
Width
|
120.25 mm
|
|
Height
|
41.6 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5060
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5060
|
|
Graphics Chip
|
GB206-250
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
3840
|
|
Tensor Cores
|
120
|
|
Raytracing Cores / Ray Acceleratorss
|
30
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
8
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
448
|
|
GPU Effective Memory Clock (MHz)
|
1750
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2280 MHz
|
|
Max. GPU Clock (Boost)
|
2550 MHz
|
|
Max. Memory Clock
|
28000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
2
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
