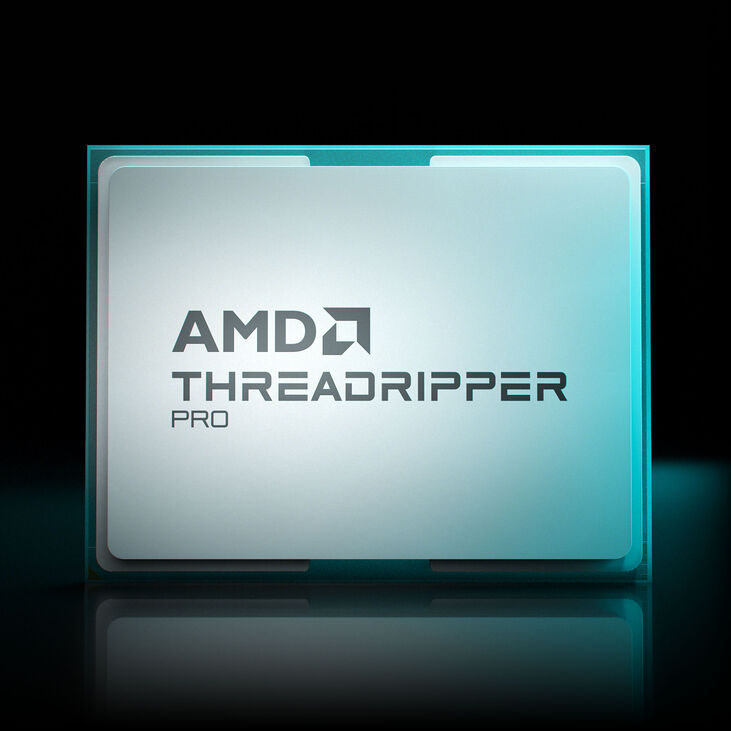

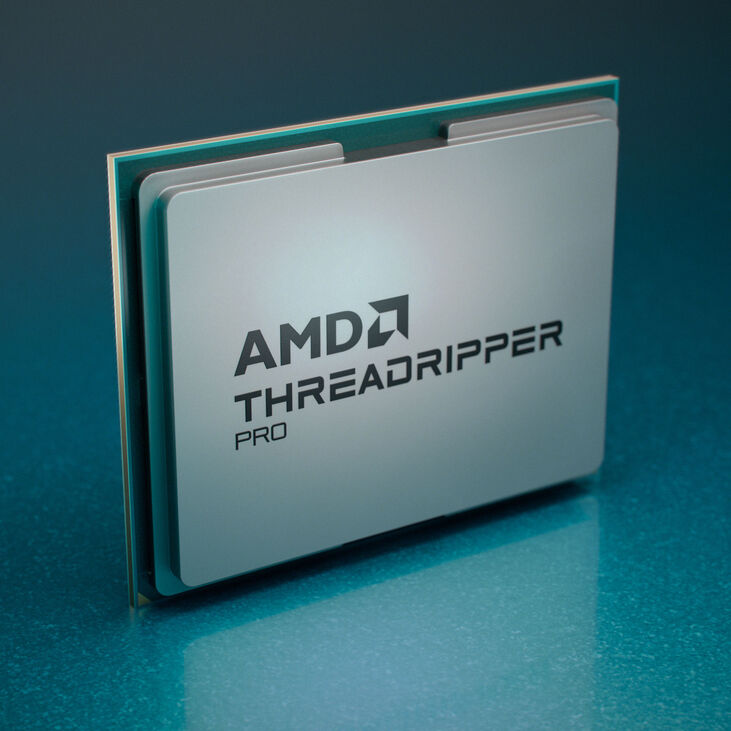

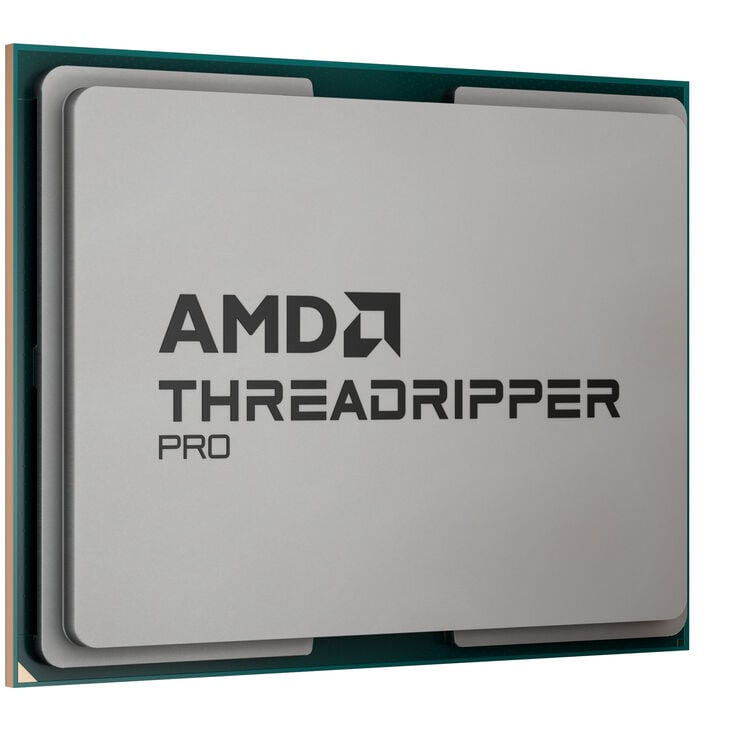

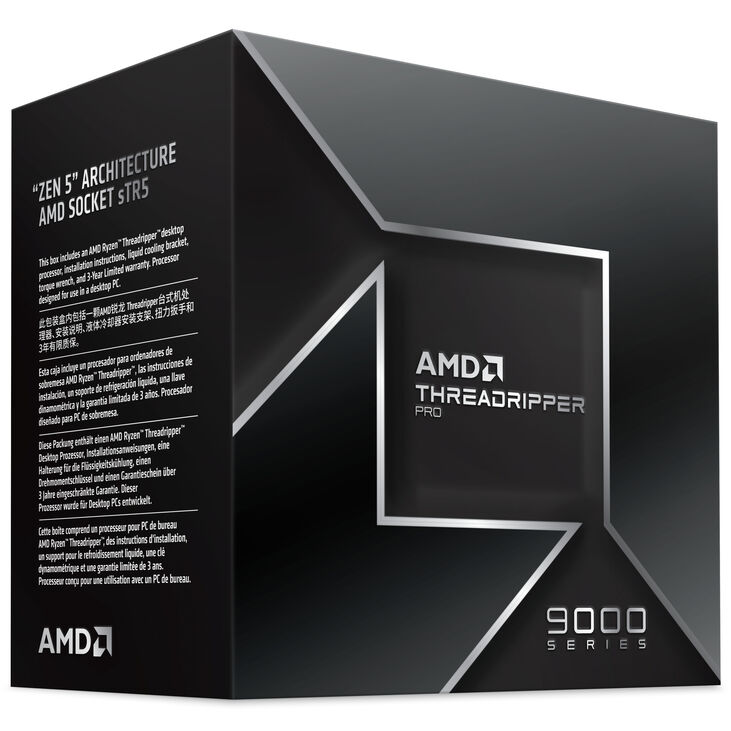

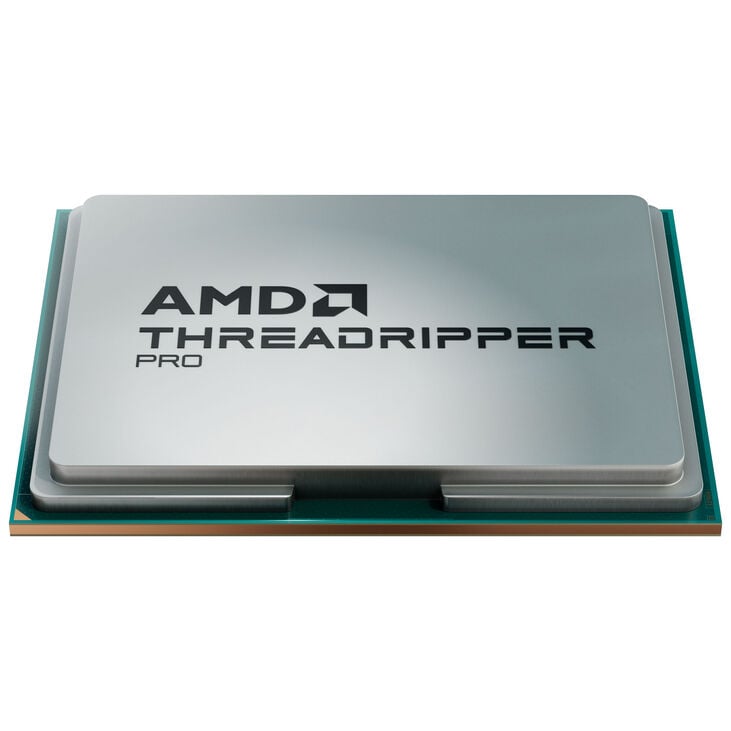

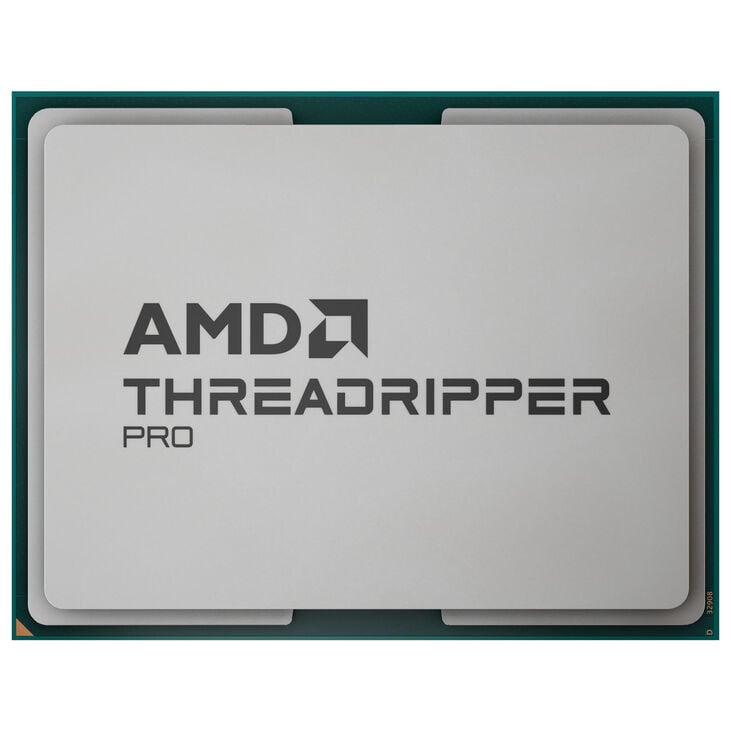

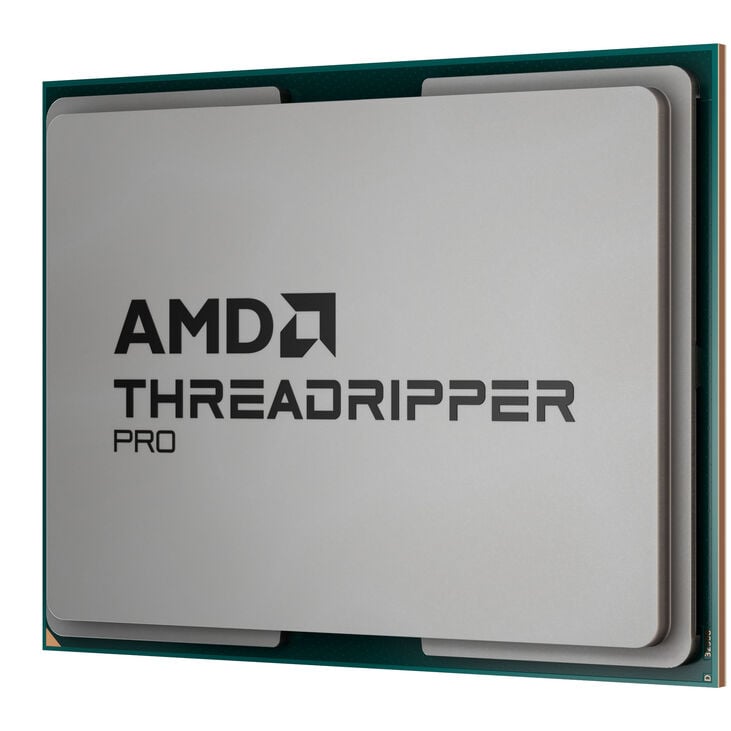

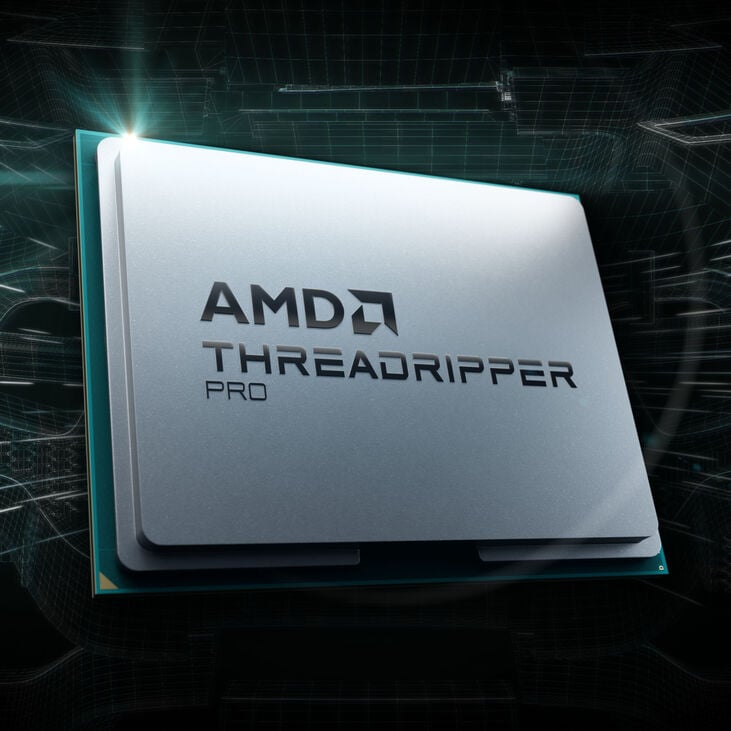

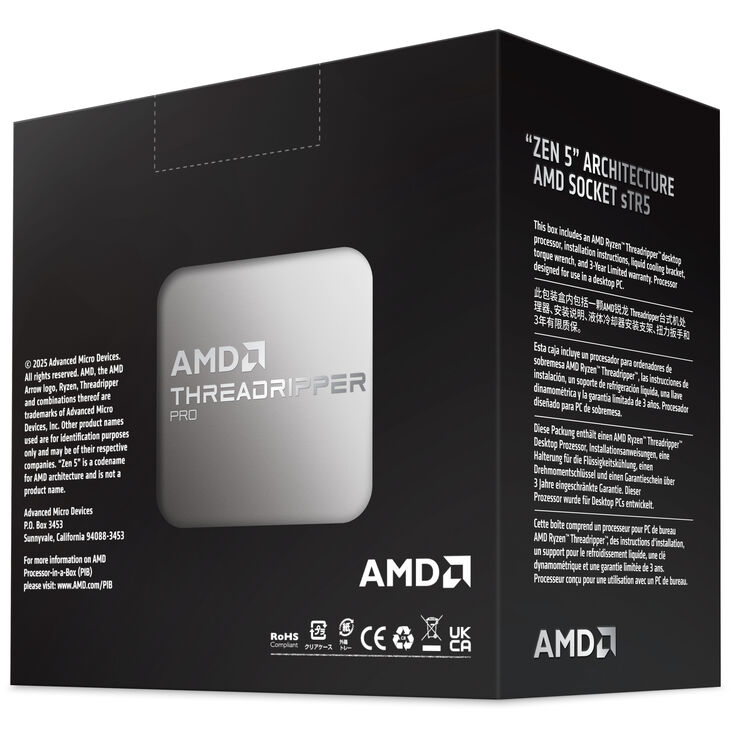

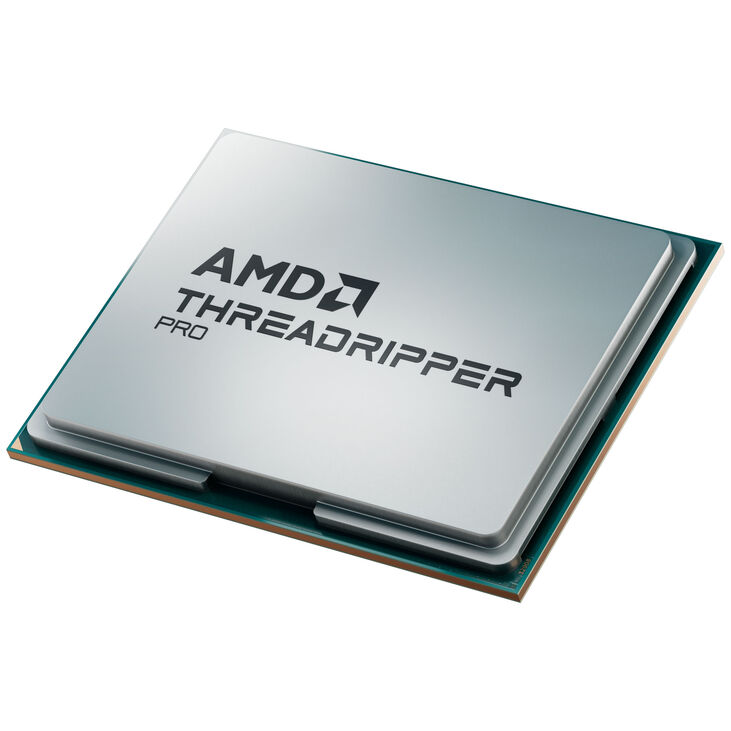

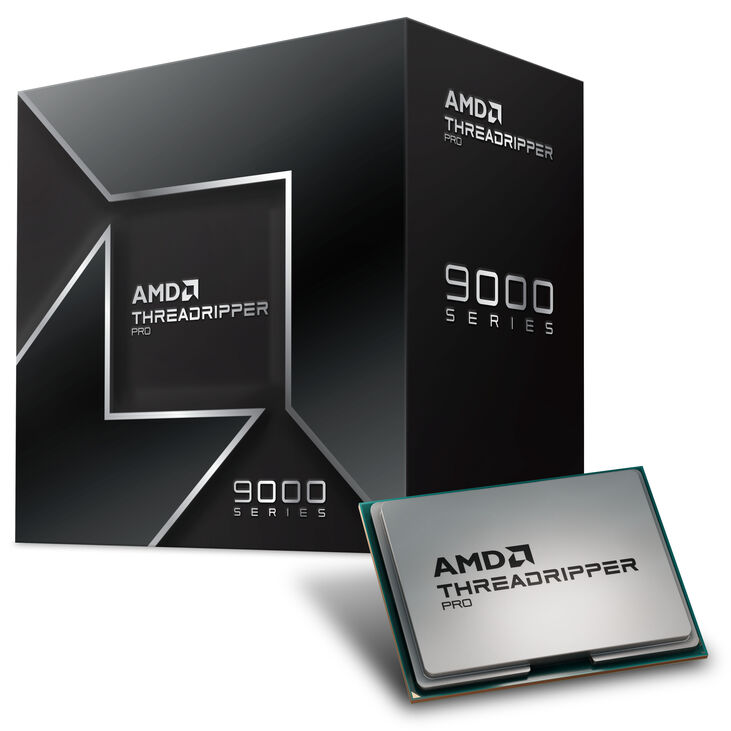

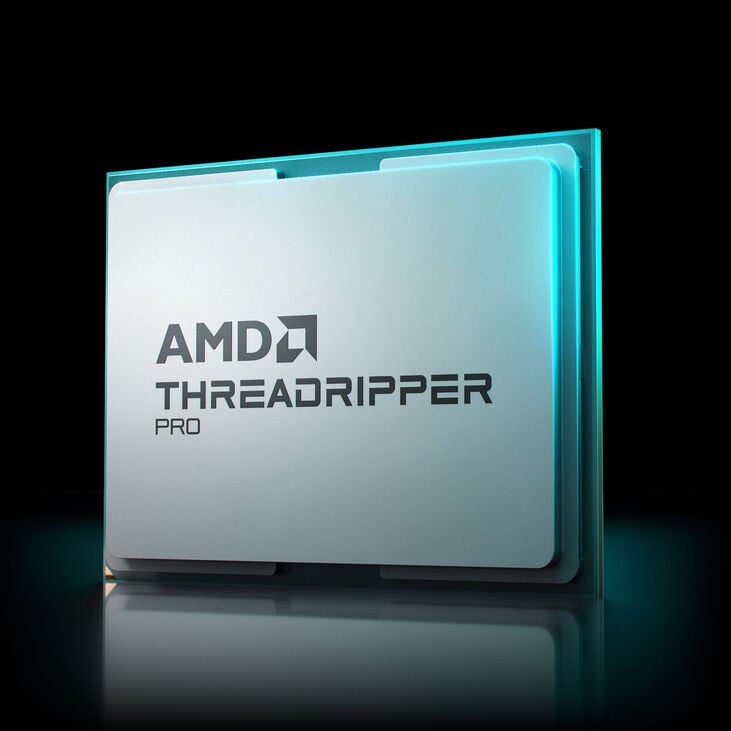

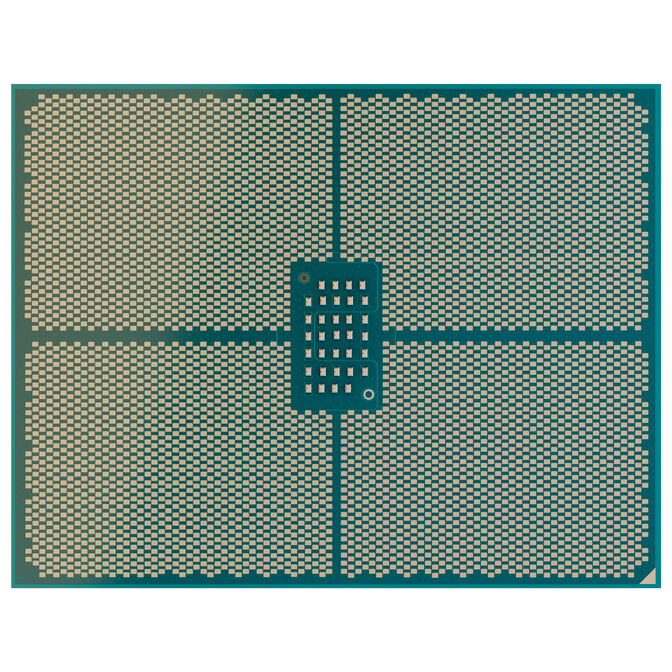

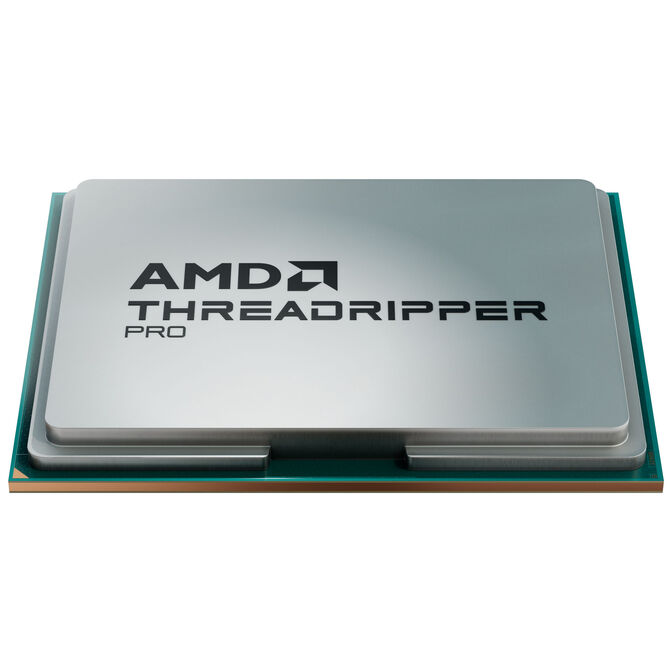

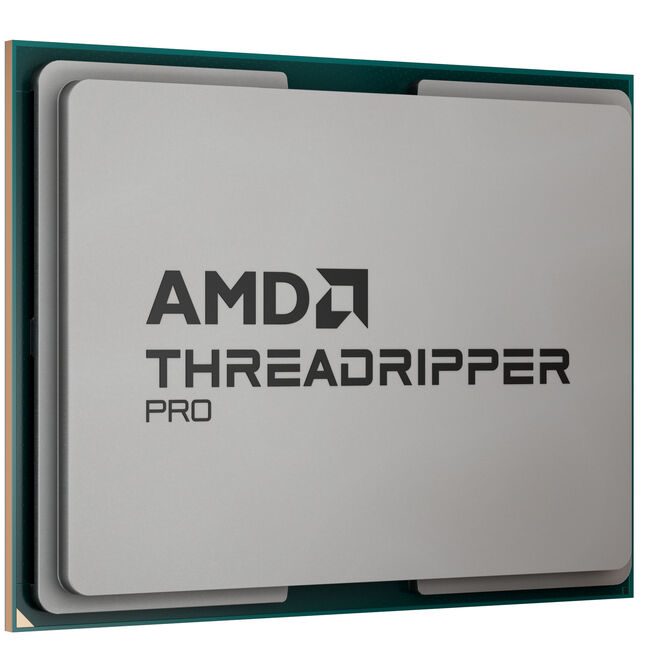

AMD Ryzen Threadripper Pro 9995WX 2.5 GHz (Shimada Peak) Socket sTR5 - boxed without cooler
With the Threadripper Pro series, AMD creates the ideal workstation: hyperthreading, enormous cache memory, high boost clock speeds, and the efficient 4nm FinFET manufacturing process lay the foundation for a powerful workstation PC with the Threadripper CPUs from the "Zen 5" family.
- 96 CPU cores from the "Zen 5" family with a 350 Watt TDP
- 192 threads with simultaneous multithreading (SMT)
- Base clock of 2.5 GHz and 5.4 GHz turbo
- Large unified cache: combined 480 MB L2 and L3 cache
- Highly efficient 4-nanometre FinFET transistors for CPU cores
- Extensive features and 128 PCIe 5.0 lanes with WRX90 platform
The AMD Ryzen Threadripper PRO 9995WX: 96-core processor for the ideal workstation
For the workstation segment, AMD relies not only on a huge number of cores but also on steadily increasing clock speeds. With Precision Boost, the Threadripper CPU selectively raises individual clock speeds up to 5.4 GHz.
Thanks to the switch to the Zen 5 family and the 4-nanometre FinFET process for the CPU cores, this is achieved at the same die size and Thermal Design Power (TDP) as the previous model from the 7000 series.
Furthermore, all PCIe 5.0 lanes are offered as usual so that the Threadripper Pro 9995WX can provide mature connectivity. Even regarding memory, you are particularly well equipped with up to 2 TB DDR5 RAM at a maximum clock speed of 6,400 MHz.
AMD Zen 5: CPU cores with 4nm architecture
The Zen 5 generation not only enables higher clock speeds alongside the usual functionality but also more instructions per clock cycle (IPC). This means more instructions are executed per clock, significantly improving CPU performance.
This advantage is made possible by the new manufacturing process, which in turn allows more transistors per core while maintaining cache and PCIe lanes in full.
Multithreading (SMT) and Precision Boost Overdrive (PBO)
Thanks to simultaneous multithreading, the Zen 5 cores can process two threads simultaneously, as with the previous model. The number of cores effectively doubles with 96 virtual cores to 192 cores.
Depending on TDP and cooling conditions, the CPU accelerates its cores up to 5.4 GHz with Precision Boost Overdrive to prioritise important threads and effectively handle your workload.
Even if the high boost clock of up to 5.4 GHz is not enough for you, AMD has set no limit on the clock speed. This means you can overclock the CPU as you wish. However, any damage caused by overclocking is not covered by the manufacturer!
Latency-free data access with intelligent cache
What matters is not only a total cache size of over 480 MB but also one that is intelligently managed. The massive cache of the AMD Ryzen Threadripper Pro 9995WX is managed highly efficiently with "Smart-Fetch" algorithms, ensuring latency-free data access and fast calculations.
The CPUs are further enhanced with many other algorithms, instruction sets, and units such as AVX 2 for complex vector calculations or two AES units for fast and reliable data encryption.
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Series
|
AMD Ryzen Threadripper Pro
|
|
CPU Socket
|
sTR5
|
|
CPU Architecture
|
Zen 5
|
|
CPU Code Name
|
AMD Shimada Peak
|
|
CPU Cores
|
96
|
|
CPU Threads
|
192
|
|
Hyperthreading / Multithreading
|
Yes
|
|
Memory Controller
|
8 Channel
|
|
L1-Cache
|
7680 kB
|
|
L2-Cache
|
96 MB
|
|
L3-Cache
|
384 MB
|
|
TDP
|
350 W
|
|
CPU Cooler Included
|
No
|
|
CPU Packaging
|
boxed / retail
|
|
Integrated GPU
|
No
|
|
Clock Speeds
|
|
|
Max. CPU Clock (Base)
|
2.5 GHz
|
|
Max. CPU Clock (Turbo / Boost)
|
5.4 GHz
|
|
Memory
|
|
|
Memory Compatibility
|
DDR5
|
|
System Memory Subtype
|
RDIMM
|
|
Max. Memory Speed (Standard)
|
6400 MT/s
|
|
EEC Support
|
Yes
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
PCIe-5.0-Lanes
|
128
|
