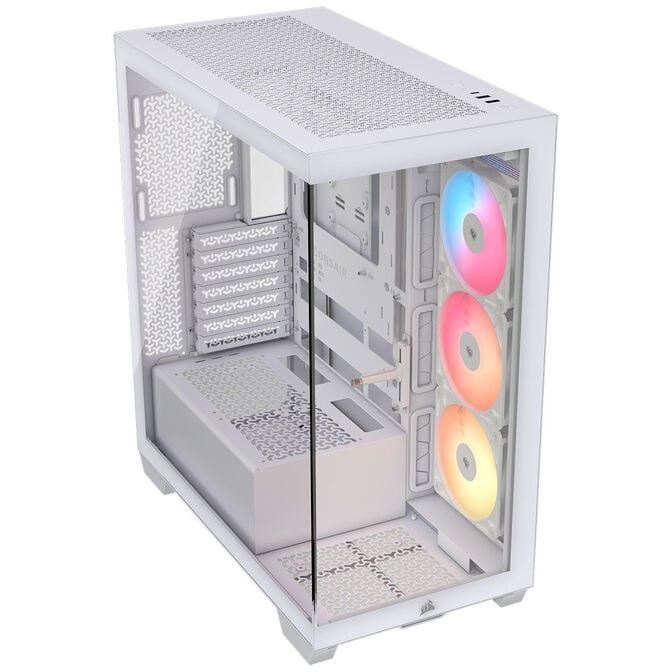

Corsair 3500X RS-R PC Case, Mid-Tower, E-ATX, RGB, Tempered Glass - white
With the Corsair 3500X RS-R, your build takes centre stage. Thanks to tempered glass, this PC case offers a premium showcase for your hardware – ideal for spectacular RGB setups and high-end cooling solutions.

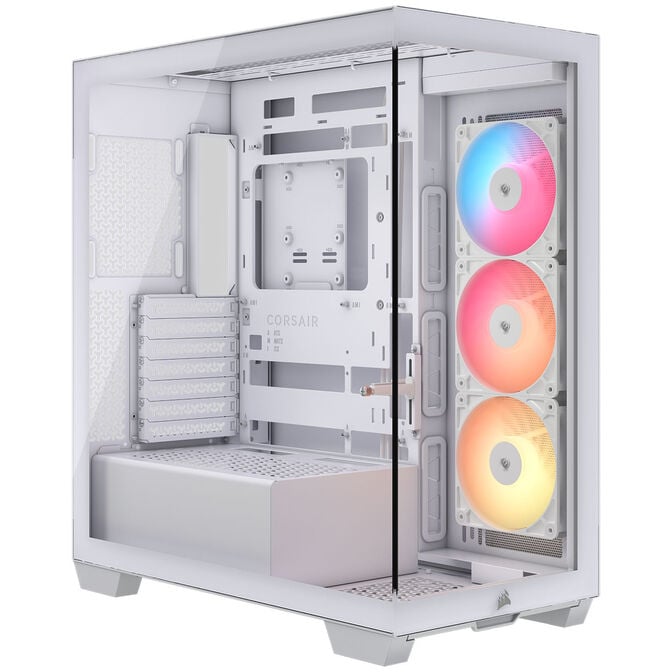

- White mid-tower with tempered glass on the side and front
- Space for up to 10 fans and radiators up to 360mm
- Supports motherboards up to E-ATX and compatible with back-connect design
- Space for graphics cards up to 410mm and CPU coolers up to 170mm in height
- Three pre-installed RS120 Reverse RGB fans
Corsair 3500X RS-R: Mid-Tower for High-End Hardware
The Corsair 3500X RS-R mid-tower offers the perfect balance between size and functionality. With plenty of room for powerful hardware and efficient cooling, it’s the ideal choice for gaming and workstation builds.
Excellent Cooling Thanks to Fans and Radiators
To keep your hardware cool under any load, the Corsair 3500X RS-R can accommodate up to 10 fans. The top and side support three 120mm or two 140mm fans. The base supports three 120mm or one 140mm fan, while the rear can hold an additional 120 mm fan.

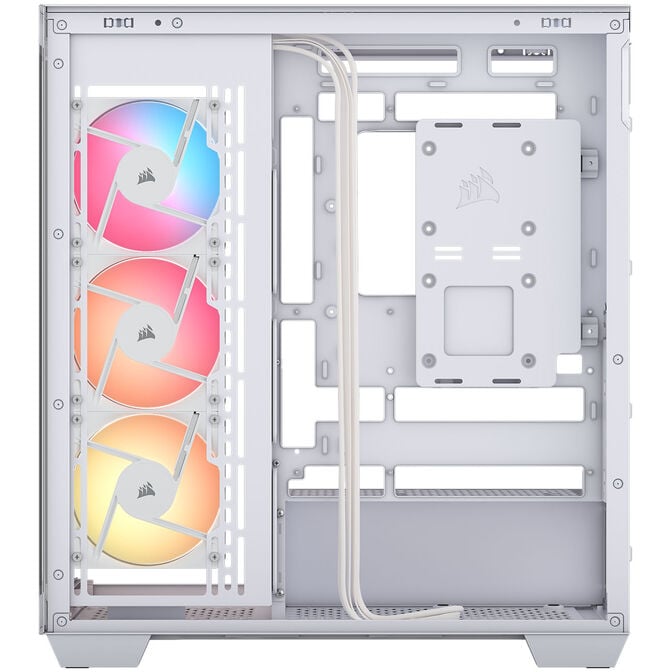

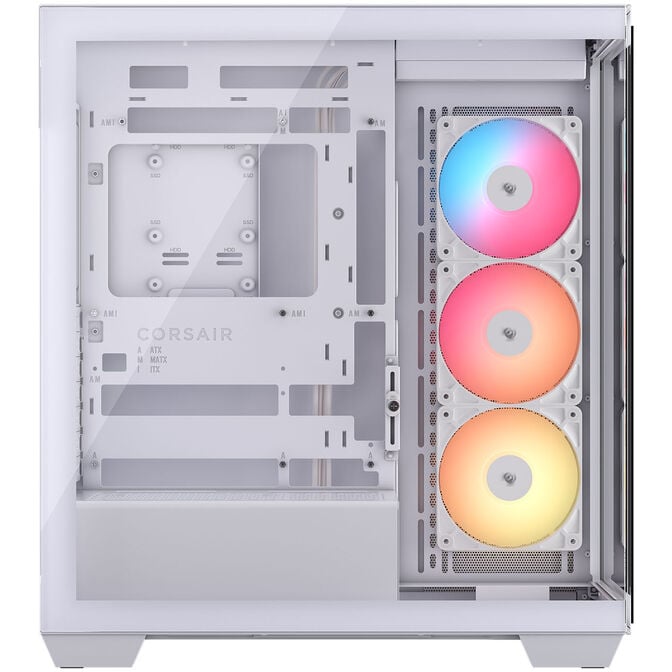

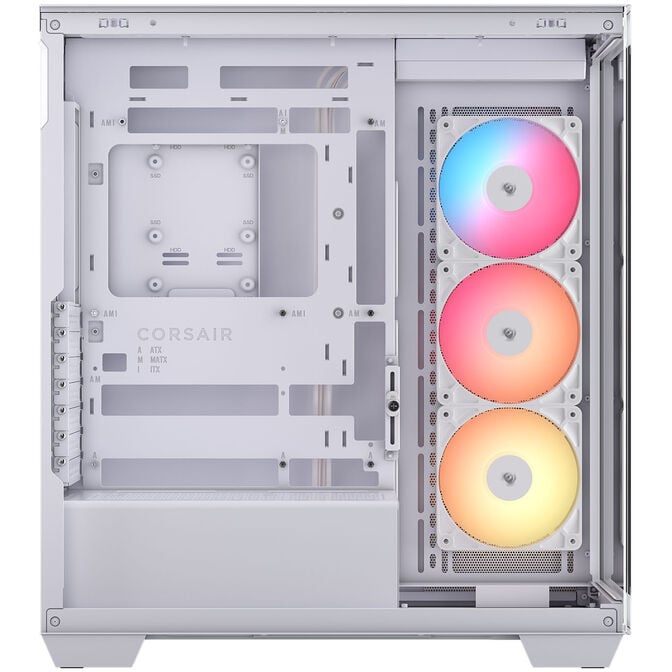

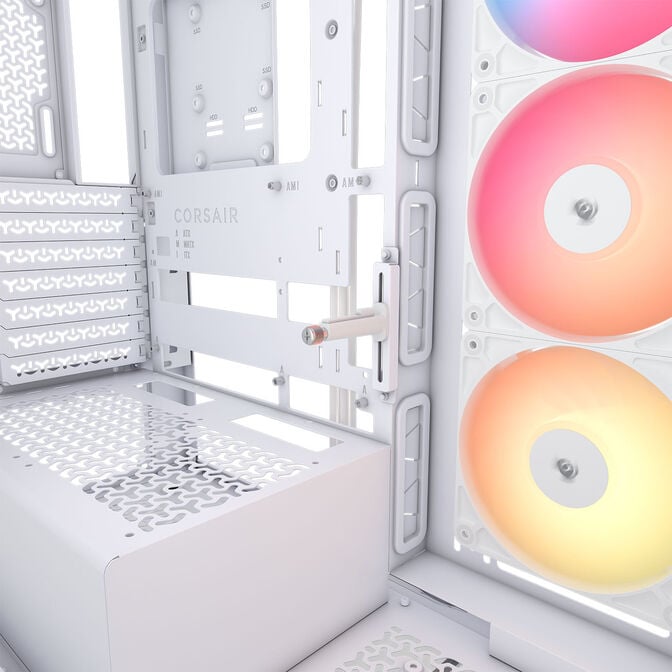

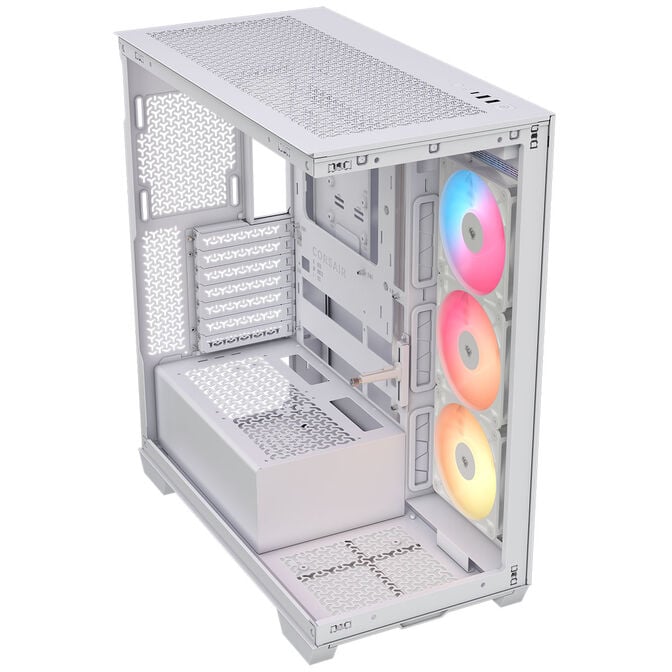

Three high-quality 120mm Corsair RS Reverse fans are already installed on the side. The reverse design creates an inverted airflow while showcasing the stylish side with RGB lighting.

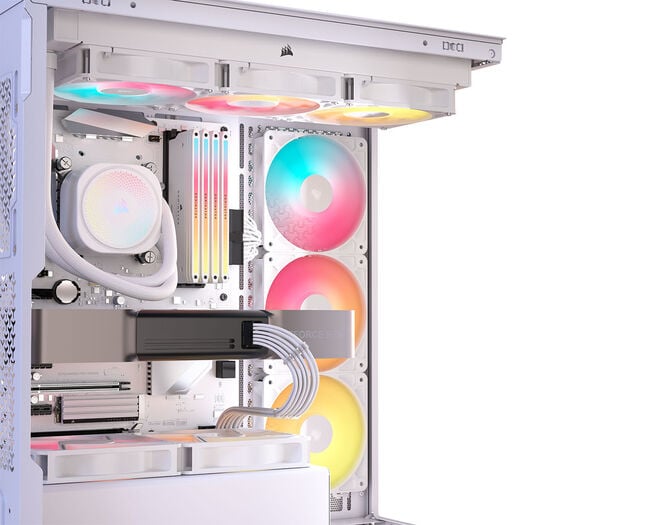

If you prefer liquid cooling – whether an AiO or custom loop – radiators can also be installed. The top and side each support a radiator up to 360mm, and a 120mm radiator can be mounted at the rear and base.
Installing Your Hardware

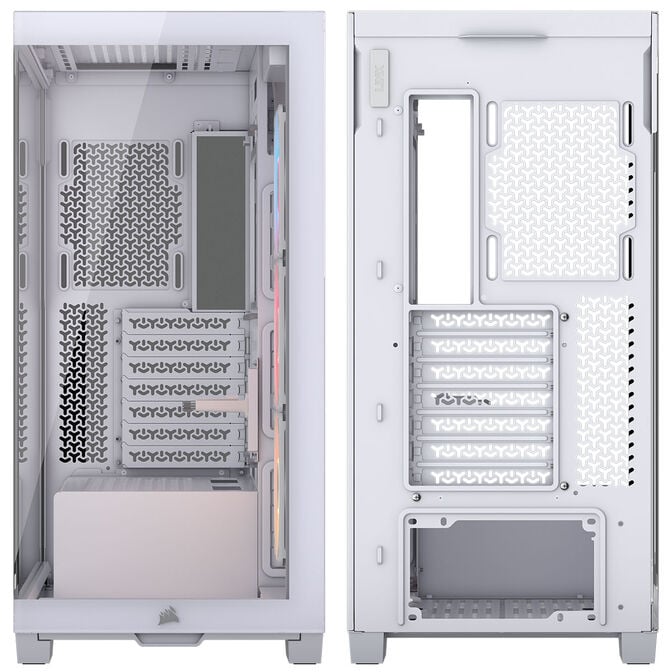

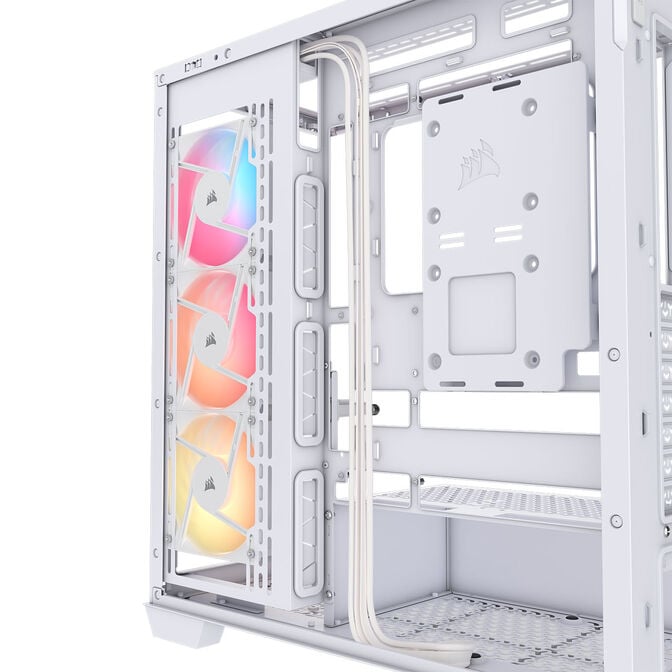

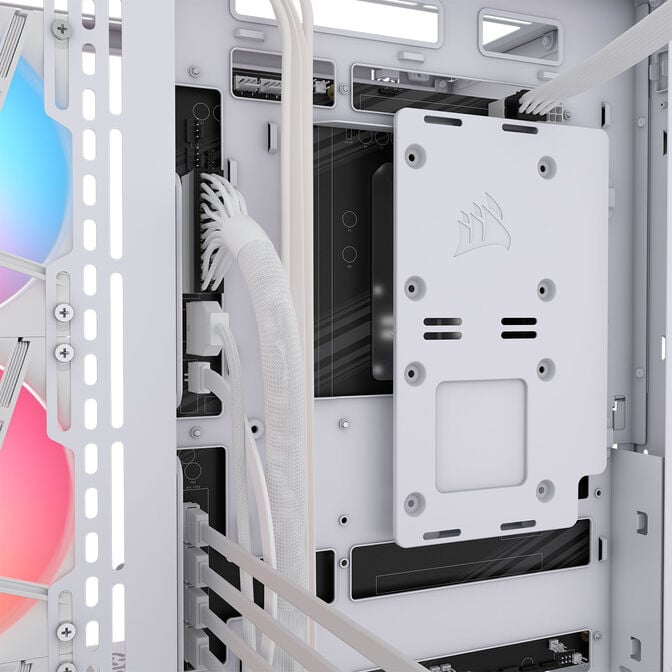

The case provides ample space for powerful gaming hardware. It supports installation of large graphics cards up to 410mm. Motherboards up to E-ATX size are supported – including those with back-connect design. Thanks to hidden cables, the interior of your gaming PC looks much tidier.
The CPU cooler should not exceed 170mm in height. To store programs and games, there is room for a total of four drives – two 2.5-inch SSDs and two 3.5-inch HDDs.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
460 mm
|
|
Width
|
240 mm
|
|
Height
|
506 mm
|
|
Weight
|
10.66 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
425 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x), 140mm Fan (1x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 2x Triple (360 mm)
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|

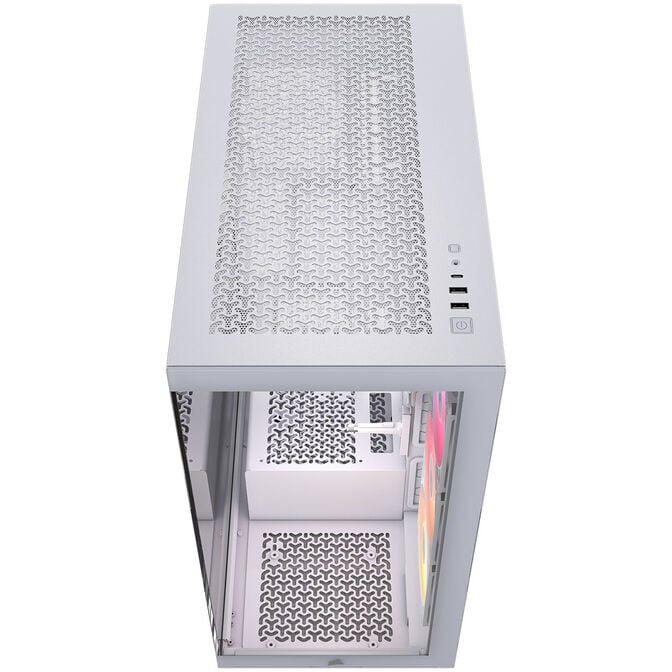

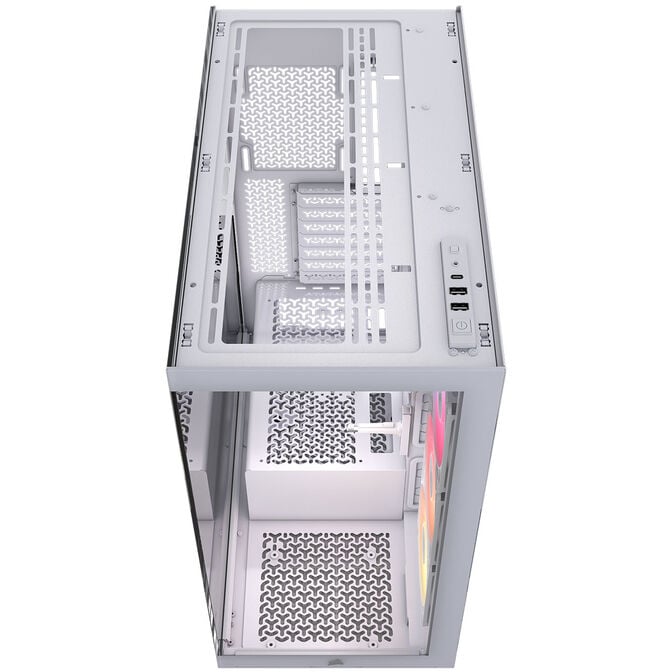

I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|

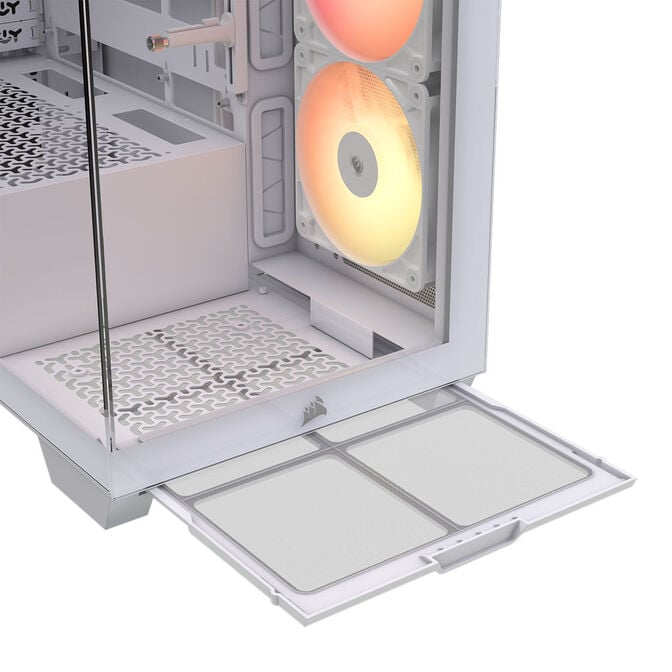

Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Side, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|

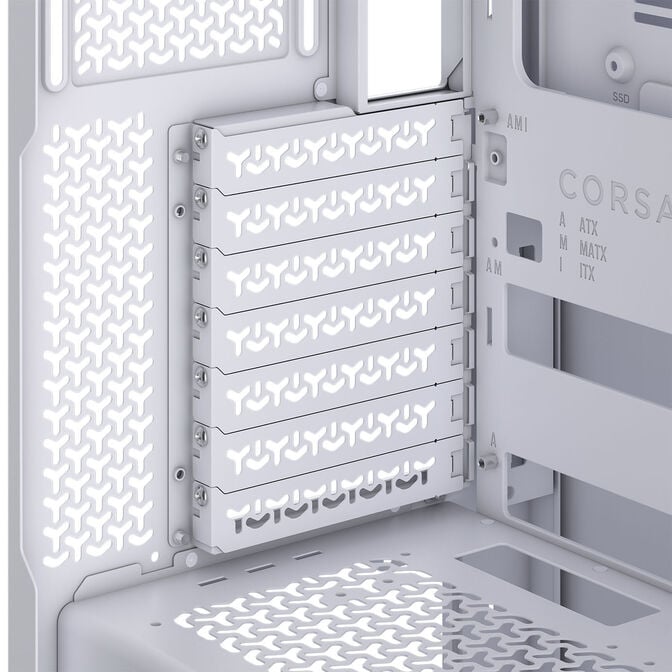

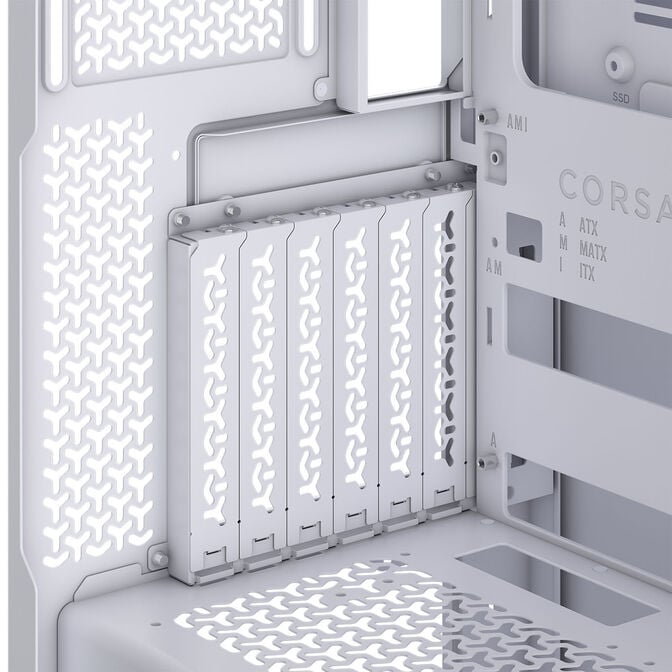

Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
No
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
