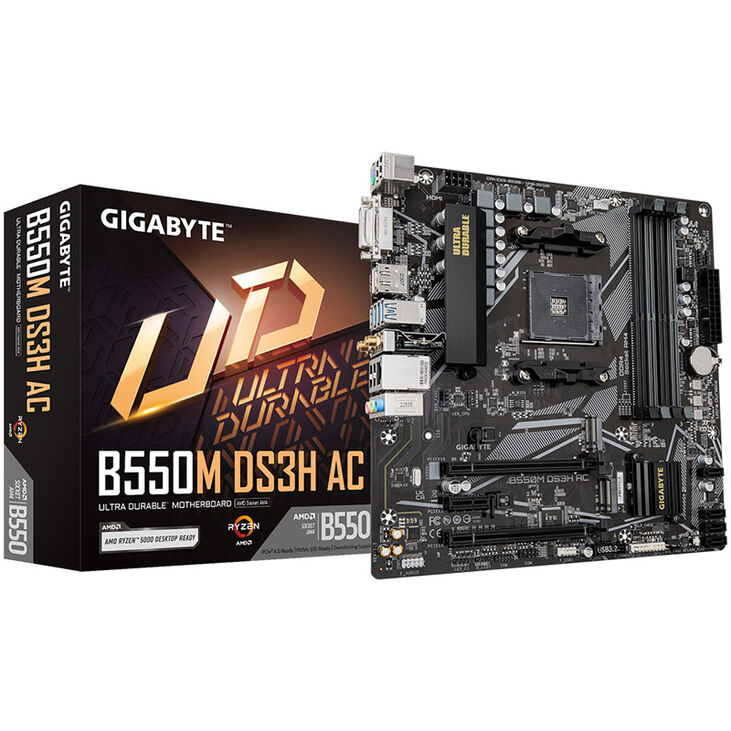

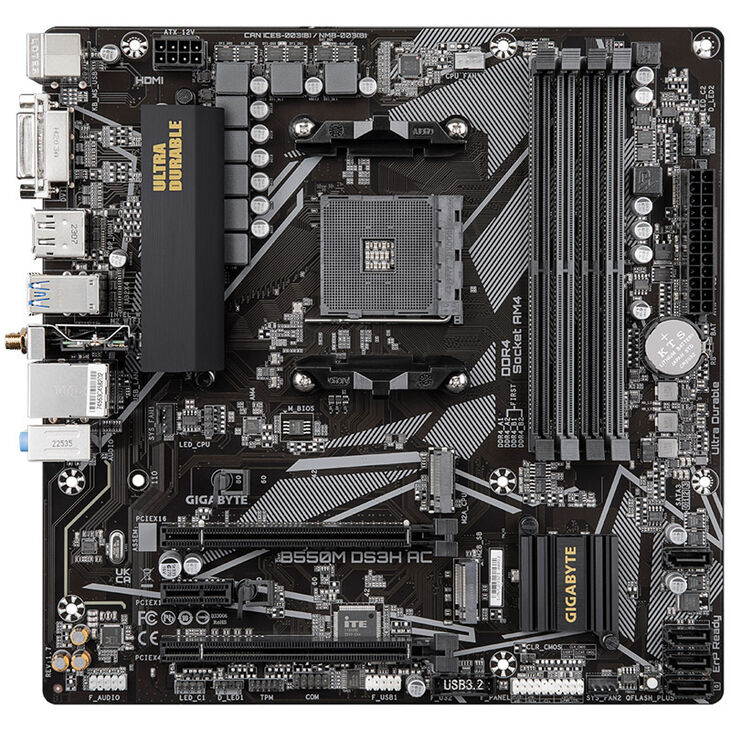

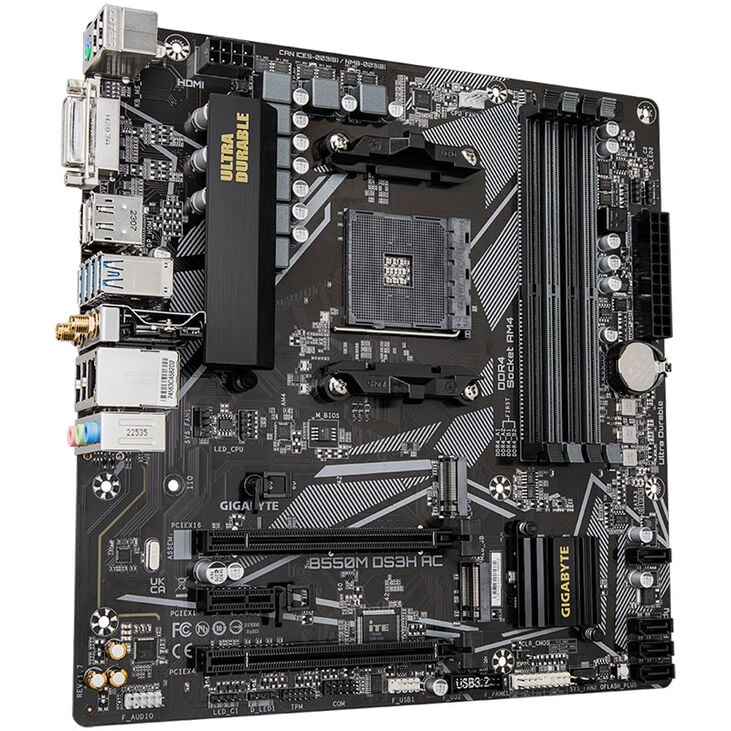

GIGABYTE B550M DS3H AC motherboard, Socket AM4, AMD B550, Micro-ATX, DDR4
Micro-ATX motherboard with B550 chipset, with AMD socket AM4, PCIe 4.0 for graphics card, suitable for DDR4 RAM, 1x M.2 PCIe 4.0 slots, 2.5 Gbit LAN & WLAN
102,11 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x16 (x4), 1x PCIe 3.0 x1
- DDR4 memory up to 3,200 MHz, with RAM OC up to 4,733 MHz
- 1x M.2 slots with PCIe 4.0 for fast NVMe SSDs

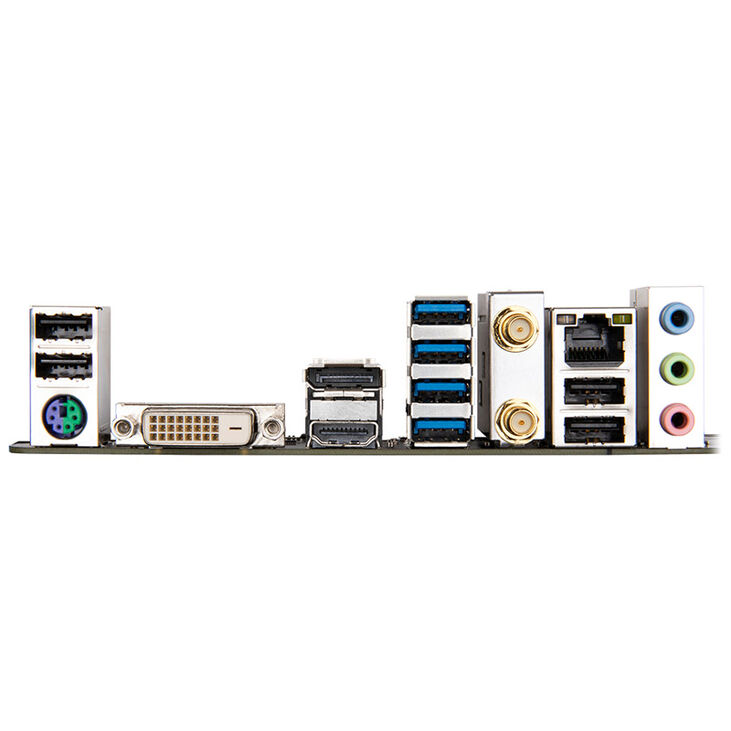

- USB on the I/O panel: 4x USB 3.0, 4x USB 2.0
- OC features: 5+3 phase VRMs
- A total of 3 connectors for fans and pumps
Gigabyte B550M DS3H AC: Micro-ATX motherboard for AMD Ryzen 5000 CPUs
The Gigabyte B550M DS3H AC is a Micro-ATX motherboard and features a PCI-Express 4.0 slot with full x16 bandwidth for graphics cards. With the AMD AM4 socket, you are well equipped for powerful processors. Additionally, the Gigabyte B550M DS3H AC supports DDR4 memory up to 4,733 MHz via OC.
For optimal processor performance, it is recommended to regularly perform BIOS updates for the motherboard. This is especially true for motherboards that may have been shipped from the manufacturer with an early BIOS version.
Our King Mod Service is happy to carry out a BIOS update to the latest version in advance:
Our King Mod Service is happy to carry out a BIOS update to the latest version in advance:
Please note that this may delay shipping preparation by 1 to 4 working days!
More information on AMD AM4 and the AMD Ryzen 5000 / 5000 G / 4000 G / 3000 CPUs can be found at the following link:|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
AM4
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B550
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR4
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG), 3x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), DVI-D (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 3.0 x2
|
1
|
|
M.2 PCIe 3.0 x2 & SATA 6G
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 4.0 x4 & SATA 6G
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
3
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
