- White distroplate for the front cover of the Dark Base Pro 901 case
- Enhances the appearance of your custom water cooling
- Sufficient connections: 12x G1/4-inch, 1x fill port and 1x drain port
- Includes D5 pump with 433 ml filling capacity
- Customisable RGB lighting

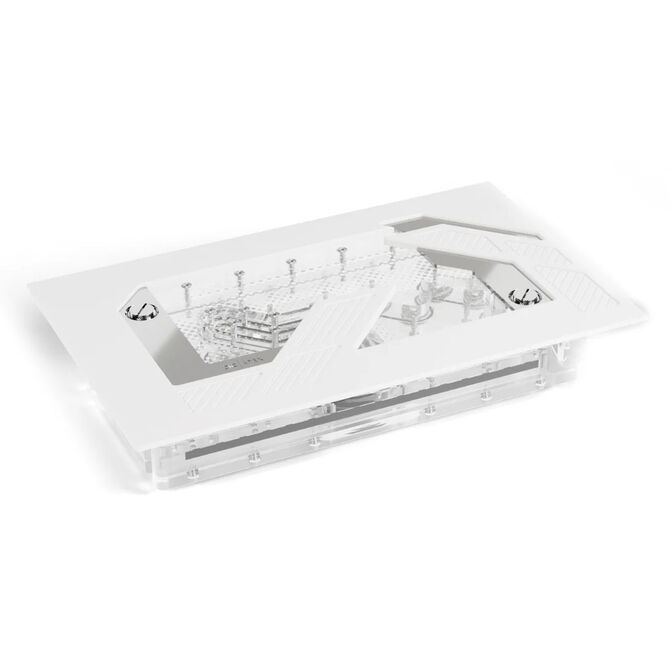

Alphacool Apex Distroplate Dark Base Pro 901: Distroplate for your custom water cooling

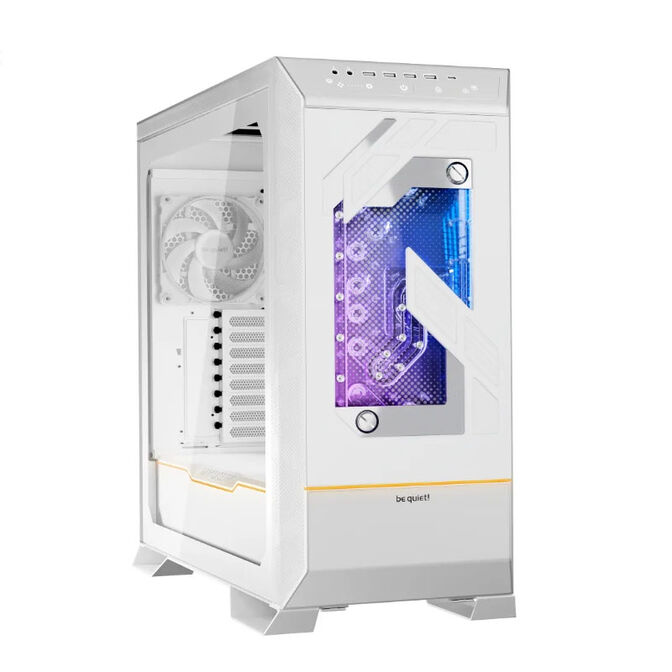

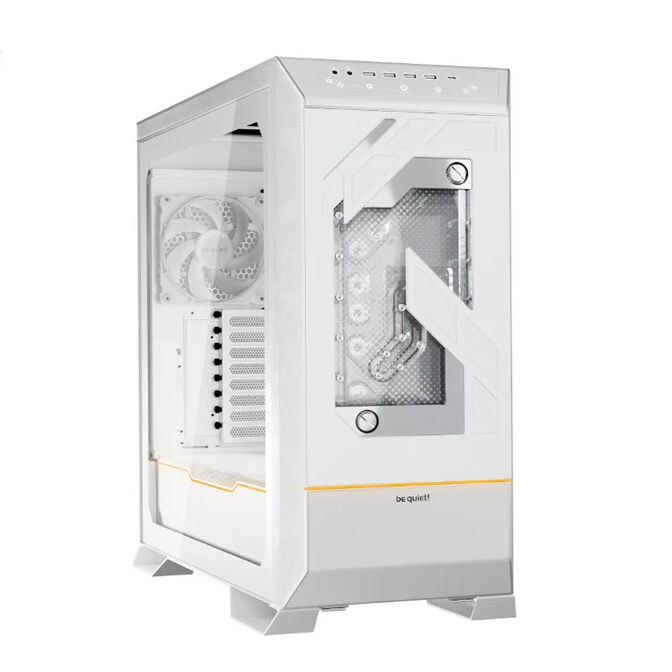

With the Alphacool Apex Distroplate Dark Base Pro 901, you perfect your custom water cooling: specifically designed for the Dark Base Pro 901 case, the distroplate replaces the front cover. This not only gives your water cooling an elegant touch but also enhances performance.

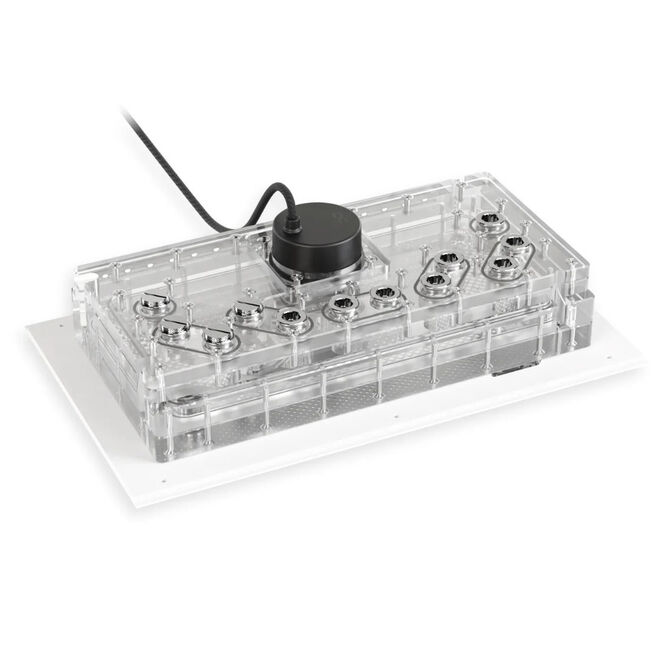

Diverse connections and pump
The total of 12 G1/4-inch connections are made of brass and chrome-plated. Since they are not directly screwed into the acrylic, the risk of cracking is reduced. Additionally, the distroplate supports an inverted layout, providing you with maximum flexibility.
To make it easy for you, a D5 pump is already attached to the Alphacool Apex Distroplate Dark Base Pro 901, capable of reaching up to 4,500 revolutions per minute and has a maximum filling capacity of 433 ml.

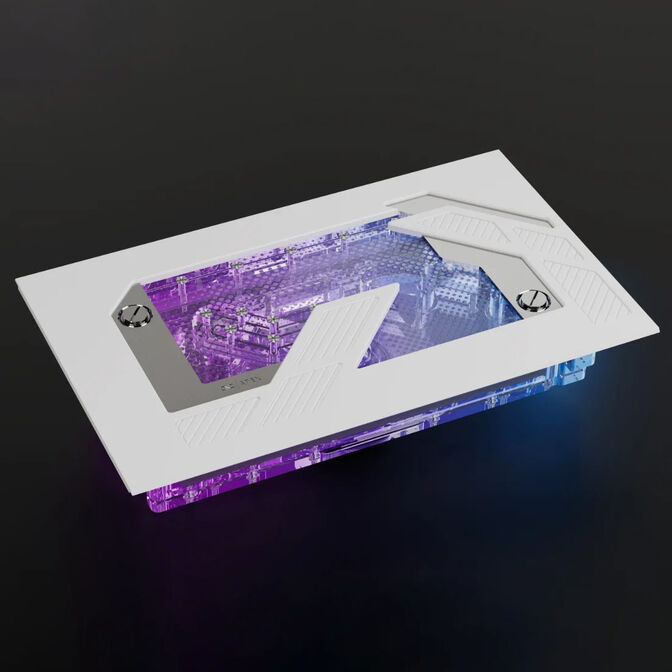

Customisable RGB lighting
The RGB lighting can be customised to your liking and is beautifully showcased through the clear view of the water cooling circuit. Create your own colour play and let yourself be enchanted!
Dimensions
|
|
Length / Depth
|
222 mm
|
Width
|
365.1 mm
|
Height
|
86.06 mm
|
Volume
|
433 ml
|
Weight
|
3.6 kg
|
Pump Specifications
|
|
Max. Pressure Head
|
4.25 m
|
Max. Water Flow
|
340 l/h
|
Type
|
|
Pump type
|
D5
|
Power Specifications
|
|
Power Consumption
|
14 W
|
Rated voltage
|
12 V
|
Water Cooling
|
|
Water cooling component
|
Distro Plate
|
Water cooling connectors
|
12x G1/4"
|
Internal Ports
|
|
Pump connectors
|
4 Pin (PWM control), SATA (power)
|
RGB / LED connectors
|
yes
|
Thermal Specifications
|
|
Max. System Temperature
|
60 °C
|
Materials
|
|
Materials
|
Acrylic, Aluminium, Ceramic, Plastic
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
