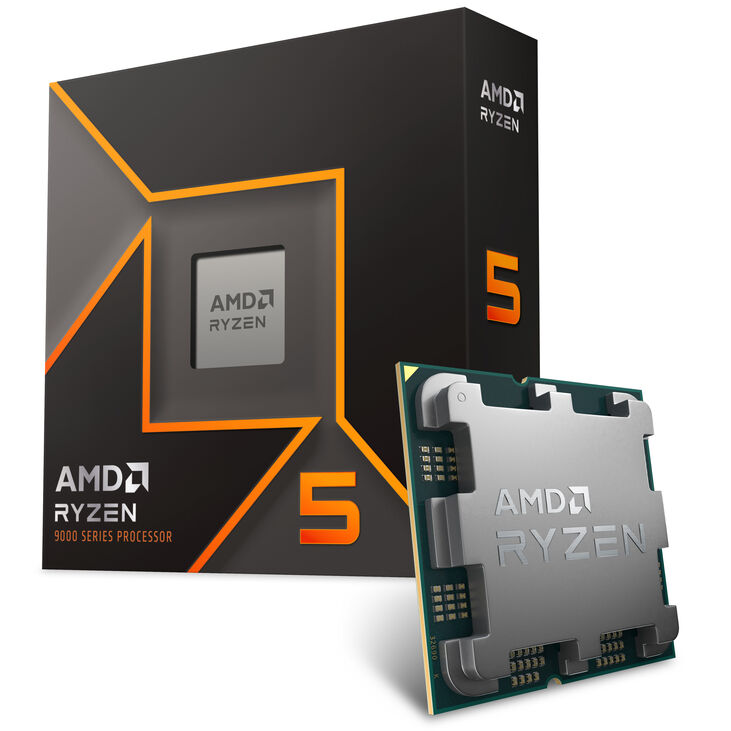

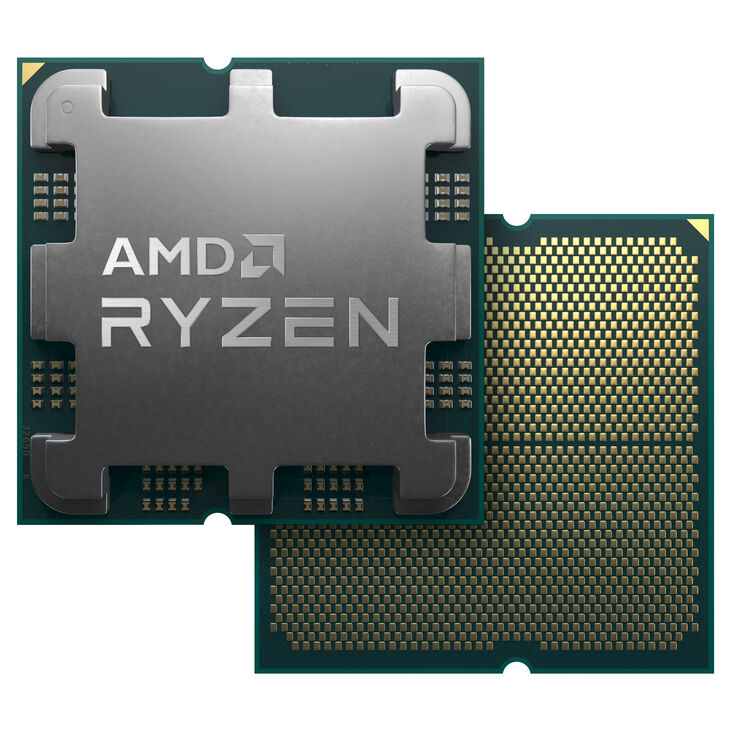

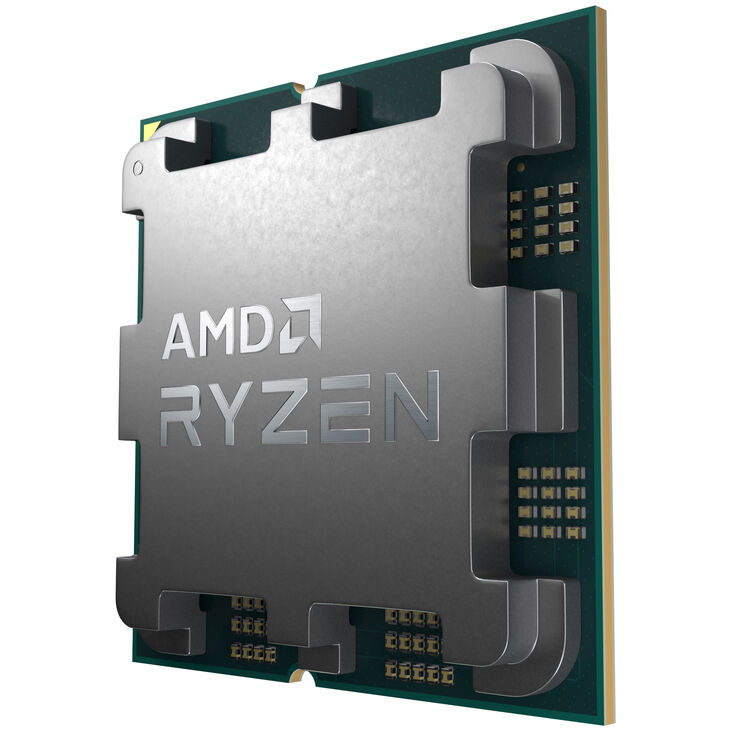

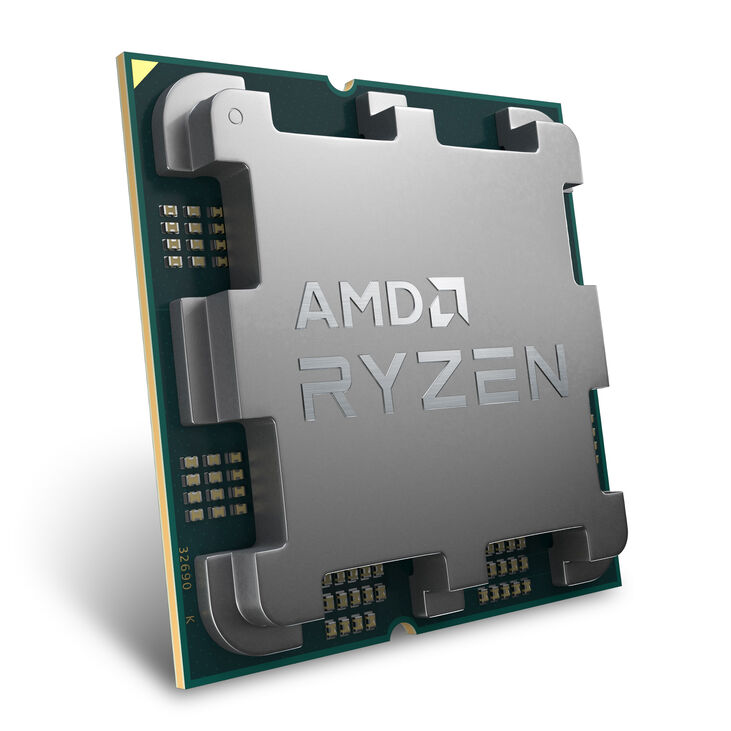

AMD Ryzen 5 9600X CPU, 6 Cores, 5.4 GHz, AM5 (Zen 5) - Boxed, Without Cooler

• Efficient multi-tasking: 6 cores and 12 threads
• Zen 5 architecture for higher IPC: More instructions per clock cycle and increased overall performance
• High single and multi-thread performance: Ideal for gaming and professional applications
• Base clock 3.9 GHz, turbo 5.4 GHz: Fast responsiveness and better performance
• PCI-Express 5.0: Higher data transfer rates, supports the latest graphics cards and NVMe SSDs

The AMD Ryzen 5 9600X Desktop Processor at a Glance

The AMD Ryzen 5 9600X from the Granite Ridge processor family features 6 CPU cores based on the "Zen 5" architecture. Each processor core has access to the entire L3 cache, significantly enhancing performance in games.

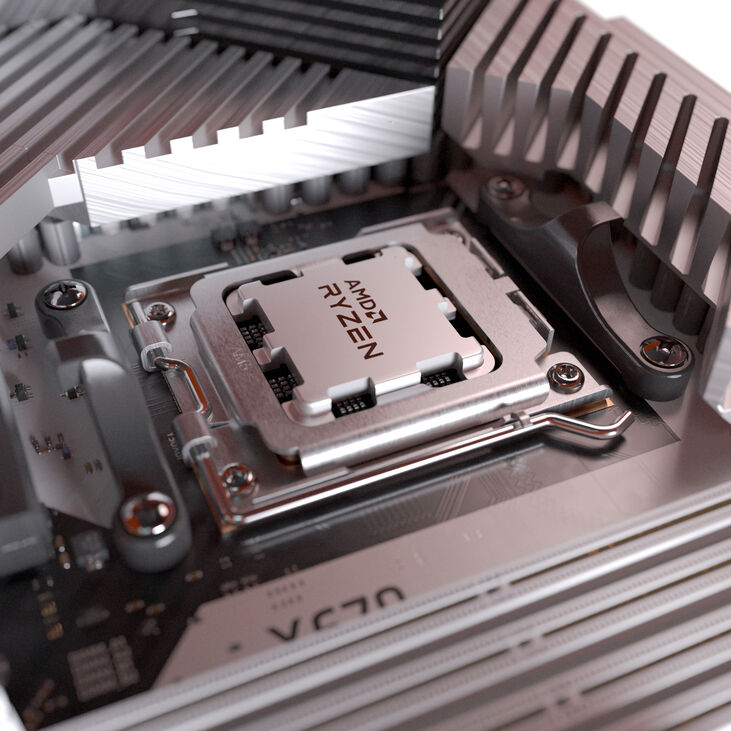

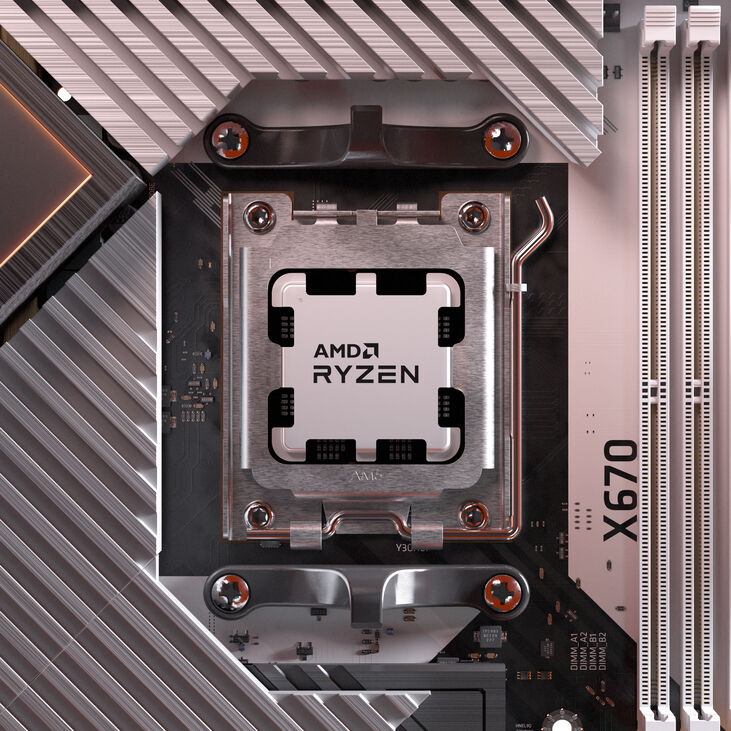

Paired with a compatible AM5 motherboard, the AMD Ryzen 5 9600X supports the PCI-Express 5.0 standard, which is twice as fast as PCIe 4.0. All Ryzen 9000 processors utilize the AM5 platform and are designed for use with corresponding AMD chipsets.

The AMD Ryzen 5 9600X 6-Core CPU with 3.9 GHz Base Clock

The AMD Ryzen 5 9600X features 6 physical CPU cores, which can process two threads simultaneously each thanks to Simultaneous Multithreading (SMT), effectively doubling the number of processing cores to 12 threads.

The Ryzen 5 operates at a high base clock of up to 3.9 GHz per core, which can be precisely adjusted in real-time using Precision Boost 2 and boosted up to 5.4 GHz turbo within the 65-watt Thermal Design Power (TDP).

Six CPU Cores with 4-Nanometer Manufacturing

The silicon of the CPU cores is manufactured using the advanced 4-nm FinFET process with stacked transistors (also known as 3D transistors) using Extreme Ultraviolet Lithography (EUV). The space saved on the processor die due to the significantly reduced structure sizes allows for the integration of a total of 6 MB Level 2 cache and a massive 32 MB Level 3 cache, which is particularly important for games.

This improved manufacturing technique leads to higher efficiency and lower heat generation, providing more performance headroom. This results in a more stable and powerful system performance, benefiting gamers greatly.

The I/O chiplet responsible for data lines in the CPU package is produced using a 6-nanometer process. The CPU provides a total of 28 PCIe lanes, of which four lanes are reserved for connecting to the motherboard chipset and eight lanes for connecting NVMe SSDs. This leaves 16 lanes for communication with graphics cards, while additional PCIe lanes for other storage devices, expansion cards, and peripherals are provided depending on the motherboard chipset.

Maximum Performance with PCI-Express 5.0

Combined with a compatible motherboard, the AMD Ryzen 5 9600X supports the PCI-Express 5.0 standard, which is backward compatible and works with all older expansion cards. Compared to PCIe 4.0, PCIe 5.0 offers double the data transfer rate per lane. This allows an NVMe SSD connected via four PCIe 5.0 lanes to achieve theoretical read/write speeds of up to 15.6 GB/s.

The AM5 platform also brings modern external device connections like Thunderbolt 4, USB 3.2 Gen 2x2 with Type-C connector, and high data transfer rates of up to 40 Gbit/s. The integrated memory controller of the CPU supports fast and energy-efficient DDR5 memory with or without ECC error correction at a native clock speed of 5600 MHz, with significantly higher clock rates possible through overclocking. For this, AMD has introduced special EXPO performance profiles adapted to the Ryzen 9000 series.

Automatic Overclocking with Precision Boost 2

With AMD Zen 5, you no longer have to worry about overclocking, as the AMD Ryzen 5 9600X handles it automatically for you. Thanks to the Auto-OC feature Precision Boost 2, the processor can increase the clock speed up to 150 MHz above the factory-set maximum boost clock. This automatic overclocking ensures optimized performance without manual intervention, allowing you to focus entirely on your gaming or work tasks while your system consistently delivers the best performance. Requirements are a compatible motherboard and sufficient CPU cooling.

Unlocked CPU: Manual Overclocking with Unlocked Multiplier

The AMD Ryzen 5 9600X is "unlocked" and features an unlocked multiplier, allowing the multiplier to be freely adjusted. In the BIOS or UEFI, or conveniently via software, you can manually increase the clock speed or adjust the voltage curve for even more efficiency. This so-called curve shaping is an important feature that enables additional performance optimizations, provided there is sufficient cooling and a compatible motherboard with an OC-capable chipset.

More Options with New AMD Motherboards

High-end motherboards with the new AMD X870(E) or B850(E) chipsets are designed to maximize the performance of the Ryzen 9000 processors. These motherboards typically feature advanced voltage regulators (VRMs) that allow the Ryzen 5 9600X to efficiently communicate with the chipset. This enables the processor to utilize the unused power reserves of the motherboard and dynamically adjust its clock speeds to the CPU temperatures.

These next-generation chipsets not only support the latest USB4 interfaces for faster connectivity but are also compatible with existing AM5 motherboards of the 600 series through BIOS updates. This ensures a smooth upgrade to the new platform and access to the latest technologies.

AMD Radeon - Highly Efficient RDNA Graphics Chips for the Desktop

The "Granite Ridge" CPUs of the Ryzen 9000 series are equipped with an integrated Radeon graphics unit. This integration combines the Zen 5 architecture of the CPUs with powerful graphics capabilities, resulting in an efficient and powerful APU. The graphics unit is integrated into the I/O die of the processor, which also provides the PCIe lanes and manages the connection to the memory controller.

The GPU consists of two compute units with a total of 128 shaders and a base clock of 2200 MHz. Additionally, the Radeon chip supports AV1/VP9 decoding as well as H.264/H.265 encoding and offers DisplayPort 2.0 for 8K at 120 Hz and HDMI 2.1 with 48 Gbit/s.
