be quiet! Mid Tower in black, with pre-installed sound insulation, front panel made of mesh, tempered glass side panel, including 2x 140mm Silent Wings 2 fans, 2x 3.5-inch or 5x 2.5-inch drives, radiators up to 360mm in length
69,90 €
Incl. VAT, add. delivery costs starting from 4.99€
The Pure Base 501 from be quiet! expands the Silent Specialist's case range with an affordable midi tower featuring pre-installed sound insulation and optimised airflow. The case is suitable for the installation of radiators up to 360 mm in length, comes factory-equipped with two quiet case fans, and offers space for powerful hardware as well as numerous drives.
- Simple midi tower from be quiet! in black
- Suitable for radiators up to 360 millimetres
- Pre-installed sound insulation on the side panel

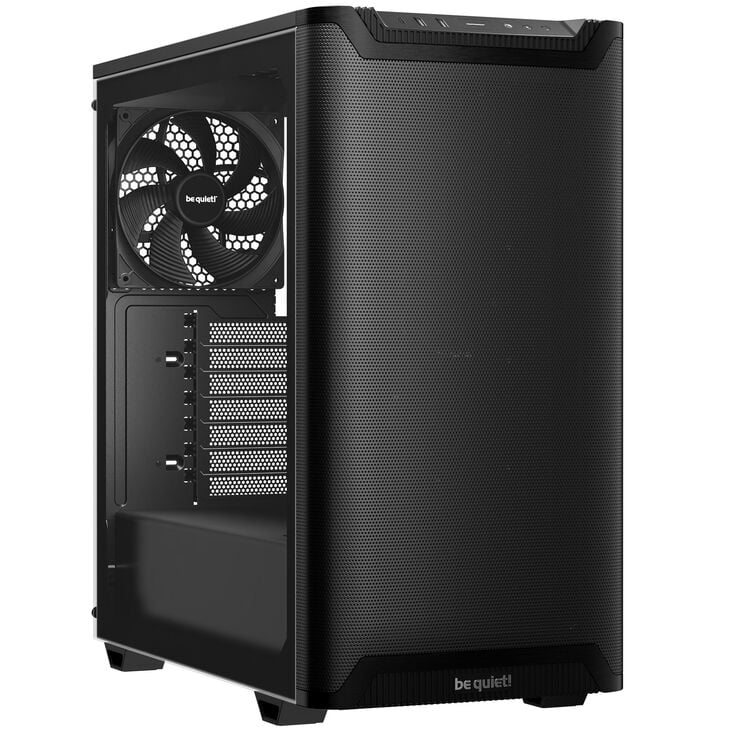

- Mesh front panel and top cover for maximum airflow
- Includes two 140-millimetre Pure Wings 3 fans
- Comfortably placed channels for easy cable management
- Supports up to 2x 3.5-inch and 5x 2.5-inch drives
- Tempered glass side window

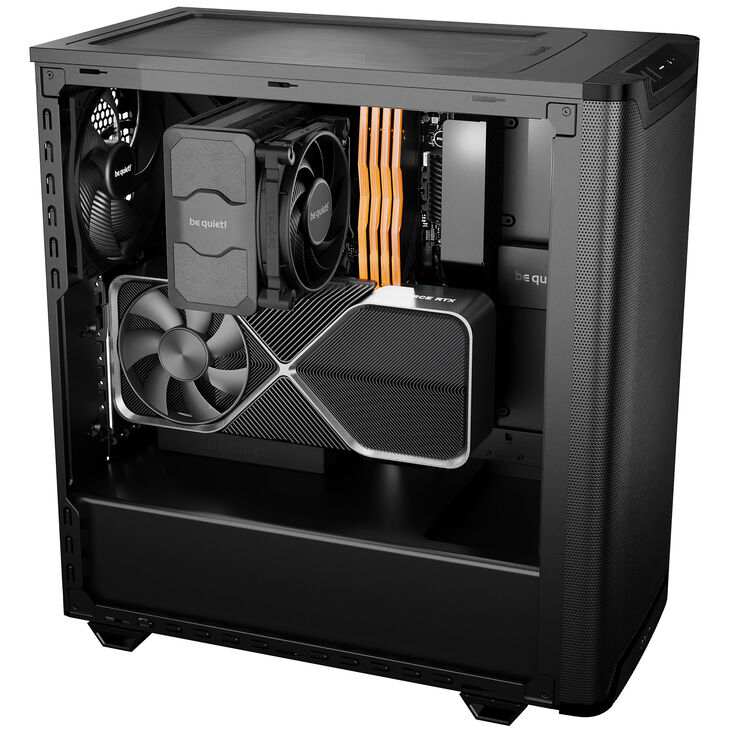

The Pure Base 501 is a compact midi tower designed for minimal noise operation thanks to its simple design and pre-installed sound insulation. It also provides ample space for your hardware and supports the installation of multiple radiators simultaneously. Its tempered glass side panel allows for a clear view of your installed components.
The case offers excellent options for powerful yet quiet cooling solutions. Three 120mm or two 140mm fans can be mounted at the front, there is space for two 140mm or 120mm models in the top, and a 140mm or 120mm fan can also be installed at the back. The mesh front panel ensures optimal airflow for your components.

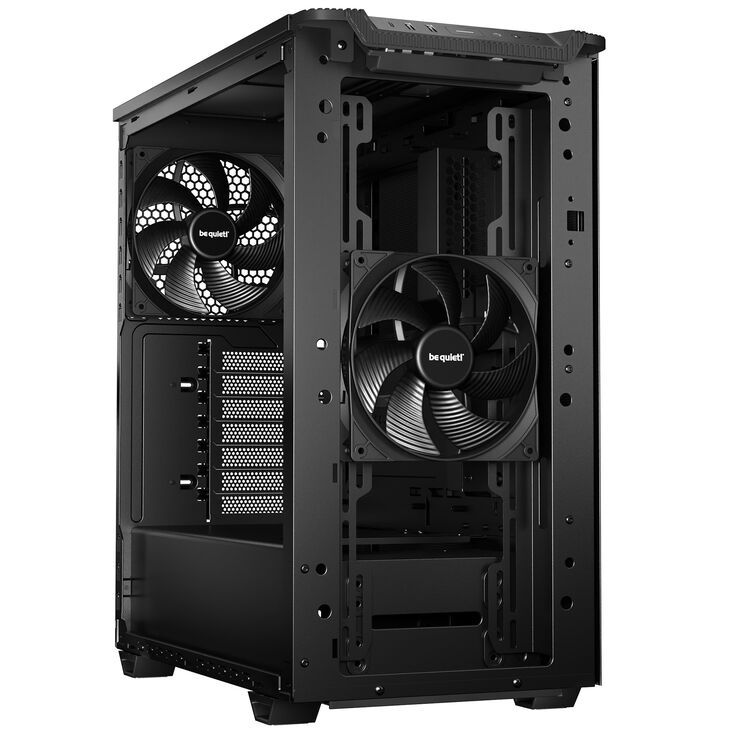

Out of the box, the Pure Base 501 comes with two pre-installed 140mm Pure Wings 3 fans, one at the front and one at the back of the case. The Pure Base 501 accommodates CPU coolers up to 178 millimetres in height.
It also considers the installation of custom and all-in-one water cooling systems. The front is suitable for a 360mm or 280mm radiator, while a 240mm heat exchanger can be housed in the top and a 140mm or 120mm model can be installed at the rear.
Thoughtful design with high functionality
Under the power supply cover, besides 180mm long power supplies, two 3.5-inch drives and one 2.5-inch drive can find shelter in a modular drive cage. Its decoupled installation reduces vibrations and enables quiet operation.
Two 2.5-inch drives can be installed on the SSD panel between the motherboard tray and the front, while two additional 2.5-inch SSDs can be placed on the SSD bracket at the back of the motherboard tray. There is space for graphics cards with a maximum length of 368 millimetres.

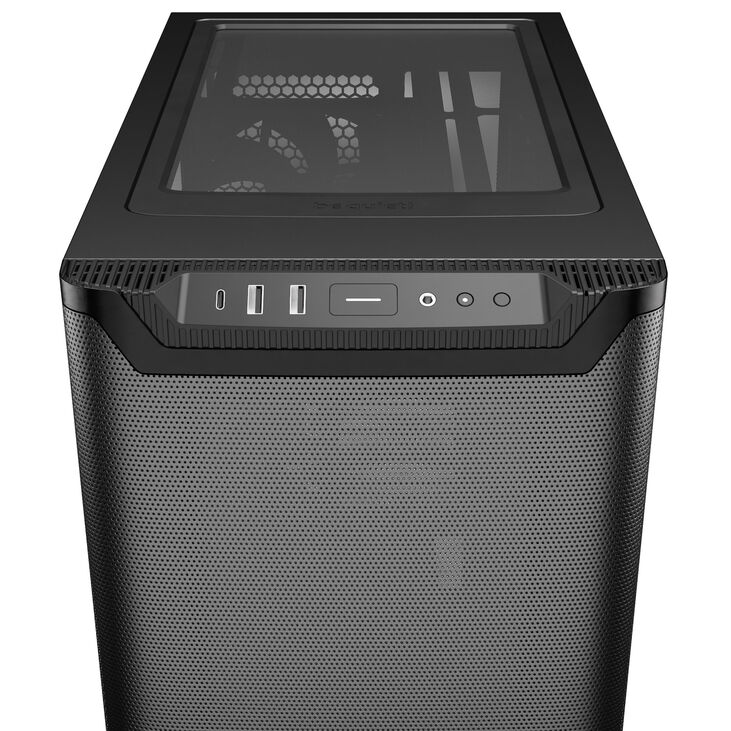

The be quiet! Pure Base 501 features a smooth and minimalist appearance. The I/O panel of the midi tower is located on the top of the front cover and includes a power button, two USB 3.0 Type-A ports, a USB 3.1 Type-C port, and a combined headphone and microphone jack.
|
Colour
|
|
|
Primary Colour
|
Black
|
|

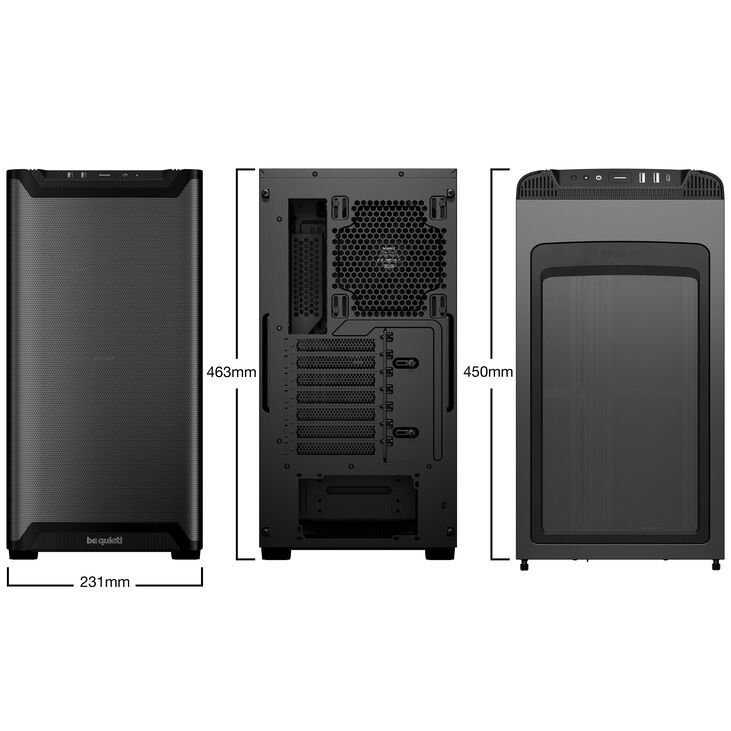

Dimensions
|
|
|
Length / Depth
|
450 mm
|
|
Width
|
231 mm
|
|
Height
|
463 mm
|
|
Weight
|
7.2 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
178 mm
|
|
Max. GPU Length
|
368 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
6
|
|
120 mm fans
|
6
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (140 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 140mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 240mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
5
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
5
|
|
3.5 inch internal drive bay
|
2
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Front, Top
|
|
Noise dampening
|
Yes
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Product Series
|
|
|
Product Series/Family
|
Pure Base
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
2x 140 mm
|
