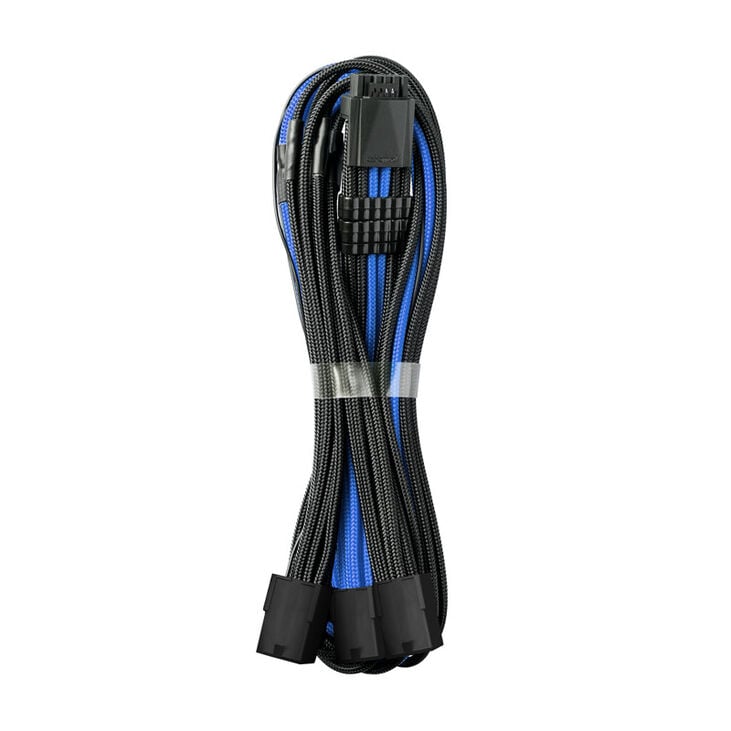

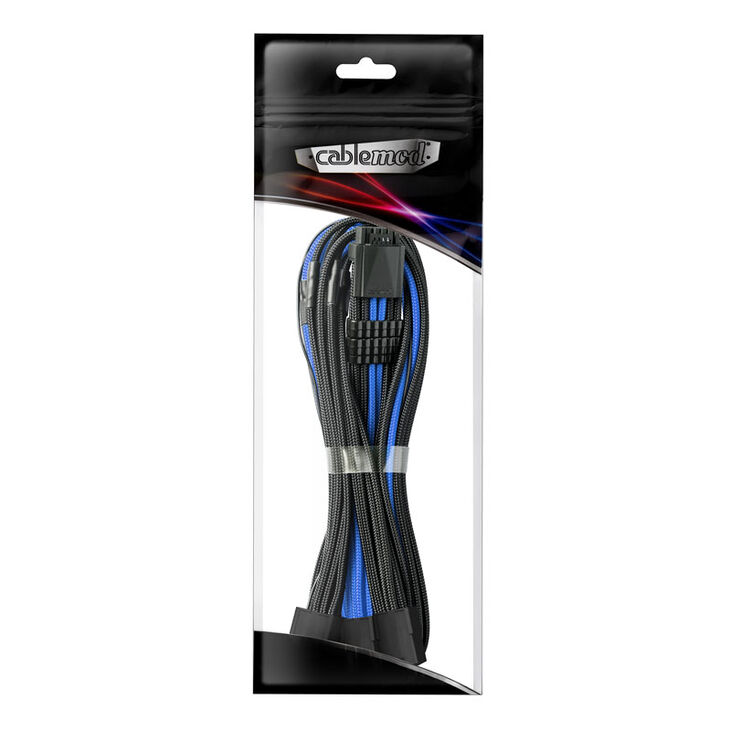

CableMod PRO ModMesh 12VHPWR to 3x PCI-e Cable - 45cm, black/blue
12VHPWR cable to three 8-pin PCIe connectors, textile sleeving made of ModMesh, 45 cm in length
19,90 €
incl. VAT
, add. delivery costs starting from 4.99€
NVIDIA's GeForce RTX 4000 series graphics cards use a new 16-pin connector (12+4-pin) with PCIe 5.0 standard for power supply. This connector is also referred to as 12VHPWR. CableMod offers the Pro ModMesh 12VHPWR to 3x PCI-e cable, a 12VHPWR PCIe 5.0 adapter designed for PSUs without a native 12VHPWR connector.
The CableMod Pro ModMesh 12VHPWR to 3x PCI-e Cable offers a high-quality finished sleeving made of ModMesh. This cable consists of 16AWG conductors and is equipped with five pre-installed, closed cable combs.
Important notes: For the cable to work correctly, all 8-pin connectors must be connected to the power supply. The distance between the connector of the graphics card and the side panel must be at least 4 to 4.5 cm. In addition, the cable should only be bent at a distance of 35 mm from the connector on the GPU. Finally, ensure that the 12+4 pin connector is fully and securely inserted into the socket on the graphics card.Technical Details:
- Length: 450 mm
- Colour: Black, blue
- Material: ModMesh
- Conductor strength: 16 AWG
- Connections:

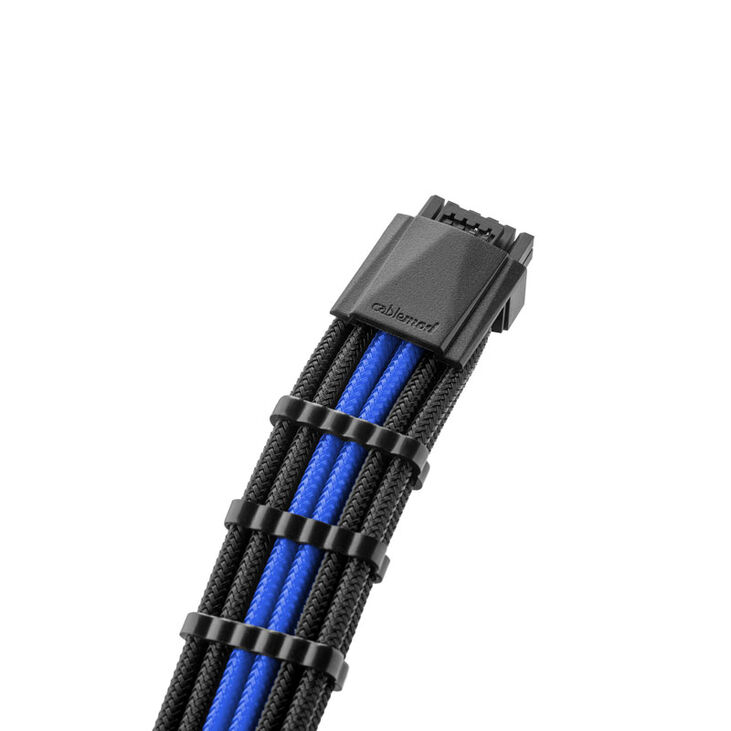

1x 16-Pin 12VHPWR PCIe 5.0
3x PCIe-8-Pin
|
Colour
|
|
|
Main Colour Cable
|
Black / Blue
|
|
Main colour connector / plug
|
Black
|
|
Cable Specifications
|
|
|
Cable Type
|
extension
|
|
Shielded Cable
|
No
|
|
Sleeved Cable
|
Yes
|
|
Angle
|
|
|
Connector angled
|
No
|
|
Standards / Specifications
|
|
|
Standard / specification
|
PCIe 5.0
|
|
Connectivity
|
|
|
Connector 1 (internal)
|
PCIe (12+4-Pin / 16-Pin) 12VHPWR PLUG
|
|
Connector 2 (internal)
|
PCIe (8-Pin) PLUG 3x
|
|
Cable Length
|
45 cm
|
