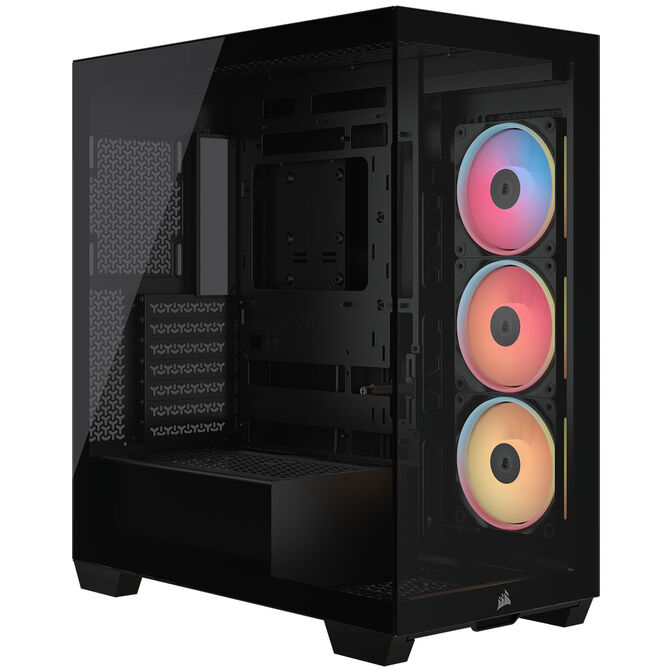

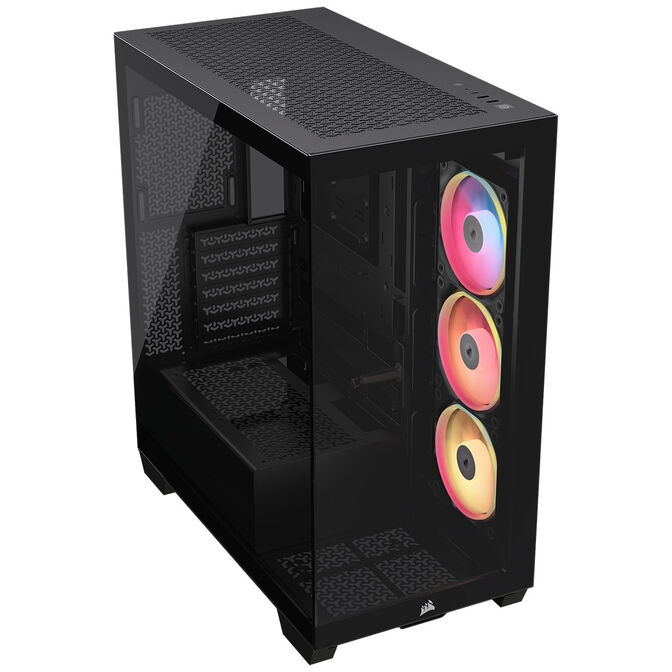

Corsair 3500X LX-R PC Case, Mid Tower, E-ATX, RGB, Tempered Glass - black
With the Corsair 3500X LX-R, your build takes centre stage. Thanks to tempered glass, this PC case offers a premium showcase for your hardware – ideal for spectacular RGB setups and high-end cooling solutions.

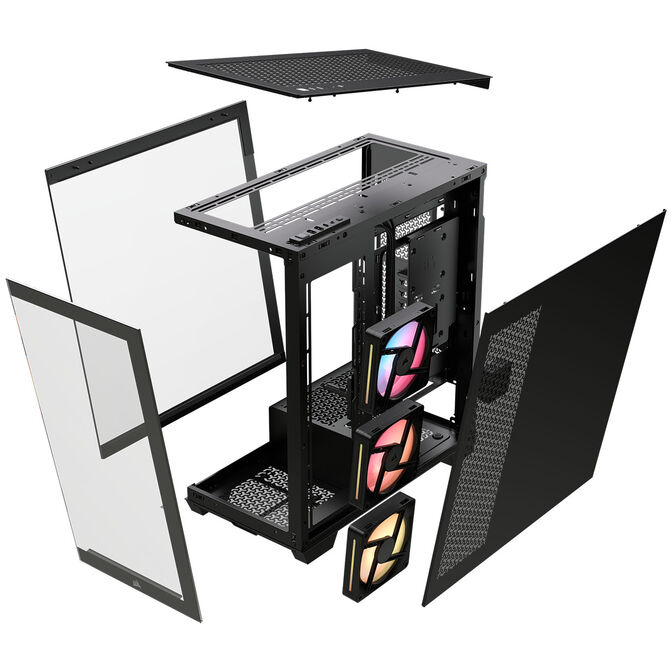

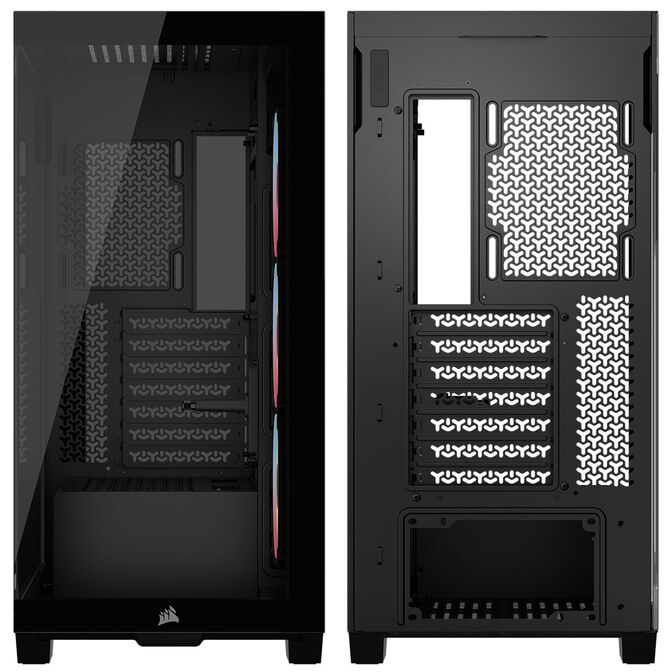

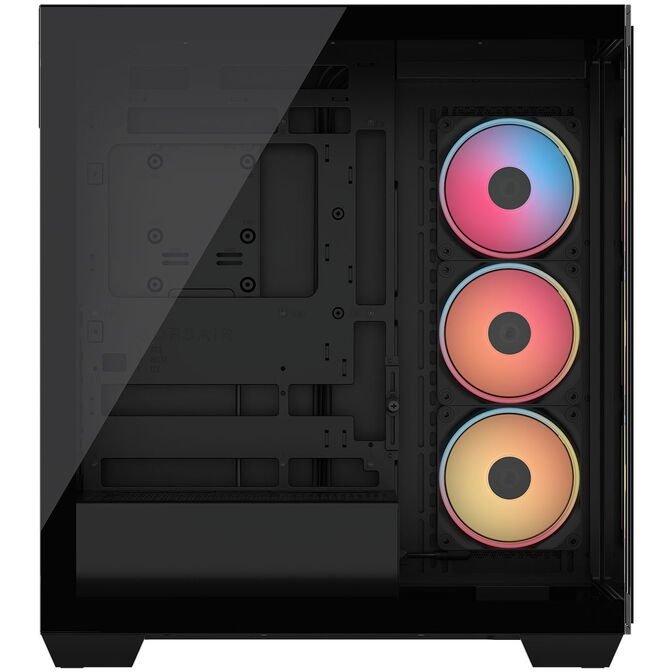

- Black mid-tower with tempered glass on the side and front
- Space for up to 10 fans and radiators up to 360mm
- Supports motherboards up to E-ATX and back-connect design
- Space for graphics cards up to 410mm and CPU coolers up to 170mm in height
- Includes three pre-installed LX120 reverse RGB fans and an iCUE Link system hub
Corsair 3500X LX-R: Mid-Tower for High-End Hardware
The Corsair 3500X LX-R mid-tower strikes the perfect balance between size and functionality. With ample room for powerful hardware and efficient cooling, it is the ideal choice for gaming and workstation builds.
Excellent Cooling Thanks to Fans and Radiators
To keep your hardware cool under any load, the Corsair 3500X LX-R can accommodate up to 10 fans. The top and side support three 120mm or two 140mm fans. The bottom supports three 120mm or one 140mm fan, while the rear can fit an additional 120mm fan.

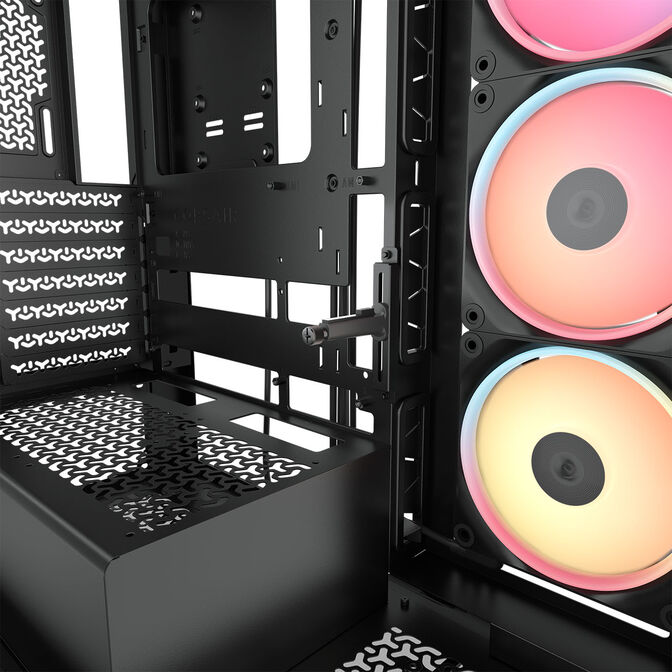

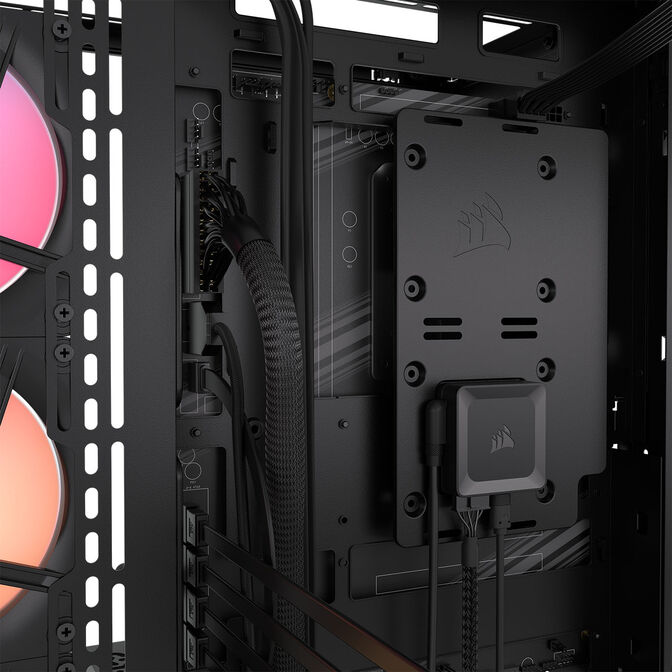

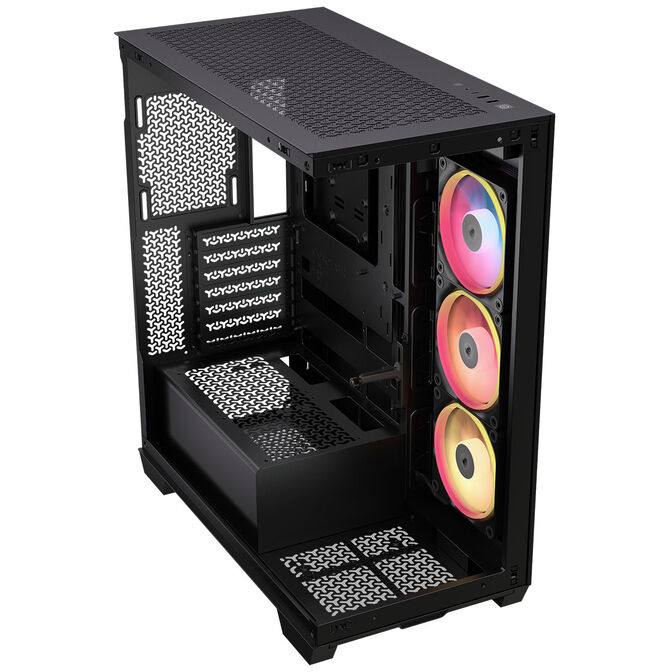

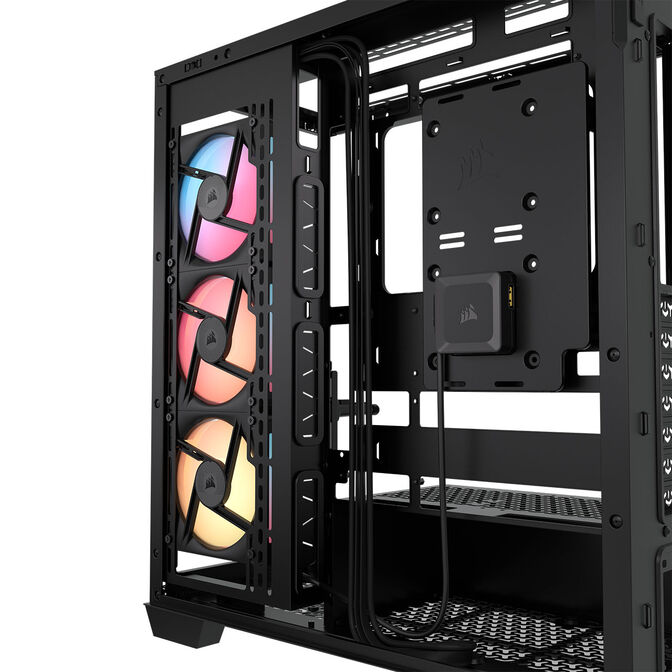

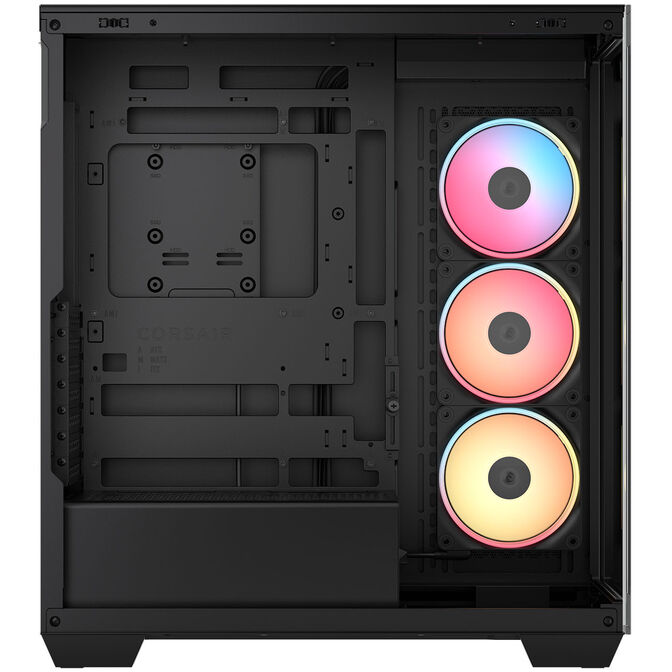

Three high-quality 120mm Corsair LX reverse fans are already installed on the side. The reverse design provides a reversed airflow while showcasing the stylish side with RGB lighting. Additionally, you get an iCUE Link system hub to control the lighting and fan speeds.

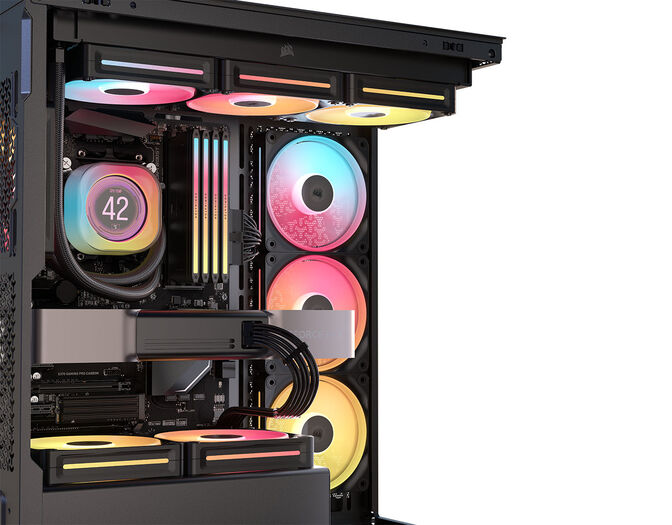

If you prefer to install water cooling – whether an AiO or custom loop – radiators can also be fitted. The top and side each support a radiator up to 360mm, and the rear and bottom can accommodate a 120mm radiator.
Installing Your Hardware

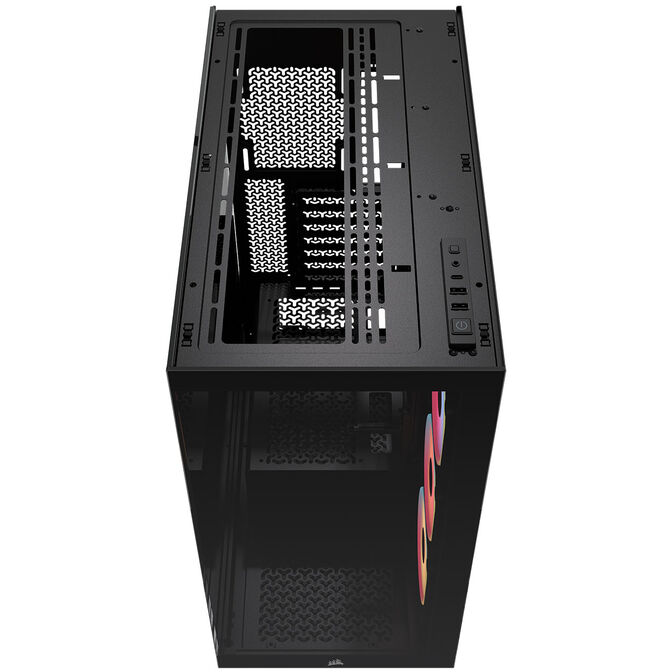

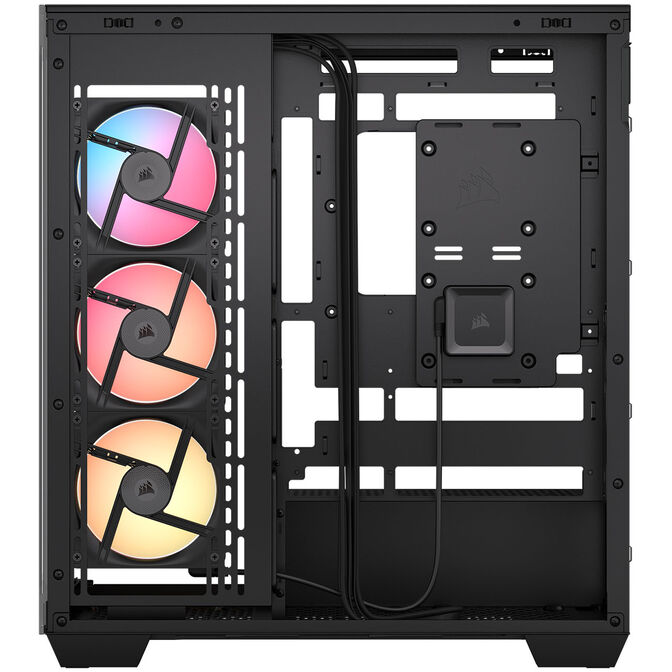

The case offers plenty of space for powerful gaming hardware. It supports graphics cards up to 410mm in length. Motherboards up to the E-ATX form factor are supported, including those with back-connect designs. Thanks to hidden cable management, the interior of your gaming PC looks much tidier.
The CPU cooler should not exceed 170mm in height. For storing programmes and games, there is room for four drives in total – two 2.5-inch SSDs and two 3.5-inch HDDs.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
460 mm
|
|
Width
|
240 mm
|
|
Height
|
506 mm
|
|
Weight
|
10.9 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
170 mm
|
|
Max. GPU Length
|
425 mm
|
|
Max. PSU Length / Depth
|
180 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x), 140mm Fan (1x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 2x Triple (360 mm)
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Side)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Radiator/AIO Support (Top)
|
240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|

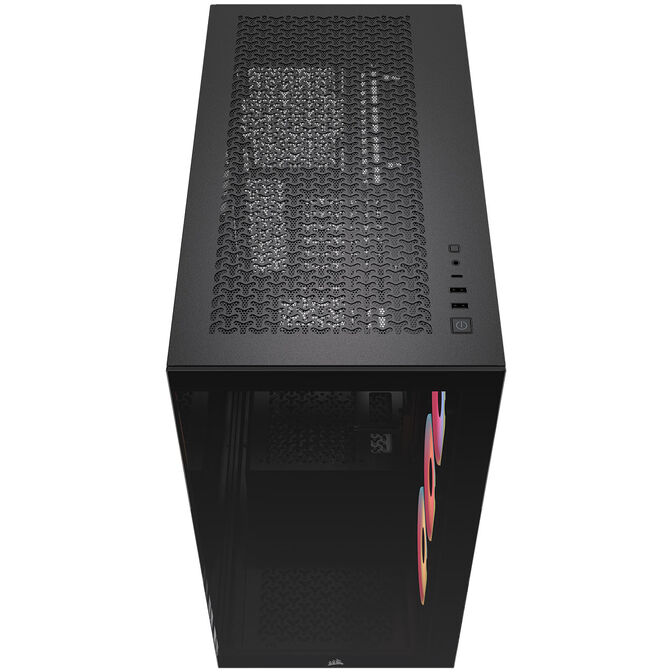

I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|

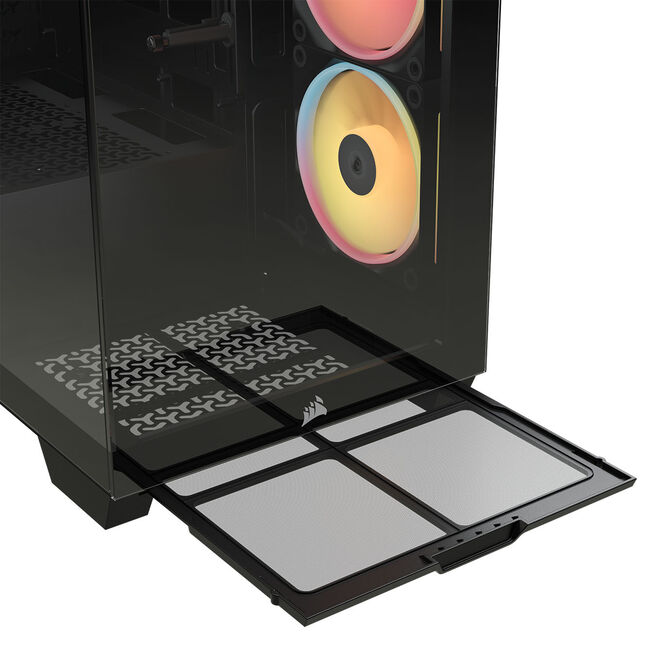

Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Side, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, Gigabyte Project Stealth, MSI Project Zero
|
|

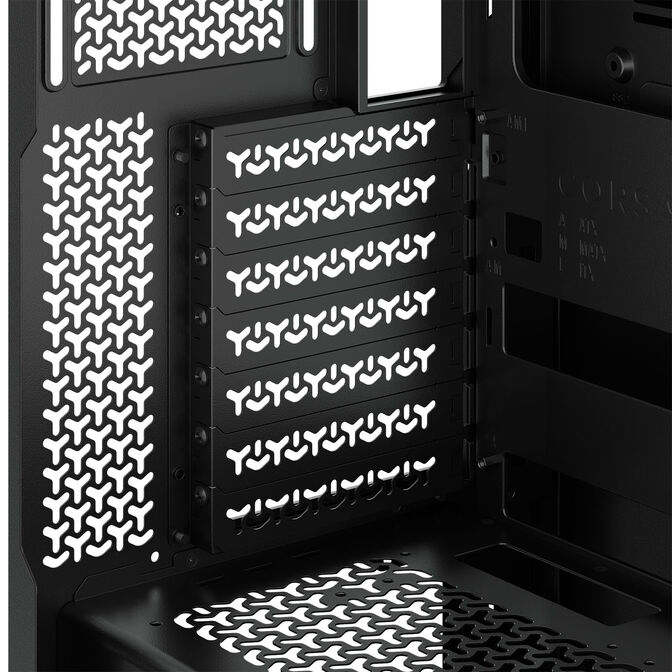

Expansion Slots
|
|
|
Expansion slots / PCI slots
|

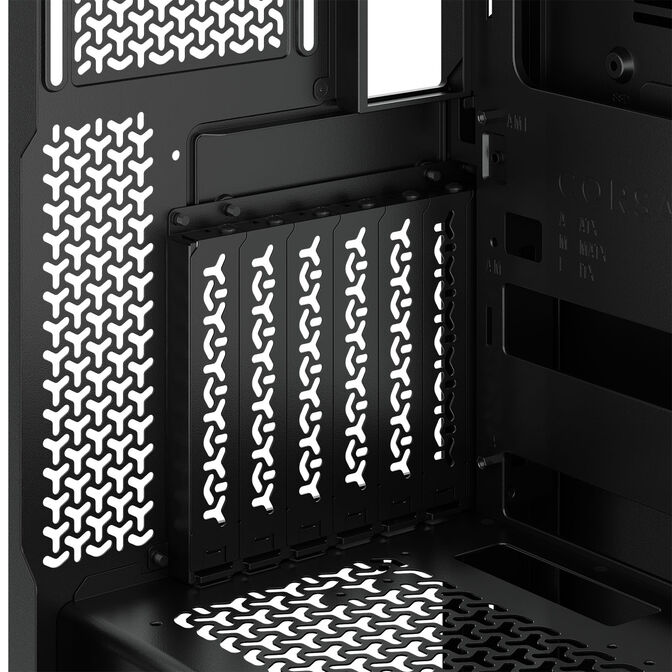

7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
Yes
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
Yes
|
|
RGB Type
|
ARGB / DRGB
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
Corsair iCUE
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
