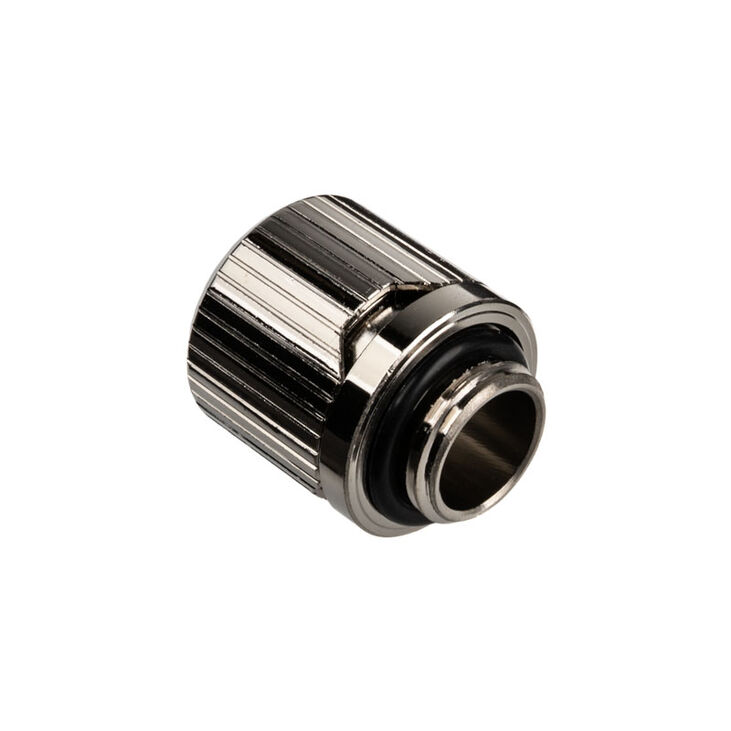

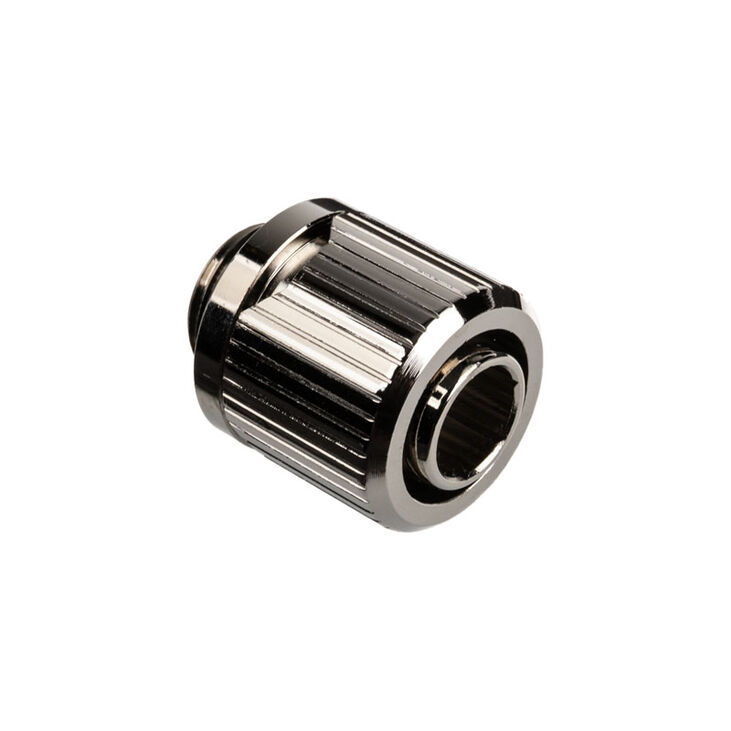

EK Water Blocks EK-Torque STC-13/10 fitting straight G1/4 inch BSP to 13/10mm - silver
Nickel-plated compression fitting from EK Water Blocks, for hoses with 13/10 mm OD/ID
5,90 €
incl. VAT
, add. delivery costs starting from 4.99€
EK-Quantum Torque STC 10/13 fittings are EK's new minimalistic 10/13mm (ID/OD) soft-tube compression fittings designed for use with various flexible soft tubing types such as PVC, EPDM, Norprene, silicone or any other type of compatible flexible tube. With a non-intrusive, yet striking look, and with NO added branding at all. They can be complemented by interchangeable aesthetic color rings, and are an ideal choice for anyone and a perfect match with EK-Quantum series products.
The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
The locking ring prevents solid tube to be pulled out of the fitting by compressing the rubber gasket underneath the ring. The grooves on the outside allow for easier hand tightening. The compression ring has cutouts in EK Quantum signature shape allowing for the colored aesthetic ring to be shown. The colored rings are available in many colors and are screwed onto the fitting before the compression locking ring. The aesthetic rings are sold separately.
|
Colour
|
|
|
Primary Colour
|
Silver
|
|
Colour Finish
|
Glossy
|
|
Dimensions
|
|
|
Height
|
19 mm
|
|
Inner diameter
|
10 mm
|
|
Outer diameter
|
13 mm
|
|
Water Cooling
|
|
|
Water cooling purpose
|
Tube connection
|
|
Water cooling connection type
|
screw connection
|
|
Water cooling connectors
|
G1/4" outer thread, Tube connector 13/10 mm
|
|
Suitable for hardtubes
|
No
|
|
Angle
|
|
|
Is angled
|
No
|
|
Rotatable
|
No
|
|
Materials
|
|
|
Materials
|
Brass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Set
|
|
|
Set
|
No
|
| Manufacturer Information | EKWB d.o.o. Pod lipami 18, 1218 Komenda, Slovenien |
| Responsible Person | EKWB d.o.o. Pod lipami 18, 1218 Komenda, Slovenien |
