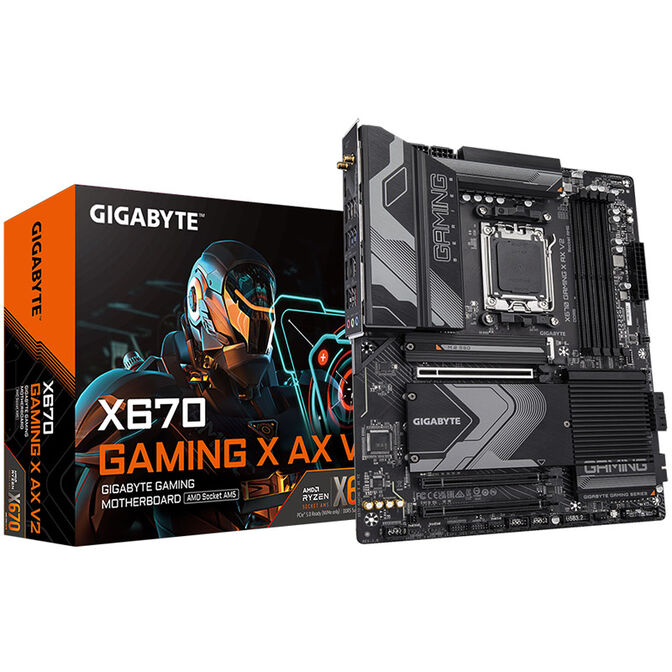

GIGABYTE X670 Gaming X AX V2 motherboard, Socket AM5, AMD X670, ATX, DDR5
- 1x PCIe 4.0 x16, 2x PCIe 3.0 x16
- DDR5 memory up to 4,800 MHz, up to 8,000 MHz with RAM overclocking
- 1x PCIe 5.0, 3x M.2 slots with PCIe 4.0 for fast NVMe SSDs
- USB on I/O panel: 1x USB 3.2 Type C, 2x USB 3.1 Type A, 6x USB 3.0 and 4x USB 2.0
- OC features: 14+2 phase VRMs, onboard TPM 2.0 support, LED indicators, VRM heatsink
- A total of 5 connectors for fans and pumps

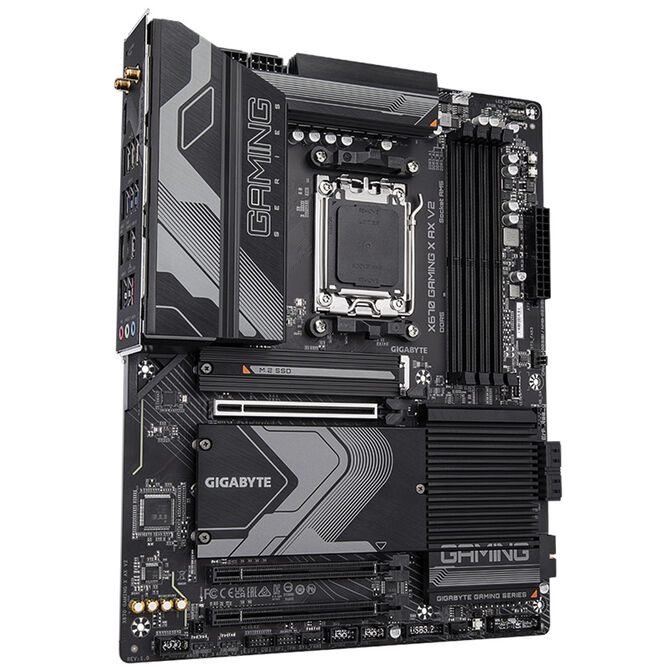

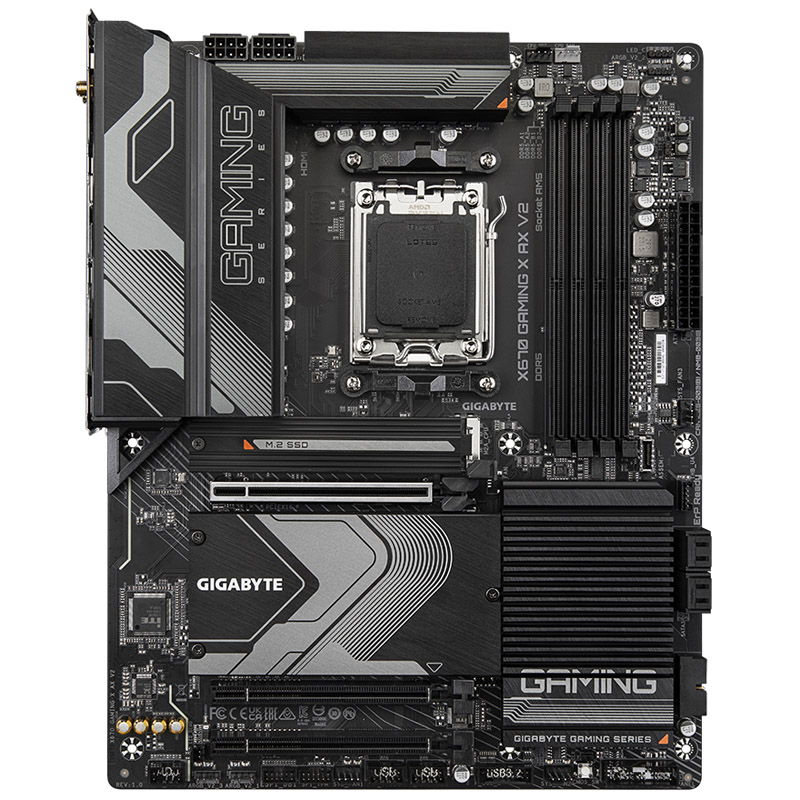

GIGABYTE X670 Gaming X AX V2: ATX motherboard with AMD AM5
The GIGABYTE X670 Gaming X AX V2 is equipped with the high-end X670 chipset for AMD's Ryzen 7000 series processors and offers numerous features for enthusiasts and gamers. Since the Ryzen 7000 processors require a new socket due to PCIe 5.0 support and enhanced power delivery, the 600-series motherboards use the AM5 socket (LGA 1718).
Despite the higher pin count of AM5, the actual socket size remains identical to the previous generation, so most CPU coolers for the AM4 socket can also be mounted on this motherboard.
The GIGABYTE X670 Gaming X AX V2 is designed for gaming, ensuring you can enjoy demanding games without interruptions. The high-quality 14+2 phase, 60 A voltage regulators provide stable power delivery to the CPU, guaranteeing high clock speeds over extended periods. Additional features include BIOS Flashback and Clear CMOS, allowing you to restore the PC if something goes wrong. As usual, DDR5 RAM can also be pushed to higher clock speeds.
Technical Details:
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processors | AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen |
| Supported processor slots | Socket AM5 |
| Memory | |
|---|---|
| Supported RAM | DDR5 SDRAM |
| Number of memory slots | 4 |
| Memory type | DIMM |
| Memory channels | Dual channel |
| Non-ECC | |
| Supported memory speeds | 8000, 7800, 7600, 7200, 7000, 6800, 6666, 6600, 6400, 6200, 6000, 5600, 5200, 4800, 4400 MHz |
| Maximum RAM capacity | 192 GB |
| Unbuffered memory | |
| Storage Controller | |
|---|---|
| Supported storage devices | HDD & SSD |
| Supported storage interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of supported storage devices | 8 |
| RAID support | |
| RAID levels | 0, 1, 10 |
| Graphics | |
|---|---|
| Parallel processing technology | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | |
| Internal I/O Ports | |
|---|---|
| Number of USB 2.0 interfaces | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) ports | 1 |
| SATA III ports | 4 |
| Front panel audio connector | |
| Front panel connector | |
| ATX power connector (24-pin) | |
| CPU fan connector | |
| EPS power connector (8-pin) | |
| TPM connector | |
| 12-V power connector | |
| RGB LED header | |

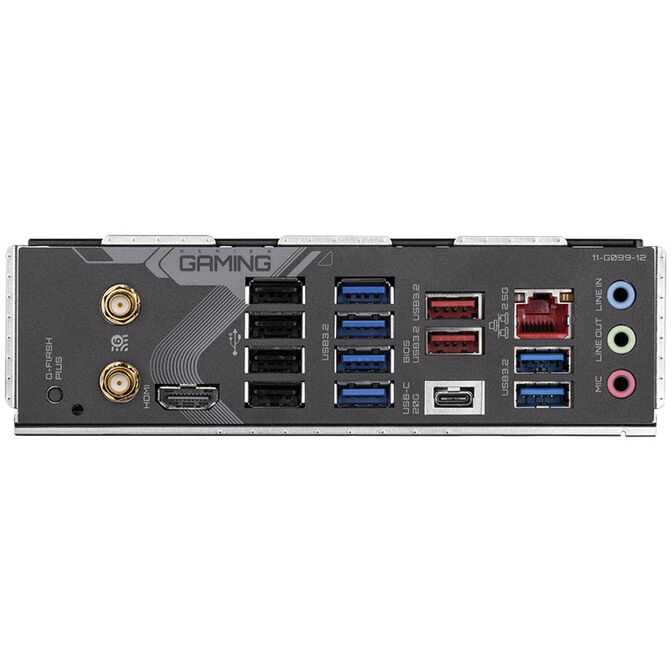

| I/O Ports on the Rear | |
|---|---|
| Number of USB 2.0 ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type A ports | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type A ports | 2 |
| USB 3.2 Gen 2x2 Type-C ports | 1 |
| Number of Ethernet LAN ports (RJ-45) | 1 |
| I/O Ports on the Rear | |
|---|---|
| Number of HDMI ports | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 3 |
| Microphone input | |
| WiFi AP antenna connectors | 2 |
| USB connectors | USB Type-A, USB Type-C |
| Network | |
|---|---|
| Ethernet/LAN | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| WLAN | |
| Top WLAN standard | Wi-Fi 6E (802.11ax) |
| WLAN standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| WLAN controller model | Realtek RTL8852CE |
| Bluetooth | |
| Bluetooth version | 5.3 |
| Features | |
|---|---|
| Motherboard chipset | AMD X670 |
| Audio channels | 7.1 channels |
| PC health monitoring | Fan, temperature, voltage, water cooling |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Supports Windows operating systems | Windows 10 x64, Windows 11 x64 |
| Expansion Slots | |
|---|---|
| PCI-Express x16 slots | 3 |
| Number of M.2 (M) slots | 4 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | |
| Clear CMOS button | |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Weight and Dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Scope of Delivery | |
|---|---|
| Included cables | SATA |
| Included software | Norton Internet Security |
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard Form Factor
|
ATX
|
|
CPU
|
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X670
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
2x Digital RGB (3-Pin 5VDG), 3x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
6
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
3
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x16 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
5
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
