Lian Li UNI FAN SL140 RGB PWM fans, Double Pack incl. controller - 140mm, white

Lian Li UNI FAN SL140 RGB PWM fans, Double Pack incl. controller - 140mm, white

140mm RGB fan in white, unique interlocking design provides cable clutter, with addressable RGB lighting, max. speed of 1.500 rpm, max. 119,7 m³/h airflow, max. 1,67 mm H2O static pressure, double pack with UNI HUB controller
Price reduced from 69,90 € to 54,90 €
-21%
incl. VAT, add. delivery costs starting from 4.99€
| sku LULI-017
| EAN 4718466009715
| MPN UF-SL140-2W
| Manufacturer Lian Li
In Stock
The excellently designed 140mm PWM fans from Lian Li guarantee for less cable clutter in your system thanks to their unique interlocking design. Thanks to the daisy chain system only one cable is required to connect up to four fans. In addition, the UNI FAN SL140 fans provide addressable RGB lighting and powerful performance. Of course, the fans are even better as a double pack with a UNI HUB controller.

The Features of the Lian Li UNI FAN SL140 Double Pack at a Glance:

  • Two 140mm PWM fans in white
  • Unique interlocking design: fans are connected via pin contacts
  • 32 digital addressable RGB LEDs per fan
  • Speed and lighting manageable via included UNI HUB controller
  • Max. 1.500 rpm at 30 dB(A)
  • Max. 119,7 m³/h of airflow & max. 1,67 mm H2O static pressure
  • Rubber pads to reduce vibrations

The Lian Li UNI FAN SL140 Double Pack in Detail

The Lian Li UNI FAN SL140 come with a clever and unique design: the fans have an interlocking plug-in system with pin contacts with which they are connected to each other. Multiple fans no longer have to be connected individually - this saves a lot of time and prevents cable clutter in your system.

The fluid dynamic bearing ensures silent operation and long durability. Due to the reduced friction, higher speeds are achieved than with conventional fans with the same energy consumption. The fans can run up to a maximum of 1,500 rpm. With up to 30 dB(A) at full speed, the UNI FAN SL140 fans are very quiet and deliver very good performance with up to 119.7 m³/h of airflow and 1.67 mm H2O of static pressure.

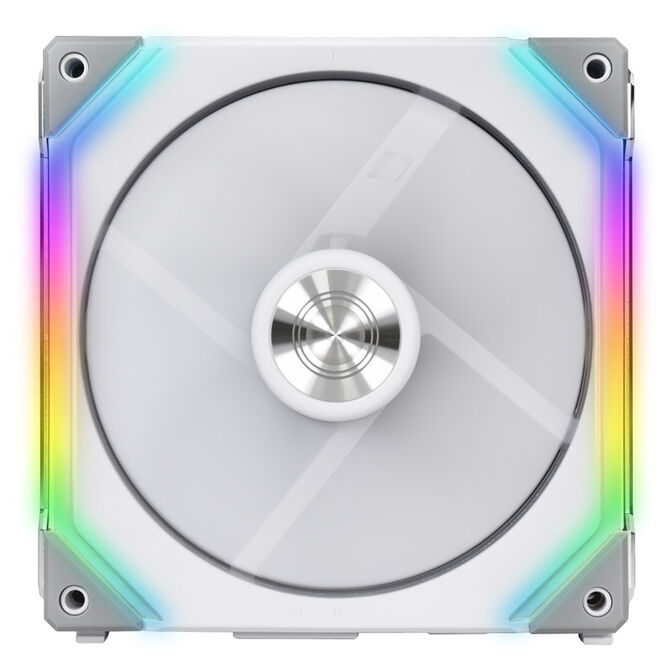

Each fan has 32 digitally addressable RGB LEDs embedded, 16 each in the front and the rear. The scope of delivery includes an UNI HUB RGB and fan controller that enables convenient control of the fans and their lighting via software.

Technical Details:

  • Measurements: 140 x 25 x 140 mm (W x H x D)
  • Materials: Plastic, Aluminium
  • Colour: white
  • Fan:
    Connection: proprietary (UNI HUB required)
    Bearing: Fluid dynamic
    Speed: 1.500 rpm
    Noise: max. 30 dB(A)
    Airflow: max. 119,7 m³/h
    Static pressure: max. 1,67 mm H2O
    Operating Voltage: 12 V
    Starting Voltage: 6 V
    Current: 0,10 A
    Power consumption: 3,6 W
  • Connectors UNI HUB:
    1x SATA power
    1x USB 2.0 (internal)
    1x 4-pin PWM for fan signal
    4x Fan ports (2x cable per fan)
    1x 3-pin RGB (5VDG, 5V)
  • Lighting:
    Type: digital addressable RGB
    Amount: 32 LEDs per fan
    Connection: proprietary (UNI HUB required)
    Current: 0,34 A
Colour
Primary Colour
White
Secondary Colour
White
Fan main colour (cage)
White
Fan main colour (rotor)
White
Dimensions
Width
140 mm
Fan height
25 mm
Fan Specifications
Fan Size
140 mm
Fan mounting size
140 mm
Min. Fan RPM
500 rpm
Max. Fan RPM
1500 rpm
Min. Single Fan Airflow
100 m³/h
Max. Single Fan Airflow
119.7 m³/h
Max. Static Pressure
1.67 mH2O
Power Specifications
Starting voltage
6 V
Noise
Min. Single Fan Noise dB(A)
30 dB(A)
Max. Single Fan Noise dB(A)
30 dB(A)
Internal Ports
Fan connectors
4 Pin (PWM)
RGB / LED connectors
1x Digital RGB (3-Pin 5VDG)
Materials
Materials
Aluminium, Plastic
Lighting
Lighting
Yes
Lighting Colour
RGB
Set
Set
Yes
Number of products in set
2
