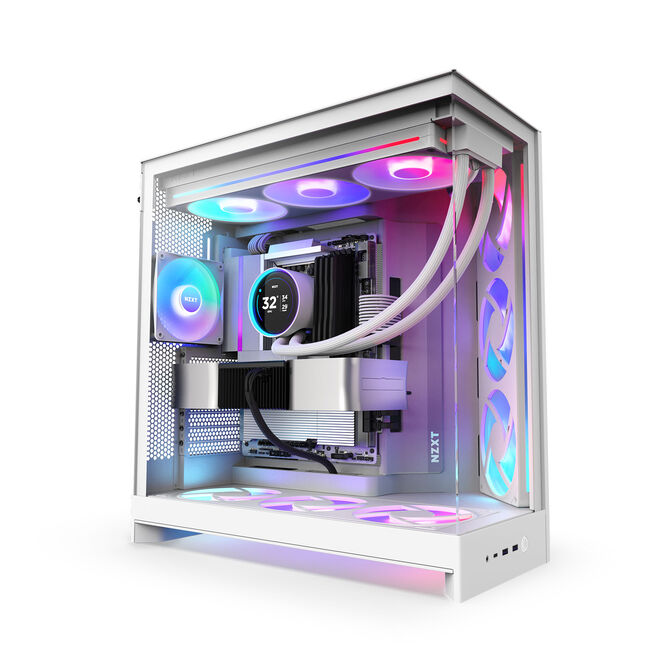

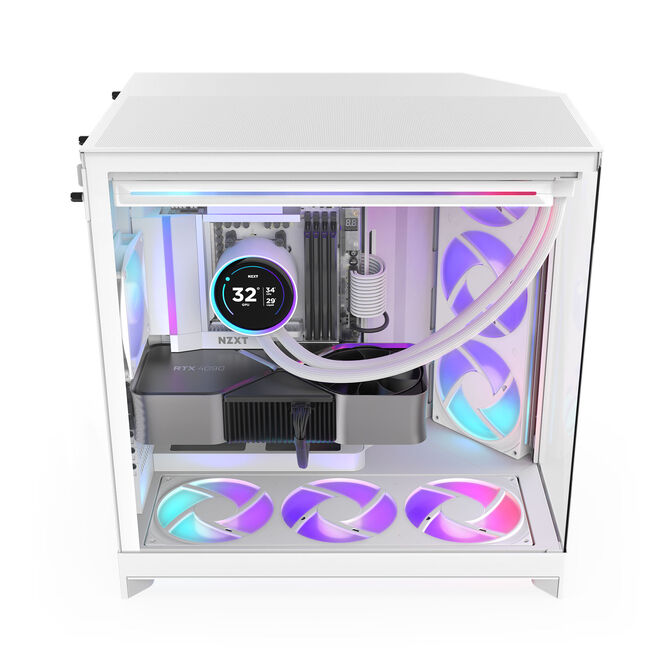

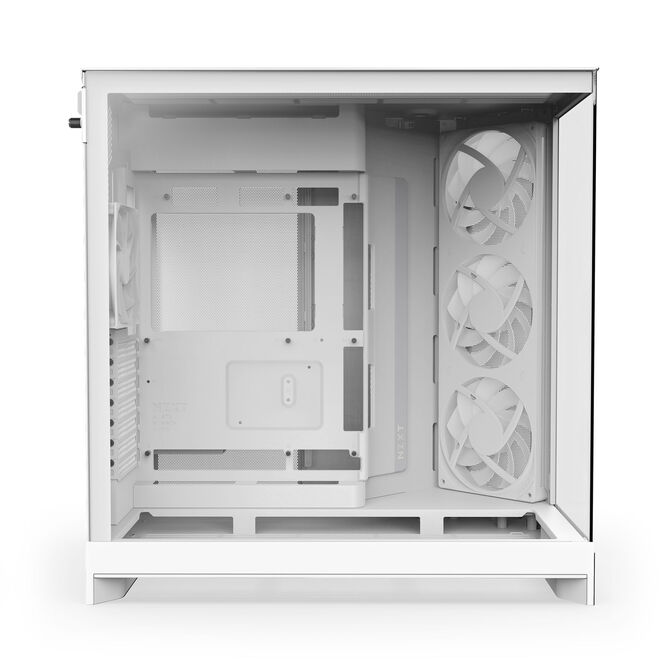

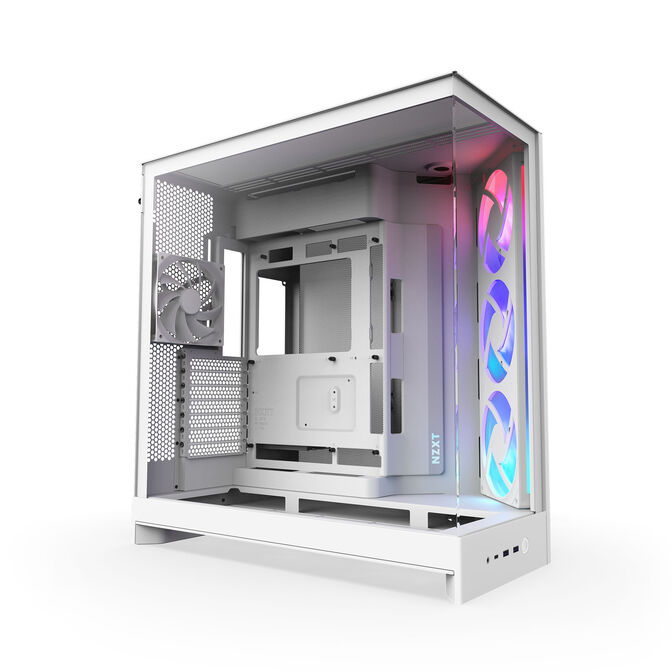

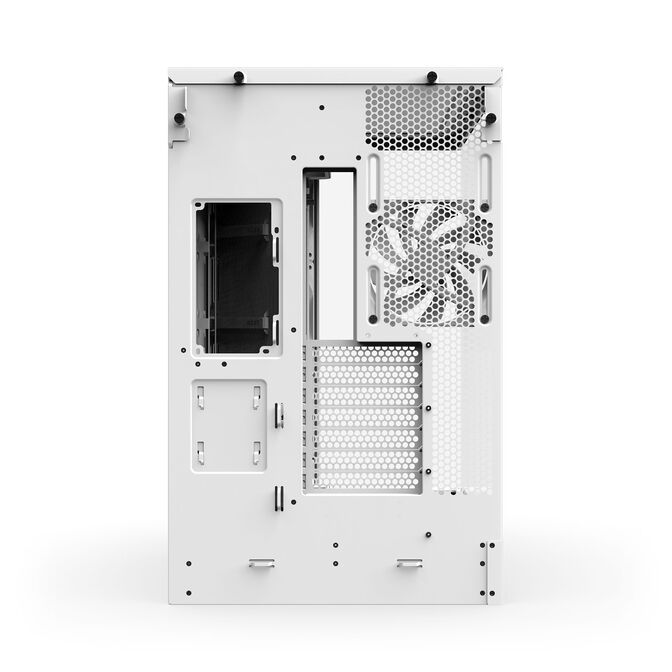

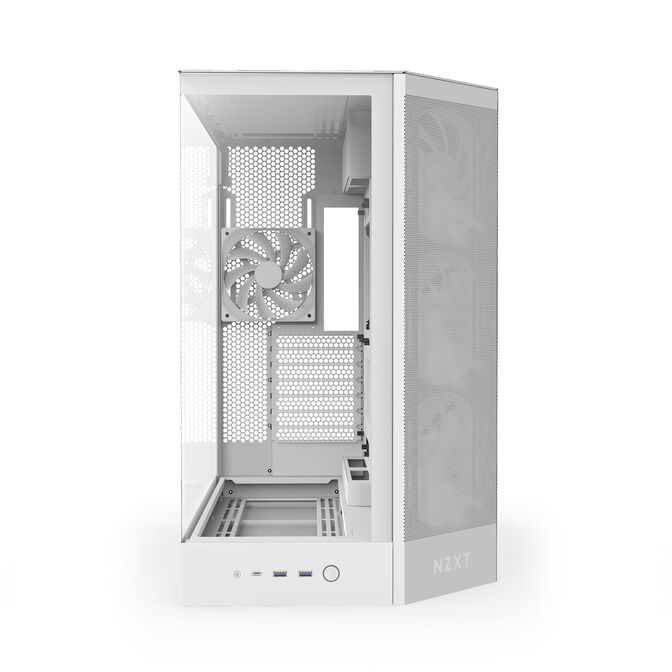

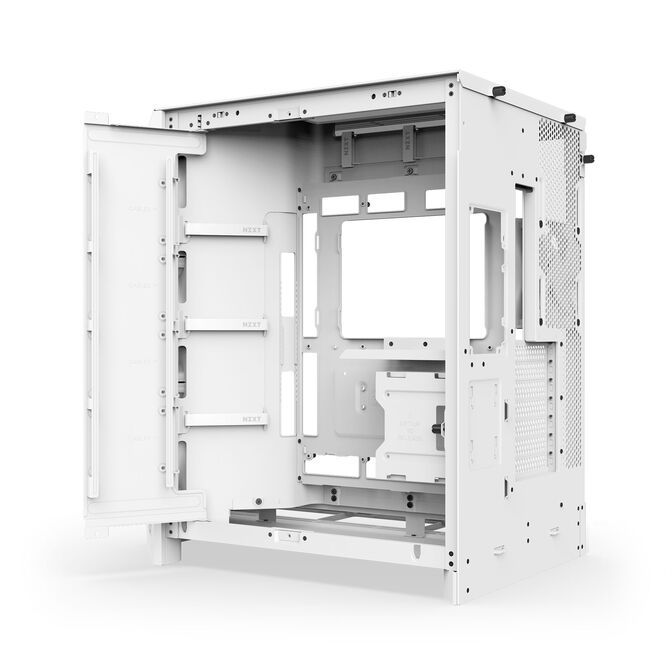

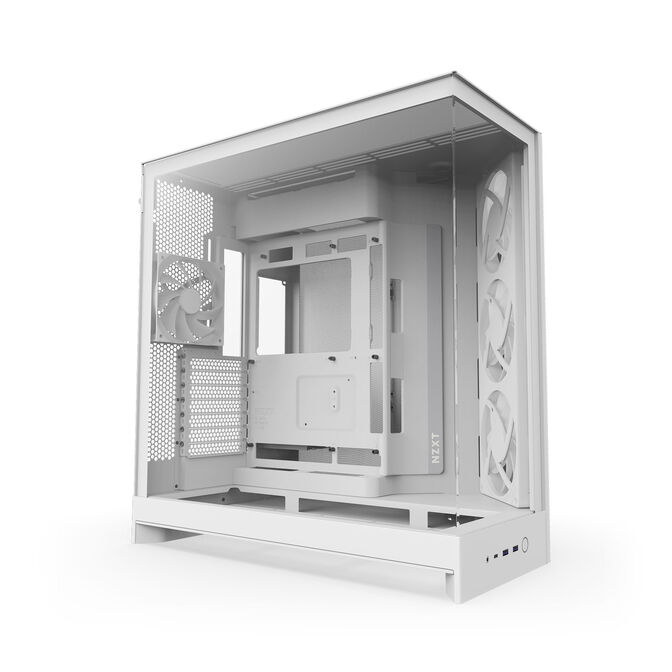

NZXT H9 Flow RGB PC Case, Mid-Tower, E-ATX, Tempered Glass - White
The NZXT H9 Flow RGB combines powerful cooling with stylish presentation for enthusiasts and show builds. The combination of a dual-chamber design, F420 RGB Core fan, and panoramic glass makes it the ideal case for high-end systems focusing on aesthetics and airflow.
- F420 RGB Core fan delivers 98.6 CFM airflow with vibrant RGB lighting
- Dual-chamber layout improves cooling and cable management
- Supports up to 10 fans – nine 140 mm + one 120 mm at the rear
- Supports 420 mm radiators at the top and front
- Back-Connect compatible with ASUS BTF & MSI Project Zero
Powerful RGB cooling included
The pre-installed F420 RGB Core is a high-performance single-frame fan – 2,000 RPM, 3.2 mmH₂O static pressure, and RGB lighting make it the ideal solution for stylish front cooling. It is complemented by a quiet F120Q fan at the rear.

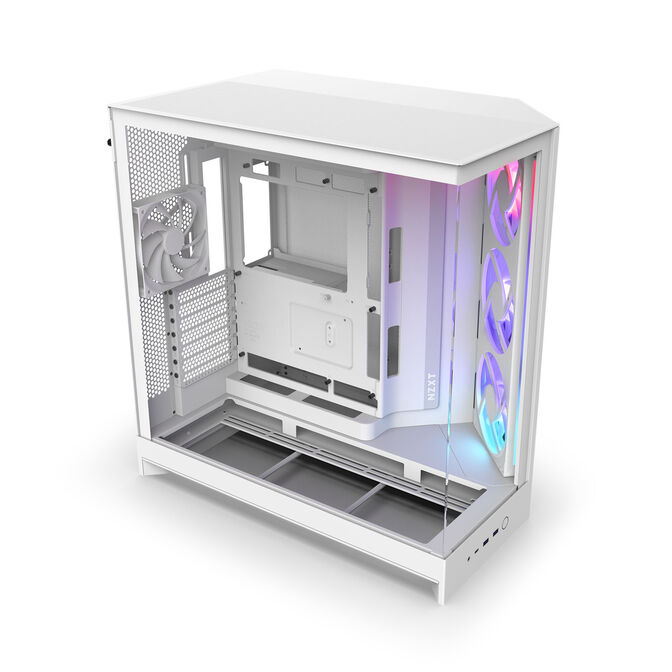

Structured airflow & dual-chamber system
By separating the power supply, drives, and motherboard, the H9 Flow RGB optimises heat distribution inside. Angled fan mounts and finely perforated mesh panels support targeted airflow for maximum cooling performance for GPUs up to 435 mm in length.
Showbuild-ready & future-proof

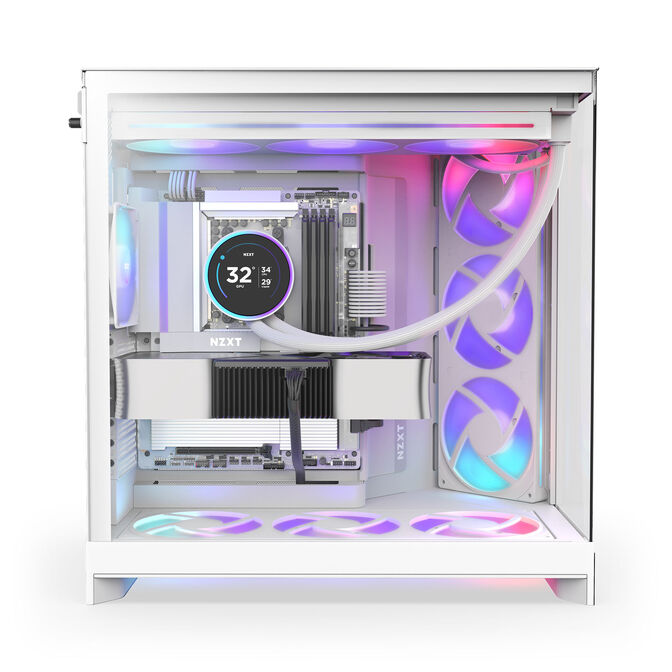

Two frameless tempered glass panels provide a 360-degree view of your components – ideal for RGB setups. The case is compatible with rear connections such as ASUS BTF and MSI Project Zero and offers modern connectivity with USB-C, 2x USB-A, and a headset port.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
481 mm
|
|
Width
|
315 mm
|
|
Height
|
506 mm
|
|
Weight
|
12.6 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
165 mm
|
|
Max. GPU Length
|
459 mm
|
|
Max. PSU Length / Depth
|
200 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Max. Number of Fans
|
10
|
|
120 mm fans
|
10
|
|
140 mm fans
|
9
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 1x Triple (360 mm), 2x Triple (420 mm)
|
|
Radiator/AIO Support (Bottom)
|
360mm Radiator
|
|
Radiator/AIO Support (Front)
|
420mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
420mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
6
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
Yes
|
|
Back-Connect Compatibility
|
ASUS BTF, MSI Project Zero
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
SGCC (Steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
RGB Controller
|
No
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
1x 120 mm, 3x 140 mm
|
