Silverstone SST-XE360-TR5 Complete Water Cooling AMD Socket sTR5 / SP6 - 360mm, Black
- With three 120mm PWM fans optimised for radiator operation
- Compatible with AMD Socket sTR5 / SP6 for workstations and Threadripper

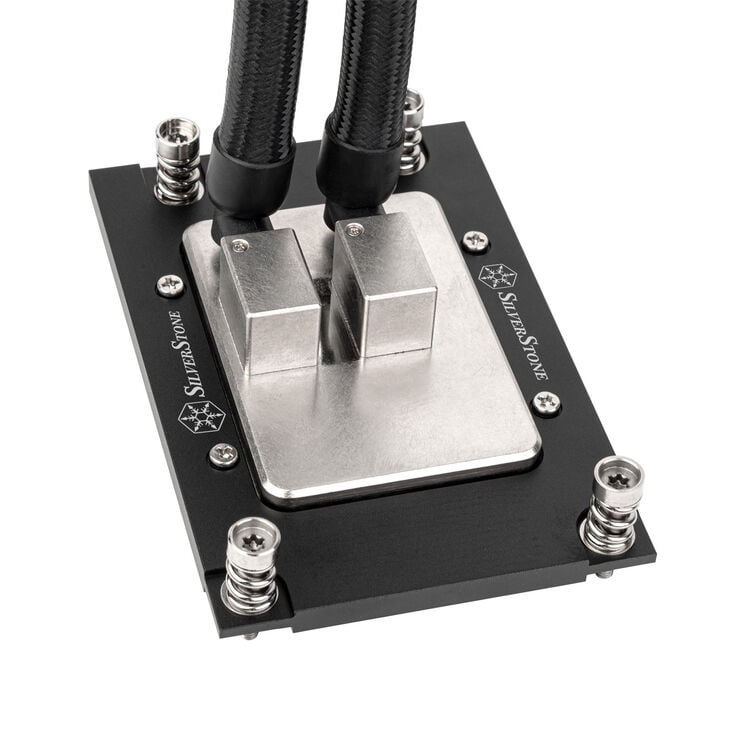

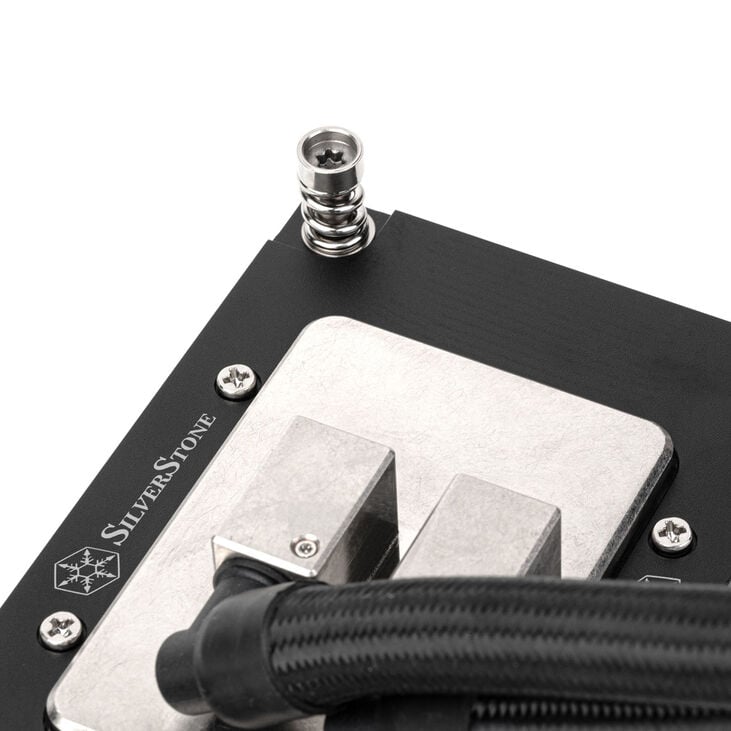

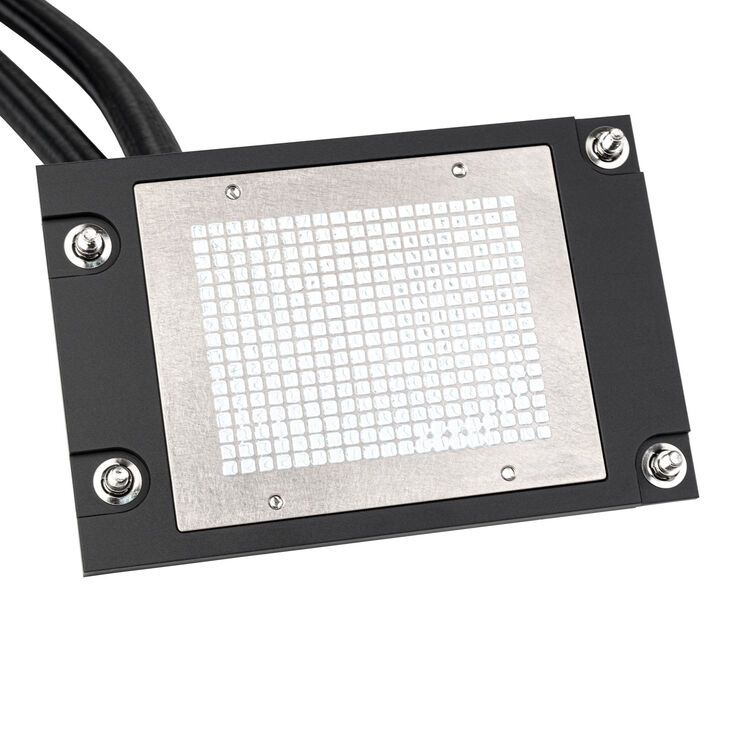

- Copper water block with large microchannel base plate for efficient cooling

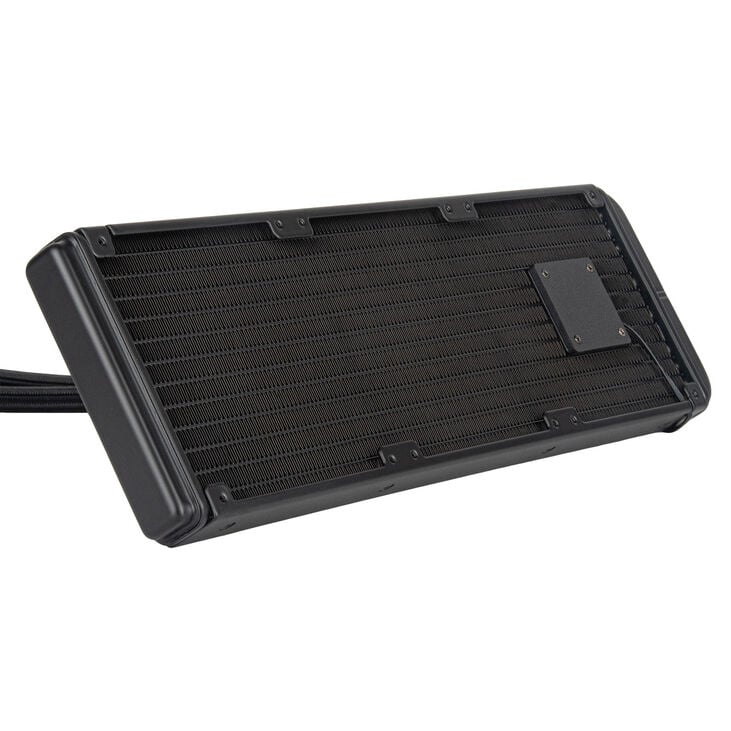

- 360mm aluminium radiator allows for optimal heat dissipation
- Powerful pump with 4,000 RPM ensures strong cooling performance
- Pre-applied thermal paste saves time and effort during installation

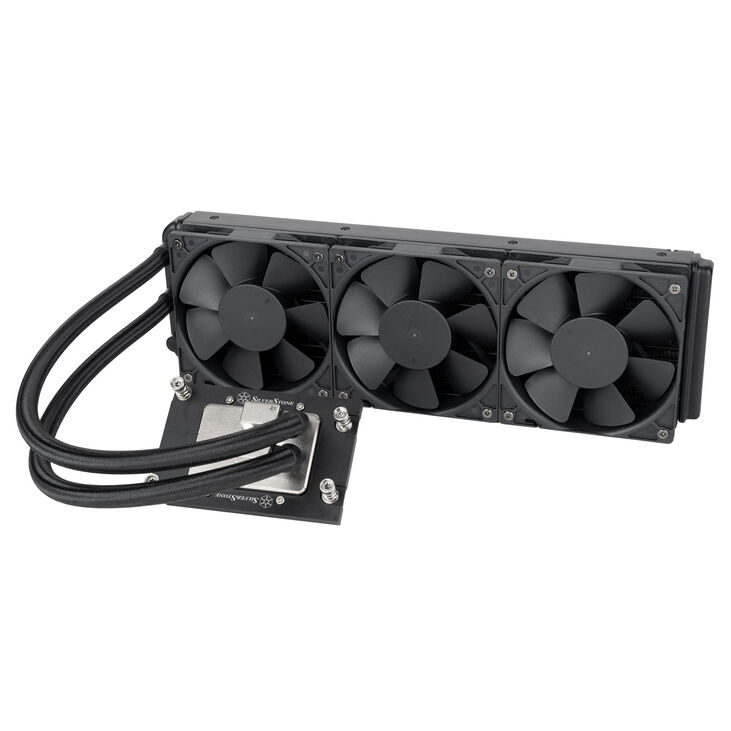

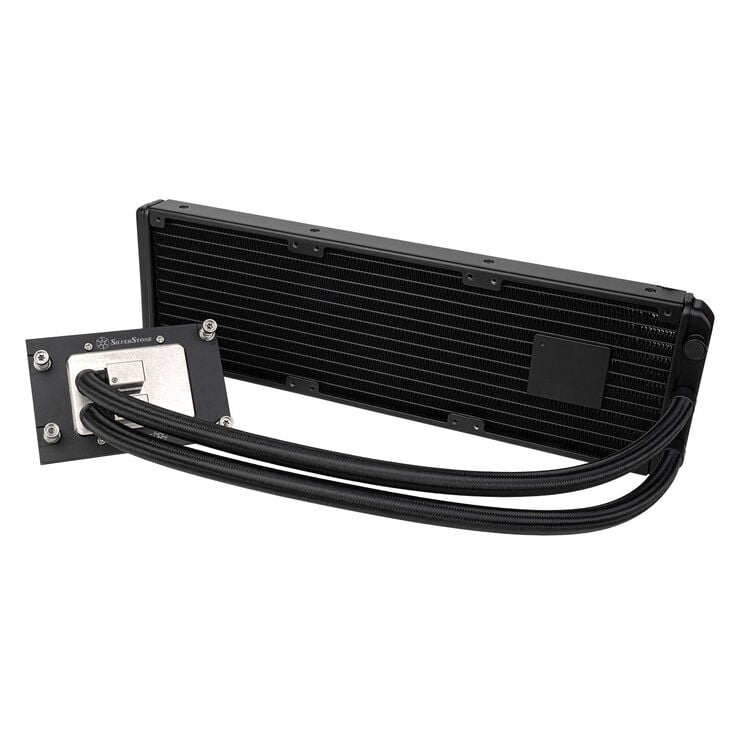

The Silverstone XE360-TR5 AiO Water Cooler in Detail
The Silverstone XE360-TR5 is a high-performance All-in-One water cooler designed for servers and workstations. The XE360-TR5 features a larger, specially adapted contact area for AMD sTR5 and SP6. It is a premium model for cooling AMD Ryzen Threadripper and EPYC processors, designed for professional applications.
Efficient and Quiet Heat Dissipation for Powerful Systems
The XE360-TR5 has a three-phase, six-pole motor in the cooler, which reduces the overall noise level of the pump and creates a quieter working environment. The water block is made from nickel-plated copper and features a copper base plate with an active cooling surface. It covers all processor cores of the Zen 4 based Ryzen Threadripper 7000-Series CPU and EPYC 8004, ensuring efficient heat dissipation.
Strong Cooling with Powerful Fans
The XE360-TR5 is equipped with three powerful 120mm PWM fans, optimised for radiator operation. These fans offer an adjustable speed range of 600 to 2,800 RPM, allowing you to tailor the cooling performance to your CPU temperature. The fans provide an airflow rate of up to 149.03 m³/h and operate at a maximum speed with a noise level of only 46 dB(A), ensuring efficient cooling with minimal noise.
- Radiator dimensions: 120 x 28 x 394 mm (W x H x D)
- Material: Copper (water block), Aluminium (cooler, water block), Tube (rubber)
- Weight: 2.66 kg
- Colour: Black
- Fans:
3x 120mm fans (max. 2.800 RPM)
Connection: 4-Pin (PWM)
Total noise level: max. 46 dB(A)
Airflow rate: max. 87.72 CFM
Static pressure: max. 3.09 mmHâ‚‚O
Nominal voltage: 12 V
- Pump:
Speed: max. 4.000 RPM
Connections: 3-Pin
Nominal voltage: 12 V
Current: 0.38 A - Tube
Length: 460mm - Compatibility: AMD Socket sTR5 / SP6
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Main radiator colour (cage)
|
Black
|
|
Main radiator colour (fins)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
394 mm
|
|
Width
|
120 mm
|
|
Height
|
28 mm
|
|
Fan height
|
25 mm
|
|
Radiator Size
|
360 mm
|
|
Radiator Height With Fan
|
53 mm
|
|
Tube length
|
46 cm
|
|
Type
|
|
|
CPU Cooler Type
|
AiO Liquid Cooler
|
|
CPU
|
|
|
CPU Socket
|
sTR5
|
|
Display
|
|
|
Display Included
|
No
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Noise
|
|
|
Max. Single Fan Noise dB(A)
|
46 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
Pump connectors
|
3-Pin
|
|
Materials
|
|
|
Materials
|
Aluminium, Copper, Nickel-plated copper, Rubber
|
|
Base Plate Material
|
Aluminium
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
3x 120 mm
|
| Manufacturer Information | Silverstone GmbH Brandstücken 27, 22549 Hamburg , Deutschland |
| Responsible Person | Silverstone GmbH Brandstücken 27, 22549 Hamburg , Deutschland |
