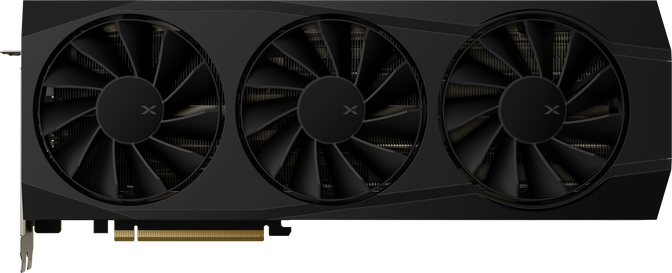

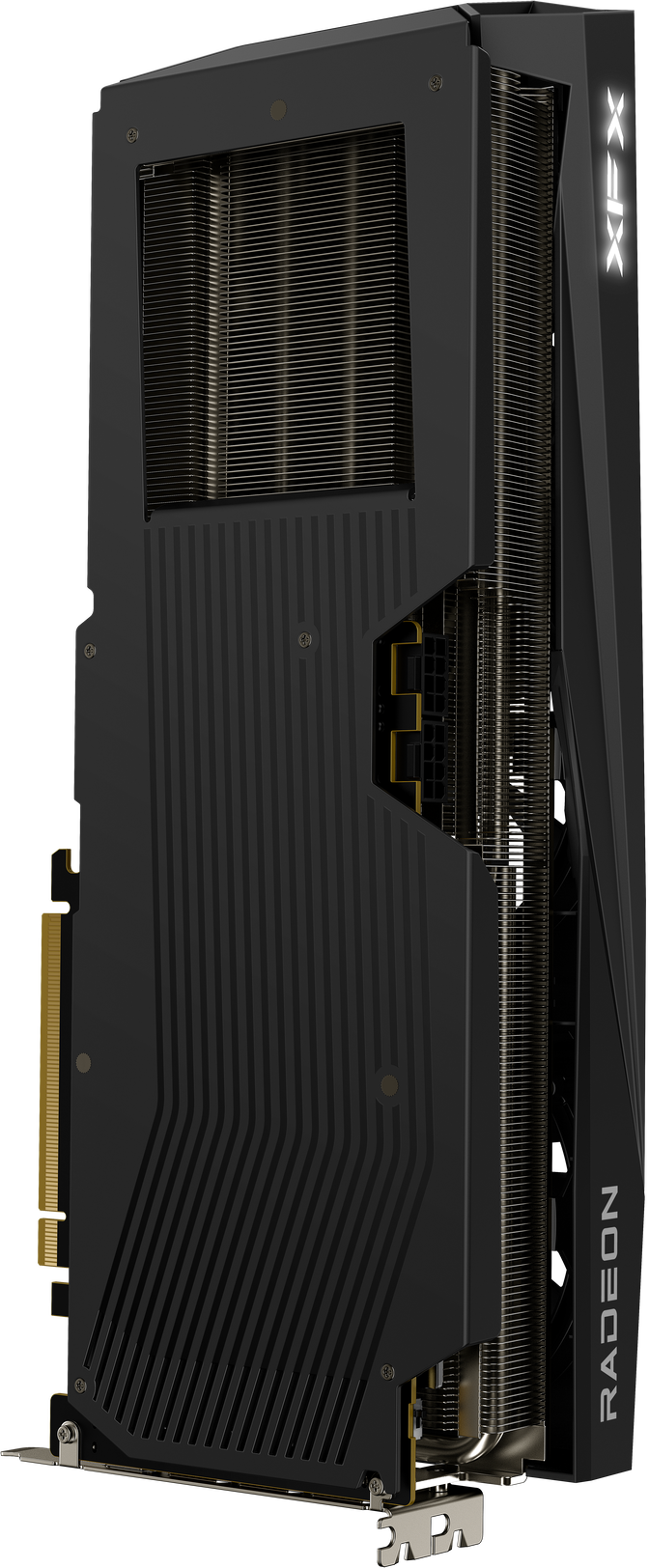

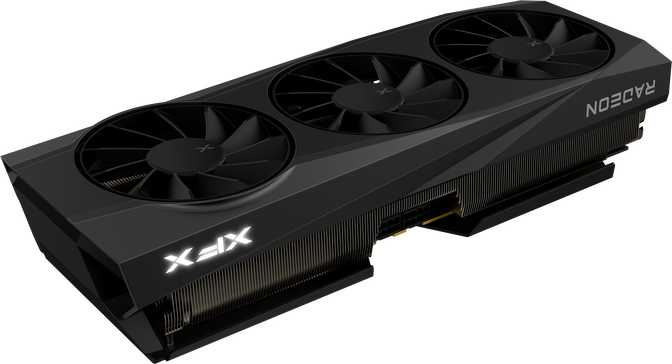

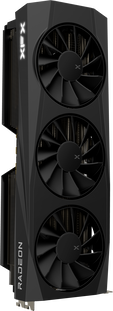

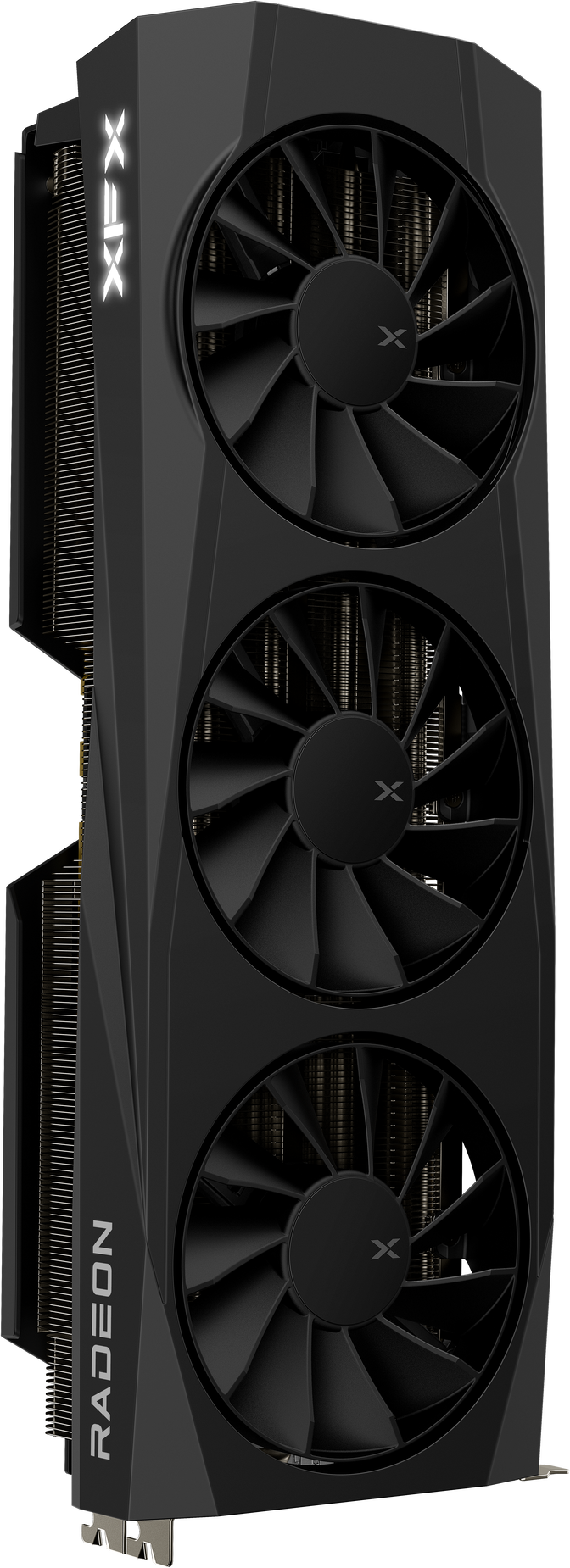

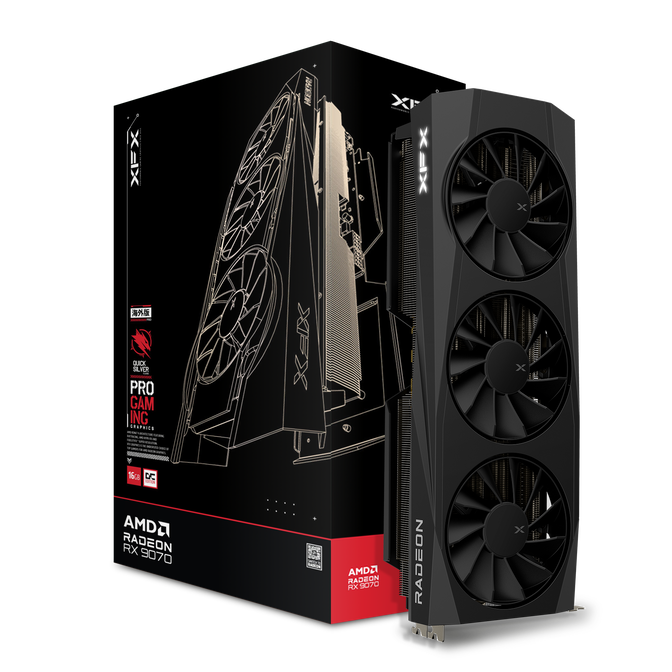

XFX Quicksilver Radeon RX 9070 OC Gaming Edition Graphics Card, 16384 MB GDDR6
- Efficient triple-fan cooler design with semi-passive cooling
- High game and boost clock: 2,700 MHz
- 16 GB GDDR6 graphics memory with 64 MB Infinity Cache
- High memory clock: 20,000 MHz
- Wide 256-bit memory interface
- Large memory bandwidth of 640 GB/s
- Video outputs: 3x DisplayPort and 1x HDMI
- Power connectors: 2x 8-pin
The XFX QuickSilver AMD Radeon RX 9070 OC Gaming Edition in detail
Equipped with a powerful graphics processor, the Radeon RX 9070 is the ideal choice for gamers seeking strong performance in the mid-range segment. You can enjoy high frame rates at high graphics settings in WQHD resolution.
AMD’s RDNA 4 architecture: More ray tracing power
For the new generation, AMD relies on the current RDNA 4 architecture. The Navi 48 GPU operates with a maximum boost clock of 2,700 MHz and, together with the 16 GB of GDDR6 memory, delivers high graphics performance. The triple-fan cooler design ensures effective cooling to keep the XFX QuickSilver AMD Radeon RX 9070 OC Gaming Edition at low temperatures.
The third-generation ray tracing accelerators offer significantly improved ray tracing performance compared to the RX 7000 GPUs. This enables much more realistic lighting, shadow, and reflection effects, allowing you to experience breathtaking graphics!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
350 mm
|
|
Width
|
140 mm
|
|
Height
|
67 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 9000 Series
|
|
GPU Model
|
AMD Radeon RX 9070
|
|
GPU Series Name
|
AMD Radeon RX 9070
|
|
Graphics Chip
|
Navi 48 XT
|
|
Manufacturing Process
|
4 nm
|
|
Shader Units
|
3584
|
|
Raytracing Cores / Ray Acceleratorss
|
56
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 5.0
|
|
Compute Units
|
56
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
256
|
|
GPU Memory Bandwidth (GB/s)
|
644.6
|
|
GPU Memory Clock (MHz)
|
2518
|
|
GPU Memory Clock Effective (Gbps)
|
20.1
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1440 MHz
|
|
Max. GPU Clock (Game)
|
2210 MHz
|
|
Max. GPU Clock (Boost)
|
2700 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (2x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3.5 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
