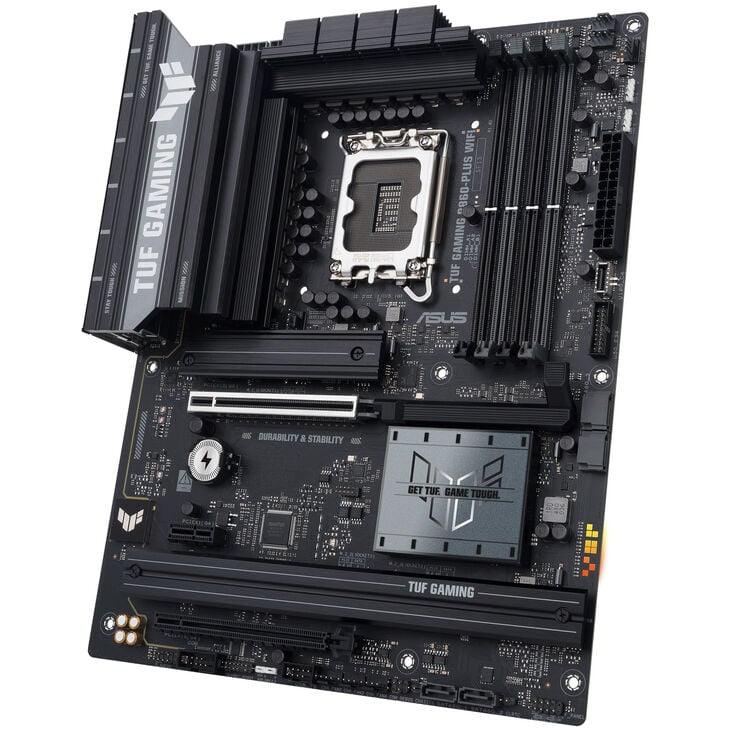

ASUS TUF Gaming B860-Plus WiFi Motherboard, Socket LGA 1851, Intel B860, ATX, DDR5
ATX motherboard with Intel B860 Chipset, supports PCI-Express 5.0, compatible with DDR5 RAM, featuring Wi-Fi and Bluetooth
264,82 €
incl. VAT
, add. delivery costs starting from 4.99€
- Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 4.0 x1
- RAM: 4x DIMM slots supporting up to 192GB DDR5 RAM at up to 8,666MT/s
- Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
- USB: 1x USB-C 3.2, 2x USB 3.1, 3x USB 3.0, and 2x USB 2.0
- Cooling: 7x 4-pin PWM headers for fans and radiators
- Connectivity: Wi-Fi 7 and Bluetooth 5.4

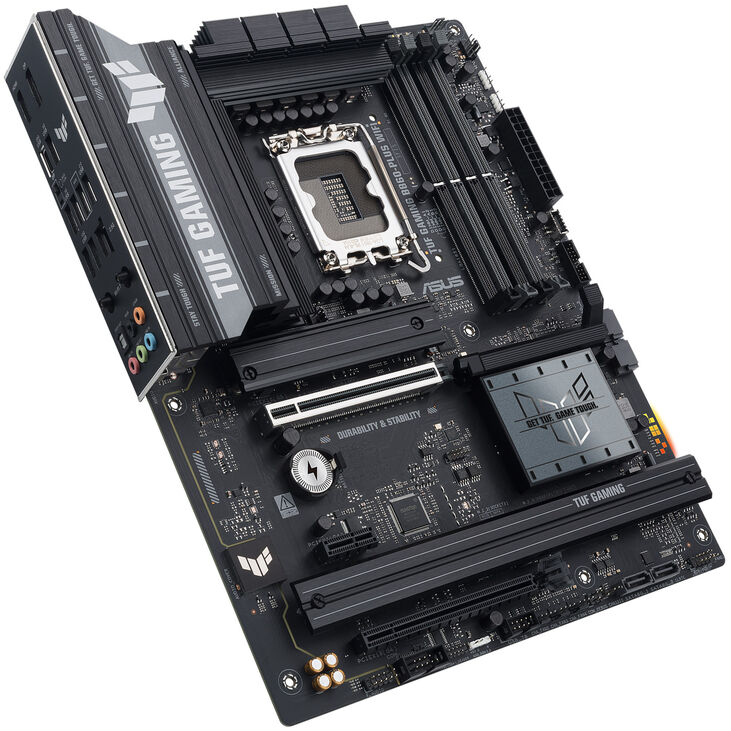

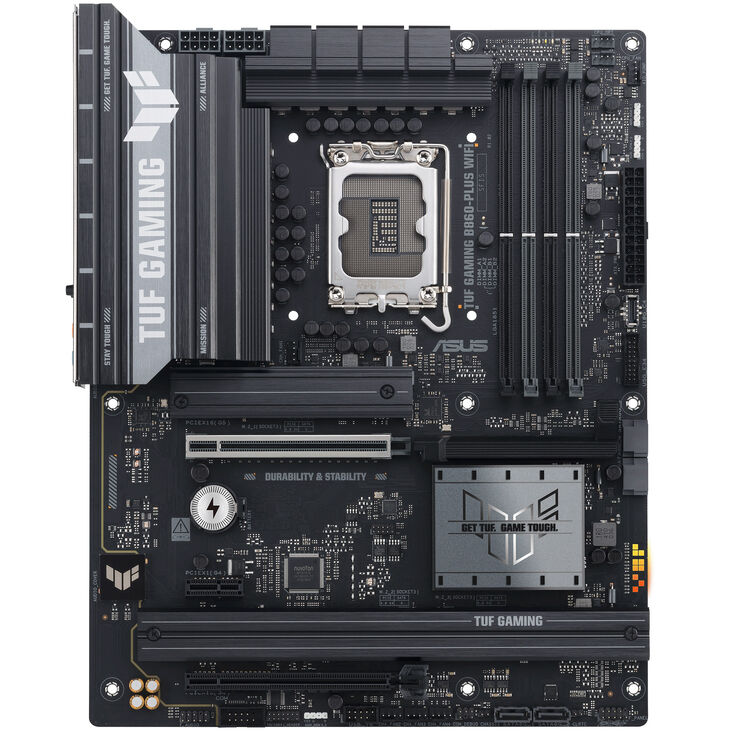

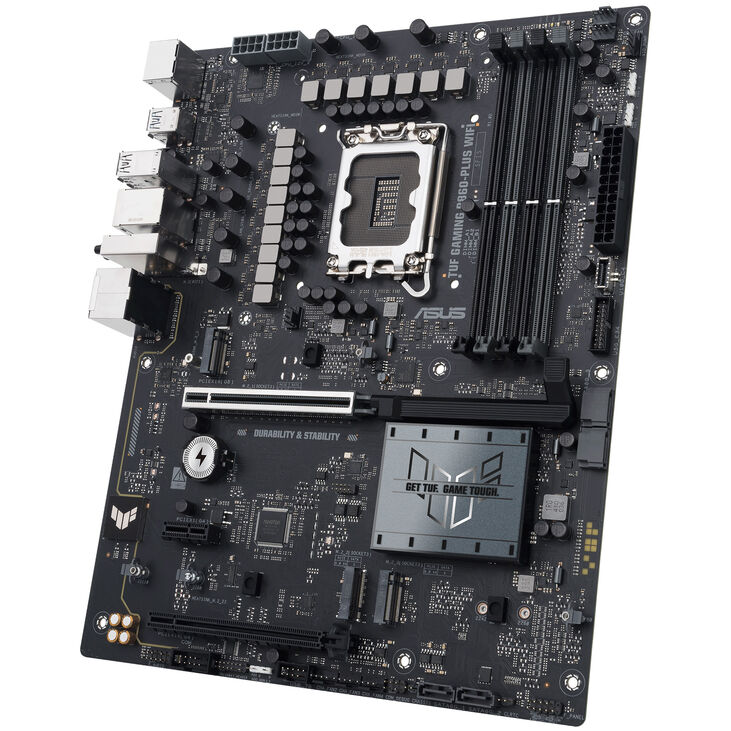

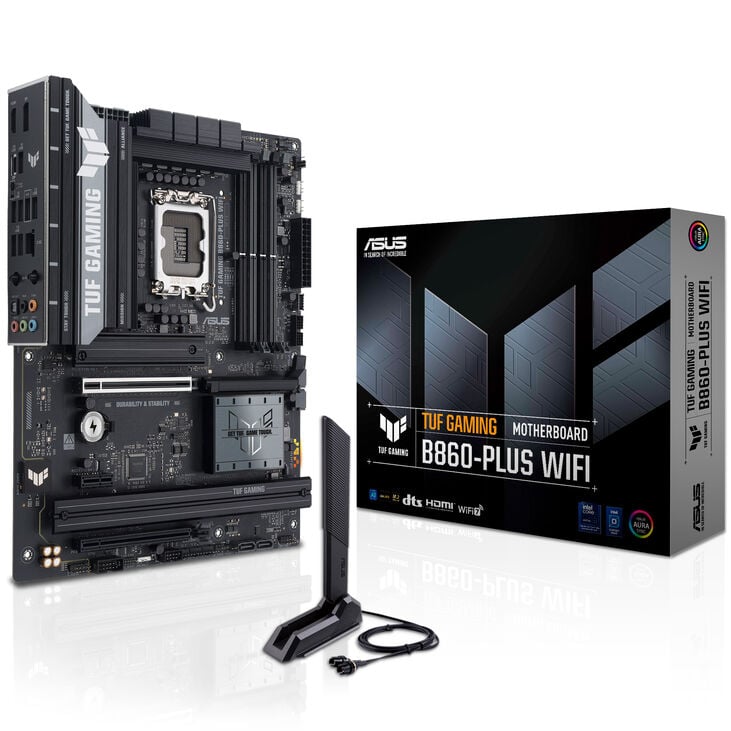

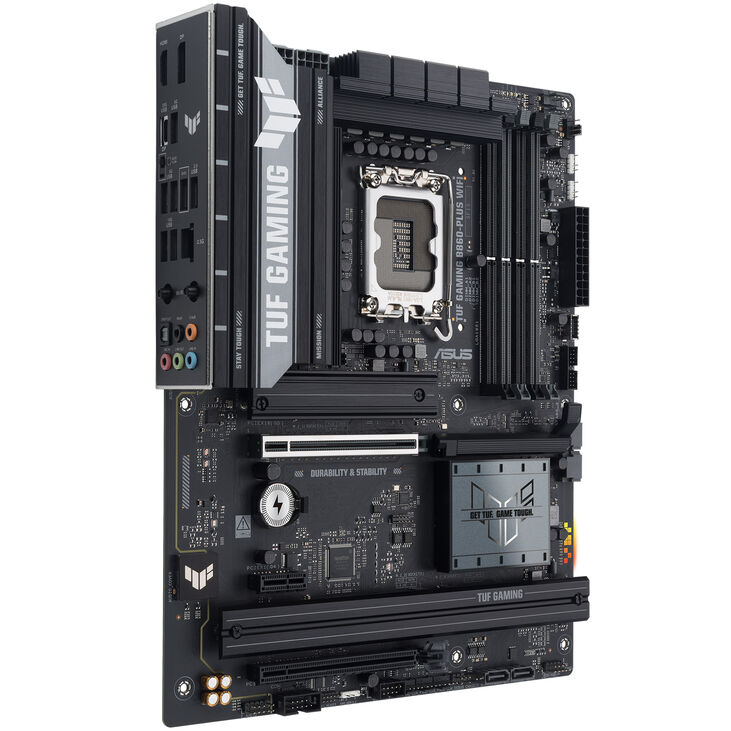

ASUS TUF Gaming B860-Plus WiFi: ATX Motherboard with Intel LGA 1851 Socket and B860 Chipset
The ASUS TUF Gaming B860-Plus WiFi is an ATX motherboard featuring the mid-range Intel B860 chipset and the Intel LGA 1851 socket. It supports Intel Arrow Lake-generation processors, making it a solid choice for gamers who don’t require CPU overclocking.
Additionally, B860 motherboards support USB4, enabling ultra-fast data transfer rates of up to 40Gbps. The ASUS TUF Gaming B860-Plus WiFi also provides PCIe 5.0 for graphics cards and M.2 SSDs, although it does not support lane splitting for the GPU expansion slot. DDR5 memory can be overclocked, ensuring you get the most out of your RAM.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B860
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
System Memory Subtype
|
CUDIMM, UDIMM
|
|
Max. Memory Speed (OC)
|
8666 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|

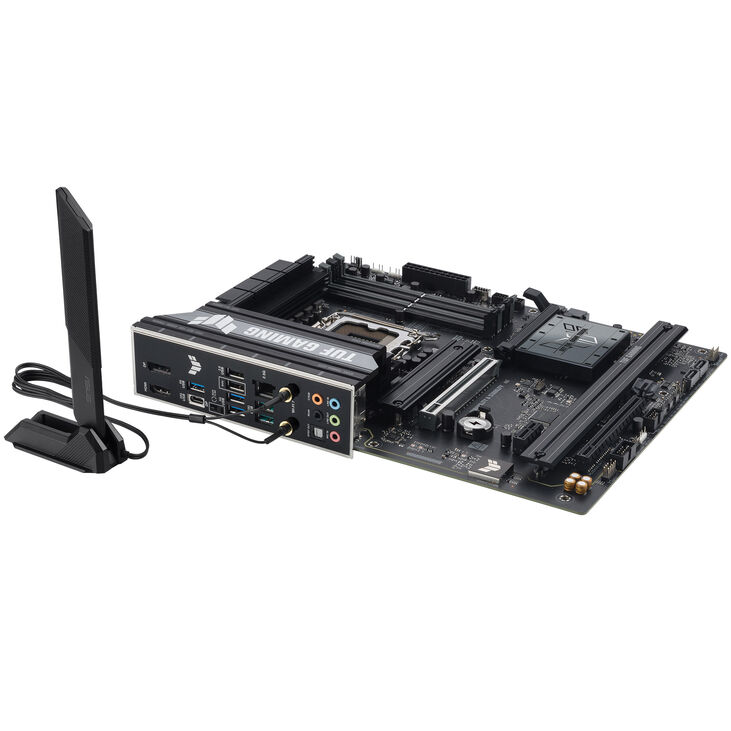

Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB4 (internal) Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|

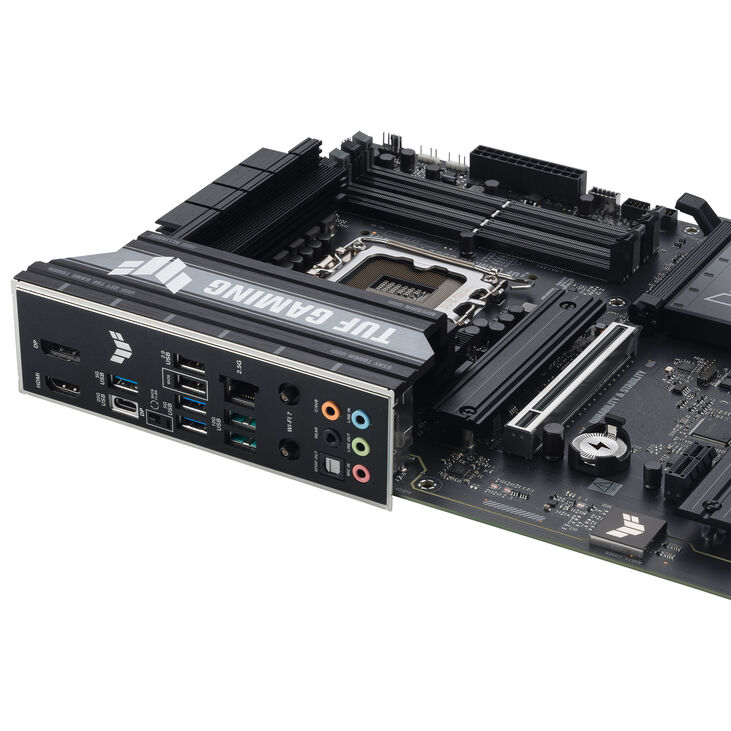

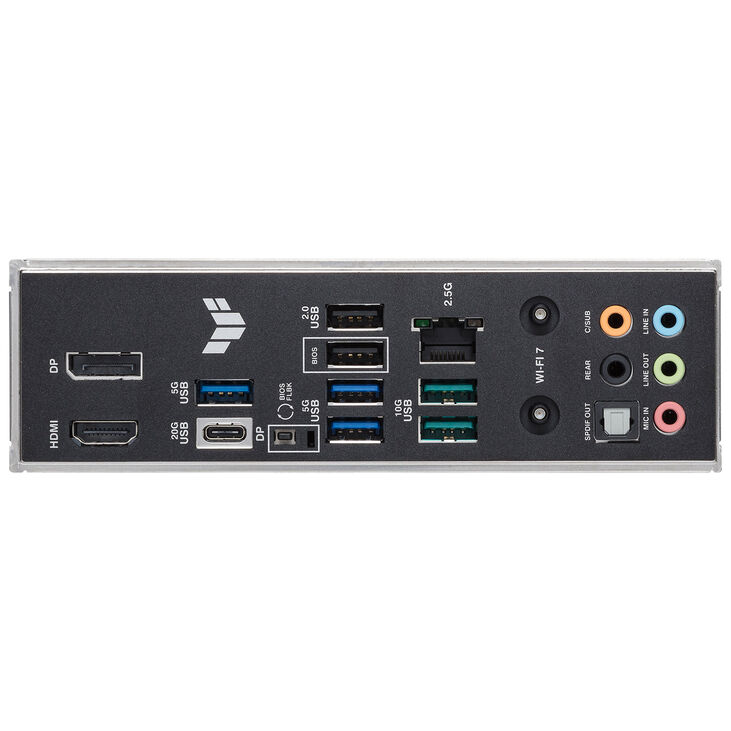

External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
3
|
|
USB 2.0 (external) Type A
|
2
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x1 slots (total)
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
7
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
