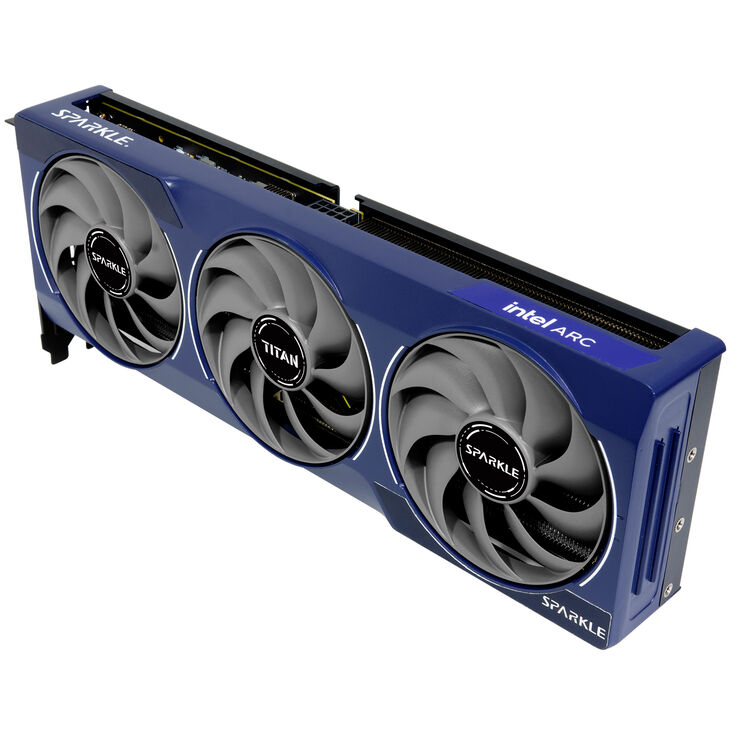

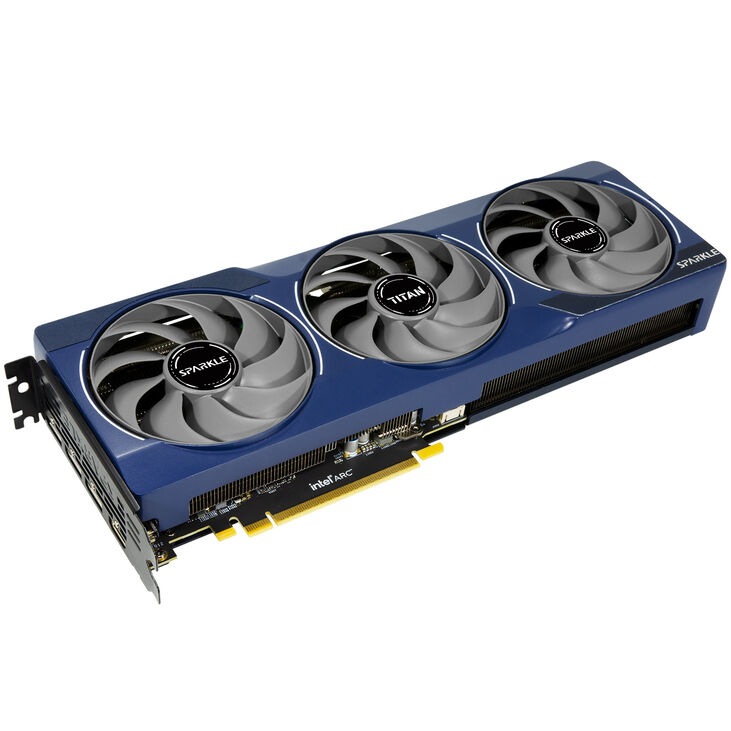

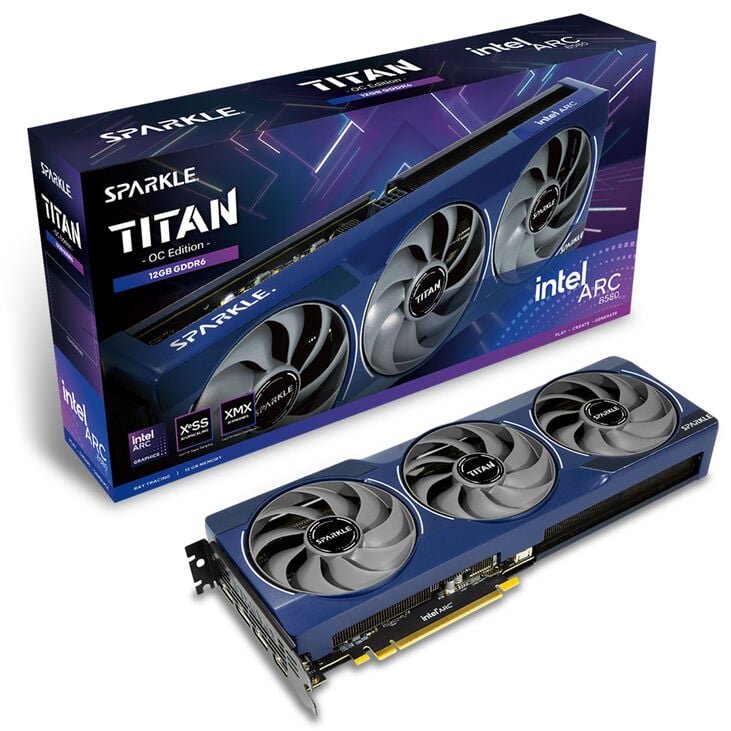

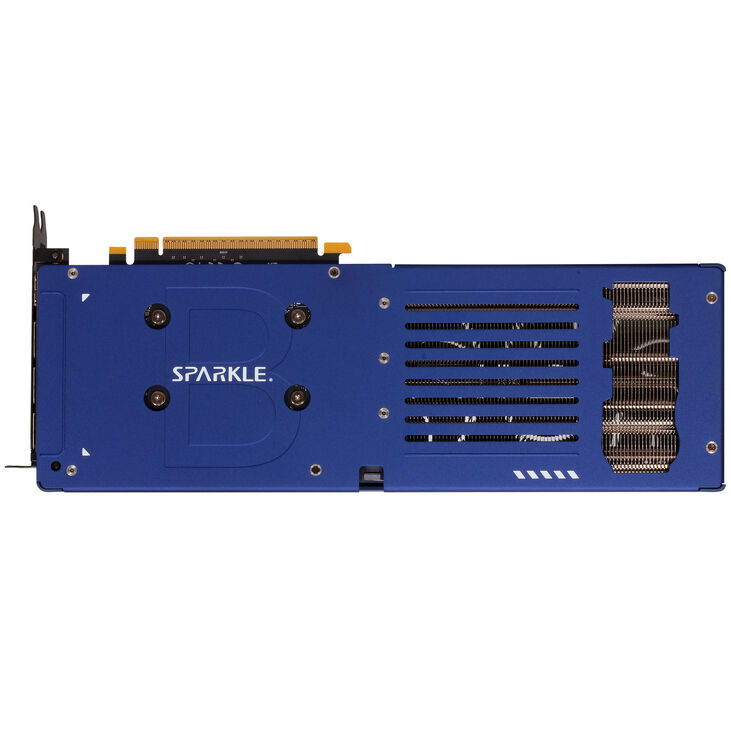

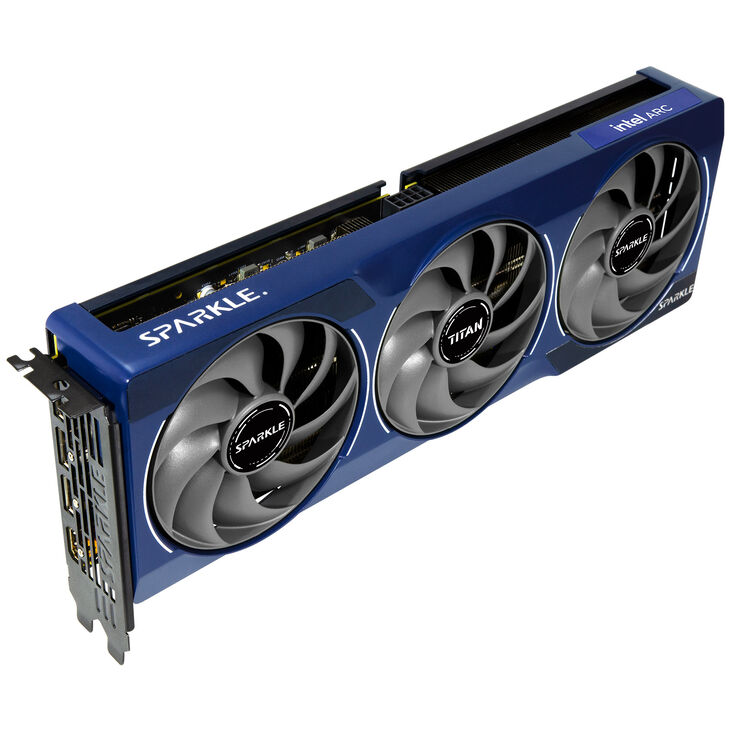

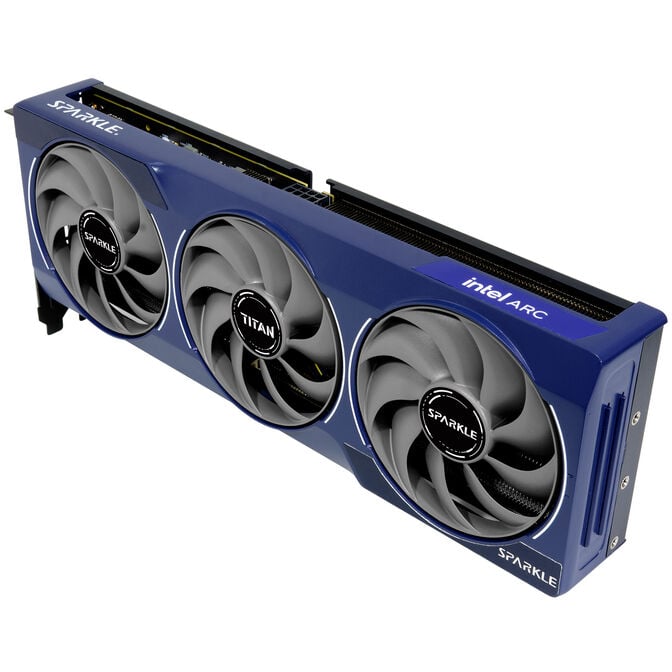

Sparkle Arc B580 Titan OC, 12288 MB GDDR6
- Efficient triple-fan cooler design with semi-passive cooling
- High GPU clock: 2,740 MHz
- 12 GB GDDR6 graphics memory
- Fast VRAM with an effective 19,200 MHz
- Wide memory interface of 192 bits
- Large memory bandwidth of 456 GB/s

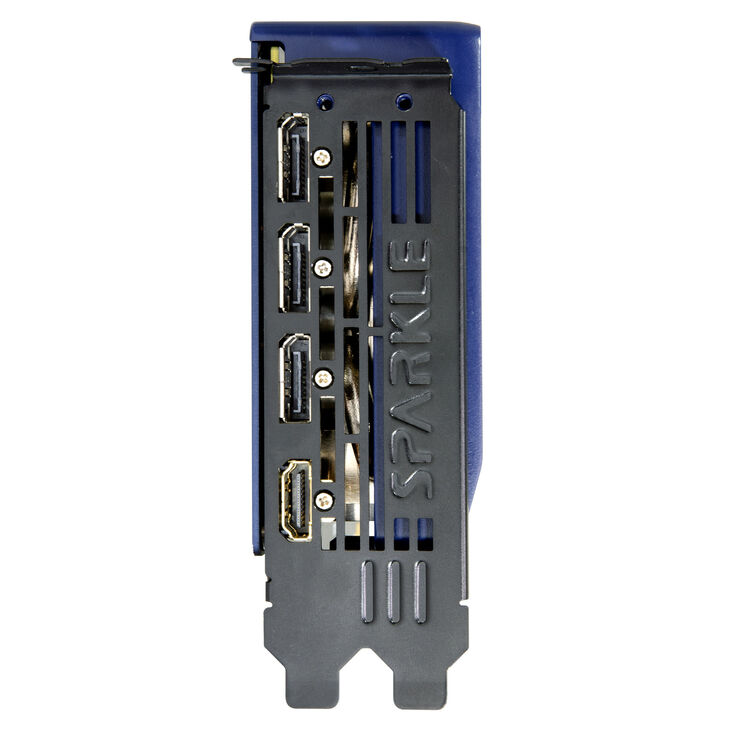

- Video outputs: 3x DP 2.1 and 1x HDMI 2.1
The Arc B580 Titan OC Intel Battlemage graphics card in detail
The Arc B580 Titan OC is equipped with a graphics processor specifically developed by Intel for gamers and content creators, along with fast GDDR6 graphics memory. This gaming graphics card is the perfect choice for smooth gaming in WQHD resolution with high graphic presets. In addition to high rasterisation performance, the Intel ARC B580 features dedicated ray tracing units that enable the calculation of stunning real-time ray tracing effects.

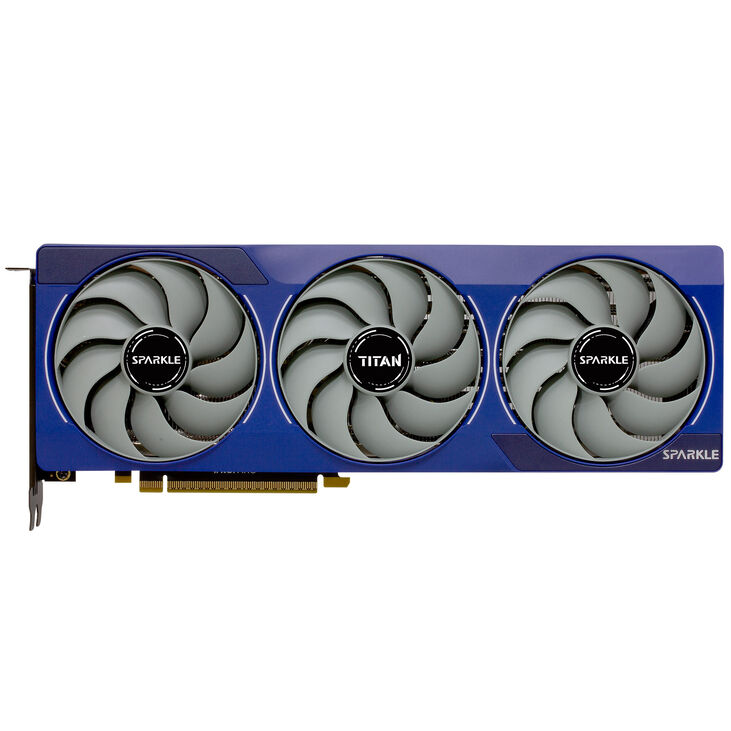

Powerful graphics with 12 GB GDDR6 and efficient triple-fan cooling system
High graphics performance is ensured by Intel's BGM-G21 graphics chip based on the Xe2-HPG GPU architecture. The maximum boost clock of the graphics processor is 2,740 MHz, while the 12 GB GDDR6 memory boasts an effective clock frequency of 19,200 MHz. The Arc B580 Titan OC is kept at low temperatures by the triple-fan design cooling system developed by Sparkle.
Your case should provide at least three expansion slots for this graphics card. The manufacturer recommends a power supply with a minimum rating of 600 watts.
|
Colour
|
|
|
Primary Colour
|
Blue
|
|
Dimensions
|
|
|
Length / Depth
|
315 mm
|
|
Width
|
117 mm
|
|
Height
|
44 mm
|
|
Weight
|
954 g
|
|
Graphics Card
|
|
|
GPU Series
|
Intel ARC
|
|
GPU Model
|
Intel ARC B580
|
|
GPU Series Name
|
Intel ARC B580
|
|
Graphics Chip
|
Intel BMG-G21
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
2560
|
|
Raytracing Cores / Ray Acceleratorss
|
20
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 4.0
|
|
GPU Memory Size (GB)
|
12
|
|
GPU Memory Interface (bit)
|
192
|
|
GPU Memory Bandwidth (GB/s)
|
456
|
|
GPU Effective Memory Clock (MHz)
|
2670
|
|
Xe Cores
|
20
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1700 MHz
|
|
Max. GPU Clock (Boost)
|
2740 MHz
|
|
Max. Memory Clock
|
19000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2.2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
adaptiveSync
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
XeCores
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
Blue
|
