Alpenföhn Dolomit Advanced - 120mm, black

Alpenföhn Dolomit Advanced - 120mm, black

(6 Ratings)
Black single-tower cooler, one 120mm Wing Boost 3 ARGB fan, four 6mm heatpipes, asymmetrical design with high RAM compatibility
49,90 €
In Stock
Incl. VAT, add. delivery costs starting from 4.99€
In Stock
SKU CPAF-051 |
EAN 4250280320213 |
MPN 84000000184 |
  • Powerful single-tower cooler with 4 heat pipes
  • 120 mm large Wing Boost 3 ARGB fan
  • Completely black design
  • High RAM compatibility thanks to asymmetric design
  • Includes four fan clips for optional push/pull operation
  • High-quality thermal paste: Thermal Grizzly Hydronaut

The Alpenföhn Dolomit Advanced: Powerful Single-Tower Cooler

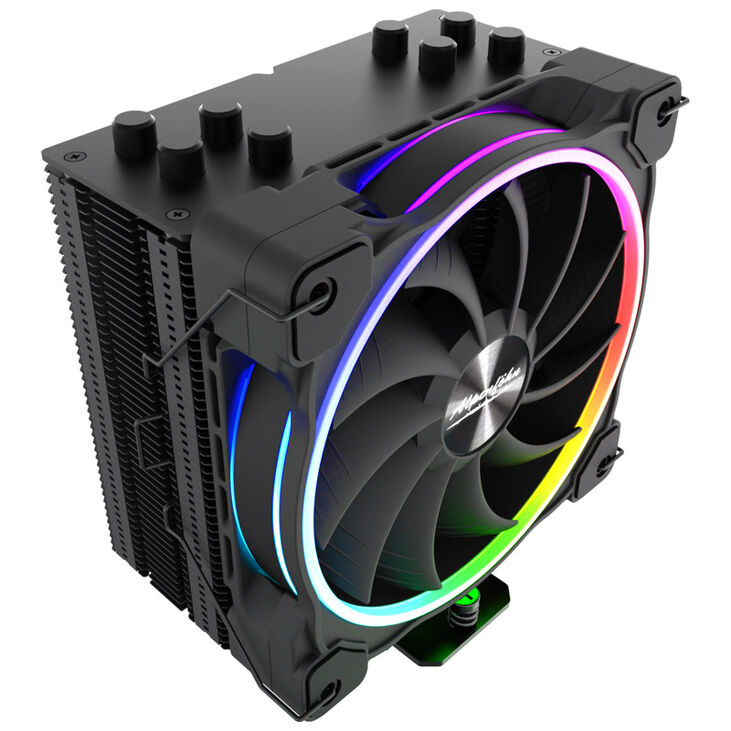

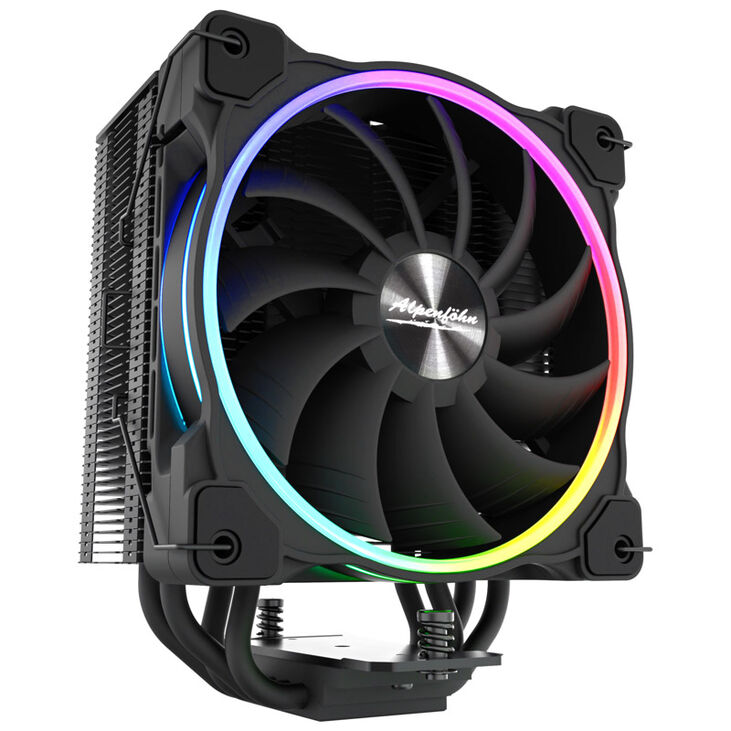

The Alpenföhn Dolomit Advanced is a powerful CPU cooler in a single-tower design. With its four heat pipes and powerful 120 mm fan, it can handle even hot CPUs with a TDP of up to 180 W. The highlight of the matte black design is the Wing Boost 3 ARGB fan with its digitally addressable RGB lighting. Thanks to the Rock Mount 3 mounting system and high RAM compatibility, installation is simple and straightforward.

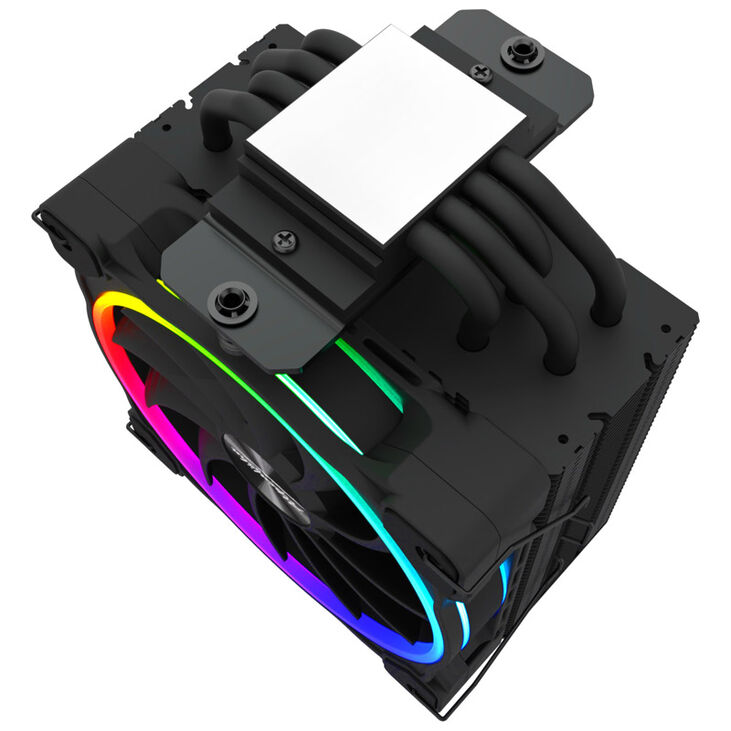

The Dolomit Advanced features four 6 mm heat pipes embedded in the copper base. The U-shaped heat pipes lead into the heatsink in two rows, which distributes the feed-in points over a larger area, enabling better and faster heat dissipation.

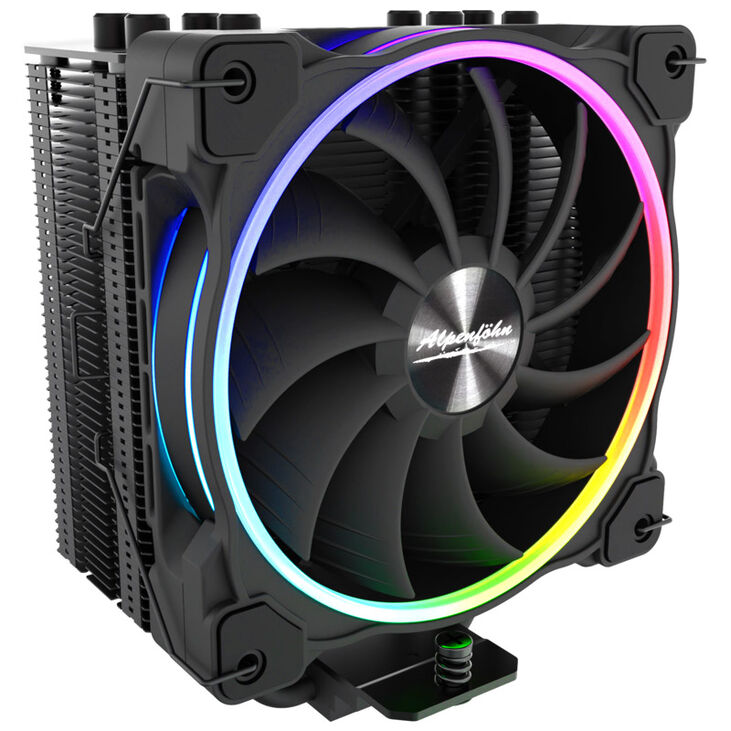

With the 120 mm fan, the Dolomit Advanced relies on a powerful representative of the Wing Boost 3 ARGB series. With its high static pressure and impressive performance values, it pushes a lot of air through the cooler’s fins and keeps even hot CPUs with a TDP of up to 180 watts at low temperatures.

Design and Lighting

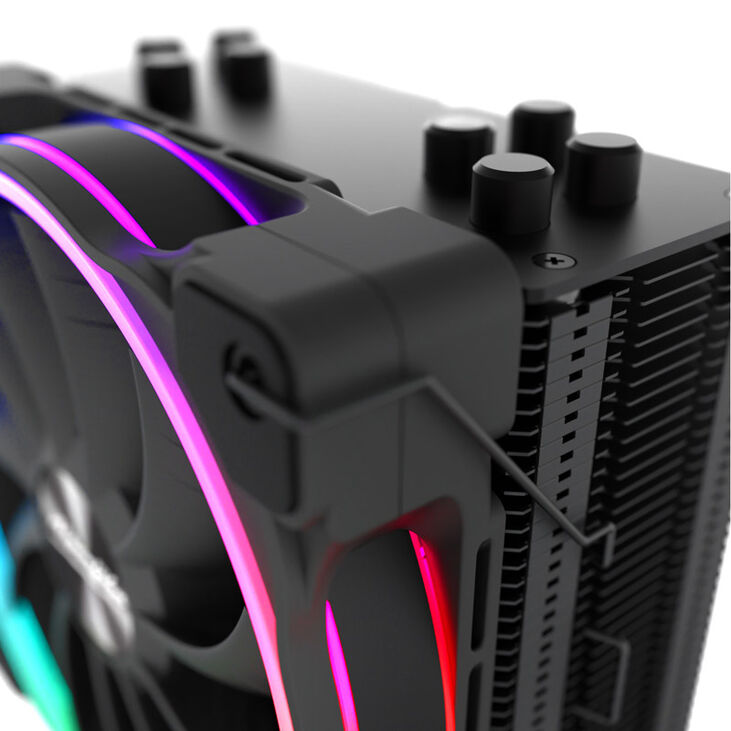

All parts of the cooler are coated with a matte black surface finish. The Alpenföhn Wing Boost 3 ARGB fan is also equipped with digitally addressable RGB LED lighting. The manufacturer has integrated two rings into the fan frame, which shine in 16.8 million colours. The LEDs cast a gentle glow on the fan blades and are connected to the motherboard or corresponding controllers via a 3-pin RGB connector.

Compatible and Expandable

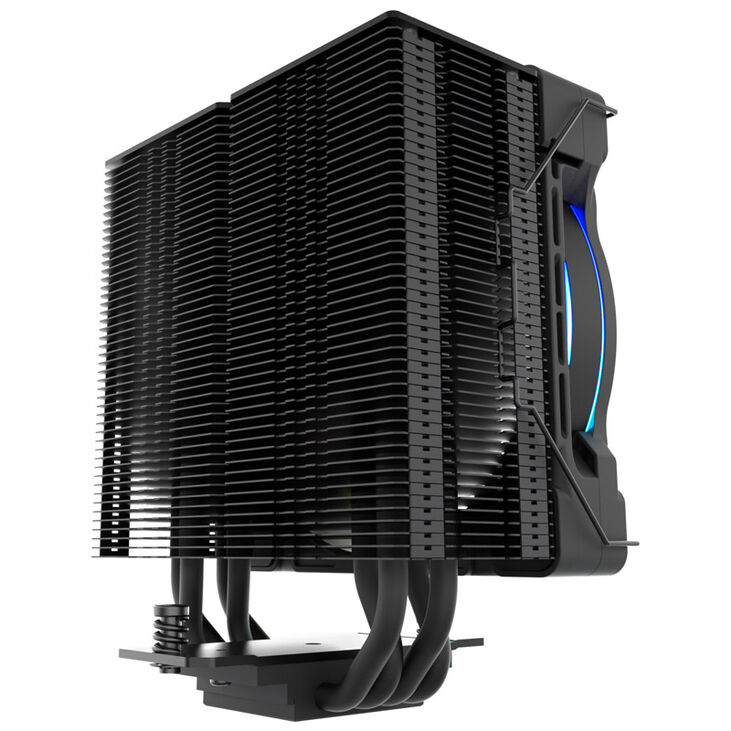

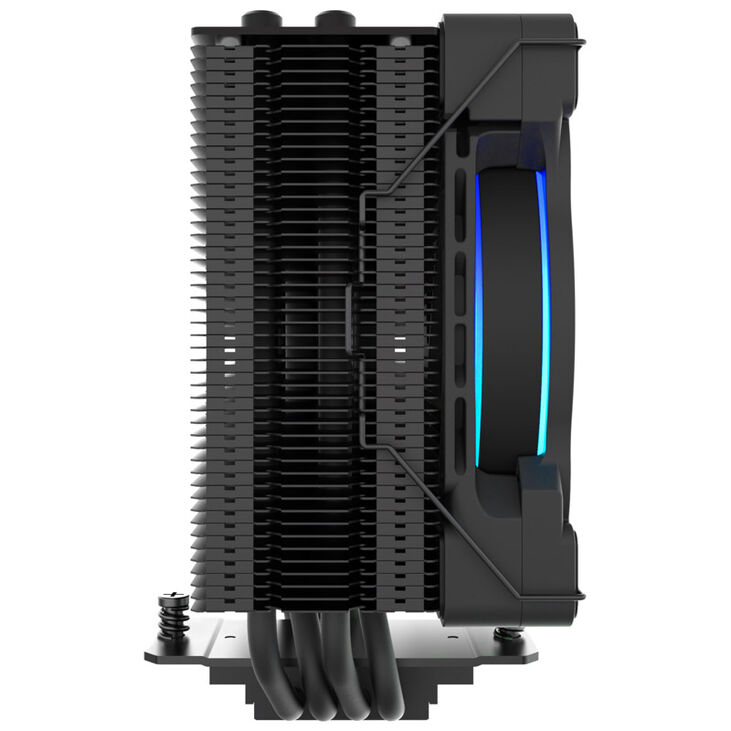

The asymmetric structure of the Alpenföhn Dolomit Advanced ensures high compatibility with RAM modules. This means you are not restricted in your choice of memory and can easily install models with tall heat spreaders.

The Alpenföhn Dolomit Advanced is easy to install thanks to the Rock Mount 3 mounting system and is compatible with common Intel and AMD sockets. Included in the package is the high-end thermal paste Thermal Grizzly Hydronaut and a total of four fan clips. With the additional clips, the Dolomit Advanced can be optionally equipped with a second fan to achieve maximum cooling performance in push-pull operation.

Technical Details:

  • Dimensions: 120 x 154 x 73 mm (W x H x D)
  • Weight: 758 g
  • Material: Copper (base plate), Aluminium (fins)
  • Colour: Black
  • Heatpipes: 4x Ø 6 mm
  • TDP: 180 W
  • Fan:
    Type: 1x 120 mm Wing Boost 3 ARGB
    Dimensions: 120 x 25 x 120 mm (W x H x D)
    Noise level: max. 23.5 dB(A)
    Speed: 500 - 1,600 rpm
    Airflow: 92.6 m³/h
    Static pressure: 2.19 mmH2O
    Fan connector: 4-Pin PWM
    Voltage range: 7 - 13.3 V
    Input current: 0.13 A
    Power consumption: 1.56 W
    RGB connector: 3-Pin ARGB
  • Compatibility:
    Intel: LGA 1200, 115x, 20xx
    AMD: AM4, AM5
Colour
Primary Colour
Black
Dimensions
Length / Depth
154 mm
Width
120 mm
Height
73 mm
Weight
758 g
Cooler Specifications
Heatpipe diameter
6 mm
Number of heatpipes
4
Type
CPU Cooler Type
Single Tower
CPU
CPU Socket
115X, 1200, AM4, AM5
Fan Specifications
Min. Fan RPM
500 rpm
Max. Fan RPM
1600 rpm
Max. Single Fan Airflow
92.6 m³/h
Max. Static Pressure
2.19 mmH2O
Noise
Max. Single Fan Noise
23.5 dB(A)
Internal Ports
Fan connectors
4 Pin (PWM)
RGB / LED connectors
1x Digital RGB (3-Pin 5VDG), yes
Thermal Specifications
Max. TDP
180 W
Materials
Base Plate Material
Copper
Heat Sink Material
Aluminium
Lighting
Lighting / RGB
Yes
Lighting Colour
RGB
Additional Contents
Included fans
1x 120 mm
Gamezoom - Alpenföhn Dolomit
Gamezoom - Alpenföhn Dolomit

Richtig gut

+ saubere und hochwertige Verarbeitung (Kühlkörper und Lüfter)
+ ordentliche Kühlleistung
+ potenter und recht leiser PWM-Lüfter im Lieferumfang enthalten
+ sichere und einfache Montage
+ hohe Ram-Kompatiblität
+ passt auf alle gängigen Sockeltypen drauf
+ Preis

Learn more
Alpenföhn Dolomit Advanced
Alpenföhn Dolomit Advanced

Pro
+ subjektiv leiser Betrieb
+ für Abmessungen gute Kühlleistung
+ tolle Verarbeitung
+ einfache und sichere Montage
+ gute Wärmeleitpaste
+ dezente, aber coole ARGB-Beleuchtung

Learn more
Game2gether - Alpenföhn® Dolomit Premium
Game2gether - Alpenföhn® Dolomit Premium

Der Alpenföhn® Dolomit Premium bietet neben einer ordentlichen Kühlleistung auch einen leisen Betrieb, verbunden mit einer schönen ARGB-Optik. Es gibt zwar vergleichbare Kühler mit einer etwas höheren Kühlleistung, allerdings bieten diese oft entweder keine ARGB-Beleuchtung, sind nicht vollständig in Schwarz gehalten oder sind tendenziell etwas lauter. Die Kühlleistung ist auch für CPUs die kurzzeitig über 125 W Dauerleistung boosten ausreichend, sodass man ihn für alle üblichen AMD oder Intel-Desktop-CPUs einsetzen kann. Optisch wirkt der Kühler, insbesondere durch die schwarze Farbgebung und die Abdeckkappen der Heatpipes sehr elegant. Die ARGB-Beleuchtung ist effektvoll, aber nicht übertrieben.

Learn more
TweakPC - Alpenföhn Dolomit Serie mit Advanced und Premium
TweakPC - Alpenföhn Dolomit Serie mit Advanced und Premium

Vorteile:

+ Gute Kühlleistung
+ Dezentes und schickes Design
+ Hoher Sockel-Support (Außer TR4)
+ Hervorragende Verarbeitung
+ Großer Drehzahlbereich des Lüfters
+ Als Silent-Kühler nutzbar
+ Hervorragende Montage
+ Lüfter austauschbar
+ Schlankes Design für hohen Arbeitsspeicher
+ RGB-Lüfter bei Dolomit Advanced und Premium

Learn more
PCGHX - Jarafi - Alpenföhn Dolomiten - Im Duell mit den be quiet! Dark Rocks
PCGHX - Jarafi - Alpenföhn Dolomiten - Im Duell mit den be quiet! Dark Rocks

Positiv:

+ Gute Kühlleistung
+ Schicke & hochwertige Optik
+ Sichere und einfache Montage
+ Moderner Sockelsupport
+ Austauschbare Lüfter
+ Hervorragende Verarbeitung
+ Hohe RAM-Kompatibilität
+ Als Silent Kühler nutzbar

Learn more
Mod-your-case - Alpenföhn – Dolomit CPU-Kühler
Mod-your-case - Alpenföhn – Dolomit CPU-Kühler

Mit dem Dolomit hat Alpenföhn einen kompakten Tower-Kühler in seine neue Kühler-Serie aufgenommen, welcher in unserem Test neben einer sehr guten Verarbeitungsqualität sowie einer dezenten Optik auch mit einer ordentlichen Kühlleistung überzeugen konnte. Auch wenn der Kühler recht kompakt ausfällt, lieferte er in unserem Test eine Kühlleistung, welche ausreichend hoch ist, um die Abwärme jeder aktuellen Mittelklasse-CPU abführen zu können. Je nach eingesetzter CPU und deren Auslastung macht der eingesetzte Lüfter durch die hohe Maximaldrehzahl zwar etwas auf sich aufmerksam, ist hierbei jedoch nicht so aufdringlich wie der Lüfter eines Boxed-Kühler. Dank er geringen Abmessungen eignet sich der Kühler nicht nur für den Einsatz in einem normalen Desktop-PC, sondern der Kühler kann auch in vielen ITX-Systemen eingesetzt werden.

Learn more
Glob3trotters - Alpenföhn Dolomit 92mm CPU Cooler
Glob3trotters - Alpenföhn Dolomit 92mm CPU Cooler

The good:

+ Excellent cooling results for its size
+ Superb build quality
+ All matte black paintjob
+ Ability to install a second fan

Learn more
