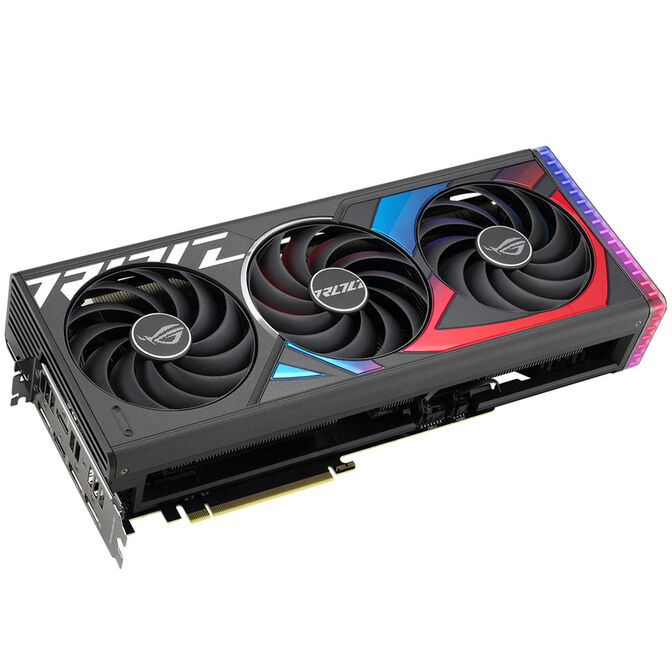

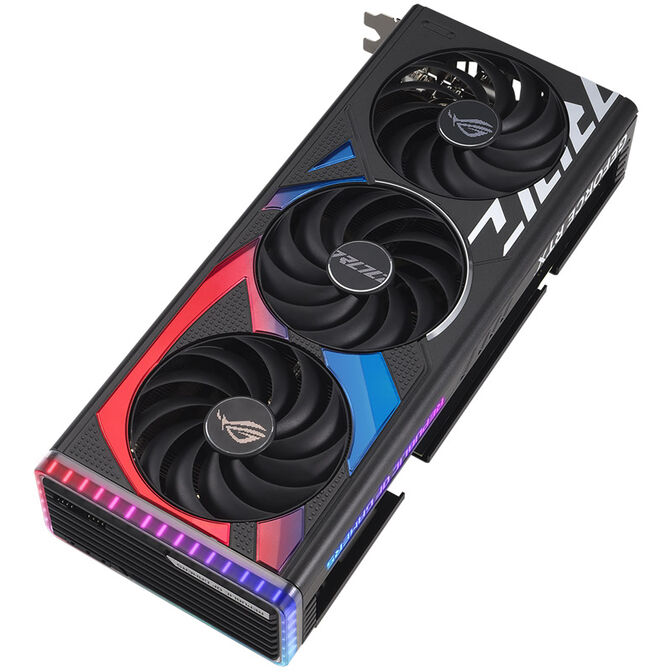

ASUS GeForce RTX 4070 Ti Super ROG Strix O16G, 16384 MB GDDR6X
- Efficient triple-fan cooler design with semi-passive cooling
- Extensive RGB-LED lighting
- High base clock of the GPU: 2,340 MHz
- Enormous boost clock of the GPU: 2,700 MHz
- Next-generation graphics memory: 16 GB GDDR6X
- Extremely high memory clock: 2,625 MHz (effective 21,000 MHz)
- Additional PCIe power connectors: 1x 16-Pin 12VHPWR
- Video outputs: 3x DP 1.4a, 2x HDMI 2.1
The ASUS GeForce RTX 4070 Ti Super ROG Strix O16G in Detail
The ASUS GeForce RTX 4070 Ti Super ROG Strix O16G, part of the enhanced Super series, is equipped with a powerful graphics processor and exceptionally fast GDDR6X graphics memory. This gaming graphics card is suitable for gamers with high demands on graphics quality and frame rates. Compared to the RTX-30 series, the computation speed of rasterization optics and ray tracing performance has been significantly increased. Additionally, the graphics accelerators of the Ada Lovelace generation support PCI-Express 4.0. The GeForce RTX 4070 Ti Super ensures smooth gameplay in WQHD and 4K resolution with high graphics presets.

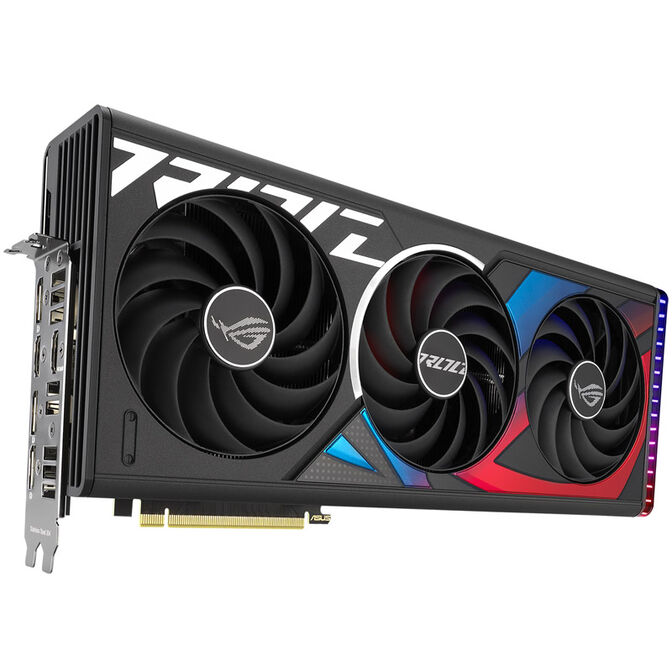

The high graphics performance of the ASUS GeForce RTX 4070 Ti Super ROG Strix O16G is provided by the graphics processor with a maximum boost clock of 2,700 MHz and the 16 GB GDDR6X memory with an effective clock frequency of 21,000 MHz. The ASUS GeForce RTX 4070 Ti Super ROG Strix O16G is kept at low temperatures by the cooling system developed by ASUS in the triple-fan design.
Your case should provide at least 336 mm of space and 3.15 expansion slots for this graphics card. The manufacturer recommends a power supply with a minimum power rating of 750 watts.
- Dimensions: 336 x 150 x 63 mm (L x W x H)
Height: 3.15 slots - GPU: GeForce RTX 4070 Ti
Chip: AD103-275
Manufacturing: 4 nm
GPU clock: 2,340 MHz
Boost clock Gaming Mode: 2,670 MHz
Boost clock OC Mode: 2,700 MHz
Shader units (CUDA cores): 8,448 - Memory size: 16,384 MB
Memory clock: 2,625 MHz (21,000 MHz effective)
Type: GDDR6X
Memory interface: 256 bit
Memory bandwidth: 672 GB/s - Slot: PCIe x16 (PCIe/PCIe 2.x/PCIe 3.0/PCIe 4.0)

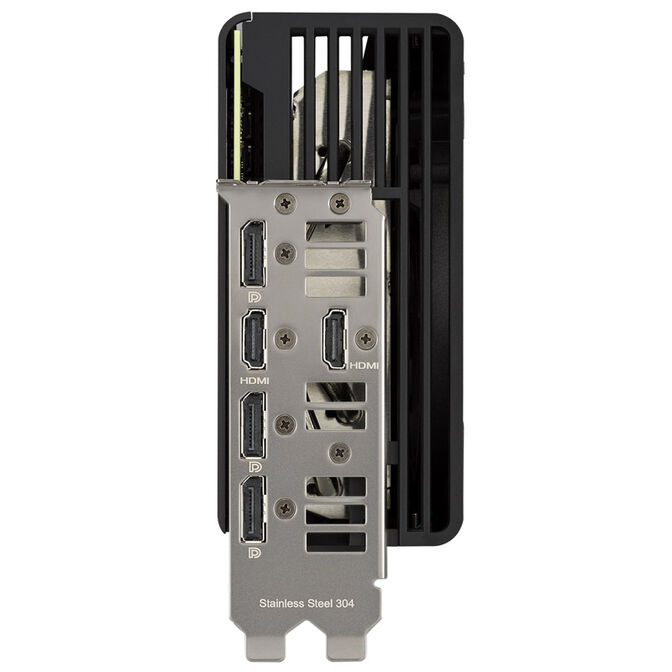

- Connections:
3x DisplayPort 1.4a
2x HDMI 2.1a - Power supply: 1x 16-Pin PCIe 5.0 (12VHPWR)
TDP: 285 watts
Recommended power supply: min. 750 watts - Features: DirectX 12 Ultimate, OpenGL 4.6, Vulkan RT API, VR Ready, G-SYNC HDR, NVIDIA GPU Boost 4.0, HDCP 2.3, NVIDIA Surround, 3D Vision, Tessellation, PhysX, DLSS 3, CUDA, NVENC Encoder 8, NVENC Decoder 5, AV1, Adaptive Vertical Sync, VXGI, Super Resolution, 4K Ultra HD Support, SMP, NVIDIA ShadowPlay, Real-Time Ray Tracing, Dual BIOS
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Blue, Red
|
|
Dimensions
|
|
|
Length / Depth
|
336 mm
|
|
Width
|
150 mm
|
|
Height
|
63 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 40 Series, NVIDIA GeForce RTX Gaming
|
|
GPU Model
|
NVIDIA GeForce RTX 4070 Ti
|
|
GPU Series Name
|
NVIDIA GeForce RTX 4070 Ti
|
|
Graphics Chip
|
AD104-400
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
7680
|
|
Tensor Cores
|
240
|
|
Raytracing Cores / Ray Acceleratorss
|
60
|
|
GPU Memory Type
|
GDDR6X
|
|
Slot Type Standard
|
PCIe 4.0
|
|
GPU Memory Size (GB)
|
12
|
|
GPU Memory Interface (bit)
|
192
|
|
GPU Memory Bandwidth (GB/s)
|
504
|
|
GPU Memory Clock (MHz)
|
1313
|
|
GPU Memory Clock Effective (Gbps)
|
21
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Boost)
|
2700 MHz
|
|
Max. Memory Clock
|
21000 MHz
|
|
Internal Ports
|
|
|
Required Power Connectors
|
16-pin PCIe 5.0 - 12VHPWR (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (1x), Display Port (2x), Display Port (3x), HDMI (1x), HDMI (2x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3,15 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
