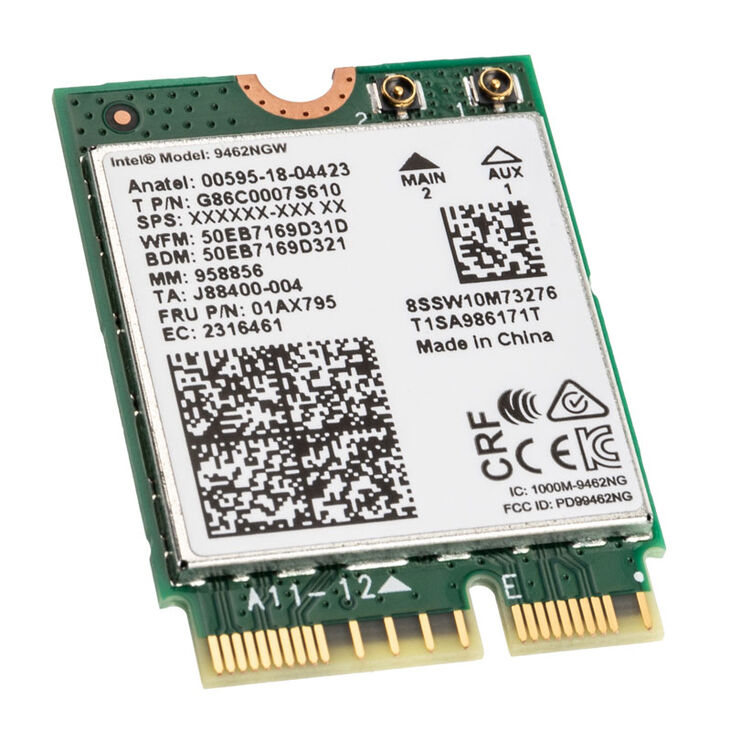

Intel Dual-Band Wireless-AC 9462, WLAN + Bluetooth 5.1 Adapter - M.2/A-E-key, CNVi
M.2 expansion card (E-Key CNVi) from Intel: High-speed WLAN with 802.11ac standard and Bluetooth 5.1, up to 433 Mb/s, WEP 64/128 bit, WPA/WPA2
9,90 €
Incl. VAT, add. delivery costs starting from 4.99€
Intel® Smart Connect Technology
Intel® Smart Connect Technology automatically updates applications such as e-mail and social networks when your computer is asleep. With Intel Smart Connect Technology, you do not have to wait for your applications to update when you wake up your computer.
MU-MIMO
Multi-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
Intel® Smart Connect Technology automatically updates applications such as e-mail and social networks when your computer is asleep. With Intel Smart Connect Technology, you do not have to wait for your applications to update when you wake up your computer.
MU-MIMO
Multi-user MIMO (MU-MIMO) is a set of multiple-input and multiple-output technologies for wireless communication, in which a set of users or wireless terminals, each with one or more antennas, communicate with each other.
|
Ports & interfaces
|
|
|
Connectivity technology
|
Wireless
|
|
Host interface
|
M.2
|
|
Interface
|
WLAN
|
|
Network
|
|
|
Maximum data transfer rate
|
433 Mbit/s
|
|
Wi-Fi
|
Yes
|
|
Wi-Fi band
|
Dual-band (2.4 GHz / 5 GHz)
|
|
Top Wi-Fi standard
|
Wi-Fi 5 (802.11ac)
|
|
Wi-Fi standards
|
Wi-Fi 5 (802.11ac)
|
|
WLAN data transfer rates supported
|
433 Mbit/s
|
|
MU-MIMO
|
Yes
|
|
Bandwidth (first)
|
2.4 GHz
|
|
Bandwidth (second)
|
5 GHz
|
|
Bluetooth
|
Yes
|
|
Bluetooth version
|
5
|
|
Design
|
|
|
Internal
|
Yes
|
|
Antenna type
|
1x1
|
|
Form factor
|
M.2 2230, M.2 1216
|
|
System requirements
|
|
|
Compatible operating systems
|
Windows 10, 64-bit*|Linux*
|
|
Windows operating systems supported
|
Windows 10
|
|
Linux operating systems supported
|
Yes
|
|
Other operating systems supported
|
ChromeOS
|
|
Operational conditions
|
|
|
Operating temperature (T-T)
|
0 - 80 °C
|
|
Weight & dimensions
|
|
|
Width
|
22 mm
|
|
Depth
|
30 mm
|
|
Height
|
2.4 mm
|
|
Weight
|
2.7 g
|
|
Other features
|
|
|
Minimum operating temperature
|
0 °C
|
|
Maximum operating temperature
|
80 °C
|
|
Supported Under vPro
|
No
|
|
Interface type
|
M.2: CNVio
|
|
Launch date
|
Q4'17
|
|
Product brief URL
|
https://www.intel.com/content/www/us/en/wireless-products/dual-band-wireless-ac-9462-brief.html
|
|
Product type
|
Wireless
|
|
Status
|
Launched
|
|
Processor family
|
Intel Wireless-AC Products
|
|
Ethernet adapter ARK ID
|
125192
|
|
Export Control Classification Number (ECCN)
|
5A991
|
|
Commodity Classification Automated Tracking System (CCATS)
|
NA
|
|
Compliance
|
FIPS9, FISMA
|
|
Product series
|
Intel® Wireless Products
|
|
Product codename
|
Jefferson Peak
|
