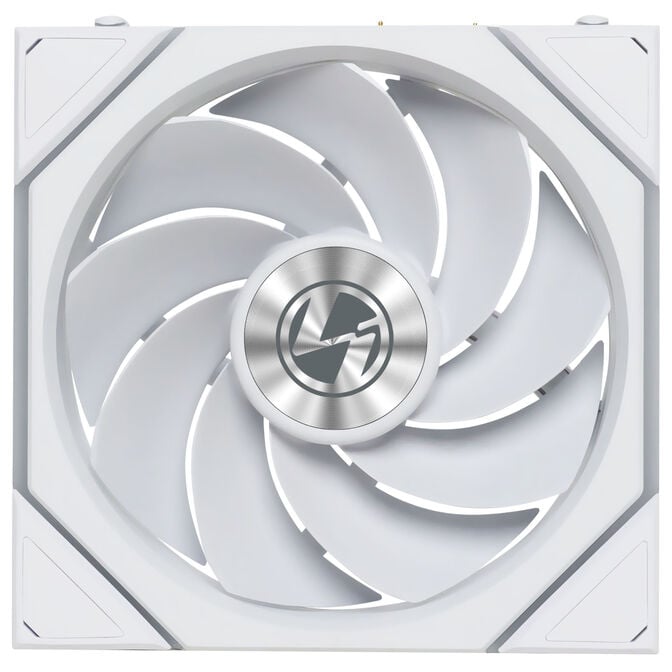

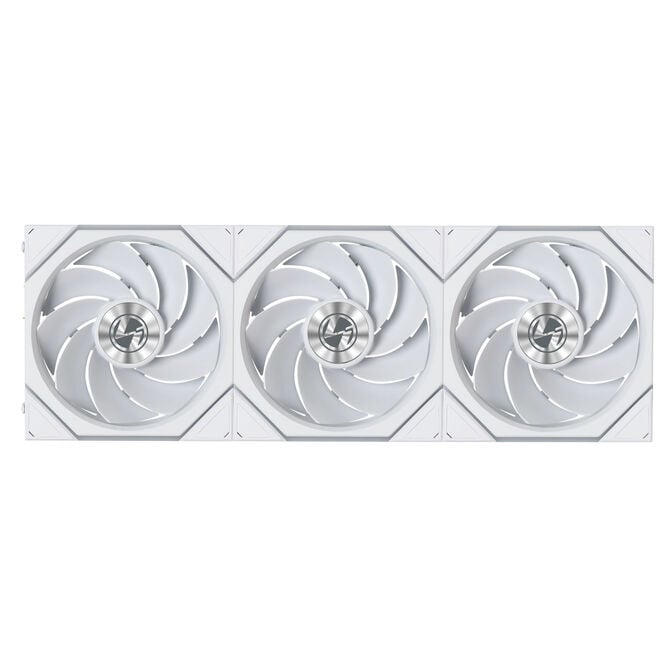

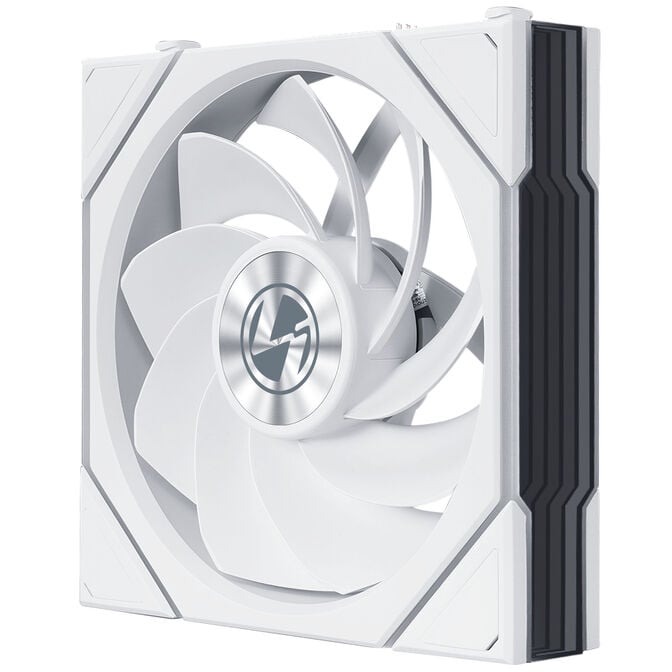

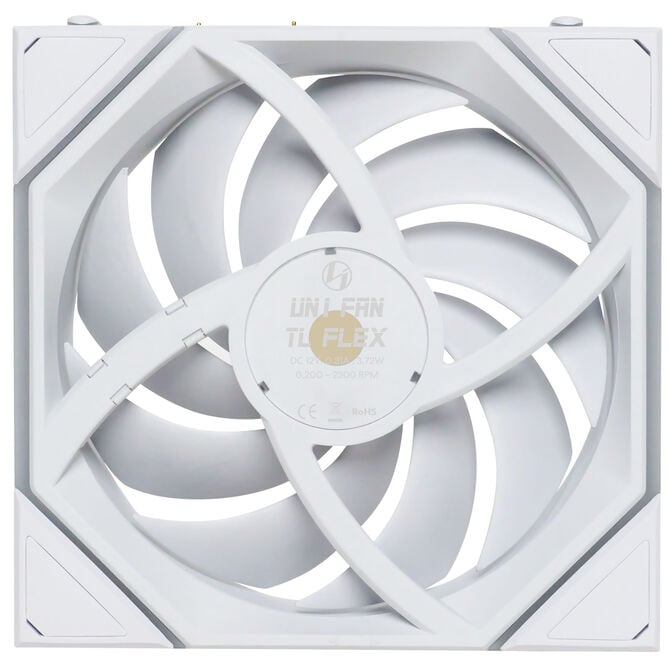

The Lian Li UNI FAN TL FLEX Wireless Reverse Blade 120 mm combines high cooling performance with easy installation and striking lighting. Thanks to the reverse blade design, it is especially suitable for builds where the illuminated fan side should remain visible. Various control and lighting options are available via the FLEX receiver.
- 120 mm PWM fan: Up to 141.7 m³/h airflow and 2.66 mmH₂O static pressure
- Reverse blade: Optimised for visible fan side with unchanged airflow
- Daisy-chain system: Multiple fans are directly connected to each other
- FLEX receiver and controller: Support for PWM, ARGB, USB and 2.4 GHz wireless
- ARGB lighting: With infinity mirror for depth effects
- L-Connect 3: Control of fan speed and lighting via software
Lian Li UNI FAN TL FLEX Reverse Blade: Perfect for cases, CPU coolers and radiators
With an airflow of up to 141.7 m³/h and a static pressure of 2.66 mmH₂O, the Lian Li UNI FAN TL FLEX Wireless Reverse Blade is suitable for a variety of applications. It supports airflow within the case as well as cooling for CPU coolers or water cooling radiators. The PWM control automatically adjusts the speed according to the current load.
Less cables, more space in the system
The daisy-chain system allows multiple fans to be connected directly to each other. This reduces the number of individual cables needed and makes installation significantly easier. It saves time during assembly and ensures a tidier case.
Each fan comes with a FLEX receiver. It supports various connection options such as PWM, 3-pin ARGB, USB and a 2.4 GHz wireless connection. This lets you decide which control method best suits your system.
Control with L-Connect 3
In conjunction with L-Connect 3, fan speed and lighting can be conveniently managed. Multiple connected UNI FAN TL FLEX fans can also be configured together and customised to your needs.

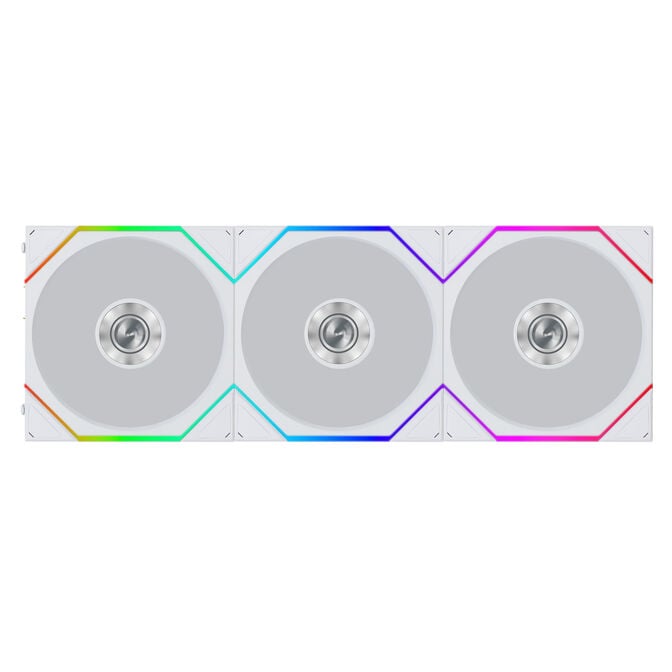

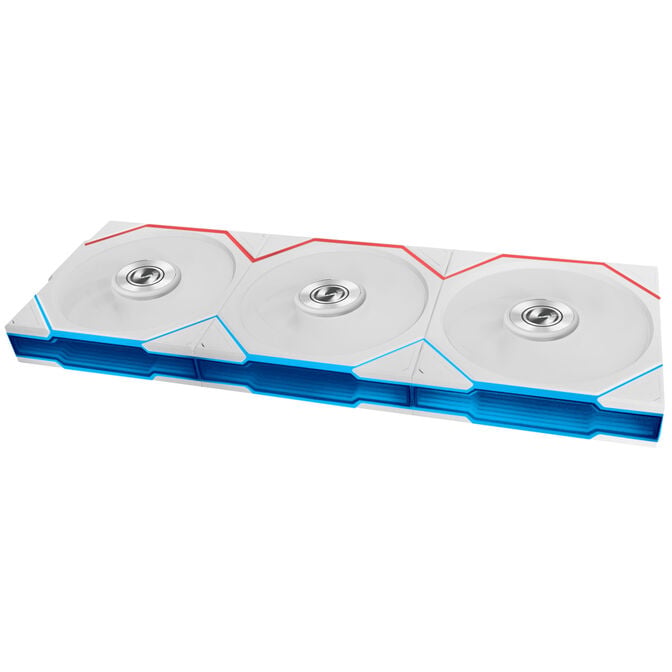

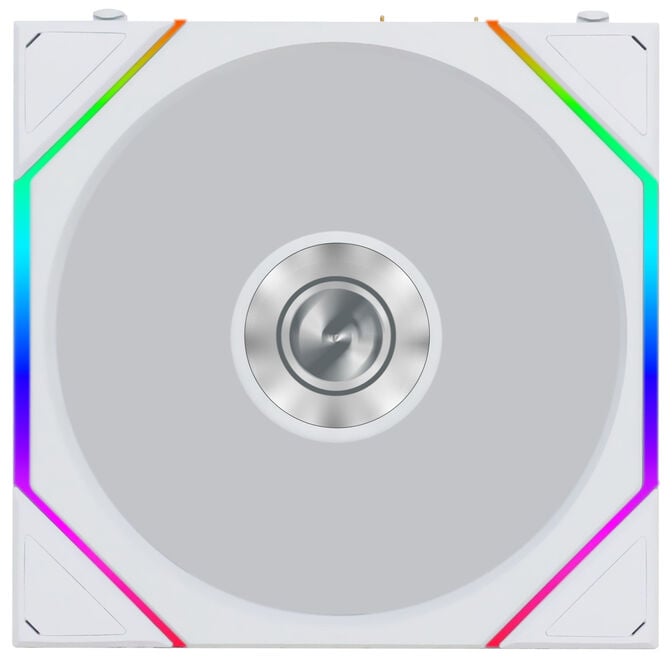

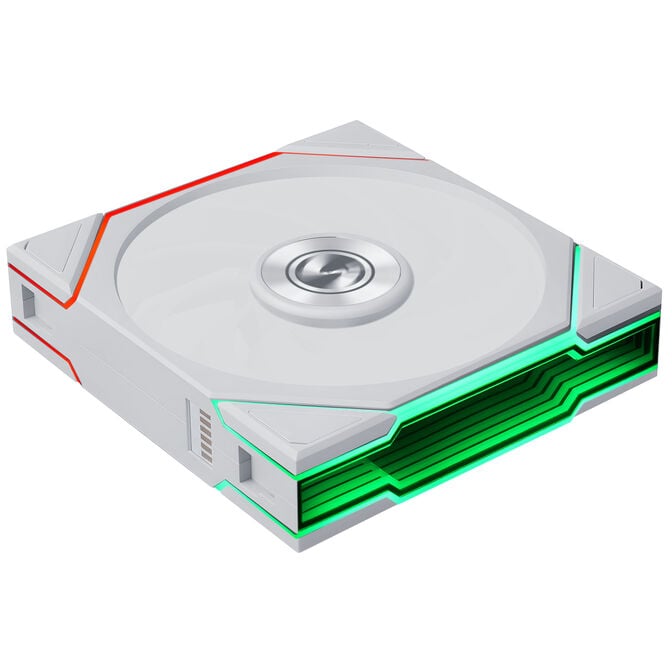

ARGB lighting with infinity mirror
- Addressable ARGB LEDs
- Infinity mirror for depth effect
- Light strips along the frame
- Compatible with common ARGB control systems
The ARGB lighting runs along the outside edge of the fan and additionally highlights the infinity mirror elements. This causes the fan to appear differently from various angles and makes it especially suitable for systems with a windowed side panel.
For gaming PCs and custom builds
The Lian Li UNI FAN TL FLEX Wireless Reverse Blade 120 mm combines high cooling performance with flexible control and striking aesthetics. The reverse blade design is particularly suited for systems where the illuminated fan side should remain visible. The combination of PWM control, daisy-chain system and ARGB lighting makes it suitable for gaming PCs as well as custom builds focused on cooling and design.
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
124 mm
|
|
Width
|
120 mm
|
|
Fan height
|
28 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Fan Specifications
|
|
|
Fan Design
|
Individual Fan
|
|
Fan Size
|
120 mm
|
|
Fan mounting size
|
120 mm
|
|
Fan Blade Direction
|
Reverse
|
|
Fan Bearing
|
Fluid Dynamic Bearing
|
|
Min. Fan RPM
|
200 rpm
|
|
Max. Fan RPM
|
2300 rpm
|
|
Max. Single Fan Airflow
|
83.4 cfm
|
|
Max. Static Pressure
|
2.66 mmH2O
|
|
Power Specifications
|
|
|
Rated voltage
|
13.2 V
|
|
Starting voltage
|
6 V
|
|
Noise
|
|
|
Max. Single Fan Noise
|
34 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Materials
|
|
|
Materials
|
LCP (Liquid Crystal Polymer), PA66
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Product Series
|
|
|
Product Series/Family
|
UNI FAN TL FLEX
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
3
|
