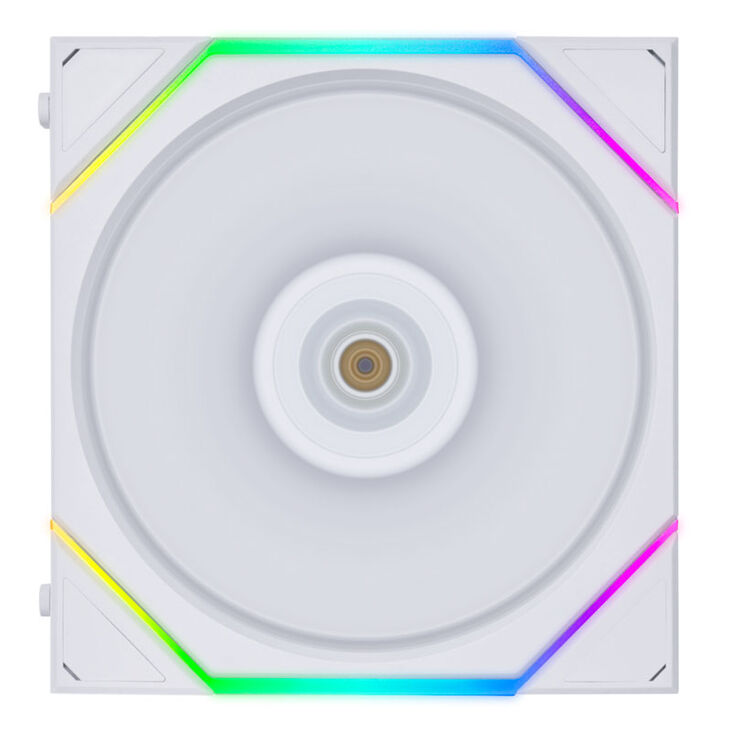

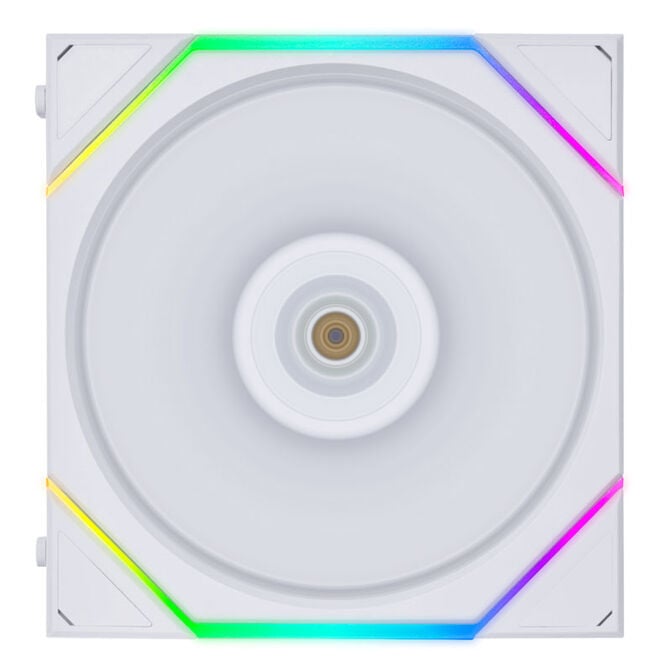

Lian Li UNI FAN TL Series Fan, 3-Pack Including Controller – 120mm, White
- 120 mm PWM fans in white in a 3-pack
- Practical plug system and improved daisy chaining for less cable clutter
- 32 digitally addressable RGB LEDs
- Speed and lighting controllable via Lian Li L-Connect 3 software
- Max. 2,600 RPM speed at 33 dB(A)
- 153.1 m³/h max. airflow and max. 3.97 mmH2O static pressure
- Rubber pads to decouple disturbing vibrations
Lian Li UNI FAN TL Series: PWM Fans to Complement Your Setup
The Lian Li UNI FAN TL Series are fans that fit perfectly into your setup. The PWM fan relies on the same plug system that frees gaming PCs from unnecessary cable clutter. Lian Li also impresses in terms of cooling performance, delivering breathtaking RGB lighting that sets new standards.
Plug System for Seamless Fan Clusters

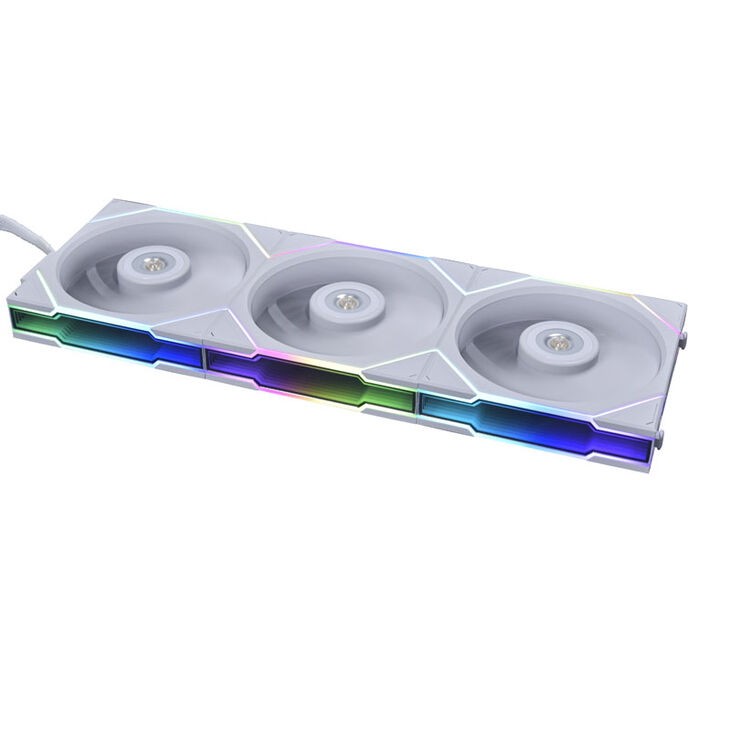

The installation of the Lian Li UNI FAN TL Series follows the clever concept of other fans from Lian Li: The fans are equipped with contact points and are connected via a practical plug system. Multiple fans can be combined into a cluster and conveniently connected to the controller with just one cable. Thanks to this improved daisy-chain system, you save time, nerves, and prevent unnecessary cable clutter. The pin contacts transmit both power and PWM and ARGB signals.
Revised Plug System of the Lian Li UNI FAN TL Series
The plug system introduced with the UNI FAN SL and AL Series has been further improved in the Lian Li UNI FAN TL Series. On the one hand, the plug system has been designed so that the connection plug can be removed. This prevents possible collisions with connections on the radiator and simultaneously ensures a tidy look.
Furthermore, the connection for the cable module has been removed; instead, the cable can now be connected directly to the fan. The connection is flush-mounted in the frame, thus providing more space for the use of radiators.

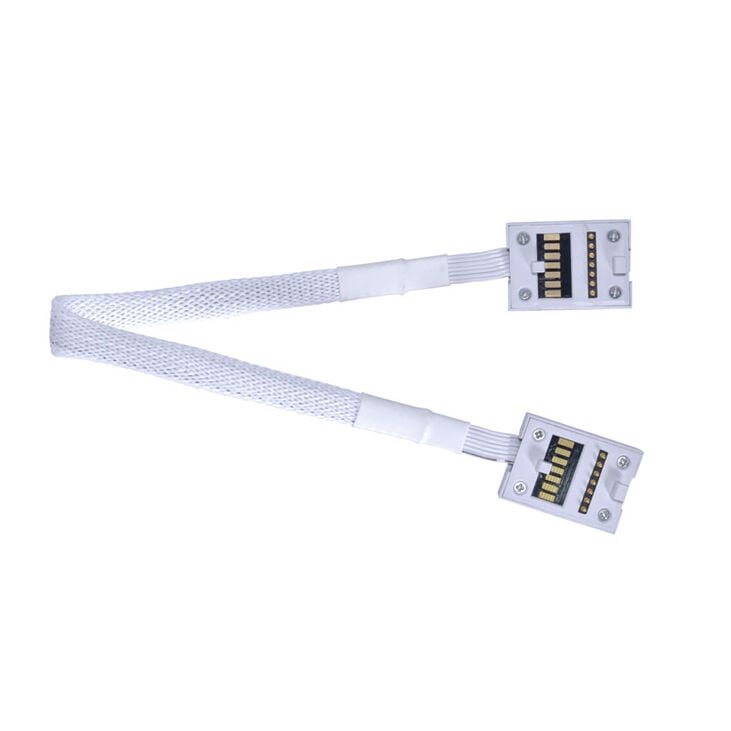

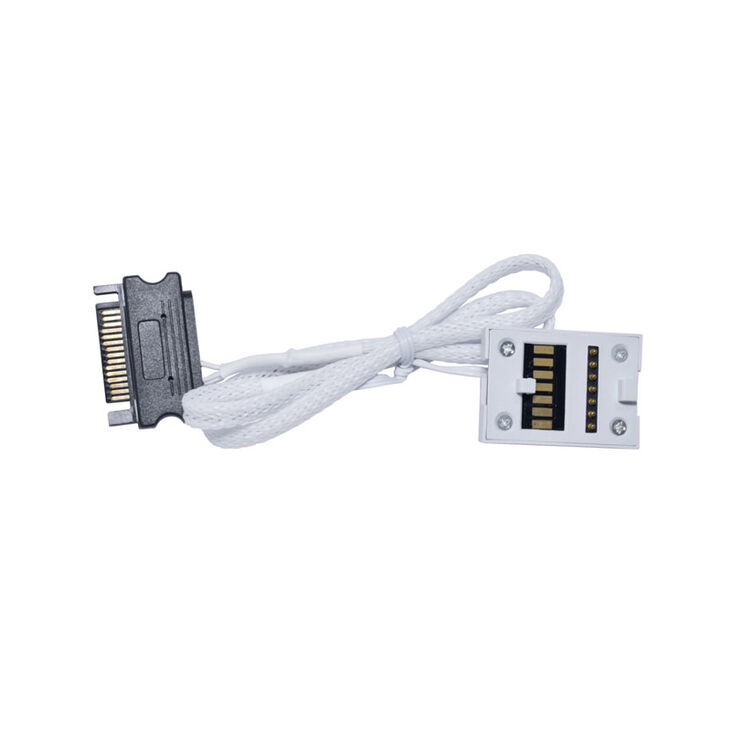

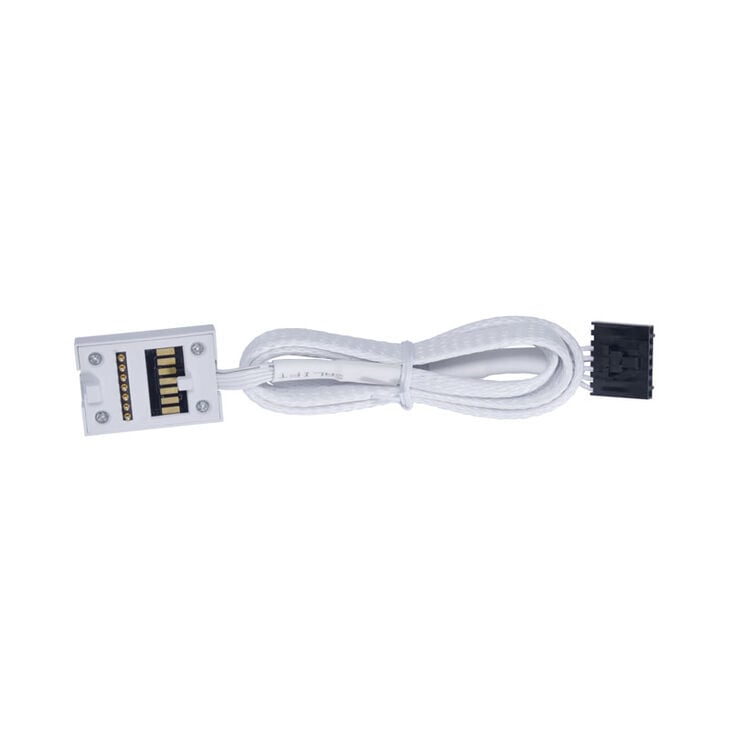

The usually separate cables for power and ARGB signals have been combined into a 7-pin cable. You can connect these cables directly to the controller. Up to four fans in a cluster can be powered with one cable. With the appropriate extension cable, you can connect up to 16 fans - including six of the LCD version - to one of the two ports of the controller and control them via L-Connect 3 software.
Note: The connections of the Lian Li UNI FAN TL Series are not compatible with the SL and AL Series!Lian Li UNI FAN TL Series: Impressive Performance Values
The intake fans operate relatively quietly at max 33 dB(A) under full load. The small distance of the fan blades to the frame and the resulting reduced friction resistance allow for higher speeds at the same power consumption, thus significantly increasing airflow and providing excellent performance values. Cool temperatures are also favoured by the increased height of 28 millimetres.
Additionally, the start/stop mode for your Lian Li UNI FAN TL Series can be activated via L-Connect 3 software. When your components are below a temperature you set (maximum 50 degrees), the fans remain off. In addition, L-Connect 3 offers the possibility to create an optimised fan curve for speed and temperature.
Optimised Concept for Lighting and Appearance
Lian Li has significantly improved the fans. The side LED strips of connected fans have a distance of 0.7 millimetres compared to 3 and 5.6 millimetres in the previous generation, resulting in a noticeably reduced distance between individual fans. This creates seamless transitions of the illuminated areas, and effects across fan clusters are enhanced. Lian Li has revised the design of the rubber pads and added additional cutouts. The extravagant RGB lighting, which also illuminates the infinity mirror on two sides, is thus better showcased.
- Dimensions: 124 x 120 x 28 mm (W x H x D)
- Material: Plastic
- Colour: White
- Bearing: Hydrodynamic bearing
Speed: 0 - 2,600 RPM
Noise level: max. 33 dB(A)
Airflow: max. 153.1 m³/h
Static pressure: max. 3.97 mmH2O
Voltage: 12 V
Start voltage: 5 V
Power consumption: 5.8 W - Lighting:
Type: digitally addressable RGB
Number: 26 LEDs - Connection: 7-pin combined PWM and ARGB
- Controller:
Type: Lian Li 12TL
Connections:
2x 7-pin, for up to 10 TL or 3 TL LCD fans each
Note: The connection cables of the two versions of the fans are different and not compatible with each other!
1x PCIe 6+2 (power supply, for connection to the power supply)
1x 9-pin USB (control, for connection to the motherboard)
1x 3-pin ARGB (5VDG, for connection/sync to the motherboard)
1x 4-pin PWM (for connection/sync to the motherboard)
Compatibility: Only Lian Li TL and TL LCD Series fans
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Fan height
|
28 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Min. Fan RPM
|
0 rpm
|
|
Max. Fan RPM
|
2600 rpm
|
|
Power Specifications
|
|
|
Starting voltage
|
5 V
|
|
Noise
|
|
|
Max. Single Fan Noise dB(A)
|
33 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
3
|
