NZXT H6 Flow Mid Tower - Black
- Showcase with 2-chamber system
- Space for ATX, Micro-ATX, and Mini-ITX motherboards
- Front and side panoramic glass for an unobstructed view of the interior

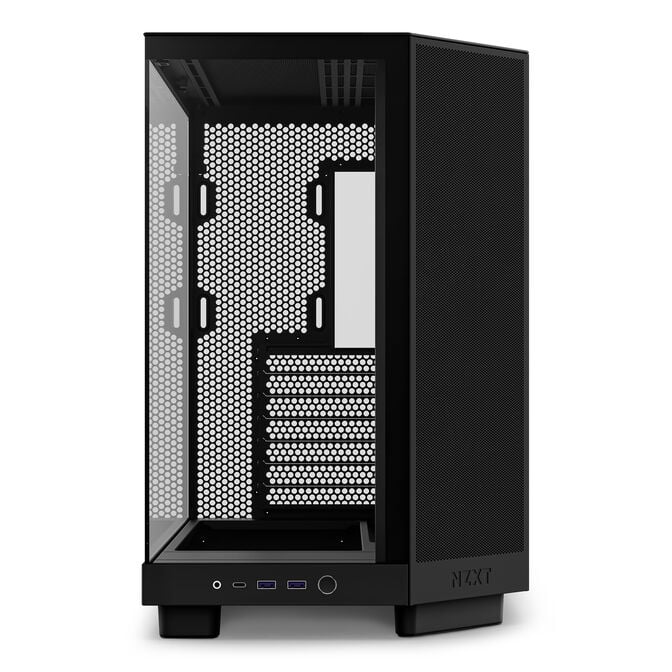

- I/O panel with two USB 3.2 ports and one USB-C port
- Graphics cards up to 365 mm
- Up to seven 120 mm fans possible
Overview of the NZXT H6 Flow

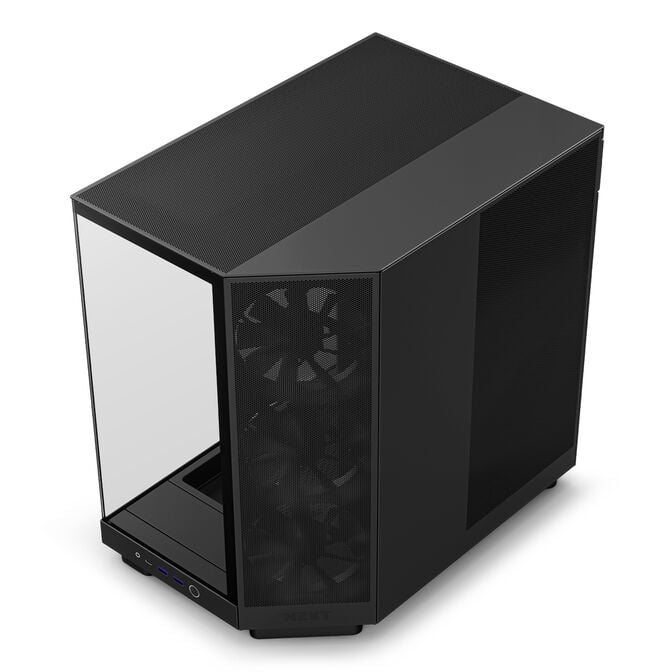

Experience top performance in a compact, innovative dual-chamber case. The panoramic glass of the H6 Flow, which highlights GPU cooling, showcases the interior of your case while providing space for improved airflow.
A closer look at the design of the H6 Flow

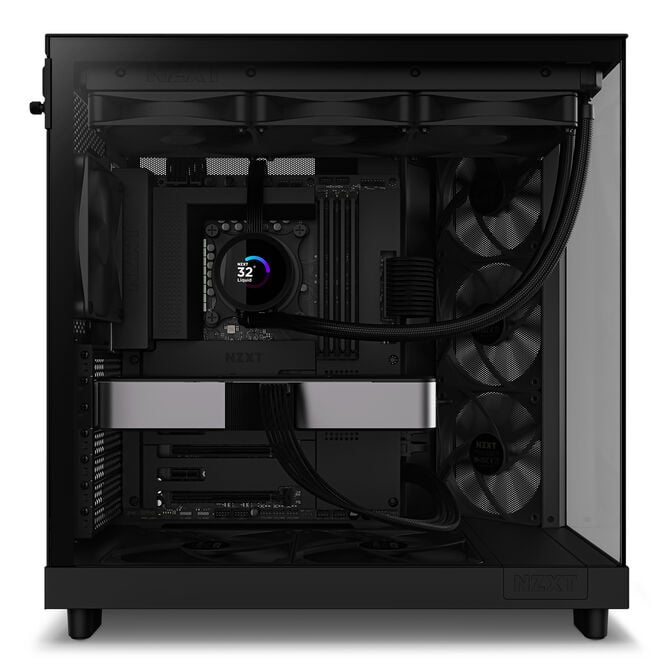

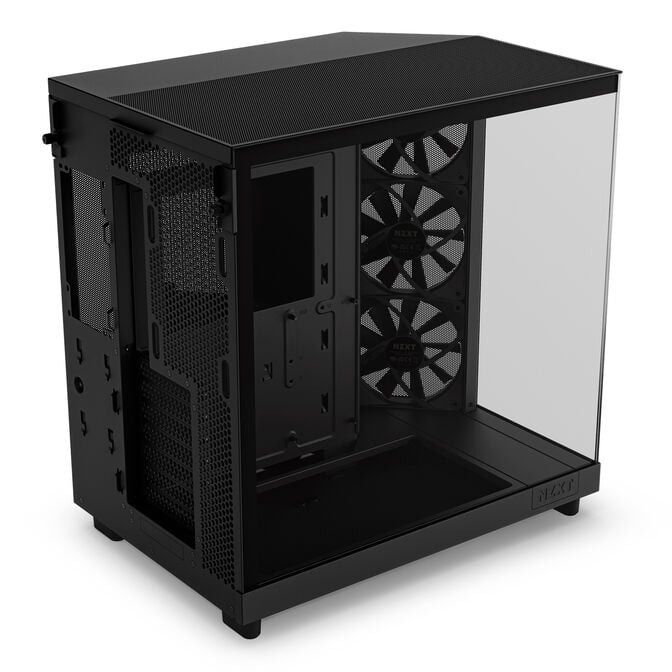

The compact dual-chamber design of the H6 Flow not only enhances airflow but also ensures a clean, tidy aesthetic within the case. The surrounding glass panels with seamless edges offer you an unobstructed view of the interior of your case and highlight your components.
Intuitive airflow system

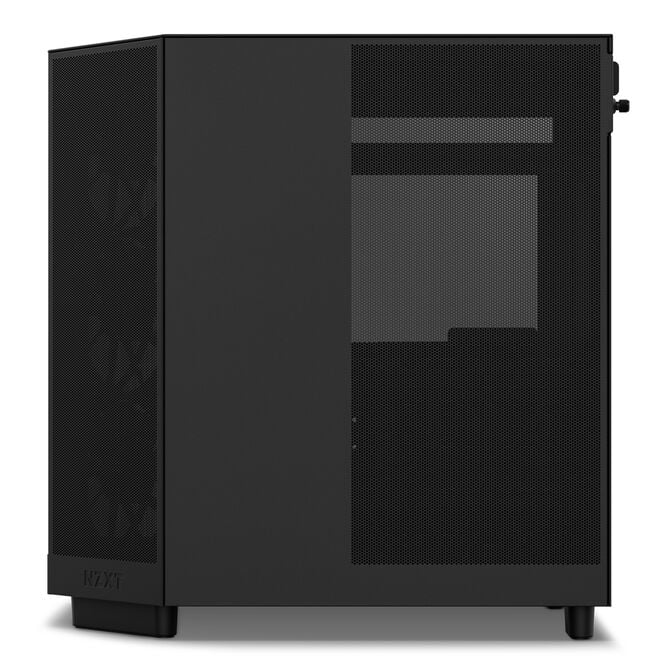

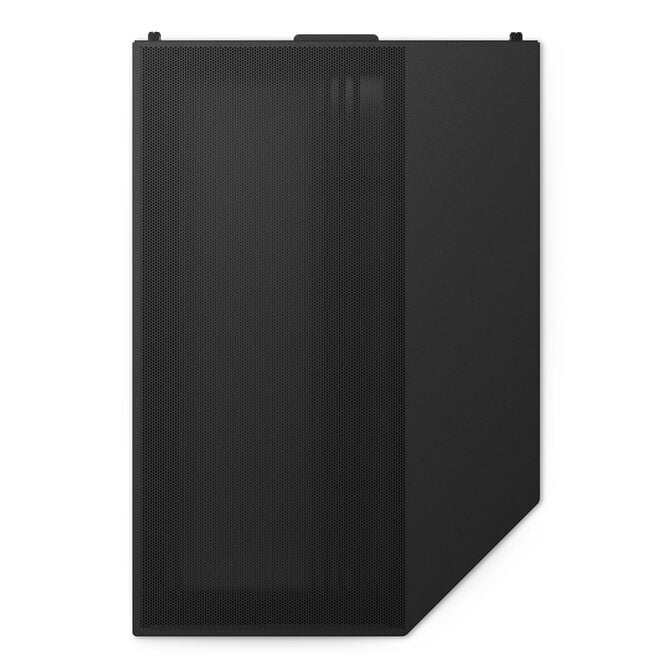

The perforation pattern included in the case at the top and side panels improves overall performance and also filters out dust.
Simple cable management for eye-catching builds

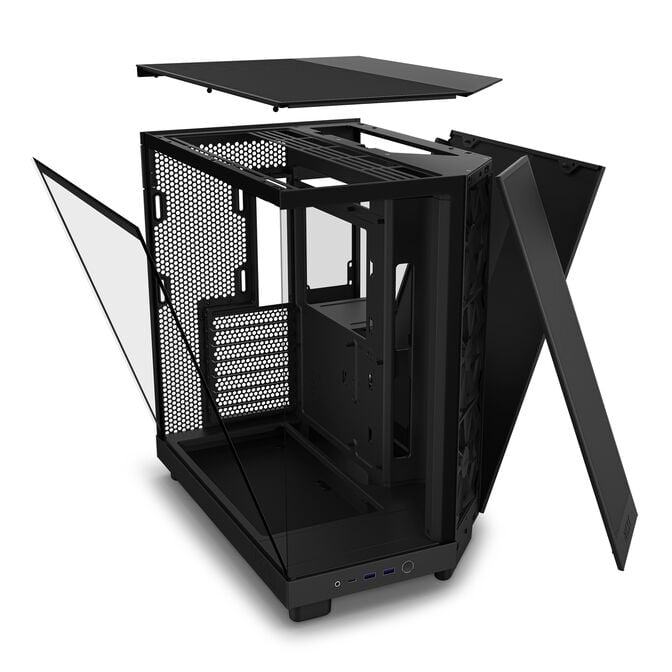

With an efficient cable management system, the H6 Flow simplifies the building process through the use of wide channels and tabs. Furthermore, building in the case is made even easier with tool-free access at the top and side panels.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
415 mm
|
|
Width
|
287 mm
|
|
Height
|
435 mm
|
|
Weight
|
9.4 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
163 mm
|
|
Max. GPU Length
|
365 mm
|
|
Max. PSU Length / Depth
|
200 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear side
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
140mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
9
|
|
120 mm fans
|
7
|
|
140 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
2
|
|
Max. 3.5 Inch Drives
|
1
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
3.5 inch internal drive bay
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
7
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
3x 120 mm
|
