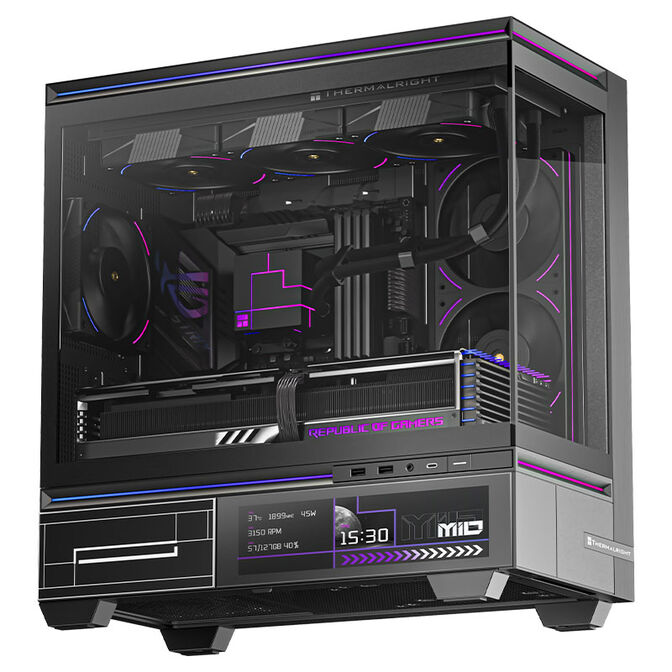

Thermalright TL-M10 Vision PC Case, Mid Tower, ATX, Tempered Glass - Black
The Thermalright TL-M10 Vision is a modern mATX PC case that combines robust cooling options with an integrated front display. It is aimed at gaming and showcase builds where powerful airflow and customised system presentation are key.
- mATX case with integrated front display
- Spacious interior for high-performance gaming hardware
- Extensive fan and radiator support
- Optimised airflow design for efficient cooling
- Ideal for modern showcase and performance builds

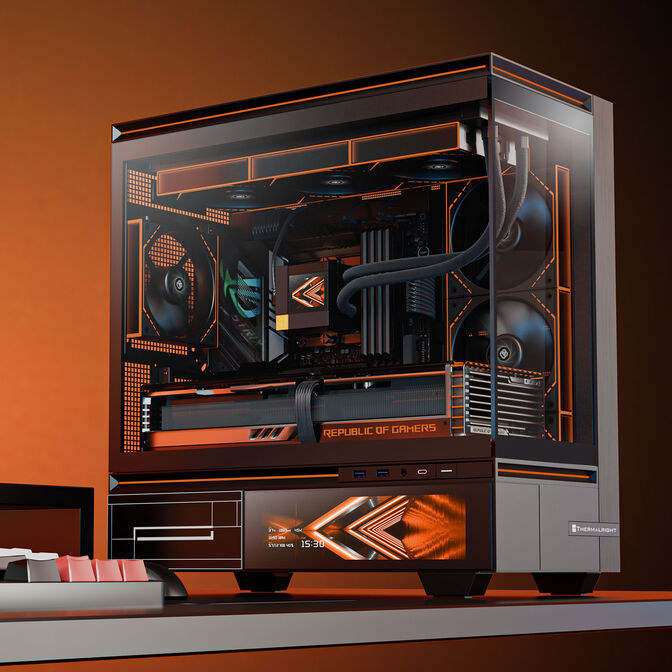

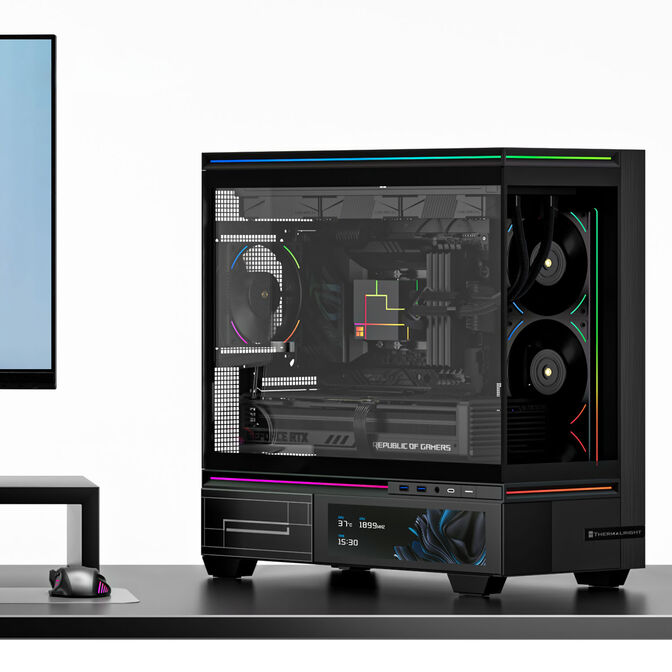

Thermalright TL-M10 Vision – Case with integrated display

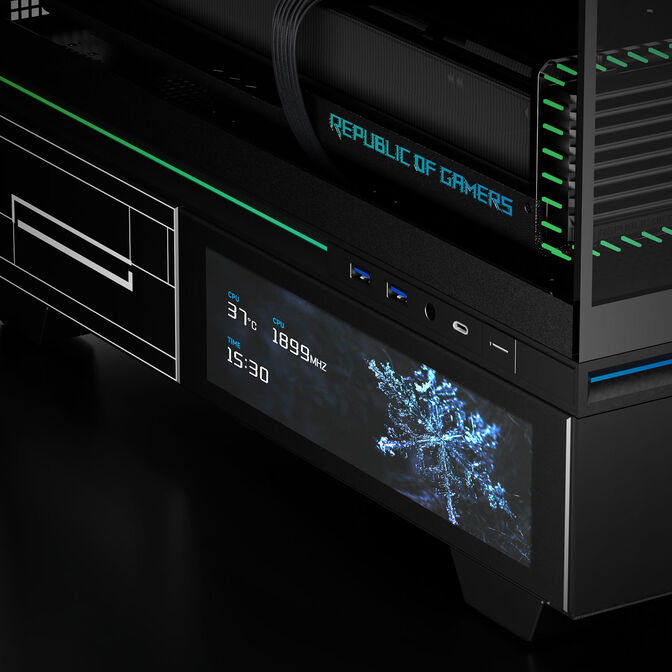

The TL-M10 Vision clearly stands out from classic PC cases thanks to its integrated display. It allows the display of customised content and visually showcases your system – perfect for builds with a window and RGB components.
Space for high-performance hardware
The spacious interior supports mATX motherboards as well as current high-end components. Long graphics cards, powerful CPU coolers, and modern power supplies fit easily and can be neatly integrated.

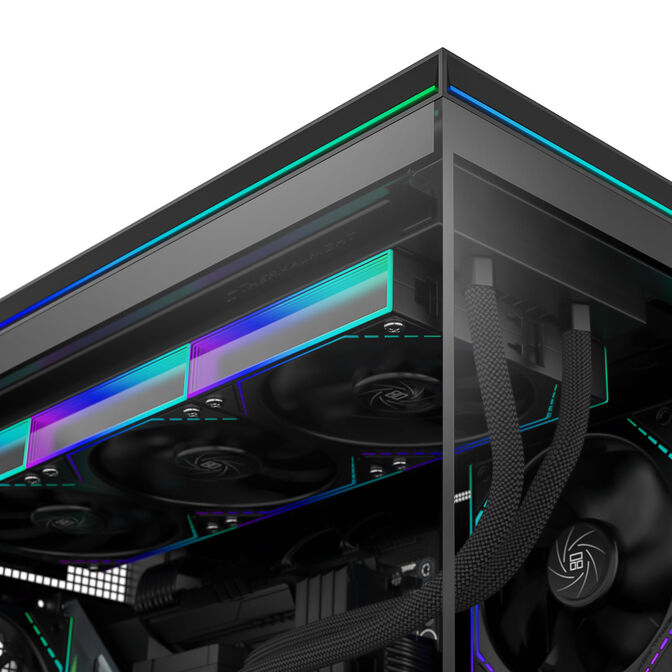

Flexible cooling options for gaming systems
Multiple fan and radiator slots enable customised air or water cooling setups. This allows the Thermalright TL-M10 Vision to be perfectly tailored to high-performance gaming or performance PCs.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
476 mm
|
|
Width
|
230 mm
|
|
Height
|
450 mm
|
|
Weight
|
6.3 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
185 mm
|
|
Max. GPU Length
|
360 mm
|
|
Display
|
|
|
Display Included
|
Yes
|
|
Display Size in Inch
|
9.16 "
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
10
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Single (120 mm), 1x Triple (360 mm)
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
1
|
|
Max. 3.5 Inch Drives
|
2
|
|
Max. 5.25 Inch Drives
|
0
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Side
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
No
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
5
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
ABS, SPCC (steel), Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Additional Contents
|
|
|
Included fans
|
None
|
