Title: Phanteks Polar ST4 CPU Cooler, D-RGB - 120mm

Title: Phanteks Polar ST4 CPU Cooler, D-RGB - 120mm

Single-tower CPU cooler, high cooling performance with up to 235 W TDP, 1x 120-mm PWM fan with 2,000 RPM, four copper heat pipes, compatible with AMD and Intel sockets, D-RGB lighting
24,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU CPPH-019 |
EAN 0886523703105 |
MPN PH-TC12ST4_DBK01 |
Manufacturer PHANTEKS
  • Single-tower cooler with up to 235 W TDP for high-end CPUs
  • Quiet M25-120 fan with up to 2,000 RPM for optimal cooling
  • Four high-quality copper heat pipes with direct contact to the CPU heat spreader
  • Compatible with modern Intel and AMD CPUs
  • Customisable D-RGB lighting thanks to the included D-RGB motherboard adapter
  • Sleek design offers space for RAM modules with efficient heat spreaders
  • Comprehensive accessories for easy installation

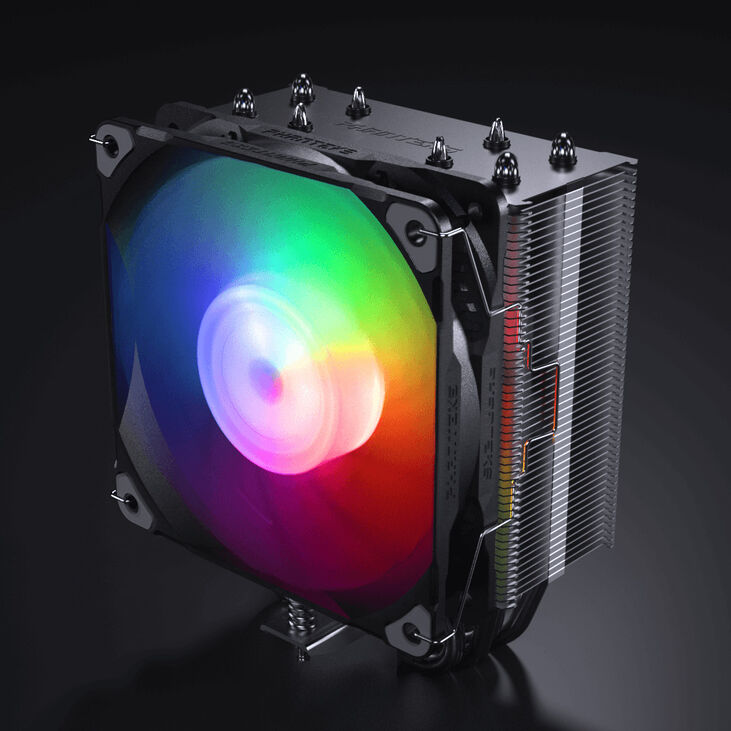

Phanteks Polar ST4 CPU Cooler: High-Quality Craftsmanship, Unbeatable Value for Money

With the Polar ST4 from Phanteks, you get an affordable CPU cooler that impresses with its high-quality materials. Even under heavy loads, it ensures that your processor always stays at low temperatures, whether for professional work or gaming.

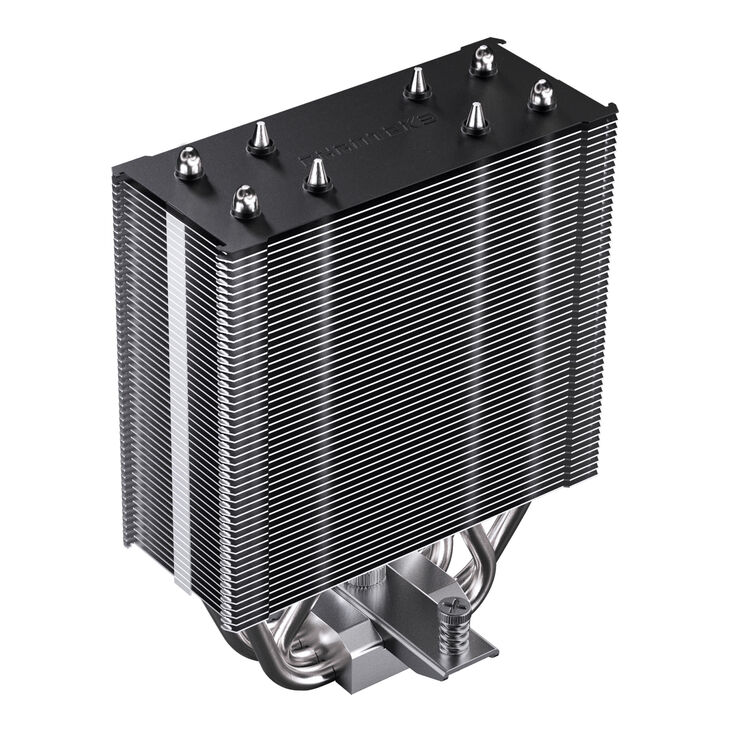

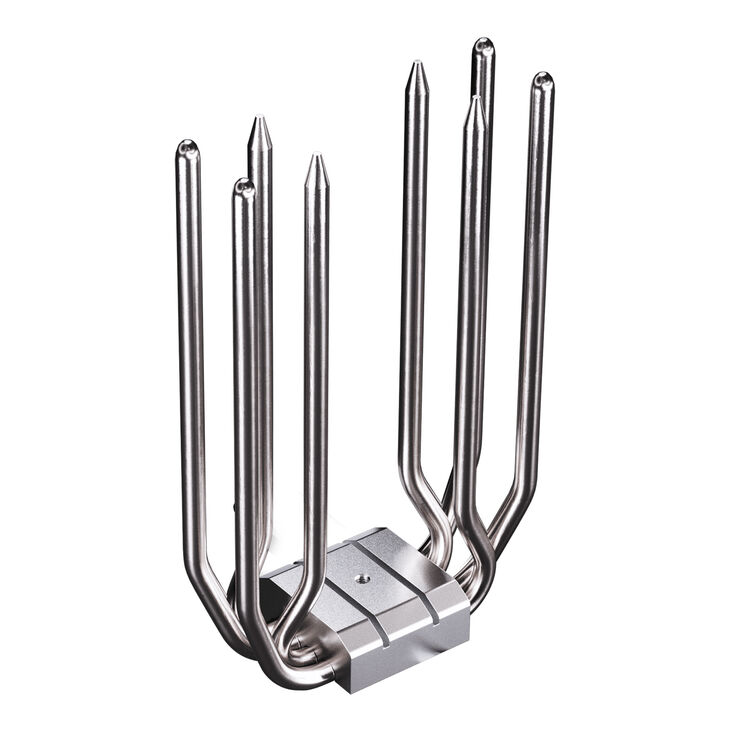

The four copper heat pipes have direct contact with the CPU heat spreader. They conduct the accumulated heat from your processor into the cooler. The heat is then distributed and dissipated through the aluminium fins. This prevents your CPU from overheating and allows it to operate without performance degradation over time.

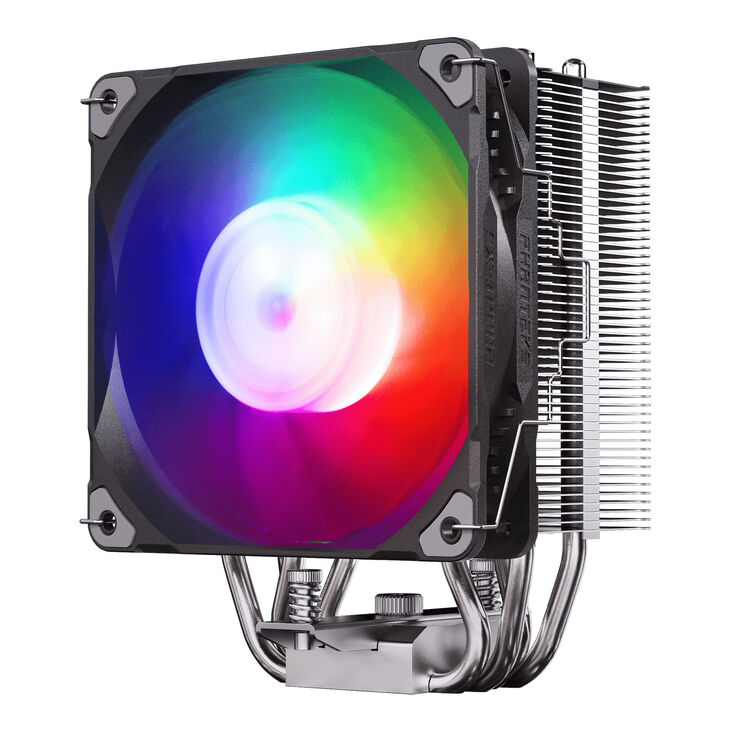

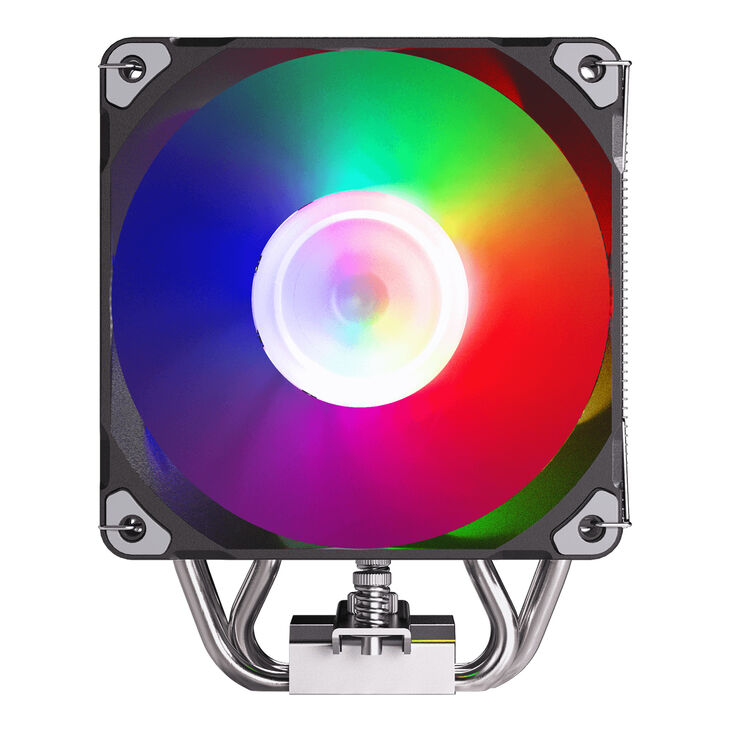

Powerful M25 Fan for Efficient Cooling

The single-tower cooler with its black-silver design has a 120 mm PWM fan that can achieve up to 2,000 rotations per minute. The speed can be individually controlled via the PWM connection on your motherboard, giving you more control over power consumption and noise levels. The airflow is a substantial 84.26 m³/h, and the static pressure reaches up to 2.67 mmH2O. Despite these strong performances, the Phanteks M25-120 fan is pleasantly quiet at 35.7 dB(A) and does not disturb your concentration.

The CPU cooler offers an impressive 235 Watt TDP cooling capacity. This makes it suitable for overclocking your processor and cooling more powerful CPUs.

Space for Expansive RAM Modules

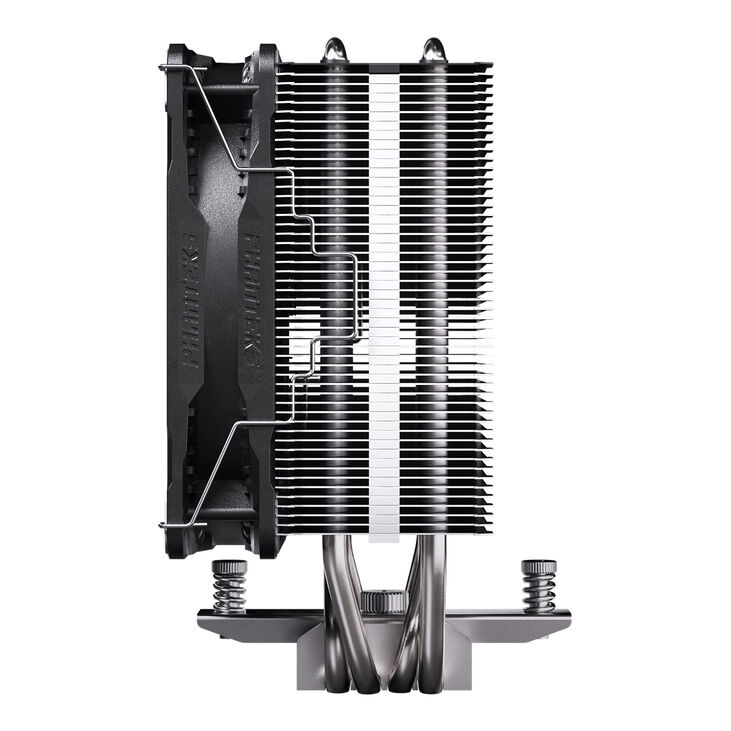

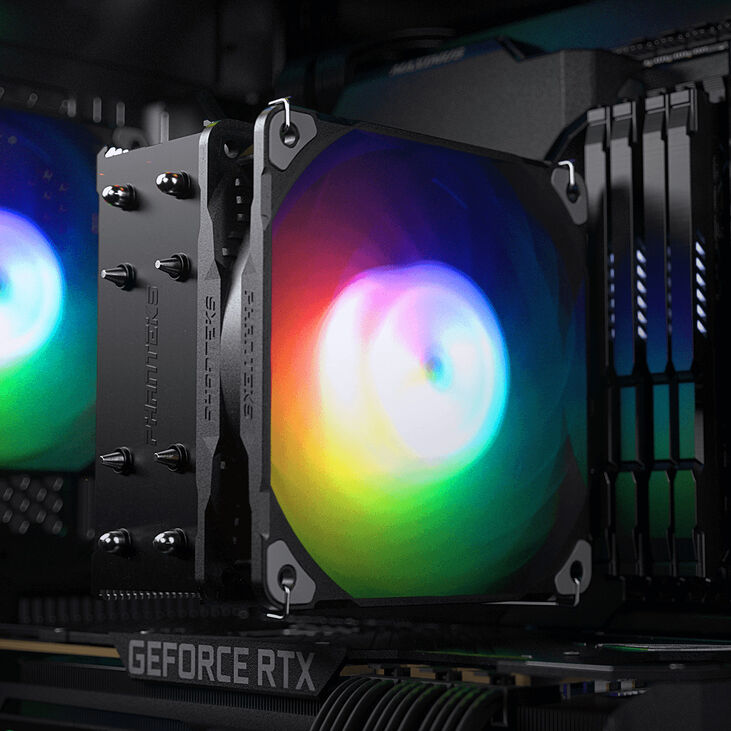

CPU coolers are often very large and take up a lot of space on your motherboard. However, the Phanteks Polar ST4 stands out with its sleek design, allowing you to use high-performance RAM with integrated heat spreaders.

Striking Lighting and High Compatibility

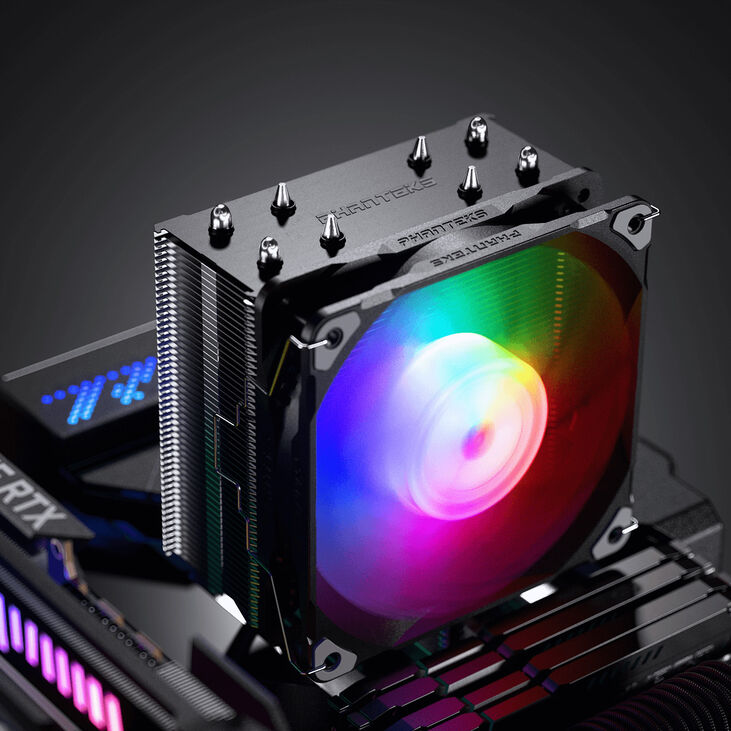

Another highlight is the D-RGB lighting. This can be controlled via your motherboard using the included D-RGB motherboard adapter, allowing you to choose from a wide range of colours and effects.

Additionally, the Polar ST4 is compatible with both Intel and AMD. This includes the following models: LGA 1700, 1200, 115x, and AMD AM4 and AM5. The installation is very straightforward with the included accessories.

  • Cooler:
    Dimensions: 120 x 154.4 x 50 mm (W x H x D)
    Weight: 720 g
    Material: Copper (base, heat pipes), aluminium (cooling fins)
  • Fan:
    1x M25-120 D-RGB fan
    Dimensions: 120 x 120 x 25 (W x H x D)
    Normal operation: 400 - 2,000 RPM, 35.7 dB(A), 84.26 m³/h, 2.67 mmH2O
    Lifespan: 30,000 h
    Bearing: Hydraulic bearing
    Power consumption: 2.4 W
    Operating voltage: 12 V
  • Compatibility:
    AMD: AM5, AM4
    Intel: LGA 1700, 1200, 115x
  • Package contents:
    1x Polar ST4 cooler
    1x M25-120 D-RGB fan
    1x low-noise adapter
    1x PH-NDC thermal paste
    1x thermal paste spatula
    1x D-RGB motherboard adapter
    4x fan clips
    2x universal socket mount
    1x Intel backplate for LGA 1700 / 1200 / 115x
    4x stand-offs for LGA 1200 / AM4 / AM5
    4x stand-offs for LGA 1700
    4x AM4 / AM5 screws
    4x LGA 1700 / 1200 / 115x screws
Colour
Primary Colour
Silver
Secondary Colour
Black
Fan Main Colour (Frame)
Black
Fan Main Colour (Rotor)
Transparent
Dimensions
Length / Depth
50 mm
Width
120 mm
Height
154.4 mm
Weight
720 g
Cooler Specifications
Additional fans possible
No
Heatpipe diameter
6 mm
Number of heatpipes
4
Ventilation type
active
Type
CPU Cooler Type
Single Tower
CPU
CPU Socket
115X, 1200, 1700, AM4, AM5
Fan Specifications
Min. Fan RPM
400 rpm
Max. Fan RPM
2000 rpm
Min. Single Fan Airflow
0 m³/h
Max. Single Fan Airflow
84.26 m³/h
Min. Static Pressure
0 mmH2O
Max. Static Pressure
2.67 mmH2O
Noise
Max. Single Fan Noise dB(A)
35.7 dB(A)
Internal Ports
Fan connectors
4 Pin (PWM)
RGB / LED connectors
yes
Thermal Specifications
Max. TDP
235 W
Materials
Materials
Aluminium, Copper
Base Plate Material
Copper
Heat Sink Material
Aluminum
Lighting
Lighting / RGB
Yes
Product Series
Product Series/Family
POLAR
Additional Contents
Included fans
1x 120 mm
