Koolance HXM-ALX750 Heat Exchanger Module for ALX Series + Reservoir and Pump Module
- Heat exchange module and reservoir/pump module set
- 750 W heat dissipation when combined with reservoir/pump module
- 600 ml reservoir capacity for long operation
- Up to 8.2 L/min flow rate for efficient cooling performance
- OLED display to show temperature, pump, and fan speed
- Audio alarm and relay trigger for temperature, flow rate, and coolant level

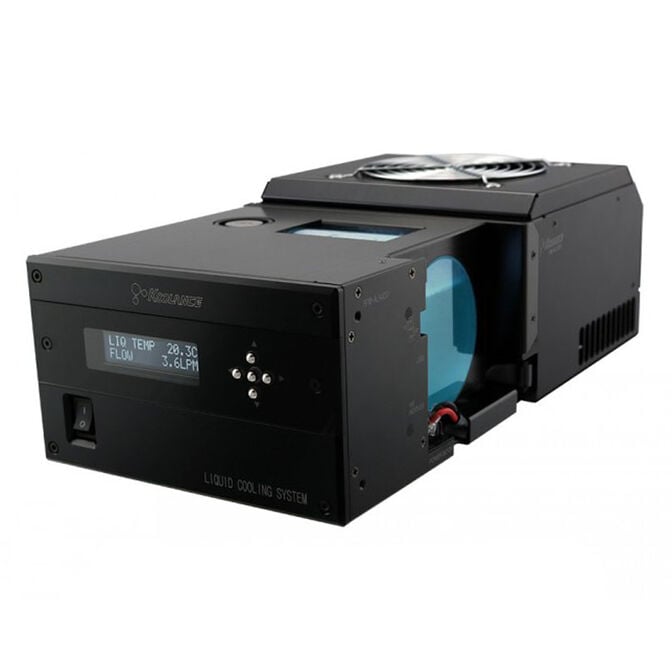

Koolance Heat Exchange Module & Reservoir/Reservoir Module - Optimized Cooling Set
With this practical bundle, consisting of the Koolance HXM-ALX750 Heat Exchange Module and the Koolance RPM-ALX400 Reservoir/Pump Module, you ensure optimal cooling in your system. The set offers impressive 750 W heat dissipation, a 600 ml reservoir, and a flow rate of up to 8.2 L/min. Integrated into the reservoir/pump module is an OLED display that shows important parameters, while the Koolance System Monitor Software provides additional control options.
Koolance HXM-ALX750 Heat Exchange Module in Detail

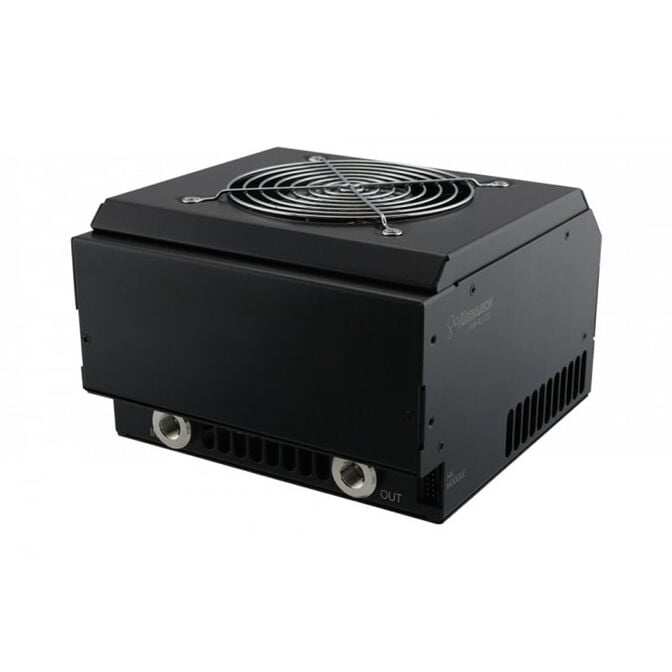

The Koolance HXM-ALX750 Heat Exchange Module is a powerful single-fan heat exchanger, specially made for Koolance's ALX modular cooling systems.
It offers heat dissipation of about 750 W when combined with the reservoir/pump module, efficiently cooling your system. With G1/4-inch and NPT1/4-inch fittings, you have flexible and easy integration into your system.
The module is made from high-quality materials such as brass and copper, making it robust and durable.
Koolance RPM-ALX400 Reservoir/Pump Module in Detail

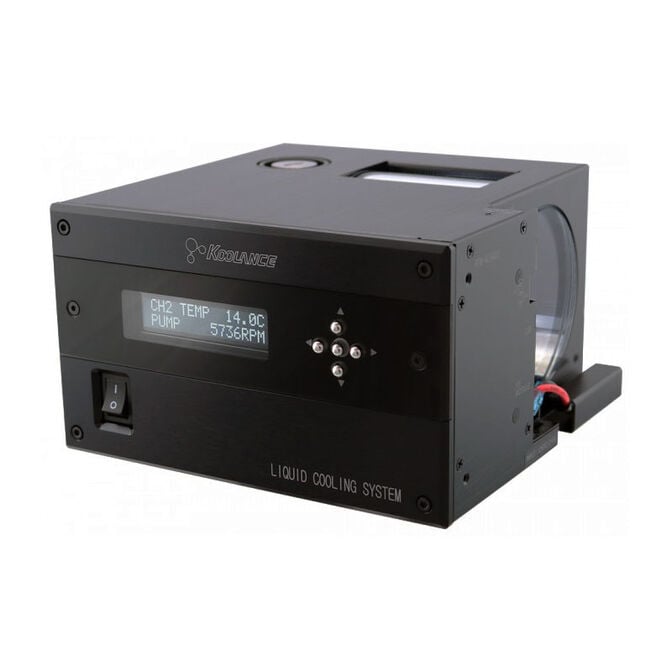

The Koolance RPM-ALX400 Reservoir/Pump Module is a reservoir, pump, and control unit for Koolance's ALX modular cooling systems. It features a 600 ml reservoir and offers a maximum flow rate of 8.2 L/min.

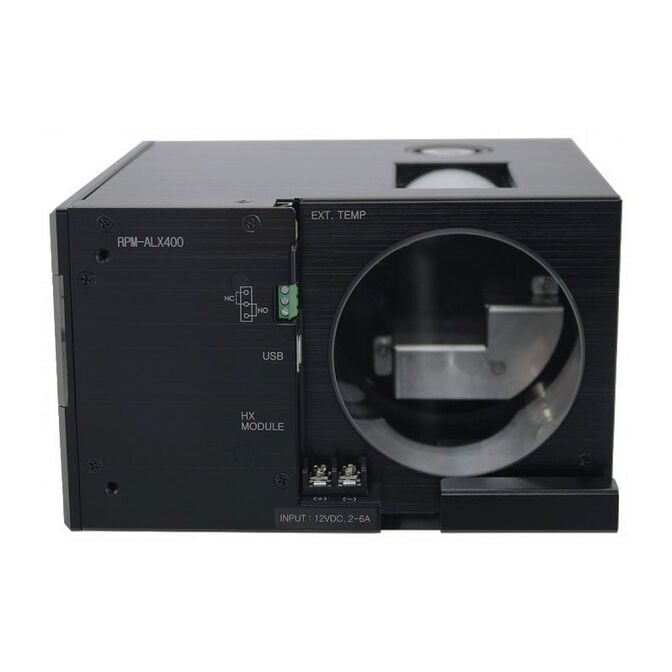

The module has a USB port for displaying and logging temperature and sensor data via the Koolance System Monitor Software. The OLED display shows important information such as temperature, flow rate, and fan speed.
Additionally, 10 manual pump levels are available, and the system offers alarm and relay triggers based on temperature, flow rate, and coolant level. G1/4-inch fittings are also available for flexible, easy installation.
- Dimensions (Heat Exchange Module): 254 x 250 x 115 mm (L x W x H)
- Dimensions (Reservoir/Pump Module): N/A
- Weight (Heat Exchange Module): 1.54 kg
- Weight (Reservoir/Pump Module): 2.09 kg
- Material (Heat Exchange Module): Brass, Copper
- Material (Reservoir/Pump Module): N/A
- Heat Exchange Module Details:
Cooling Capacity: 750 W (at 25°C, in conjunction with Reservoir/Pump Module)
Fan (pre-installed): 1x 120 mm

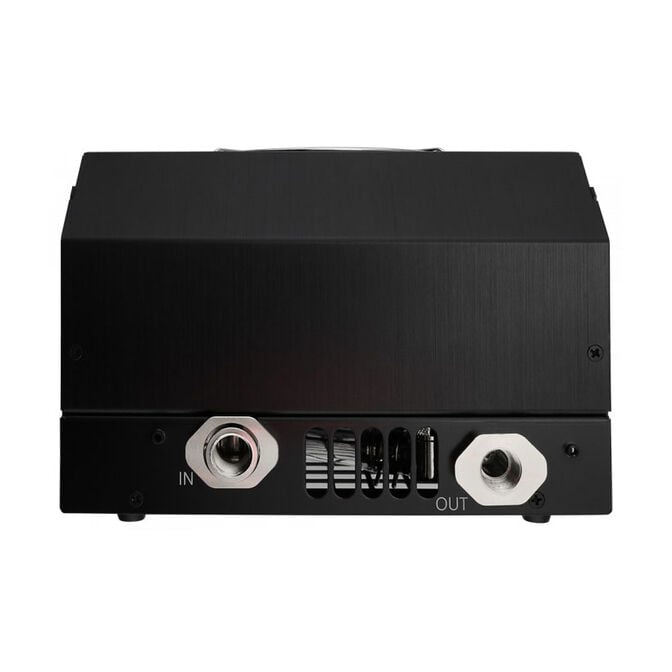

Connections: G1/4-inch BSPP (front), NPT1/4-inch (back) Compatibility: For ALX module series from Koolance - Reservoir/Pump Module Details:
Capacity (Reservoir): 600 ml
Pump Flow Rate: 8.2 L/m
Pump Control: 10 manual levels
Connections: G1/4-inch BSPP
Maximum Pressure (at 25°C): 2kgf/cm²
Maximum Operating Temperature: 60°C
Power Supply: 12VDC, 25W (plus connected HXM modules)
Display: OLED display (Temperature, Pump Speed, and Fan Speed)
Control Options: Temperature Setpoint, Alarm, Relay Trigger, Pump Speed, Fan Speed
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Volume
|
600 ml
|
|
Water Cooling
|
|
|
Water cooling component
|
Pump + Reservoir
|
|
Water cooling connectors
|
4x G1/4"
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
Brass, Copper
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
