Alphacool ES 4U Reservoir with D5 Top
Reservoir for water cooling systems, with provision for D5 pumps, suitable for 4U server racks, acrylic front for level monitoring
119,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- Extremely compact and highly versatile
- Integrated pump top for D5 pumps

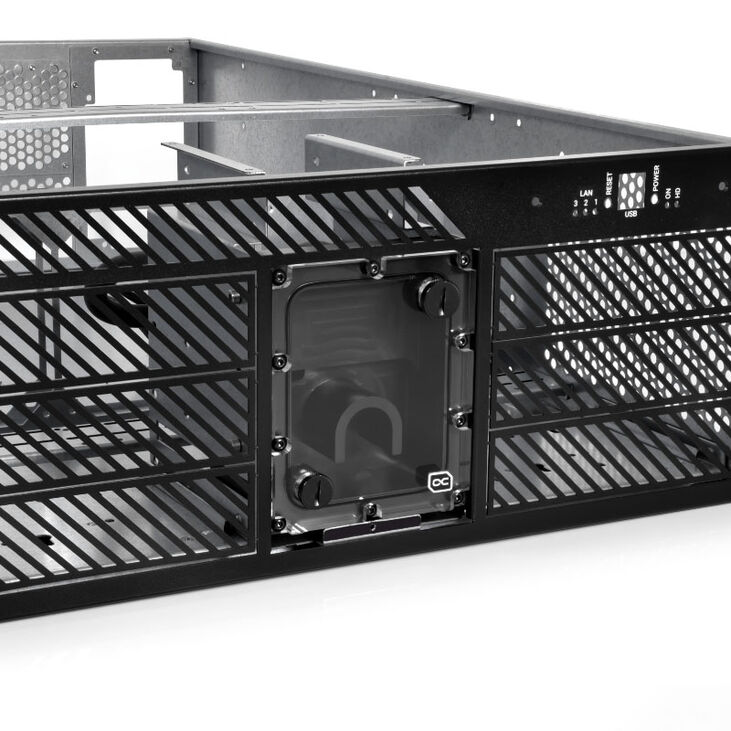

- Specifically designed for front mounting in 4U server racks
- A total of 4 G1/4-inch ports allow excellent integration into the loop
- Radiators can be mounted directly onto the reservoir

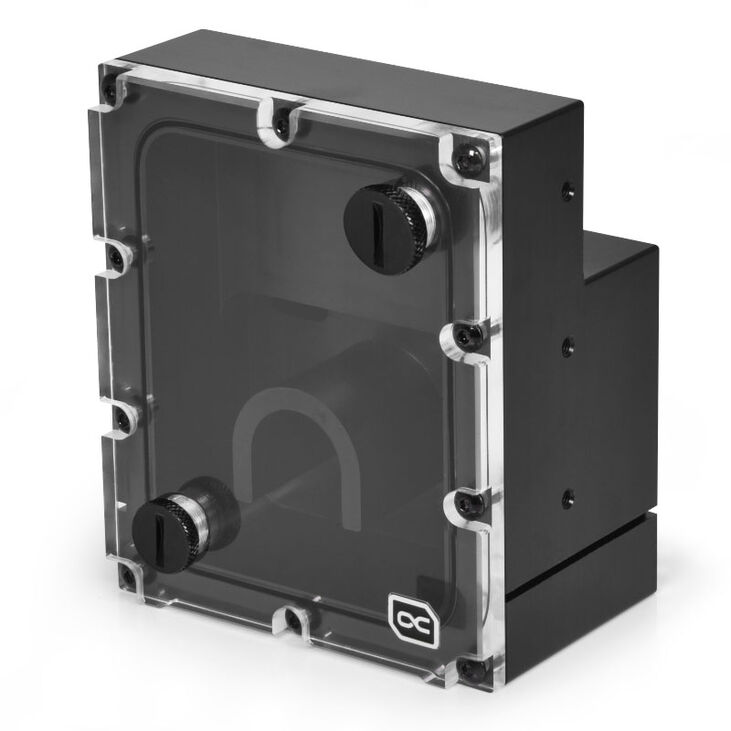

- Acrylic front for easy coolant level monitoring
Perfect for Servers
With the Alphacool ES Reservoir, there’s no need to compromise on cooling performance. It is designed to fit easily into compact cases and is fully compatible with 4U server racks, where it can be mounted at the front without issue. The front panel is made of acrylic, allowing you to easily monitor your system’s coolant level.
Thanks to its four G1/4-inch threads, the reservoir can be integrated into your water cooling loop with minimal effort, as ports are located on nearly all sides.

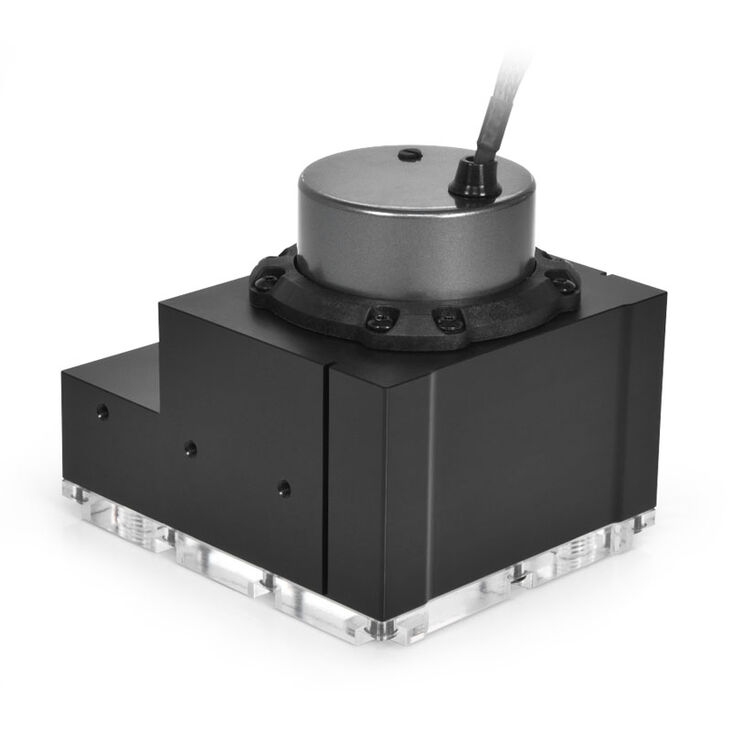

Additionally, the pump top allows D5 pumps to be mounted directly to the reservoir, saving space while providing sufficient pump power for your loop.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Transparent
|
|
Dimensions
|
|
|
Length / Depth
|
121.6 mm
|
|
Width
|
101.2 mm
|
|
Height
|
70 mm
|
|
Type
|
|
|
Pump type
|
D5
|
|
Water Cooling
|
|
|
Water cooling component
|
Reservoir
|
|
Water cooling connectors
|
4x G1/4"
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
Acetal / POM, Acrylic
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
