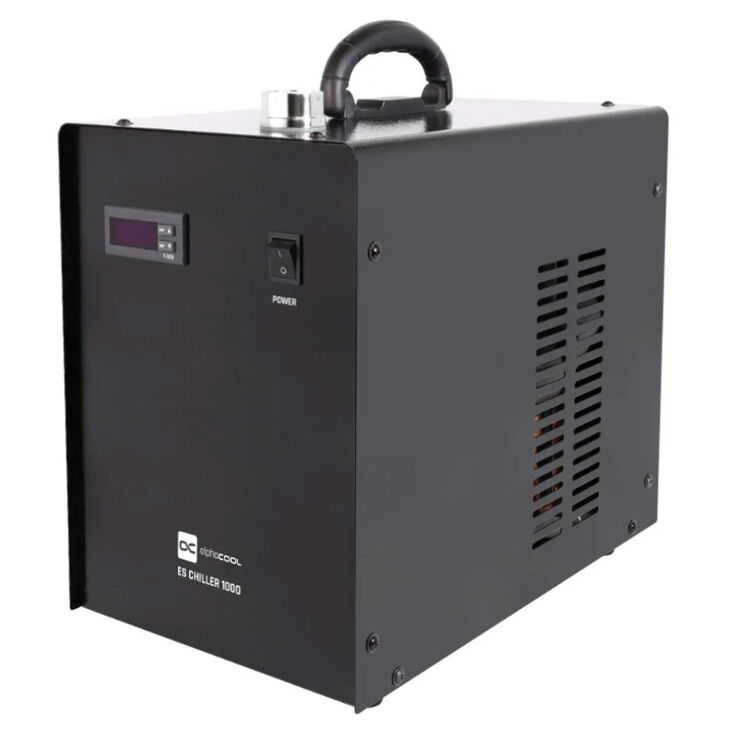

Alphacool ES Chiller 1000

Alphacool ES Chiller 1000

Compressor cooling system from Alphacool, 1000 watts cooling capacity, display, integrated pump
890,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU WASE-874 |
EAN 4250197130707 |
MPN 13070 |
Manufacturer Alphacool
  • Compressor cooling system by Alphacool
  • Integrated pump for better cooling performance
  • 1000 watts cooling capacity
  • Stationary unit with carrying handle for easy transport
  • Integrated display for more precise cooling step adjustments

The ES Chiller 1000 - Overview

With a maximum cooling capacity of 1000 watts, the Alphacool ES Chiller 1000 is a compressor cooling system that represents an ideal option for cooling your servers and workstation systems.

Thanks to a built-in pump, the chiller has the function of circulating and cooling the coolant. This ensures that your desired temperature is maintained.

All-In-One Cooling System

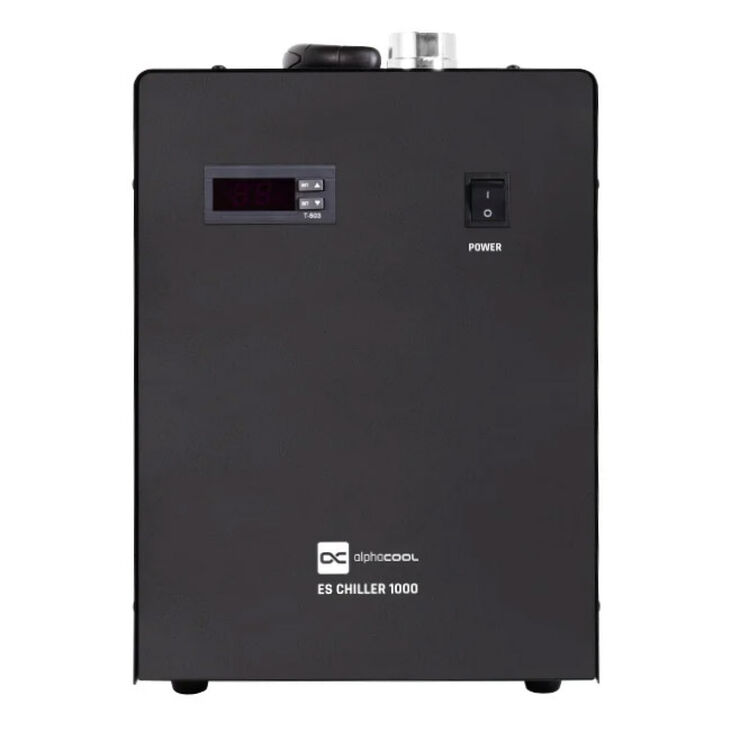

The ES Chiller is equipped with a display that allows you to make various settings, including temperature control in precise steps of 0.3 °C.

The built-in pump, with a maximum lift height of up to 10 m, allows the chiller to be directly integrated into the cooling circuit. No additional pump is required.

Furthermore, the chiller features overvoltage protection for the compressor and an alarm that warns you of low flow or overheating, ensuring additional safety.

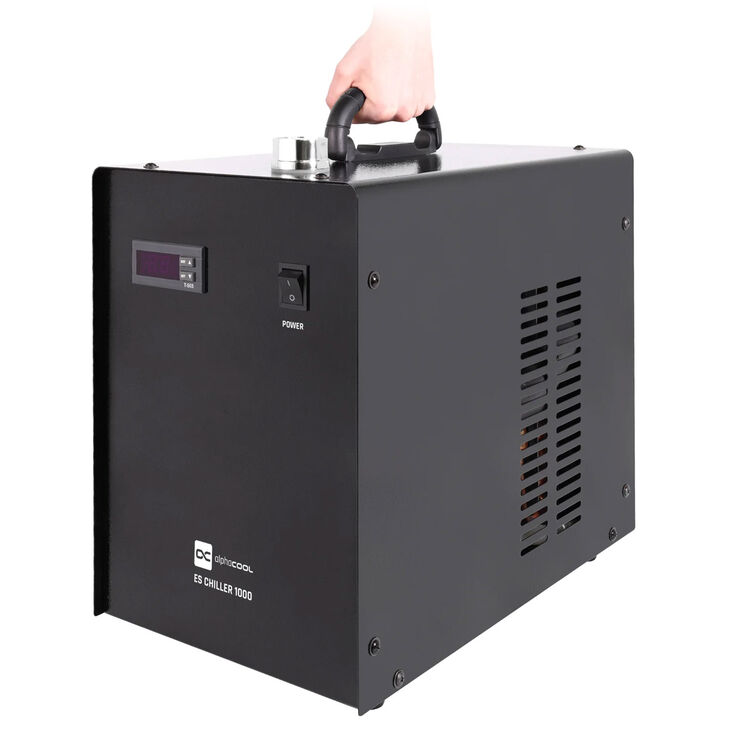

Uncomplicated transport is also possible, as the ES Chiller 1000 is a stationary device with a carrying handle.

  • Colour: Black
  • Dimensions: 440 x 260 x 390 mm (L x W x H)
  • Weight: 16 kg
  • Voltage: 220 V
  • Frequency: 50 Hz
  • Current: 0.4 – 2.68 A
  • Compressor power: 0.44 / 0.46 kW
  • Cooling capacity: 0.89 / 1.08 kW
  • Refrigerant: R-134a
  • Refrigerant charge: 280g
  • Precision: ± 0.3°C
  • Reducer: Capillary
  • Protection:
    Overcurrent protection for compressor
    Flow alarm
    Overtemperature alarm
  • Pump power: 0.03 kW
  • Expansion tank capacity: 2 l

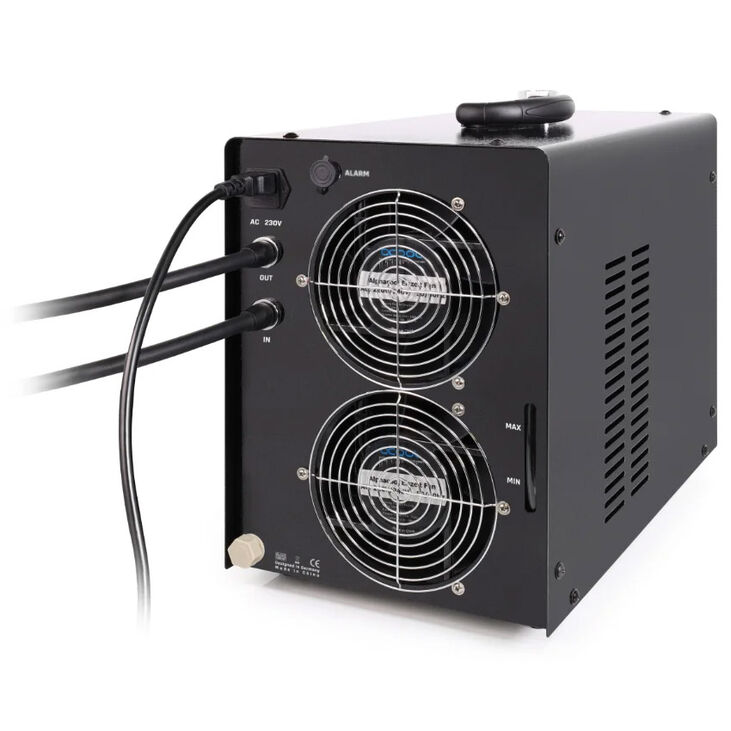

  • Inlet and outlet: G1/4 internal thread
  • Max. lift height: 10m
  • Max. flow rate: 10 l/min
Colour
Primary Colour
Black
Dimensions
Length / Depth
440 mm
Width
260 mm
Height
390 mm
Weight
16 kg
Lighting
Lighting / RGB
No
