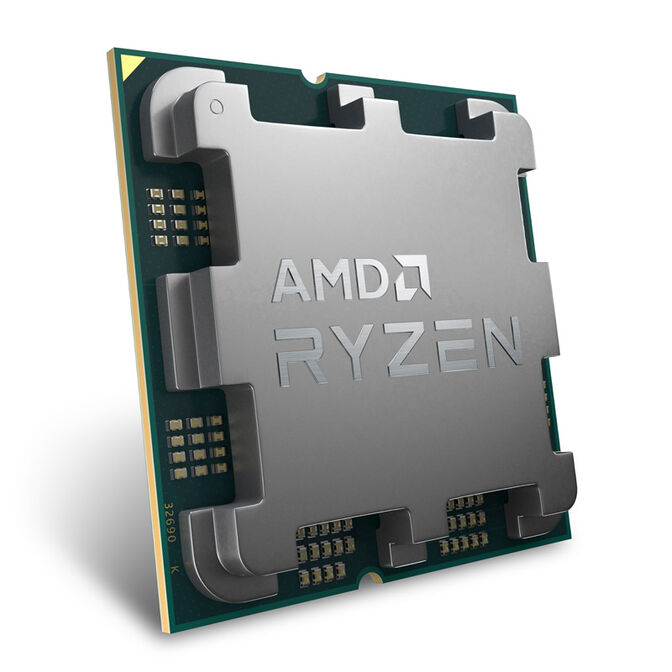

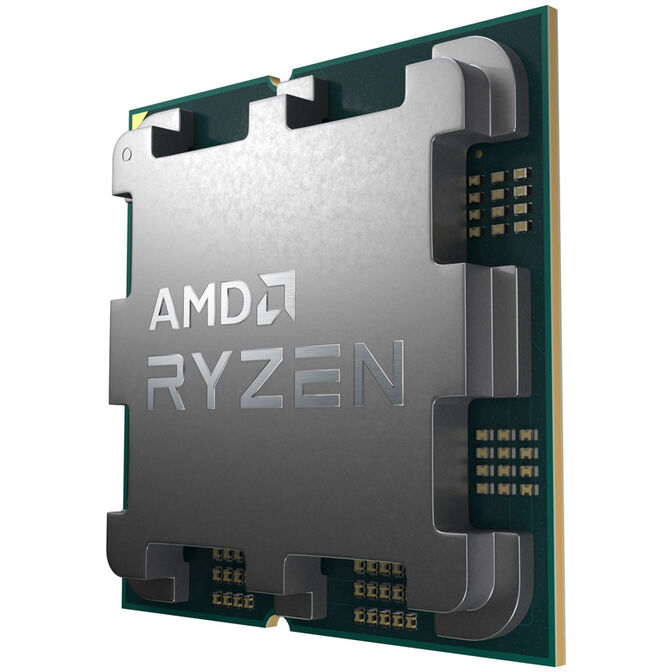

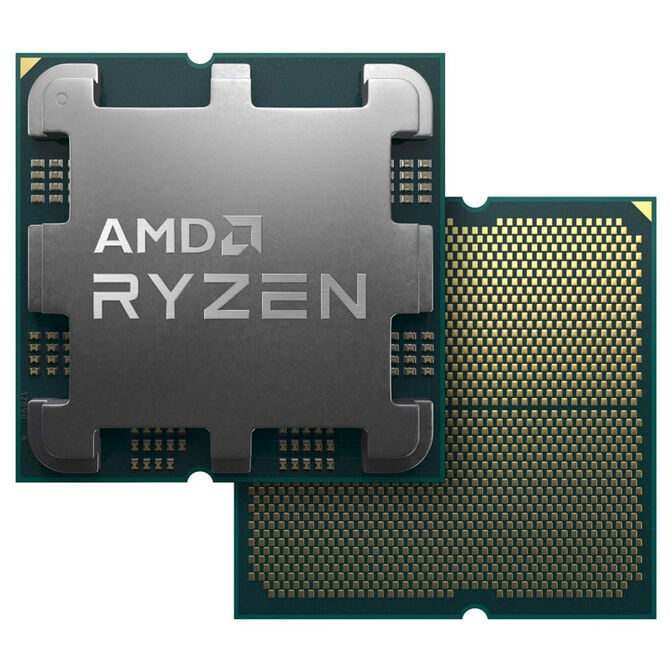

AMD Ryzen 7 7700 5.3 GHz (Raphael) AM5 - tray without cooler

• 8 cores and 16 threads with only 65 watts TDP
• 3.8 GHz base and 5.3 GHz turbo clock speeds with overclocking thanks to unlocked multiplier
• PCIe 5.0 for lightning-fast data transfer and DDR5 with native 5,200 MHz
• Large cache memory for high gaming performance
• High performance and efficiency thanks to 5-nanometre process
• Tray version without Wraith Prism CPU cooler!

AMD Ryzen 7 7700 – High-end performance based on Zen 4

The AMD Ryzen 7 7700 is based on the modern "Zen 4" architecture and offers 8 cores and 16 threads. Each core has full access to the L3 cache – perfect for gaming and multitasking. The CPU is part of the Raphael series and delivers strong all-round performance for desktop PCs.

8 cores, 16 threads – up to 5.3 GHz turbo

Thanks to Simultaneous Multithreading (SMT), the Ryzen 7 7700 can process up to 16 threads simultaneously. The base clock is 3.8 GHz, while Precision Boost 2 dynamically increases the clock speed up to 5.3 GHz – with an efficient TDP of only 65 watts.

PCIe 5.0 & AM5 compatibility

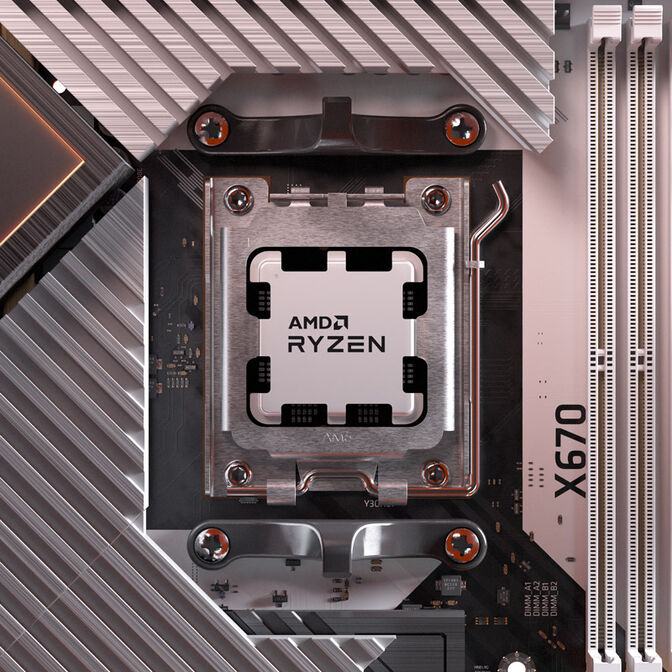

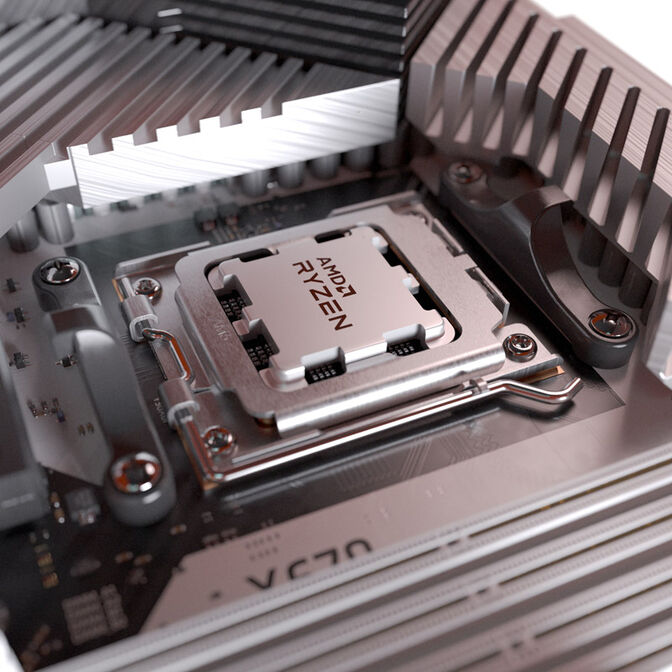

With a suitable chipset, the Ryzen 7 7700 supports the PCI Express 5.0 standard – twice as fast as PCIe 4.0. All Ryzen 7000 processors use the new AM5 socket and are future-proof for modern motherboards and high-end graphics cards.

Advanced 5-nm manufacturing process

The CPU cores are manufactured using the 5-nm FinFET process with EUV technology. This allows for higher density and efficiency. It features 8 MB L2 cache and 32 MB L3 cache – ideal for gaming, rendering, and complex computing tasks.

I/O chiplet and 28 PCIe lanes

The I/O die is based on 6-nm technology and controls data connections. In total, the Ryzen 7 7700 offers 28 PCIe lanes: 4 for the chipset, 8 for NVMe SSDs, and 16 lanes for your graphics card – perfect for modern GPU setups.

Highest data rates with PCIe 5.0

In combination with an X670(E) or B650(E) motherboard, PCIe 5.0 offers maximum speed. Up to 15.6 GB/s is possible over four lanes – ideal for ultra-fast NVMe SSDs of the latest generation.

DDR5 RAM & modern connections

The Ryzen 7 7700 supports DDR5 memory up to 5,200 MHz (native), with overclocking possible beyond that. Also, USB4, Thunderbolt 4 and USB 3.2 Gen 2x2 are available via the AM5 platform – with data transfer rates up to 40 Gbit/s.

Precision Boost 2 – automatic overclocking

Thanks to Precision Boost 2, the CPU intelligently adjusts its clock speeds. Up to 150 MHz additional beyond the normal boost is possible – provided cooling and motherboard allow it. No manual overclocking needed.

Unlocked for manual overclocking

The Ryzen 7 7700 is fully unlocked. With a suitable board (e.g. X670E or B650E), you can freely adjust the multiplier – in the BIOS or with tools like Ryzen Master. Requirement: good VRMs and cooling.

Integrated Radeon graphics with RDNA2

The integrated Radeon GPU is based on RDNA2 and offers 2 Compute Units with 128 shaders and 2,200 MHz clock speed. It supports AV1, VP9, H.264/H.265, HDMI 2.1 as well as DisplayPort 2.0 – ideal for 4K and 8K displays.
