- Black case with a 270° tempered glass side panel and wood accents
- Comprehensive cooling options with support for up to nine fans and radiators up to 360mm
- Supports motherboards up to ATX with Back-Connect support
- Space for graphics cards up to 410mm and CPUs up to 175mm in height
- Capacity for up to three drives
- Dual-chamber design for independent cooling
- Includes four pre-installed fans

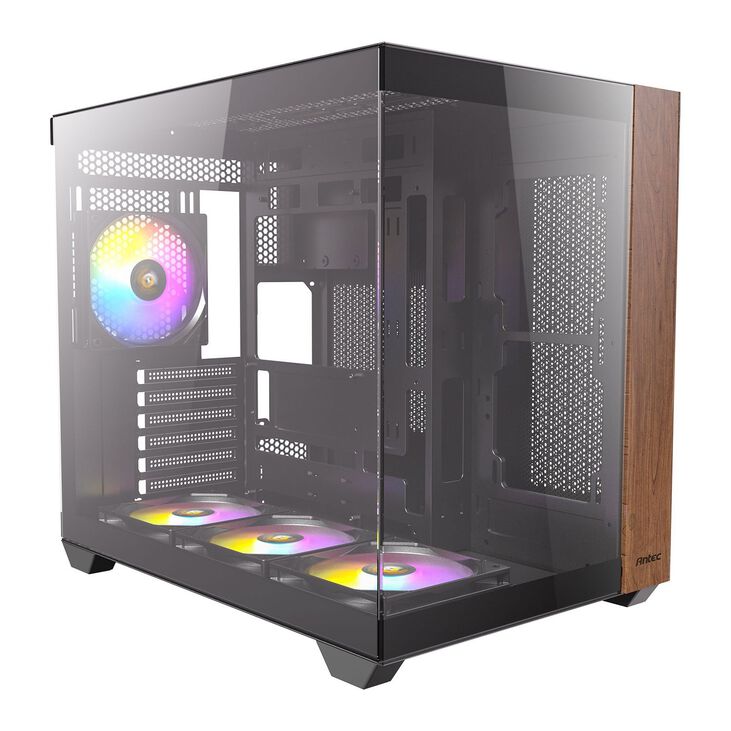

The Antec CX800: Midi-Tower with stylish wood accents on the front
The Antec CX800 provides ample space for customising and installing your high-end hardware to suit your needs. Your gaming hardware benefits from a range of effective cooling options, and the dual-chamber design enables independent cooling of the CPU, GPU, and power supply, resulting in even more efficient airflow. The tempered glass panels on the side and front also offer a generous view into the case interior, showcasing any RGB lighting beautifully.
Fans and Radiators
High-performance hardware requires equally powerful cooling to prevent overheating. The Antec CX800 supports up to nine fans in total. The top and bottom can accommodate either three 120mm or two 140mm fans. On the side, there is space for two 120mm fans, and the rear can hold a 120mm or 140mm fan.
The case also includes four pre-installed fans: three 120-mm-ARGB-PWM fans with reverse blades mounted on the bottom, plus one standard ARGB-PWM fan on the rear panel.
If you prefer liquid cooling, there are ample mounting options. Radiators up to 360mm can be installed in several positions: at the bottom and top. Additionally, there is space on the rear for a 120mm radiator and another 120mm or 140mm radiator on the side.
With so many options for cooling your hardware, your gaming PC will always operate at peak performance. Dust filters on the bottom, top, and side help keep the interior free from dust, extending the lifespan of your components significantly.
Hardware Compatibility
The Midi-Tower supports graphics cards up to 410mm in length, allowing for the latest NVIDIA 40-series GPUs. Motherboards are supported up to ATX size, and Back-Connect motherboards can also be used for a cleaner build.
The CPU cooler should not exceed a height of 175mm. For the power supply, there are minimal limitations—it can be up to 225mm long and is mounted on the side of the tower. To store your programmes and games, the Antec CX800 allows for up to three 2.5-inch drives on the side.
- Dimensions: 302 x 390 x 435 mm (W x H x D)
- Colour: Black / Brown
- Material: Steel, Tempered Glass, Wood
- Weight: 7.8 kg
- Form Factor: E-ATX (up to 280 mm), ATX, Micro-ATX, Mini-ITX
- Total Fan Support:
Top: 3x 120 / 2x 140 mm
Side: 2x 120 mm
Bottom: 3x 120 / 2x 140 mm
Rear: 1x 120 / 140 mm - Pre-installed Fans: 4
- Radiator Mounts:
Top: 1x 360 / 280 / 240 / 140 / 120 mm
Side: 1x 140 / 120 mm
Bottom: 1x 360 / 280 / 240 / 140 / 120 mm
Rear: 1x 120 mm - Dust Filters: Top, Right Side, Bottom
- Drive Bays:
2x 3.5" / 1x 2.5" (Side)
1x 2.5" (Bottom) - Power Supply: 1x ATX (optional, max. 225 mm)
- Expansion Slots: 6
- I/O Panel:
1x Power Button
1x LED Control Button
1x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x USB 3.0 (Type-C, USB 3.2 Gen 1, max. 5 Gbit/s)
1x 3.5 mm Combo Jack - Maximum GPU Length: 410 mm
- Maximum CPU Cooler Height: 175 mm
- Included Accessories:
1x Antec CX800 Midi-Tower
3x 120 mm ARGB-PWM Reverse Fans (Bottom)
1x 120 mm ARGB-PWM Fan (Rear)
Colour
|
|
Primary Colour
|
Black
|
Secondary Colour
|
Brown
|
Dimensions
|
|
Length / Depth
|
435 mm
|
Width
|
302 mm
|
Height
|
309 mm
|
Weight
|
7.8 kg
|
Case
|
|
Case Type
|
Mid Tower
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
Max. Motherboard Format
|
ATX
|
Internal Dimensions
|
|
Max. CPU Cooler Height
|
175 mm
|
Max. GPU Length
|
410 mm
|
Max. PSU Length / Depth
|
225 mm
|
Display
|
|
Display Included
|
No
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
ATX
|
Power Supply Position
|
side
|
Fan Support
|
|
120 mm fans
|
9
|
140 mm fans
|
5
|
Radiator Support
|
|
Max. Radiator Compatibility
|
1x 120/140 mm, 1x Single (120 mm), 2x Triple (360 mm)
|
Drive Bays
|
|
2.5 inch internal drive bay
|
1
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
2
|
External Ports
|
|
USB 3.1 (external) Type C
|
1
|
USB 3.0 (external) Type A
|
1
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
Case Features
|
|
I/O position
|
Cover
|
Side panel
|
with window
|
Filters Included
|
Yes
|
Back Connect
|
|
Back Connect
|
Yes
|
Expansion Slots
|
|
Expansion slots / PCI slots
|
6
|
Materials
|
|
Materials
|
Steel, Tempered Glass, Wood
|
Lighting
|
|
Lighting / RGB
|
No
|
Additional Contents
|
|
Included fans
|
4x 120 mm
|
