ASUS ROG Maximus Z890 Apex motherboard, socket LGA 1851, Intel Z890, ATX, DDR5
This high-end motherboard is excellent for enthusiasts and overclockers.
- 2x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x4
- 2x DIMM slots for max. 96 GB DDR5 RAM up to 9,000 MHz (XMP 3.0 & CUDIMM Support)
- 4x M.2 (of which 3x PCIe 5.0 and 1x PCIe 4.0) / 4x SATA 6G

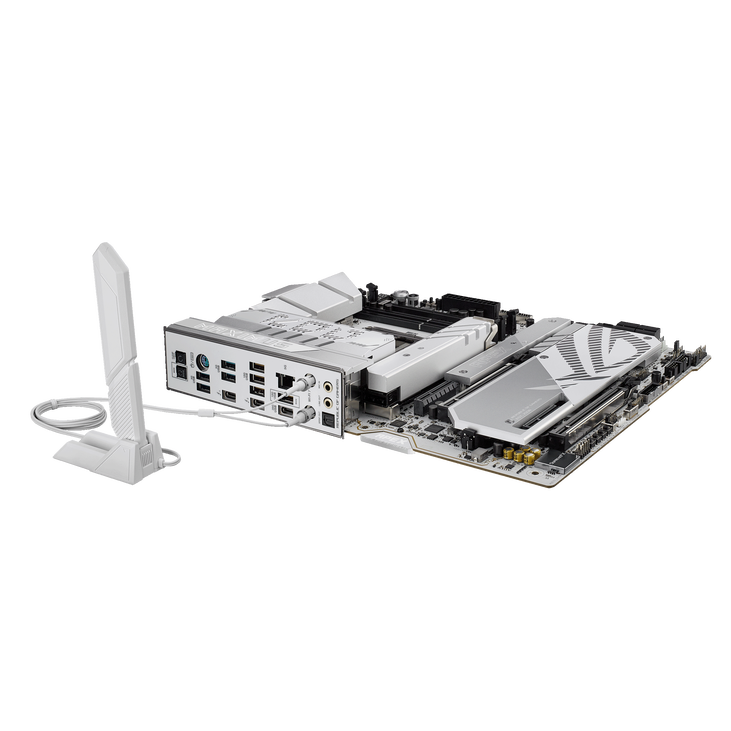

- USB on the I/O panel: 2x USB4, 1x USB 3.2 Type-C, 4x USB 3.1 and 4x USB 3.0
- OC features: 22+1+2+2 phase VRMs, Dual BIOS, CMOS Reset, ReTry, LN2 Support
- A total of 9x 4-pin connectors for fans & pumps
- Supports WiFi 7 and Bluetooth 5.4

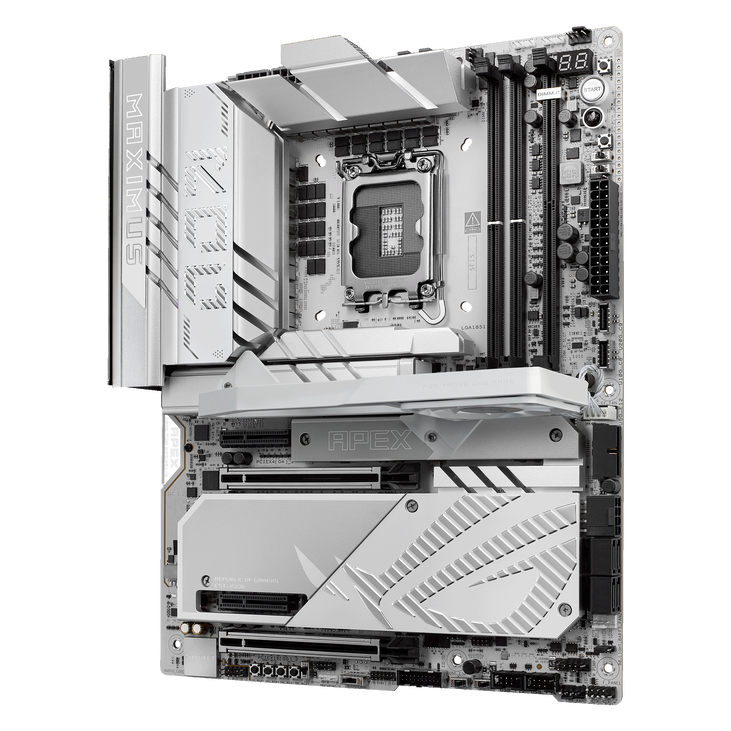

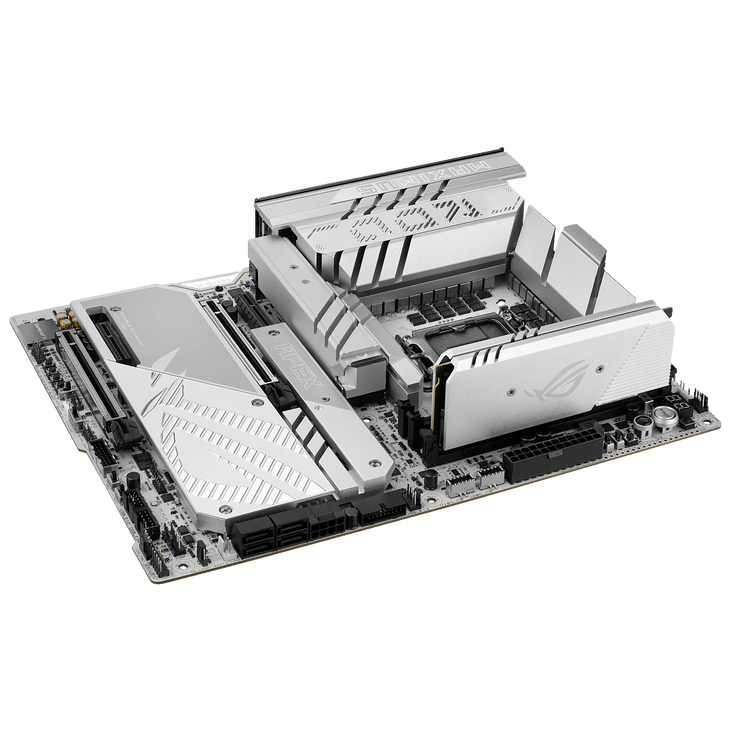

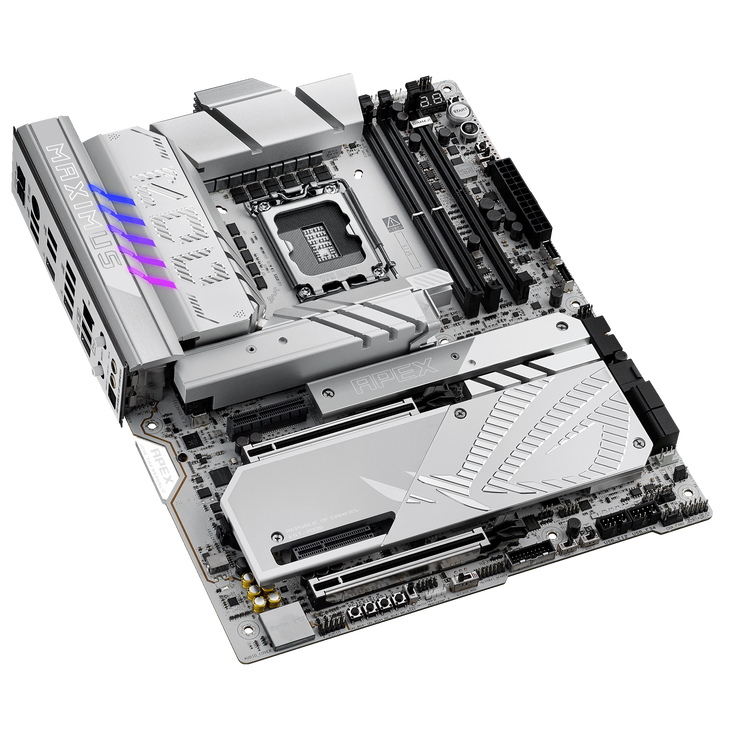

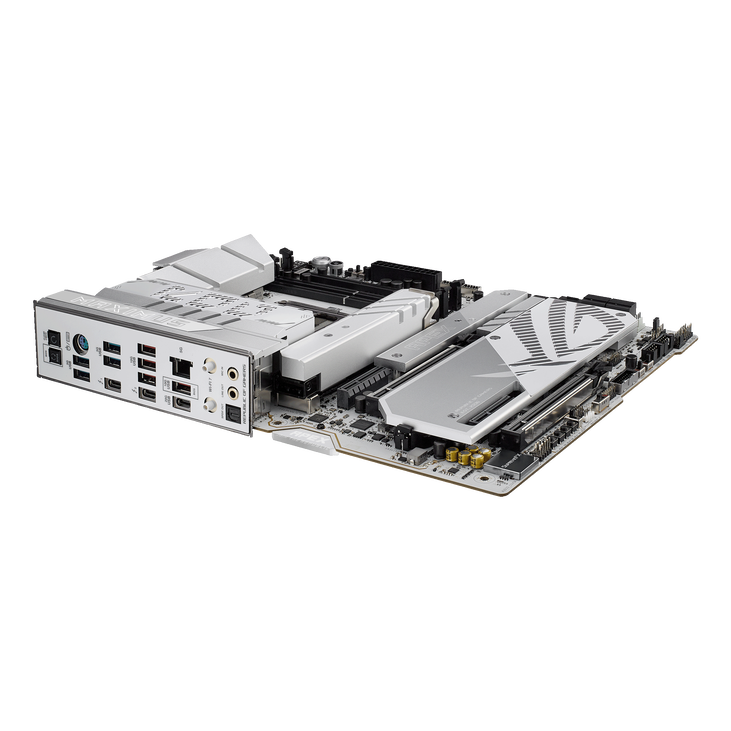

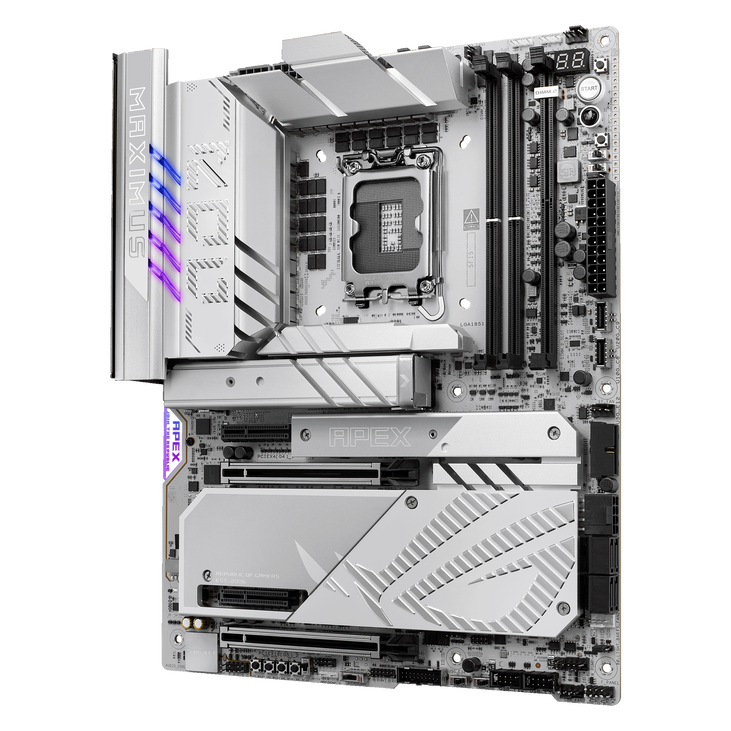

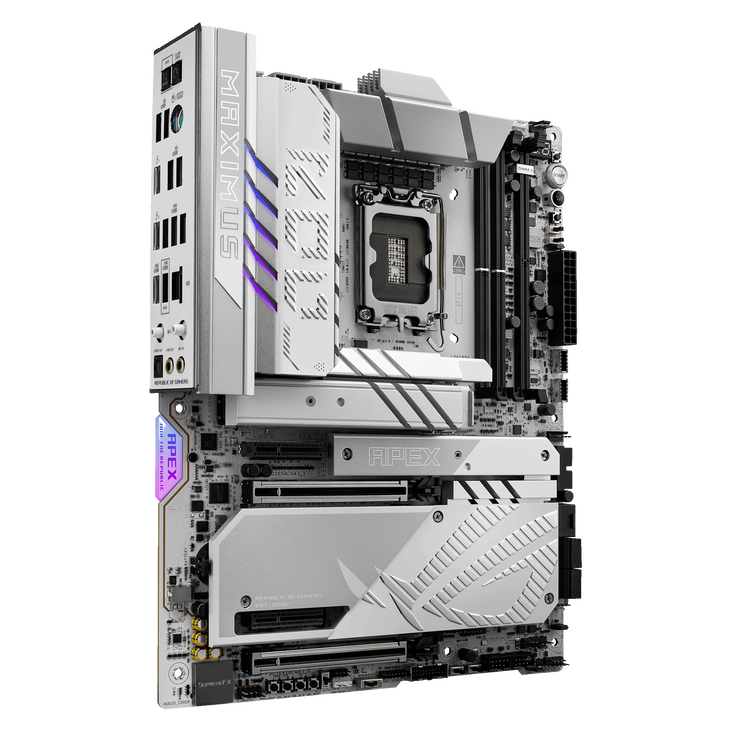

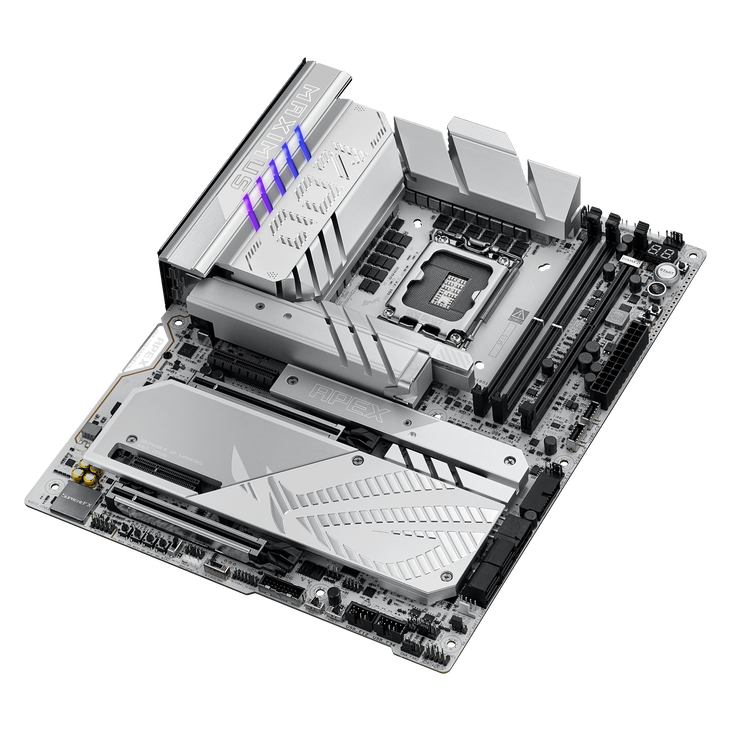

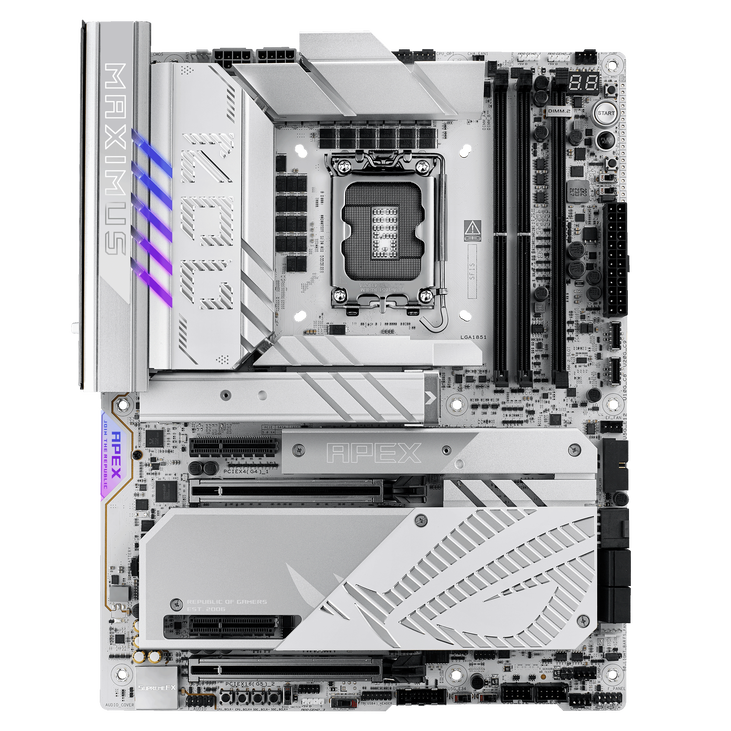

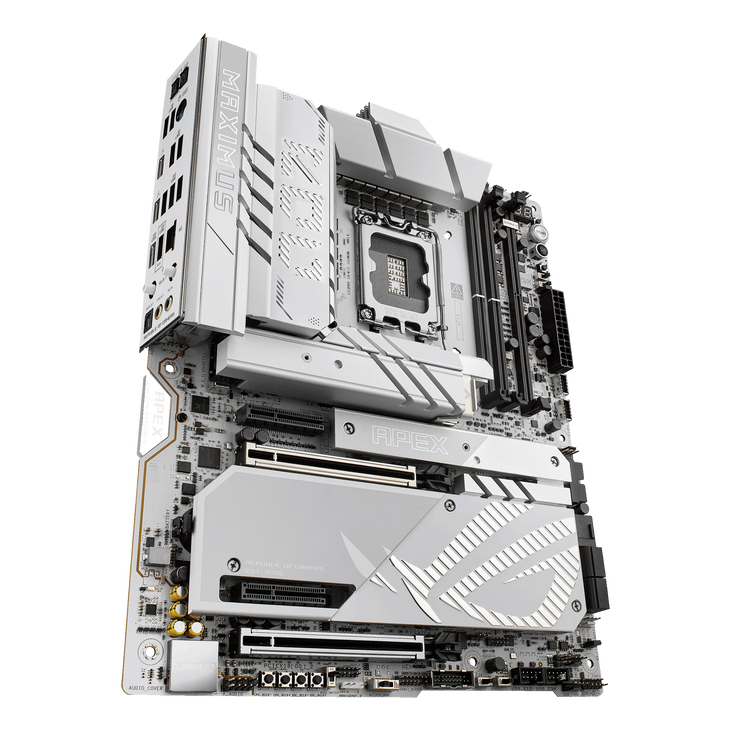

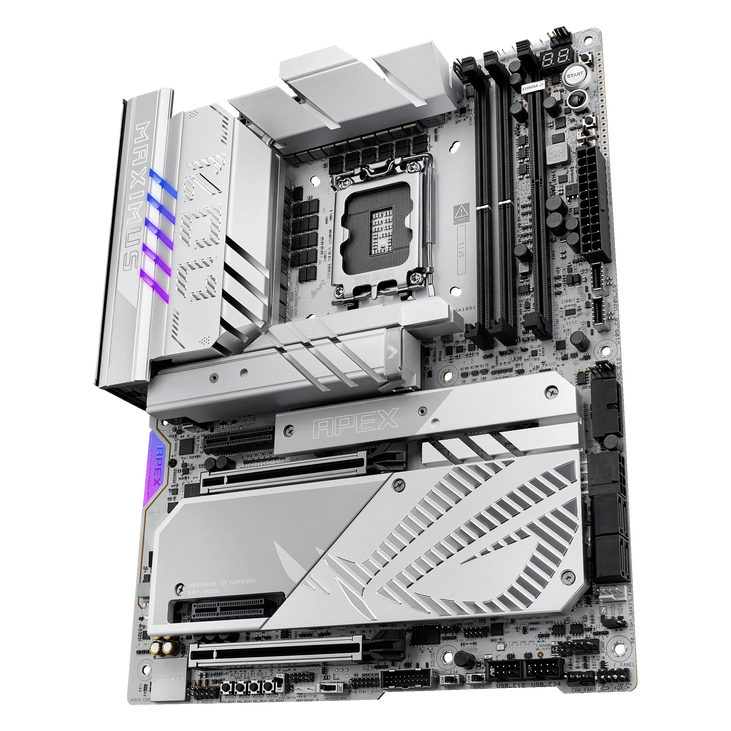

ASUS ROG Maximus Z890 Apex: ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The ASUS ROG Maximus Z890 Apex is an ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports Intel Core Ultra processors of the second generation with the codename Arrow Lake. The Intel Z890 motherboard natively supports USB4, offering data transfer rates of up to 40 Gbit/s. Additionally, the ASUS ROG Maximus Z890 Apex impresses with full PCIe 5.0 connectivity, providing you with double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
The ASUS ROG Maximus Z890 Apex offers a variety of specially developed overclocking features for enthusiasts. With the 22+1+2+2 phase power supply and Extreme Engine Digi+ technology, it ensures stable voltages even at extreme clock frequencies. Extensive OC features include the LN2 mode, specifically designed for liquid nitrogen cooling, as well as the ReTry and Safe Boot buttons that facilitate restarting after a failed overclocking attempt.

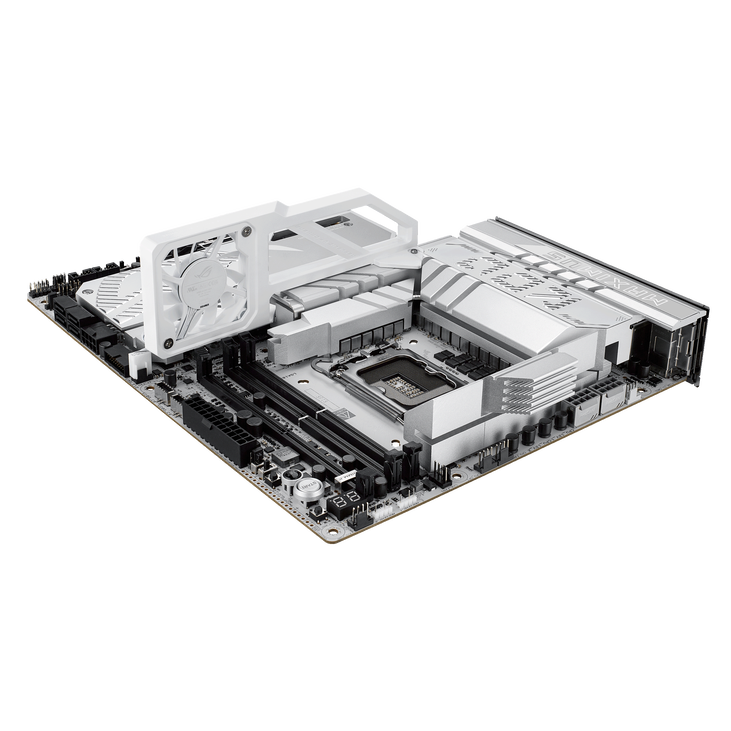

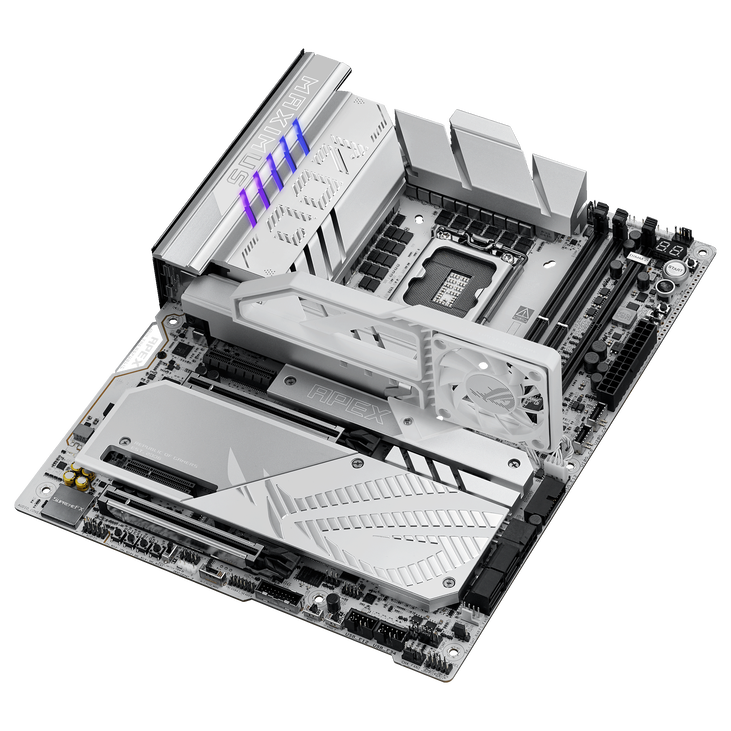

The board is also equipped with the ROG DIMM-2 adapter, which provides space for two additional M.2 SSDs that are protected by separate heatsinks to ensure high storage speeds.
- Form factor:
ATX (305 x 244 mm) - Chipset:
Intel Z890 - Socket:
LGA 1851 (For Intel Core Ultra CPUs of the 2nd generation) - RAM:
2x DDR5 DIMM (5,600 MHz, up to 9,000 MHz via XMP / OC / CUDIMM)
Dual-Channel
Max. 96 GB - Slots (physical):
2x PCIe 5.0 x16 (electrical x16 or x8/x8)
2x PCIe 4.0 x4 - Internal connections:
4x SATA 6G
3x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
1x M.2 (PCIe 4.0 x4 2242 / 2260 / 2280, chipset)
1x USB-C (1 Header, USB 3.2 Gen 2x2, max. 20 Gbit/s)
1x USB-C (1 Header, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (2 Headers, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (2 Headers, max. 480 Mbit/s)
1x Front Panel Audio Header
1x 10-1-Pin System Panel Header
1x FlexKey Button
1x ReTry Button
1x Start Button
1x BIOS Switch Button
1x LN2 Mode Jumper
4x BCLK Button
1x OSC Sense Header
18x ProbeIt Measurement Points
1x RSVD Header
2x RSVD Switches
1x Safe Boot Button
1x Slow Mode Switch
1x VLatch Switch - Fan headers:
1x CPU Fan (4-Pin)
1x CPU OPT Fan (4-Pin)
1x 4-pin AiO Pump Header
1x W_PUMP+ Header
1x Water Flow Header
2x Case Fans (4-Pin)
2x Full-Speed Headers (4-Pin) - RGB headers:

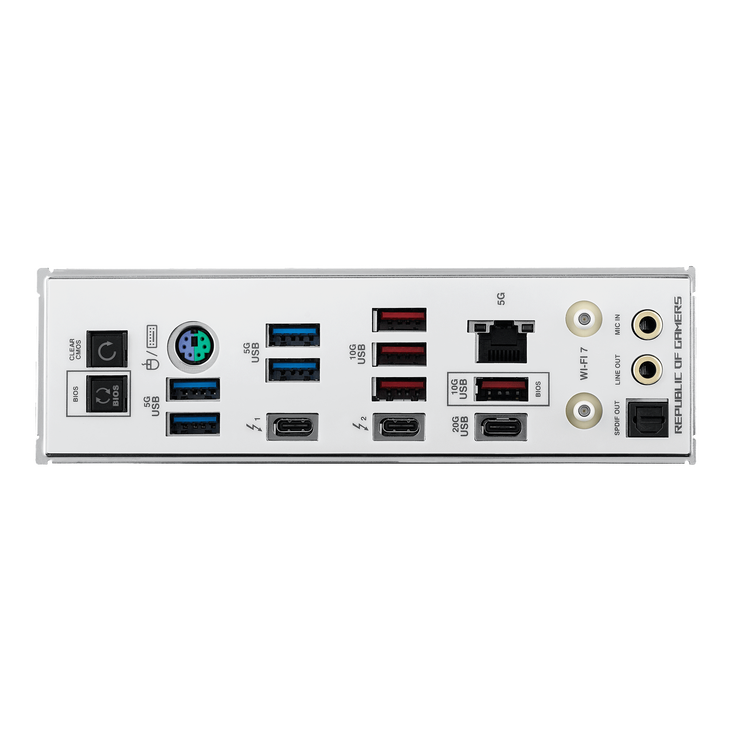

3x 3-Pin ARGB (5 V) - External connections:
2x Thunderbolt 4 (USB-C)
1x USB 3.2 (Type C, USB 3.2 Gen 2x2, max. 20 Gbit/s)
4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x 5 Gigabit LAN
1x WiFi 7 / Bluetooth 5.4
2x 3.5 mm Jack (Realtek ALC 4080)
1x S/PDIF Audio - Power supply:
1x 24-Pin ATX
2x 8-Pin ATX12V

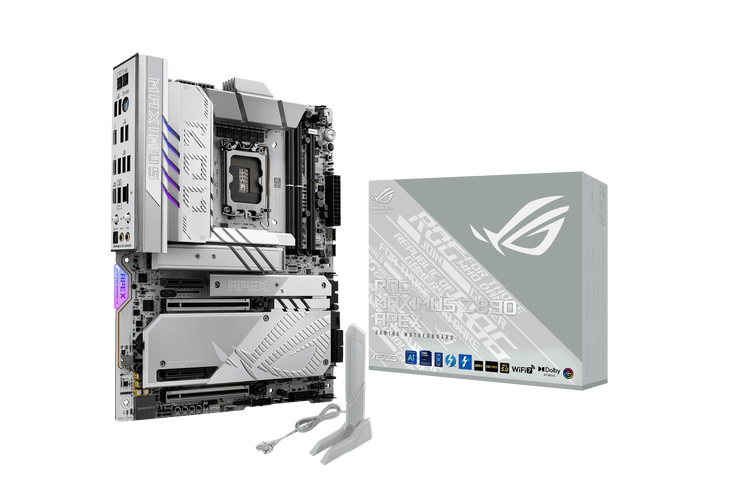

1x 8-Pin PCIe ATX - Accessories:
1x ROG DIMM.2 with heatsink
1x ROG Memory Fan Kit
1x ASUS WiFi Q-Antenna
1x ROG Bottle Opener
1x USB Drive with drivers and utilities
|
Colour
|
|
|
Primary Colour
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
244 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1851
|
|
Power Specifications
|
|
|
Power Stages (VRMs)
|
22+1+2+2
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z890
|
|
Dual BIOS
|
Yes
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
96 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (OC)
|
9000 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
2x
|
|
Performance Profile
|
Intel XMP
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
2
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
2
|
|
USB 3.0 (internal) Header
|
2
|
|
USB 3.0 (internal) Possible Ports
|
4
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 3x2 (external) Type C
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
4
|
|
USB 3.0 (external) Type A
|
4
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
3
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
2
|
|
PCIe x4 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
2
|
|
PCIe 4.0 x4 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
9
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC4080
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
ASUS Aura Sync
|
|
Product Series
|
|
|
Product Series/Family
|
ROG
|
