ASUS ROG Strix Z790-E Gaming WiFi Motherboard, Socket 1700, Intel Z790, ATX, DDR5
ATX motherboard with Intel Z790 chipset, 1x PCIe 5.0 x16 / 2x PCIe 4.0 x4 / 1x PCIe 3.0 x1, 2x USB-C 3.2 / 1x USB-C 3.1 / 7x USB 3.1 / 8x USB 3.0, 5x M.2 (1x PCIe 5.0, 4x PCIe 4.0) / 4x SATA 6G, 8x 4-pin PWM connectors, for DDR5 RAM
367,28 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 5.0 x16 (x16), 2x PCIe 4.0 x16 (x4), 1x PCIe 3.0 x1
- DDR5 memory up to 5,600 MHz, overclockable to 7,200 MHz
- 5x M.2 slots, of which 4x with PCIe 4.0 and 1x PCIe 5.0

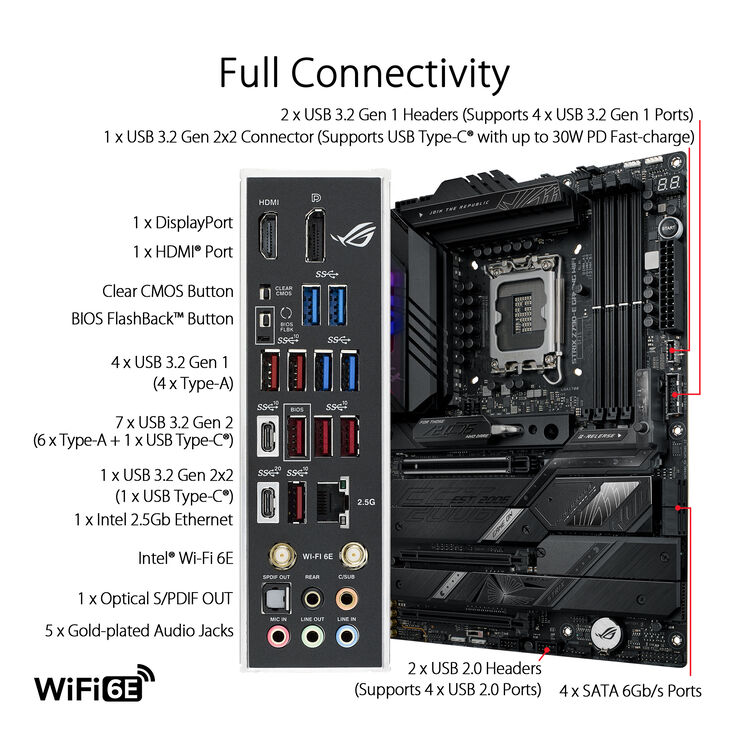

- USB on the I/O panel: 4x USB 3.0 Type A / 6x USB 3.1 Type A / 1x USB 3.1 Type C and 1x USB 3.2 Type C
- OC features: VRMs with 18+1 phases, BIOS flashback, diagnostic LEDs
- A total of 8 connections for fans and pumps

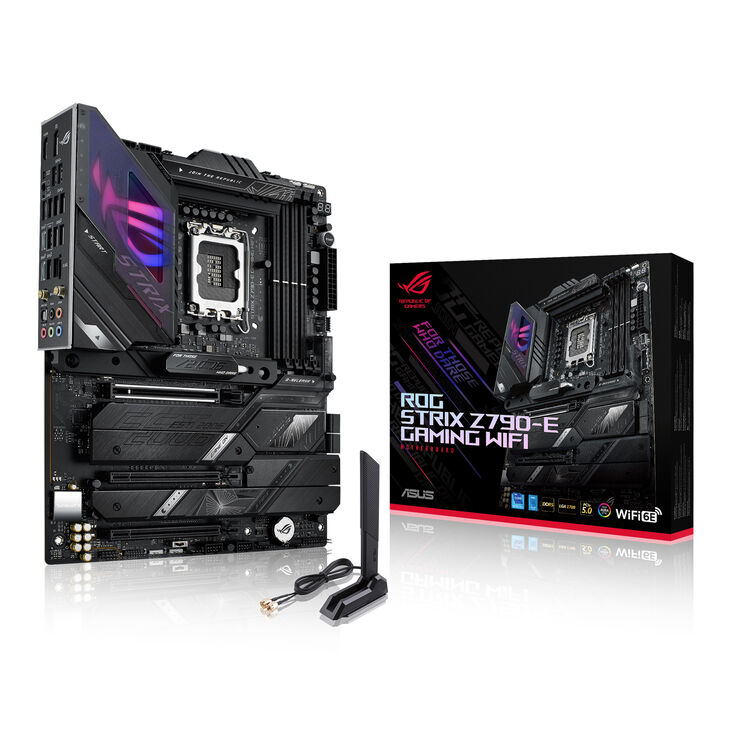

The ATX motherboard ASUS ROG STRIX Z790-E GAMING WIFI with Intel Z790 chipset in detail
The ASUS ROG STRIX Z790-E GAMING WIFI is an ATX motherboard featuring the high-end Intel Z790 chipset and LGA 1700 socket. The motherboard is suitable for desktop processors of the 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake and Raptor Lake. It supports DDR5 memory with speeds up to 7,200 MHz and is excellently suited for overclocking thanks to its power supply with 18+2 phases and 90 A.
Note: This motherboard supports memory with the DDR5 standard. LGA 1700 motherboards with DDR4 compatibility can be found at the following link:
For the best possible performance of the processor, it is recommended to regularly perform BIOS updates for the motherboard. This is especially true for motherboards that may have been shipped by the manufacturer with an early BIOS version.
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay the shipping preparation by 1 to 4 working days!
More information on Intel Alder Lake and Raptor Lake as well as the Core processors of the 12th, 13th, and 14th generations can be found at the following link:|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
30.5 cm
|
|
Width
|
24.4 cm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel Z790
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
2
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 2.0 x2
|
5
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x16 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
| Manufacturer Information | ASUS GLOBAL PTE. LTD. 15A Changi Business Park Central 1, 486035 Singapore, Singapore |
| Responsible Person | ASUS GLOBAL PTE. LTD. 15A Changi Business Park Central 1, 486035 Singapore, Singapore |
