- Three white 120mm PWM fans
- Between 400 and 2,400 revolutions per minute
- Quiet operation due to magnetic levitation bearing
- Airflow up to 69.9 CFM and static pressure up to 5.22mm H2O
- Suitable for both radiators and as case fans
- Including iCUE Link system hub

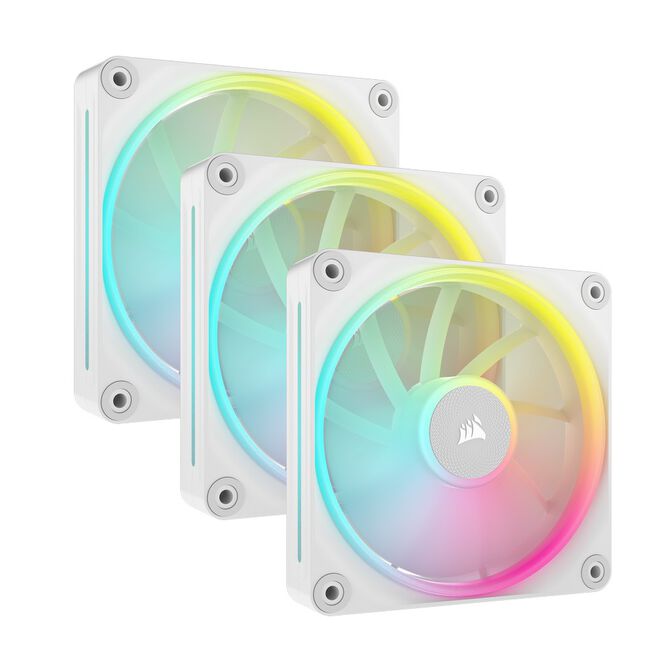

iCUE Link LX120: Powerful 120mm PWM fan with iCUE Link compatibility
Efficient fans are a very important component when building a gaming PC, as they ensure that your hardware remains at low temperatures and does not lose performance. The iCUE Link LX120 fans from Corsair are perfect for this: They are available in single packs as well as in triple packs and can reach up to 2,400 revolutions per minute. It should be noted that an iCUE Link system hub is required for the use of individual fans.
Usable for radiators and as case fans
With their very high static pressure of 5.22 mm H2O and strong airflow of 69.9 CFM, they are suitable not only for use as standard case fans but also for radiators. The optimised blade shape and Corsair Airguide ensure that the fan performs excellently in both applications.
Improved magnetic levitation bearing
Inside the fan, there is a magnetic levitation bearing. Due to the minimised friction and the also reduced mechanical friction, the iCUE Link LX120 is relatively quiet even under heavy load at a maximum of 36 dB (A). Additionally, the reduced friction contributes to a longer lifespan.
Intelligent PWM cooling
The PWM cooling of the fans allows you to control the number of revolutions via a programme from the motherboard. This reduces unnecessary power consumption and allows you to decrease the revolutions for low-power applications.
- Fan Size: 120 x 120 x 25 mm
- Colour: White
- Quantity: 3
- Speed: 400 to 2,400 RPM
- Airflow: 9.75 to 69.9 CFM
- Static Pressure: 0.13 to 5.22 mm H2O
- Noise Level: 10 to 36 dB (A)
- Connections:
Fan: 4-Pin (PWM)
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
120 mm
|
|
Width
|
120 mm
|
|
Weight
|
255 g
|
|
Fan height
|
25 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Fan Blade Direction
|
Standard
|
|
Fan Bearing
|
Magnetic Dome Bearing
|
|
Min. Fan RPM
|
400 rpm
|
|
Max. Fan RPM
|
2400 rpm
|
|
Min. Single Fan Airflow
|
9.75 cfm
|
|
Max. Single Fan Airflow
|
69.9 cfm
|
|
Min. Static Pressure
|
0.13 mmH2O
|
|
Max. Static Pressure
|
5.22 mmH2O
|
|
Noise
|
|
|
Min. Single Fan Noise
|
10 dB(A)
|
|
Max. Single Fan Noise
|
36 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
iCUE LINK
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
3
|
