- Two white 140mm PWM fans
- Between 350 and 2,000 revolutions per minute
- Quiet operation due to magnetic levitation bearings
- Airflow up to 84.7 CFM and static pressure up to 4.86 mm H2O
- Suitable for both radiators and as case fans

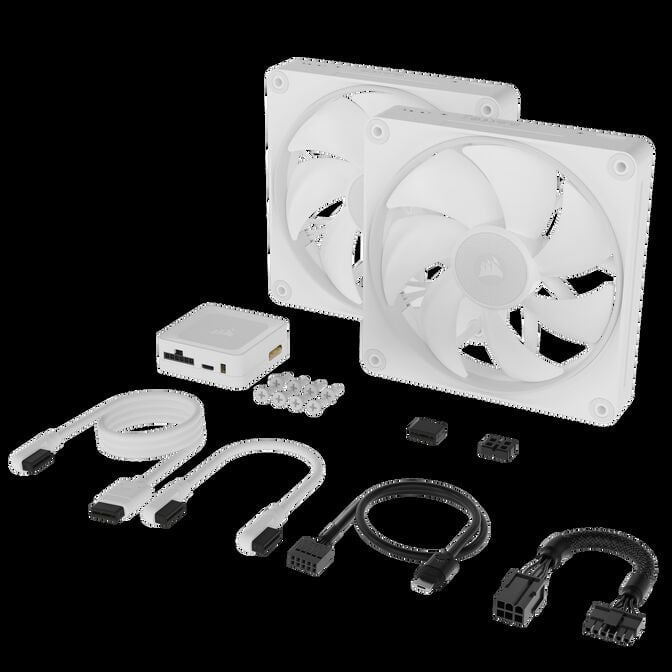

- Includes iCUE Link system hub

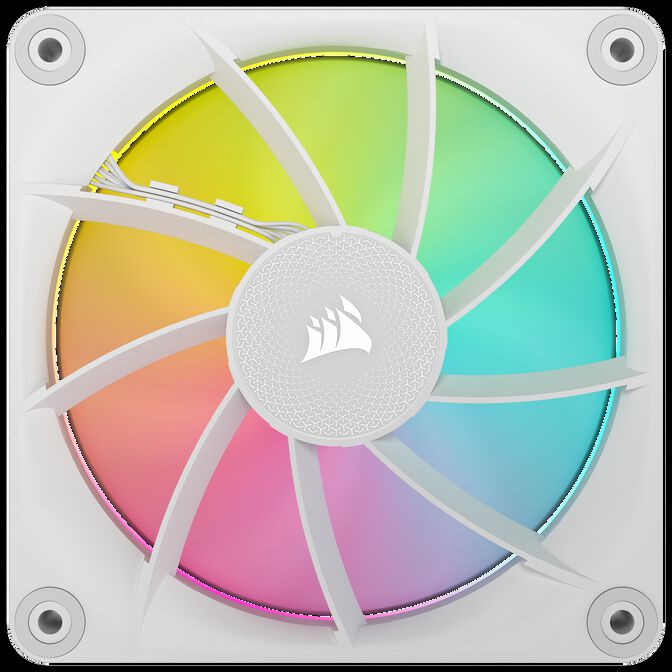

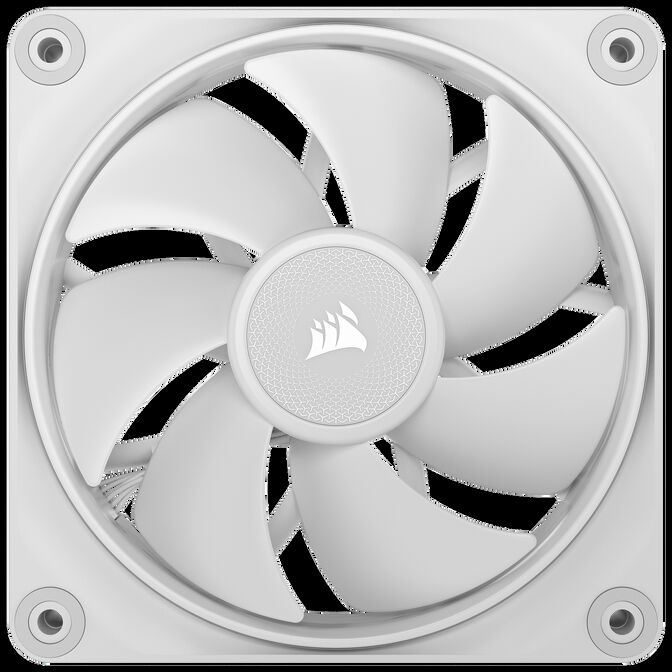

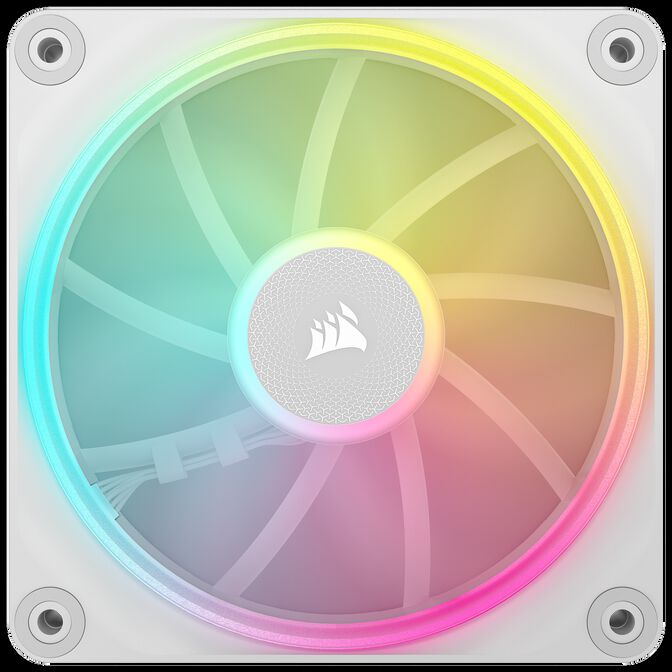

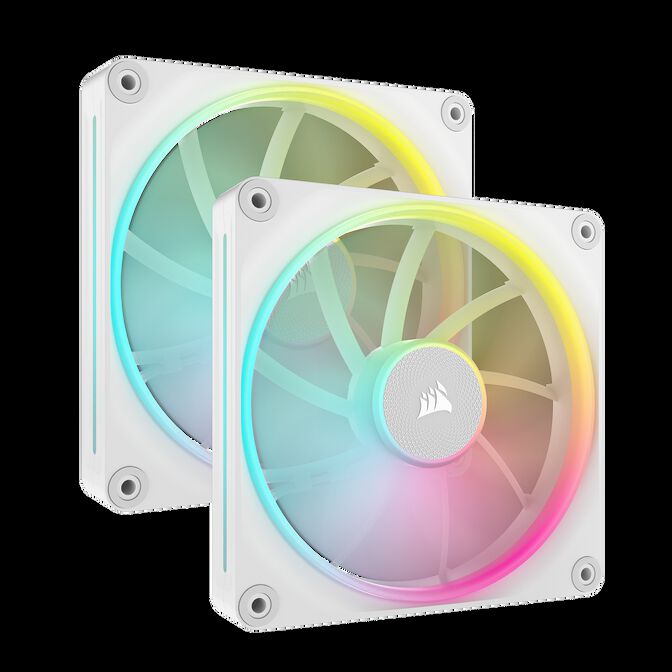

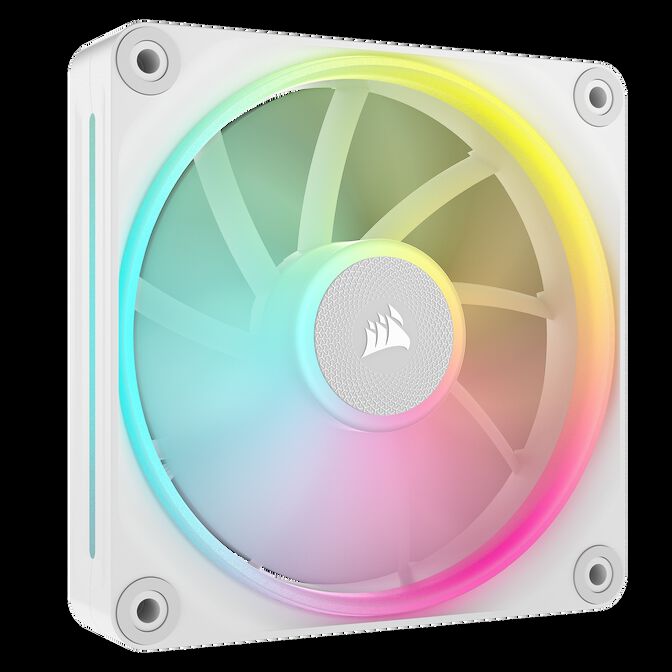

iCUE Link LX140: Powerful 140mm PWM fan with iCUE Link compatibility
Efficient fans are a very important component when assembling a gaming PC, as they ensure that your hardware stays at low temperatures and does not lose performance. The iCUE Link LX140 fans from Corsair are excellent for this purpose: They are available in single packs as well as in two-packs and can reach up to 2,000 revolutions per minute. It should be noted that an iCUE Link system hub is required for the use of individual fans.
Usable for radiators and as case fans
With their very high static pressure of 4.86 mm H2O and strong airflow of 84.7 CFM, they are suitable not only for use as standard case fans but also for radiators. The optimised blade shape and the Corsair Airguide ensure that the fan performs excellently in both applications.
Improved magnetic levitation bearing
Inside the fan, there is a magnetic levitation bearing. Due to the reduced friction and also decreased mechanical friction, the iCUE Link LX140 is relatively quiet even under heavy load at a maximum of 36 dB(A). Additionally, the reduced friction contributes to a longer lifespan.
Intelligent PWM cooling
The PWM cooling of the fans allows you to control the number of revolutions via a programme on the motherboard. This reduces unnecessary power consumption and allows you to decrease the revolutions during low-power applications.
- Fan Size: 140 x 140 x 25 mm
- Colour: White
- Quantity: 2
- Speed: 350 to 2,000 RPM
- Airflow: 10.74 to 84.7 CFM
- Static Pressure: 0.11 to 4.86 mm H2O
- Noise Level: 10 to 36 dB (A)
- Connections:
Fan: 4-Pin (PWM)
|
Colour
|
|
|
Primary Colour
|
White
|
|
Fan Main Colour (Frame)
|
White
|
|
Fan Main Colour (Rotor)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
140 mm
|
|
Width
|
140 mm
|
|
Weight
|
324 g
|
|
Fan height
|
25 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Fan Blade Direction
|
Standard
|
|
Fan Bearing
|
Magnetic Dome Bearing
|
|
Min. Fan RPM
|
350 rpm
|
|
Max. Fan RPM
|
2000 rpm
|
|
Min. Single Fan Airflow
|
10.74 cfm
|
|
Max. Single Fan Airflow
|
84.7 cfm
|
|
Min. Static Pressure
|
0.11 mmH2O
|
|
Max. Static Pressure
|
4.86 mmH2O
|
|
Noise
|
|
|
Min. Single Fan Noise
|
10 dB(A)
|
|
Max. Single Fan Noise
|
36 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
iCUE LINK
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Set
|
|
|
Set
|
Yes
|
|
Number of Products in Set
|
2
|
